Comp Cams Xtreme Energy XE274H 230/236 Hydraulic Flat Tappet Camshaft Ford Cleveland 302 351C

**Free Freight on orders over $200**

Ford Cleveland 302 351C Xtreme Energy XE274H 230/236 LSA 110 Hydraulic Flat Tappet Camshaft

Description

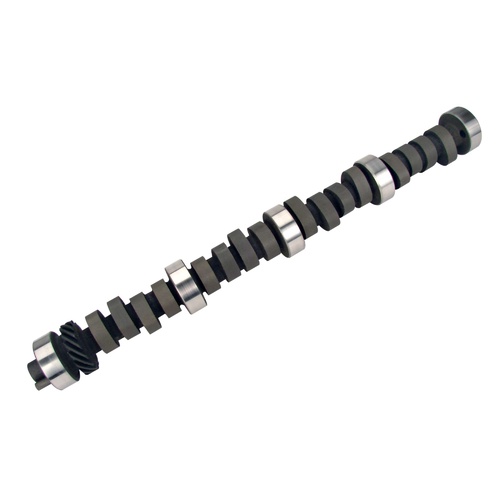

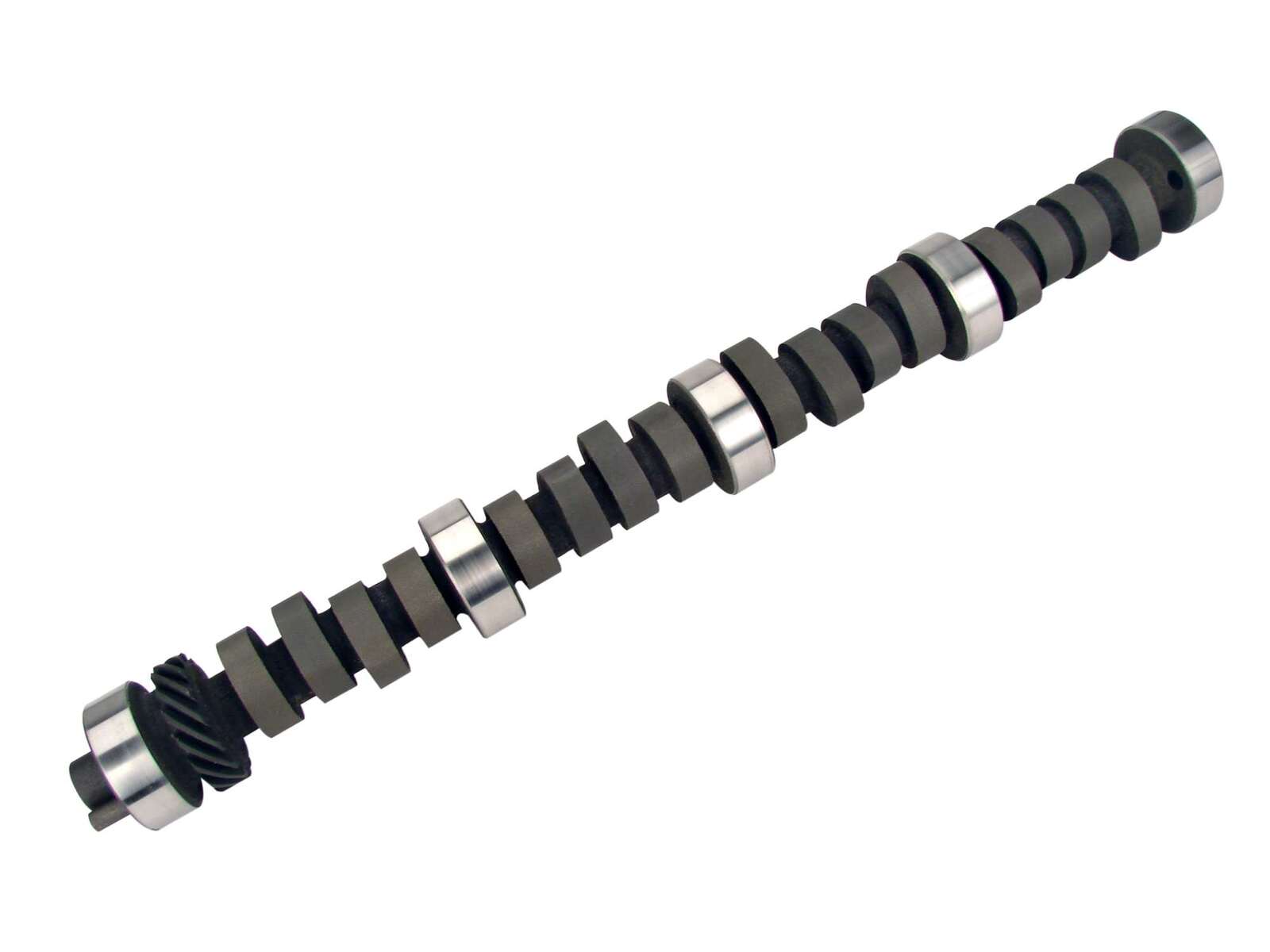

COMP 32-246-4 Cams Xtreme Energy™ 230/236 Hydraulic Flat Tappet Cam for Ford 351C, 351M-400M.
Very strong mid-range and throttle response. Cast Iron 3.73+ Gears. 2400+ Stall. Single bolt, requires springs.

Camshaft Specs:
Grind Number: XE274H

RPM Operating Range: 2,000-6,000

Advertised Duration: 274/286

Duration at .050" Lift: 230/236

Valve Lift: 0.562/0.565

Lobe Separation: 110

spec-card-valve-timing

Intake Open BTDC: 31

Intake Close ABDC: 63

Specifications

SKU	32-246-4
Barcode #	036584080275
Brand	COMP CAMS
intake valve lift	0.562
Exhaust Valve Lift	0.565
Lifter Type	Hydraulic Flat Tappet
Advertised Exhaust Duration	286
Advertised Intake Duration	274
Cam Type	Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift	236
Intake Duration At .050 Inch Lift	230
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XE274H
Basic Operating Rpm Range	2,000-6,000
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Cast Iron
