Chevy 350 Retro Fit Xtreme Energy 242/248 SBC Hydraulic Roller Camshaft XR294HR Small Block Chevy

**Free Freight on orders over $200**

SBC Xtreme Energy 242/248 LSA 110 Hydraulic Roller Camshaft Chevy Small Block 350 XR294HR

Description

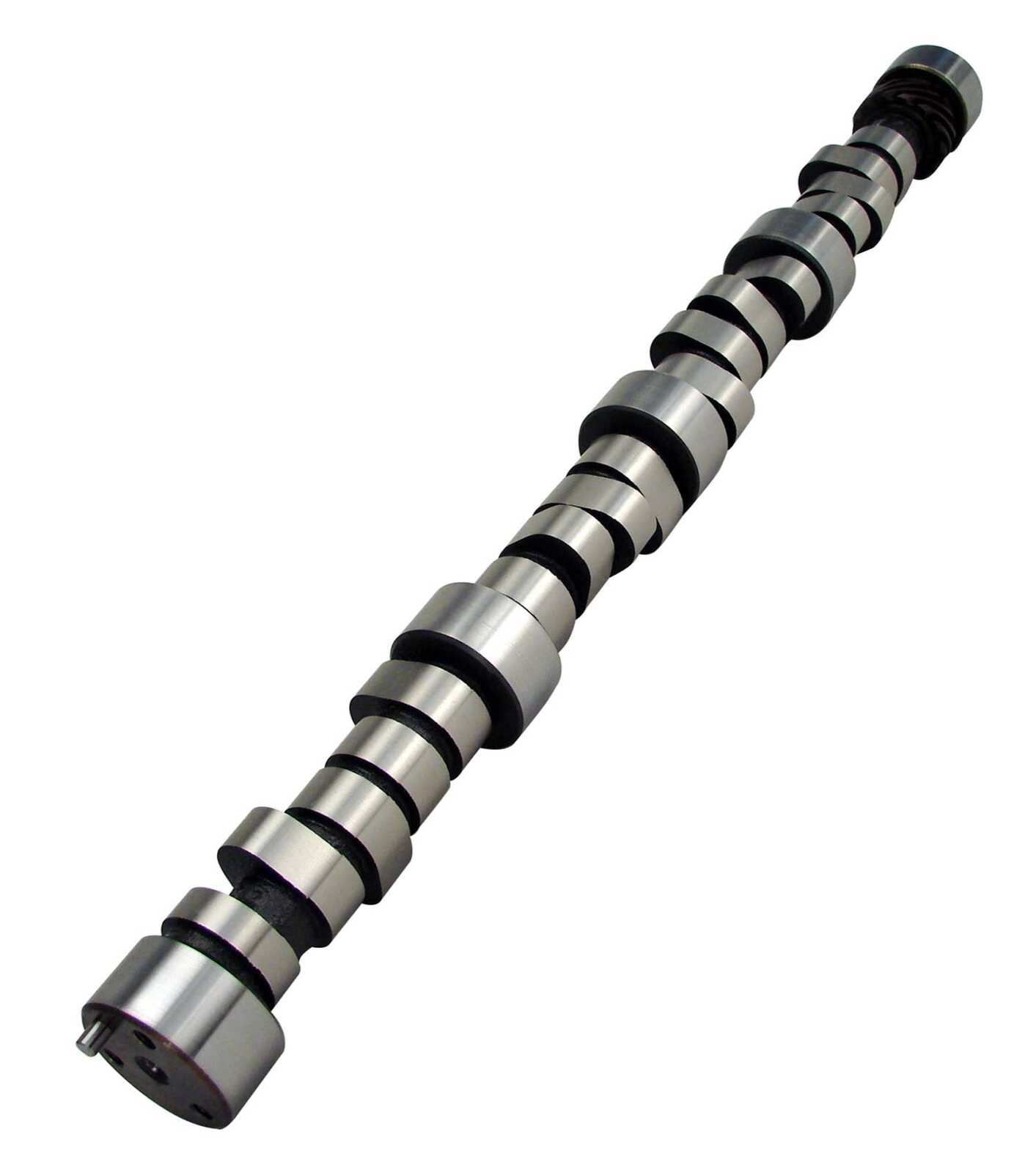

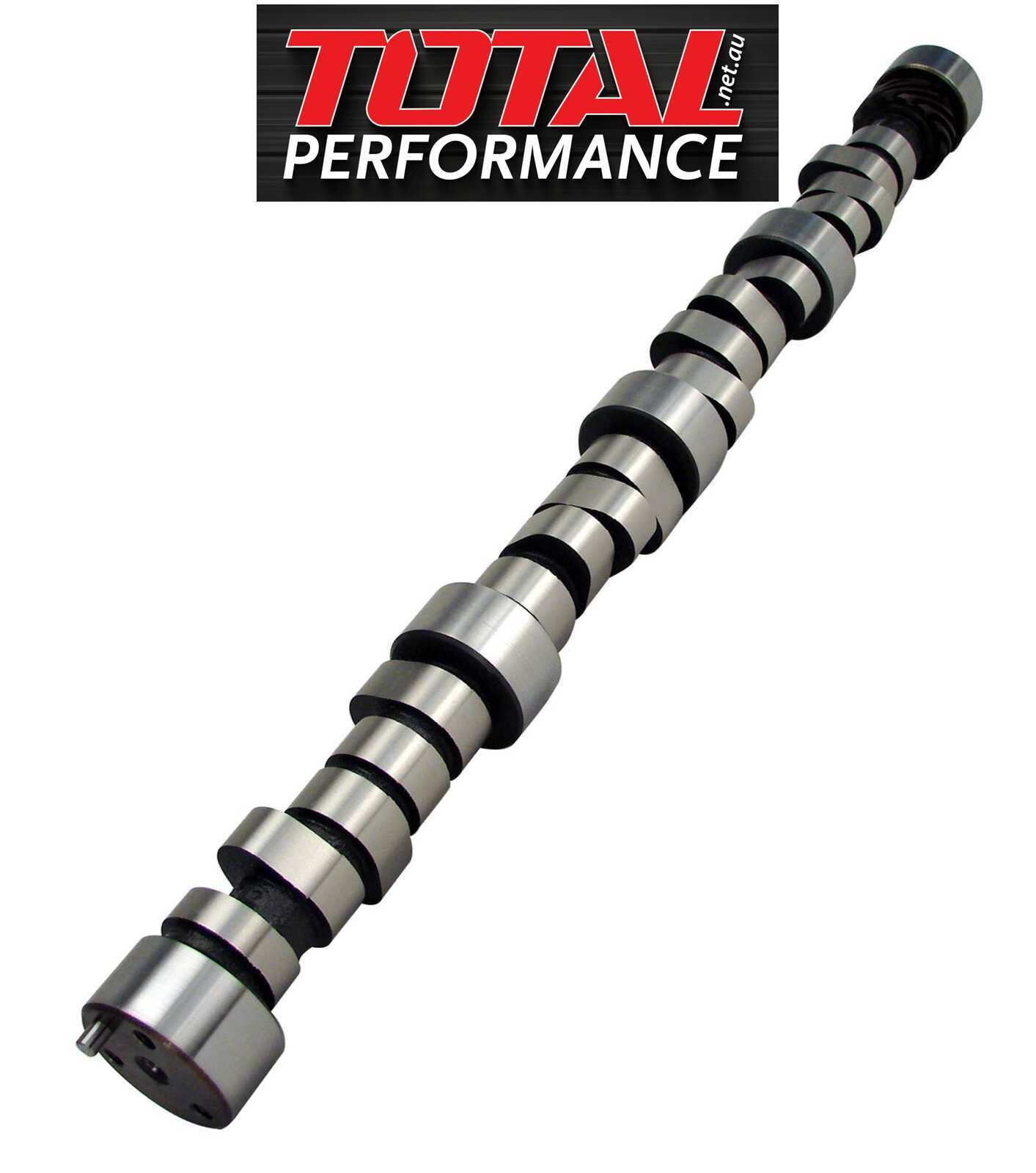

XR294HR Comp Cams 12-443-8 Small Block Chevy 350 Hydraulic Roller Camshaft - Retro fit. Rough Idle, High Performance

RPM Range: 2800-6100

Small Block Chevy Comp Cams Hydraulic Roller Camshaft for Street/strip applications, 9.5:1 compression, intake, headers, 3000+ stall, gears. Rough idle.

Xtreme Energy™ 242/248 Retro-Fit Hydraulic Roller Cam for Chevy Small Block 350 383 & 400 cubic engines. Street/strip applications. 9.5:1 Compression, intake, headers, gears and a 3000+ stall needed. Has a Rough tough idle.

Engine Family: Small Block Chevy 350 383 400 c.i. 8 Cylinder (1958-1998)

RPM Operating Range: 2,800-6,100

Grind Number: XR294HR

Cam Type: Hydraulic Roller

Lifter Style: Hydraulic Roller

Camshaft Series: Xtreme Energy

Usage: Street/Performance

Advertised Intake Duration: 294

Advertised Exhaust Duration: 300

Intake Duration at .050 Inch Lift: 242

Exhaust Duration at .050 Inch Lift: 248

Intake Valve Lift: 0.54

Exhaust Valve Lift: 0.562

Lobe Separation: 110

Exhaust Close ATDC: 36

Intake Open BTDC: 41

Exhaust Open BBDC: 84

Intake Close ABDC: 73

Camshaft Gear Attachment: 3-Bolt

Specifications

SKU	12-443-8
Barcode #	036584025191
Brand	COMP CAMS
intake valve lift	0.54
Exhaust Valve Lift	0.562
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	300
Advertised Intake Duration	294
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	248
Intake Duration At .050 Inch Lift	242
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR294HR
Basic Operating Rpm Range	2,800-6,100
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Austempered Ductile Iron
