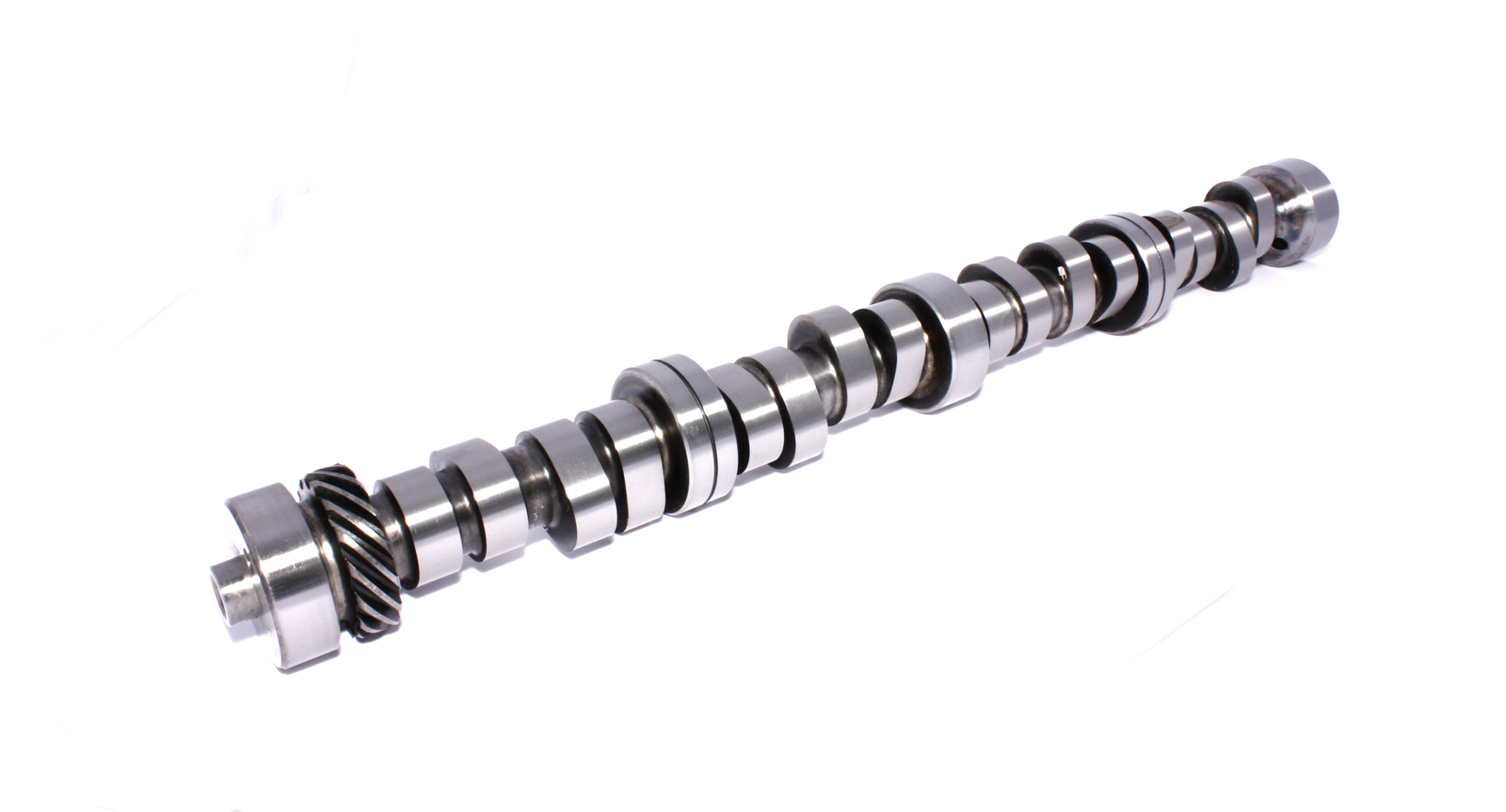

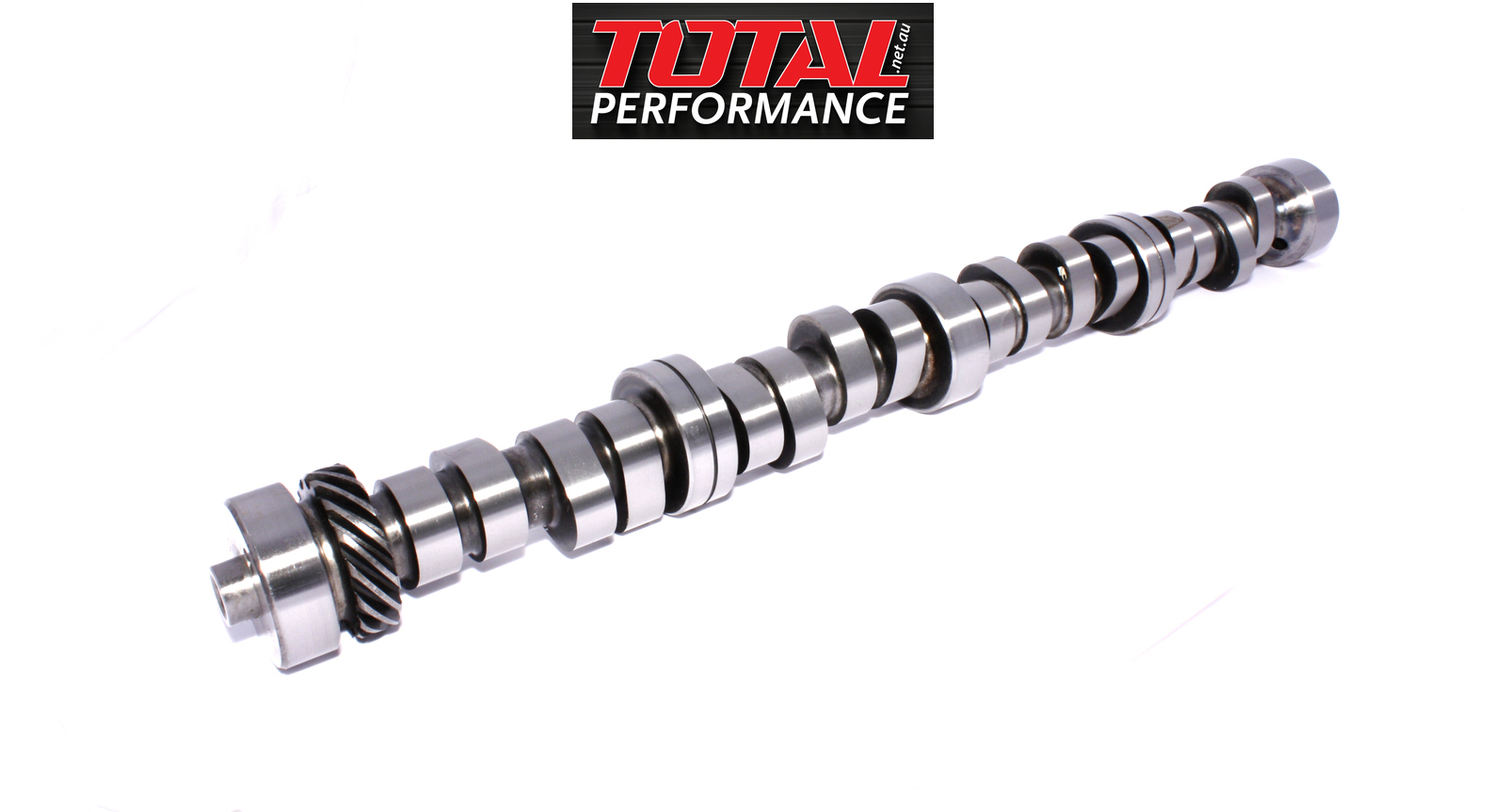

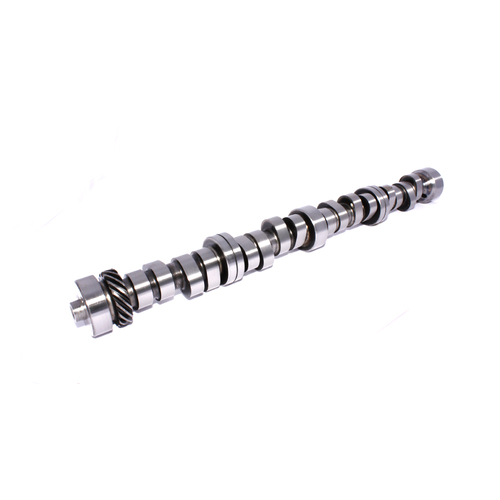

FORD 390 428 FE BIG BLOCK 242/248 HYDRAULIC ROLLER CAMSHAFT RETRO FIT XR294HR

Description

Street/strip applications, 10:1 + compression, 3000+ stall, intake, headers, gear.

VALVE SPRINGS: 924-16 OR 26120-16

Grind Number:XR294HR

Engine Family:Ford 352-428 c.i. 8 Cylinder (1963-1977)

RPM Operating Range:2,800-6,100

Cam Type:Hydraulic Roller

Lifter Style:Hydraulic Roller

Camshaft Series:Xtreme Energy

Camshaft Gear Attachment:1-Bolt

Usage:Street/Performance

Valve Springs Required:Yes

Camshaft Material:Billet Steel

California Proposition 65:WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

Advertised Intake Duration:294

Advertised Exhaust Duration:300

Intake Duration at .050 Inch Lift:242

Exhaust Duration at .050 Inch Lift:248

Intake Valve Lift:0.553

Exhaust Valve Lift:0.572

Lobe Separation:110

Specifications

SKU	33-443-11
Barcode #	036584312833
Brand	COMP CAMS
intake valve lift	0.553
Exhaust Valve Lift	0.572
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	300
Advertised Intake Duration	294
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	248
Intake Duration At .050 Inch Lift	242
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR294HR
Basic Operating Rpm Range	2,800-6,100
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Billet Steel
