SKU: 08-301-8

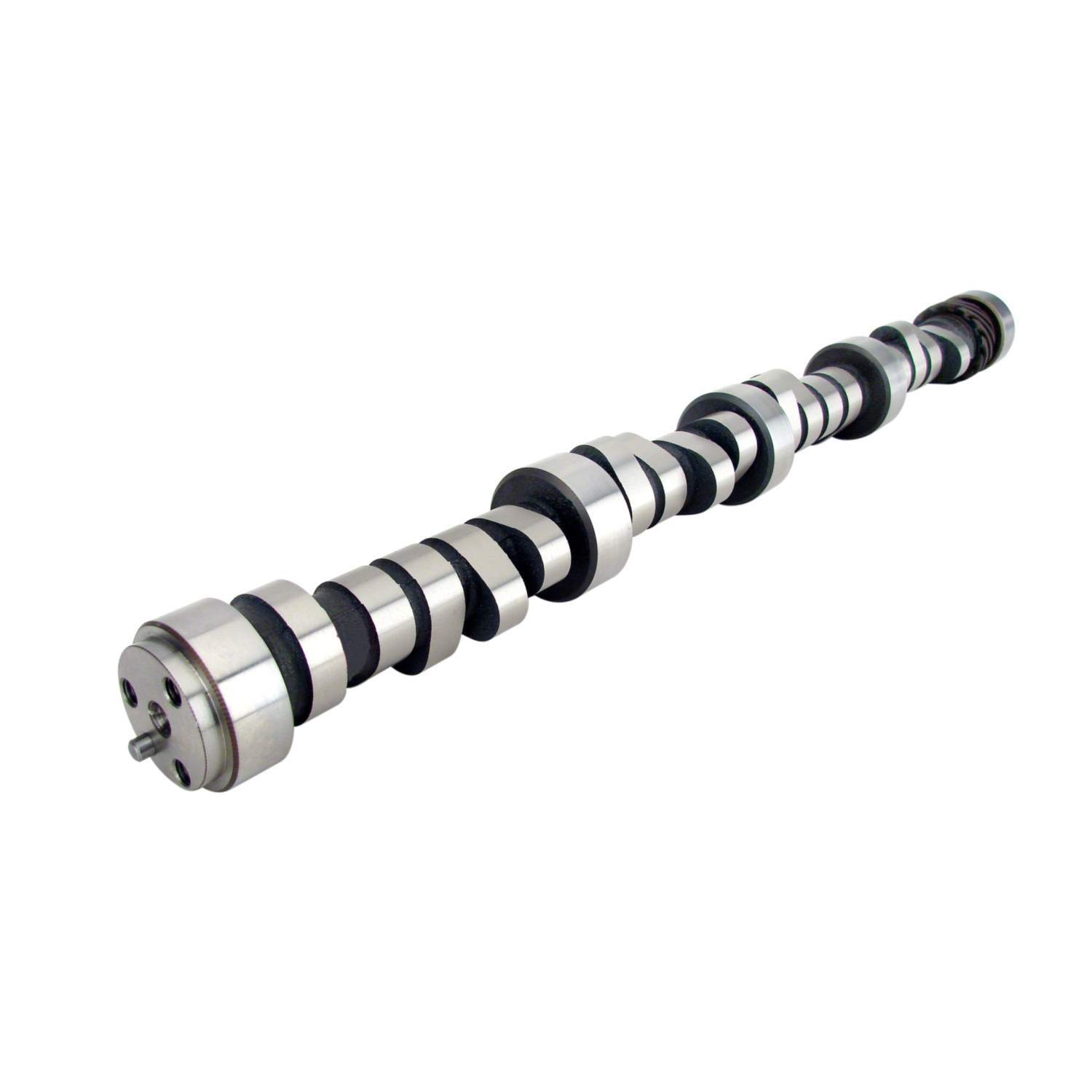

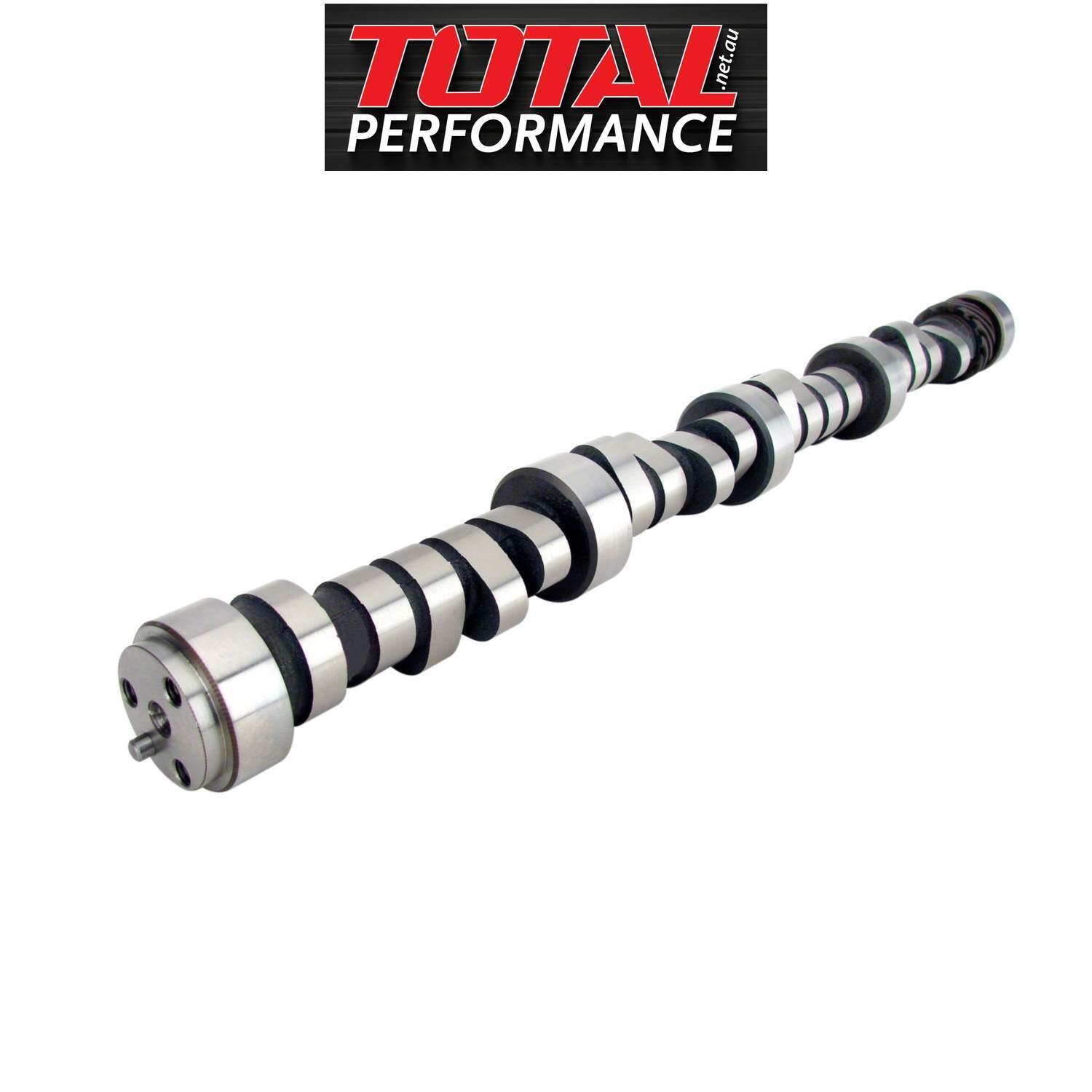

Chevy Vortec Nitrous HP 224/236 Hydraulic Roller Camshaft OEM SBC Roller Blocks

$948.02

or 4 payments of $237.00 with Info

SOLD OUT

Description

125+ hp nitrous or small supercharger, low gears, headers, 2200+ stall.

Specifications

SKU 08-301-8
Barcode # 036584065456
Brand COMP CAMS
intake valve lift 0.502
Exhaust Valve Lift 0.52
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 288
Advertised Intake Duration 276
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 236
Intake Duration At .050 Inch Lift 224
Lobe Separation 113
Camshaft Series Nitrous HP
Grind Number NX276HR
Basic Operating Rpm Range 2,000-6,000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Austempered Ductile Iron
