High RPM LS DUAL VALVE SPRINGS 170lbs@1.800" Install 0.740" lift 408lbs/inch 1.320" OD 1.00" Coil bind.

SKU: DRP-26927

High RPM LS DUAL VALVE SPRINGS 170lbs@1.800" Install 0.740" lift 408lbs/inch 1.320" OD 1.00" Coil bind.

High RPM Springs.

$561.00

or 4 payments of $140.25 with Info

IN STOCK  FREE SHIPPING

Description

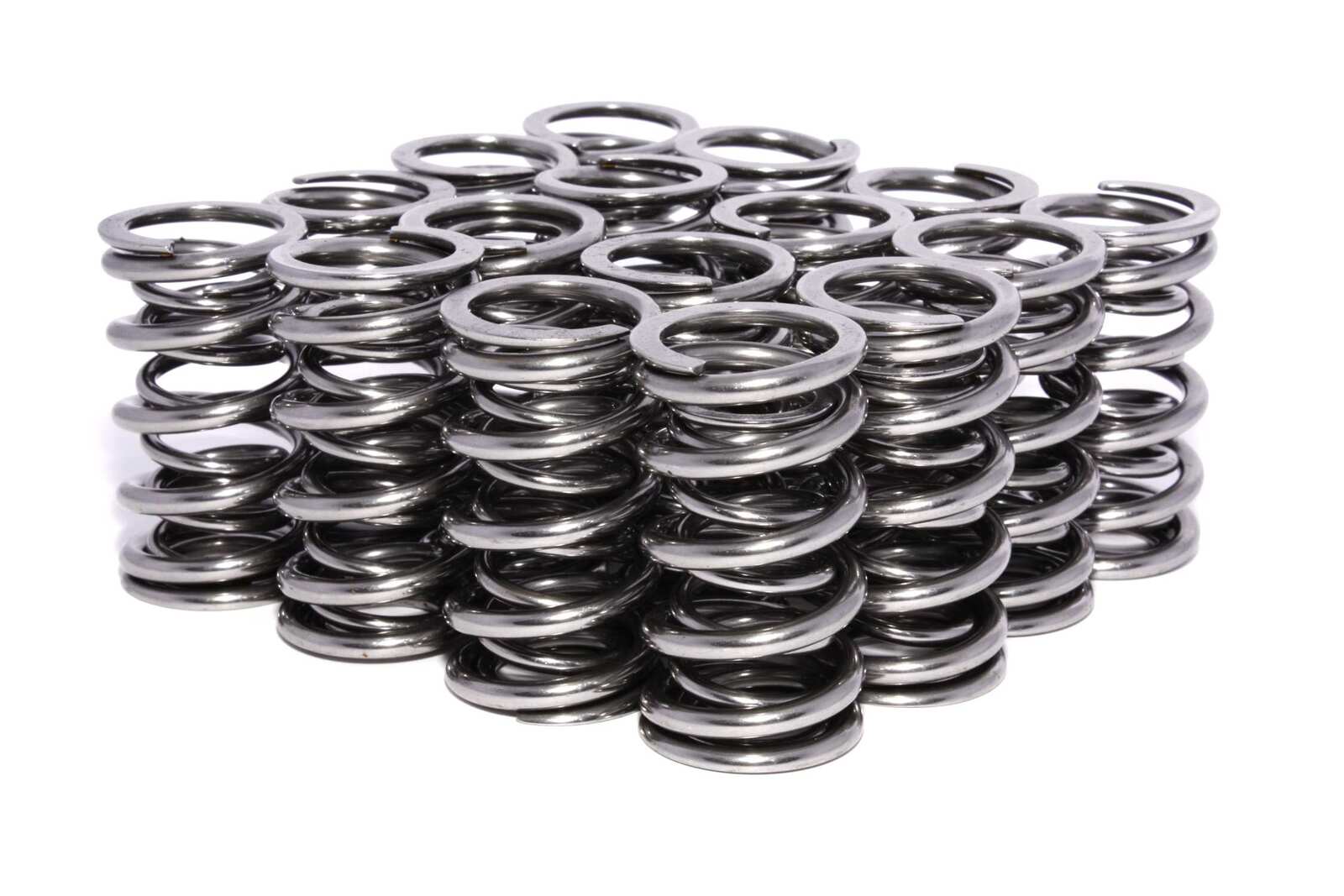

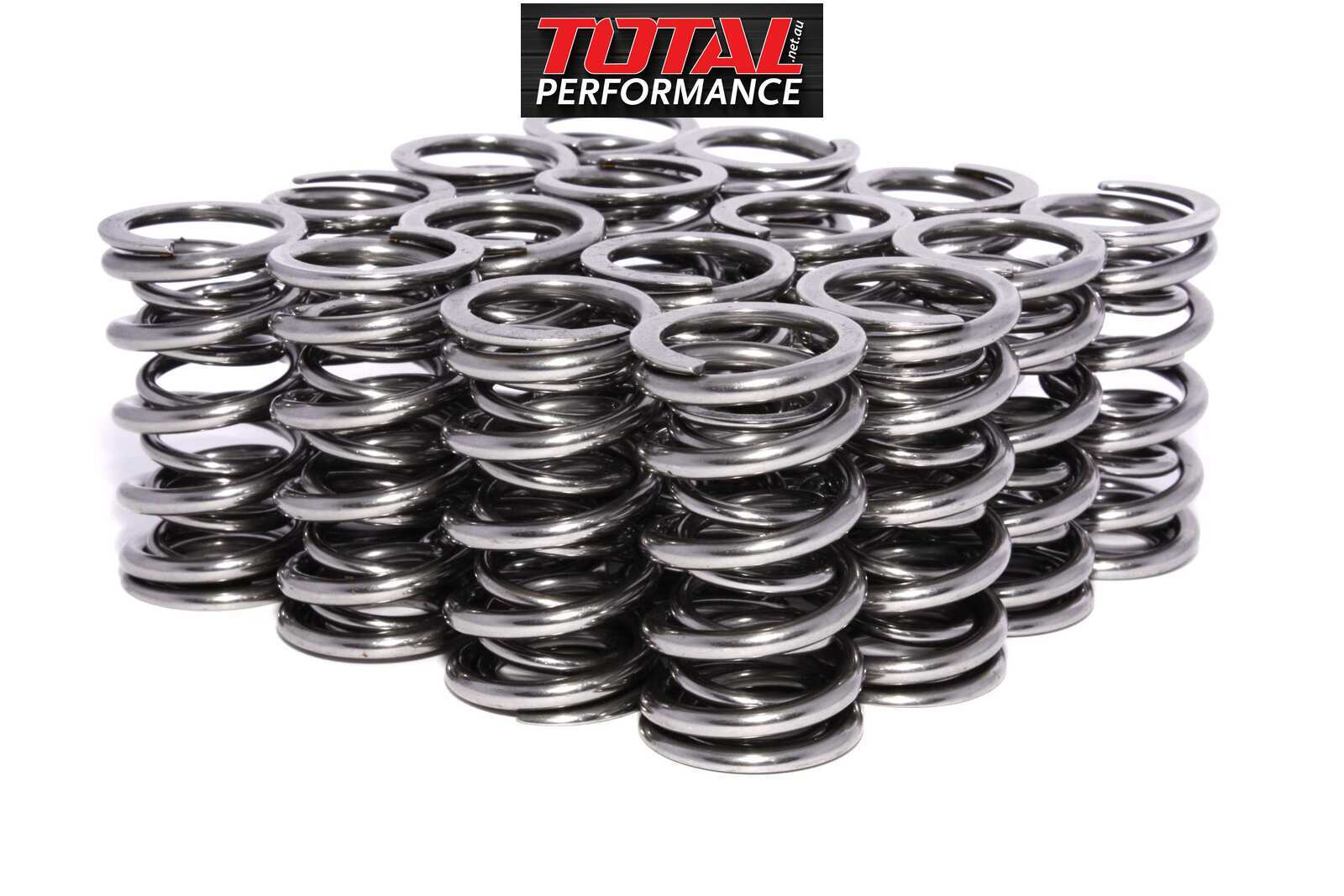

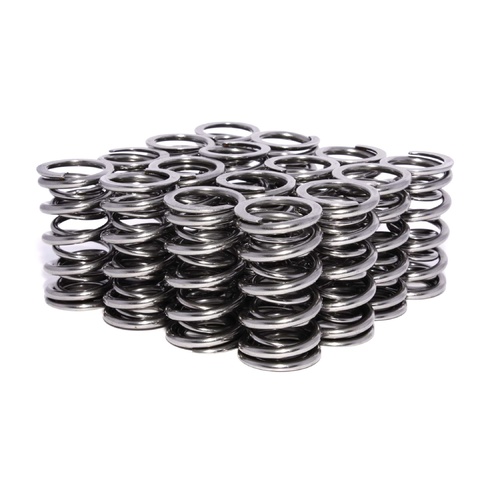

High RPM LS1 LS2 LS3 Dual Valve Springs

Suits Race/Street applications.

170 lbs @ 1.800”

450 lbs @ 1.115”

Coil bind @ 1.000”

Max Lift: 0.740" with .060" to clearance.

408 lbs spring rate

Size: 1.320" O.D. Outer, .680" I.D. Inner

Retainer Options:

  • Comp Cams 713-16 LS 8mm Valve Stems - Steel
  • Comp Cams 714-16 11/32 Valve Stems - Steel
  • Comp Cams 1717-16 LS 8mm Valve Stems - Tool Steel
  • 11/32" valve - Tool Steel - Not available.

Locators:

  • Comp Cams 4682-16 - suits 0.570" Guide (aftermarket guides)
  • Comp Cams 4873-16 - suits 0.520" Guide (factory LS guides)



Specifications

SKU DRP-26927
Brand DRP
Seat Height 1.81
Damper No
Seat Pressure 141
Outer Spring Outside Diameter 1.32
Outer Spring Inside Diameter 0.958
Number Of Springs 2
Inner Spring Inside Diameter 0.68
Valve Spring Series Race/Street
Coil Bind Height 1.07
Spring Rate 400
