SKU: 451400

24-Spline C4 Windsor StreetFighter Converter, In-Case Dipstick 66-69 Transmissions. Early 289 302W Windsor

24 Spline (early C4) Stall RPM : 3000 to 3400

$1,225.43

or 4 payments of $306.36 with Info

SOLD OUT

Description

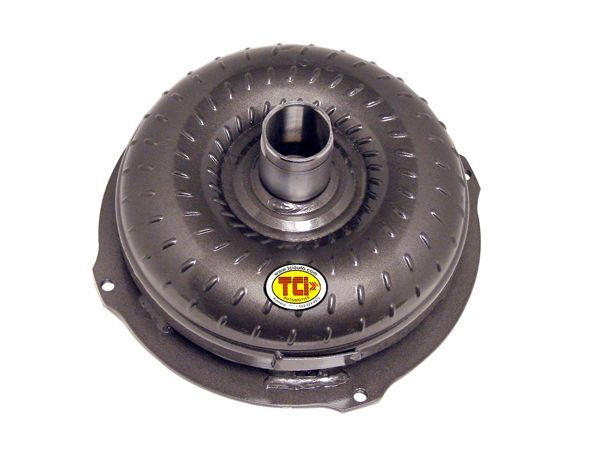

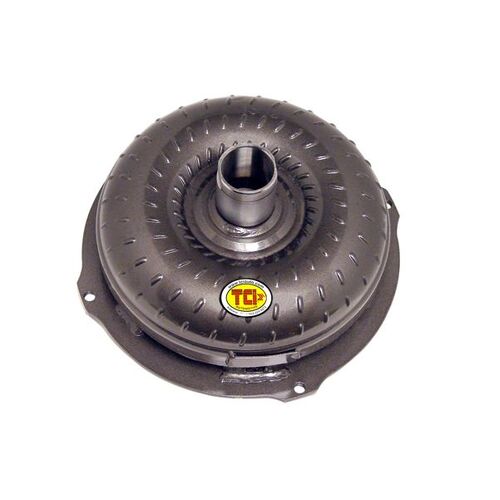

TCI 451400, Early 24 Spline,Torque Converter, Case Fill, C4 Transmission.

This TCI StreetFighter Converter is designed specifically for C4 Transmissions with in-case dipsticks. Provides 3000 to 3400 Stall behind Small Blocks and 3400-3600 Stall behind Big Blocks. For 10.5" Bolt Circle.

Designed with the street/strip application in mind, this torque converter benefits more radically prepared street machines (those with performance cams, aftermarket carbs and higher compression ratios) to bring the launch RPM in line with the performance enhancements. The StreetFighter® lets you take advantage of horsepower gains found in higher RPM ranges.

Features: Furnace-brazed fins, Needle bearings, hardened pre-ground pump hub, computer balanced, installation hardware included

Benefits: Higher RPM launches, quicker reaction times, lower elapsed times, better low- and mid-range power, 1500+ RPM increase in stall over stock

Flexplate must be drilled for 7/16” bolts.

Dipstick Goes into Transmission Case

Warranty

12

Specifications

SKU 451400
Barcode # 788120010115
Brand TCI
Torque Converter Series StreetFighter
Advertised Cam Duration 280 to 300 Degrees
Rear Gear Ratio 3.55 to 4.56
Expected Stall Speed With Small Block 3000 to 3400 RPM
Expected Stall Speed With Big Block 3400 to 3600 RPM
