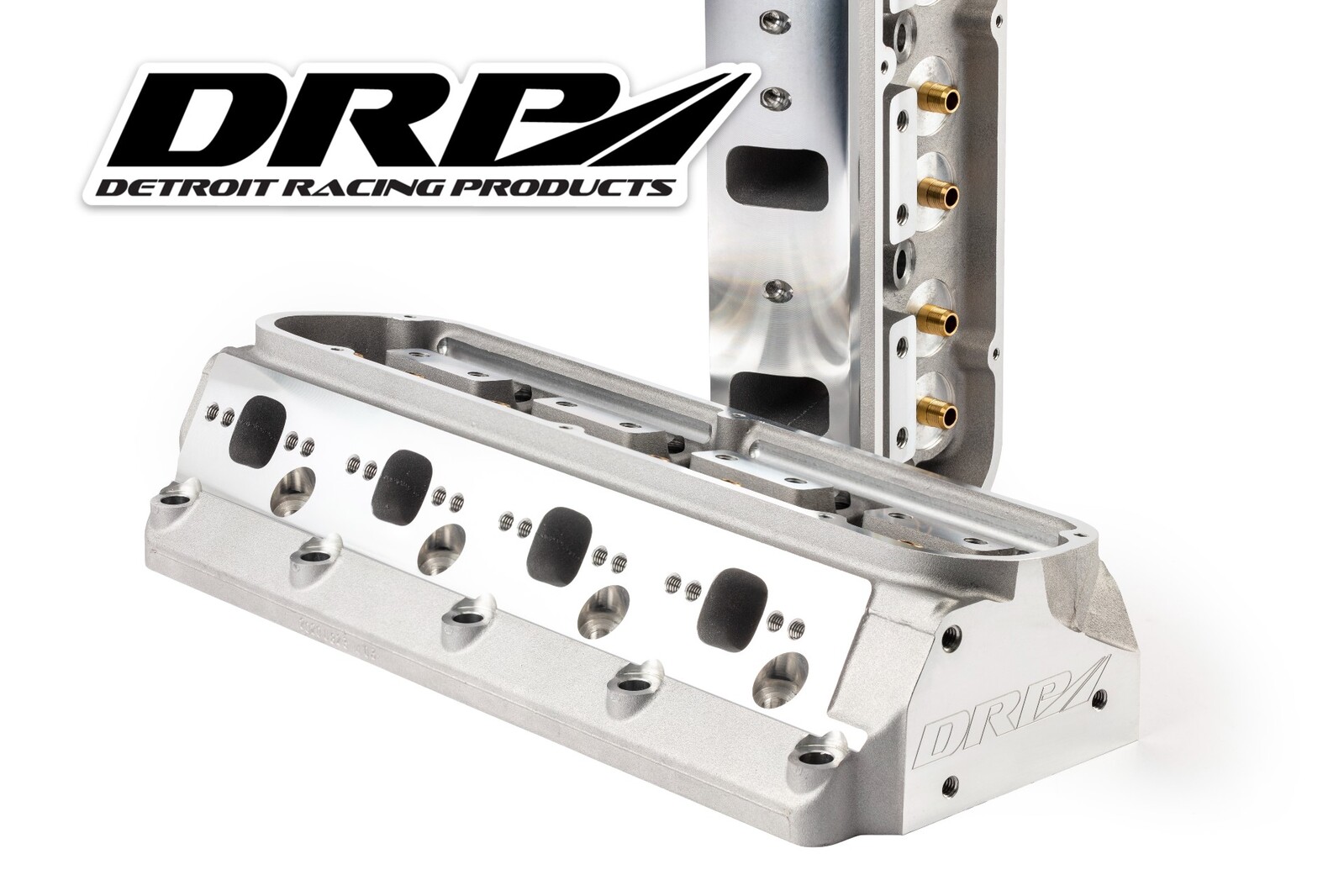

DRP Detroit Racing Products - 170cc Ford Windsor Cylinder Heads.
Ford Windsor Small-Block 302W and 351W Cylinder Heads.
*Assembled to suit Hydraulic Flat Tappet Camshaft.
DRP’s Small Block Ford cylinder heads offer a cylinder head with improved port and combustion chamber designs that result in “Bolt on Horsepower”!
Cylinder Heads play such a critical role in your engine and performance cylinder heads usually come at a significant cost. The DRP range of Cylinder heads are easy on the budget while delivering on performance, precision and quality. The DRP “as-cast” ports and chambers perform out of the box.
All DRP Cylinder Heads are manufactured using a permanent steel mold, ensuring consistency and clean water jackets for a cooler running motor. Made from premium 355-T6 Hard Aluminium material, these heads wont go soft. Having ductile-iron CNC 3 angle valve seats, CNC surfaces, strict quality-control checks, these are a true premium quality product.
With dyno proven results and years in service, you won’t find any better valued performance cylinder head.
Dont waste your time or money on rebuilding old Cast Iron units. Forget the headaches of poor valve seats, crack testing woes and restrictive ports of old cylinder heads - upgrade now!
Small Block Ford 20° Aluminium Cylinder Heads.
With 170cc intake runner size, the heads are perfect for the 302-based street engine. Producing a snappy throttle response while delivering exceptional torque the Windsors are known for. Also suitable for Hot 302’s and 347 Strokers for super low end torque that is on tap everywhere in the rev-range. Valve sizes are 2.020" Intake and 1.600" Exhaust. The key is in the design of the port shape. Offering velocity for sharp responsiveness and gobs of Torque. The internal cast quality of the water jackets are super smooth for maximum flow to keep your motor cool while under maximum load.
The SBF heads utilise OEM mounting points so fitting up accessories are not a problem. The port sizes and locations will work with both 8.2-deck 302-based engines and 9.5-deck 351W-based combinations. The cylinder heads accept the 351W ½” head bolts and included in the box are hardened step down washers for using the smaller 302W 7/16” head bolts. Rocker studs use a 7/16 thread base and 1 piece guide plates can be used to simplify your valve train package.

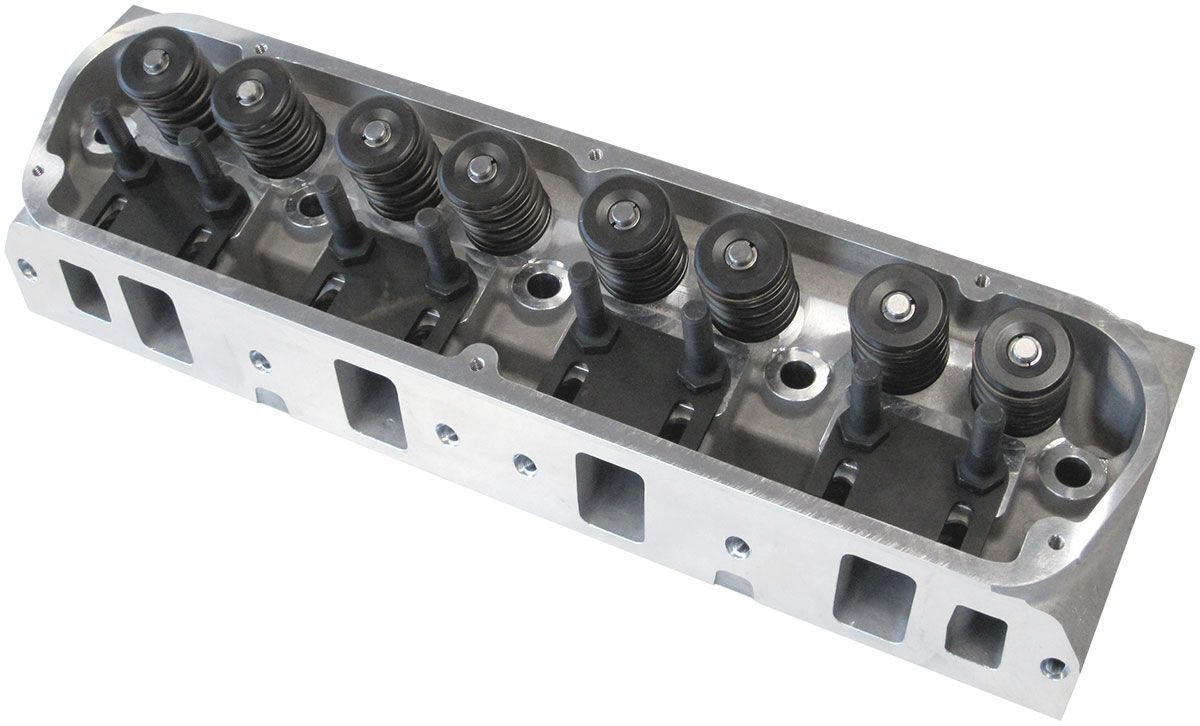

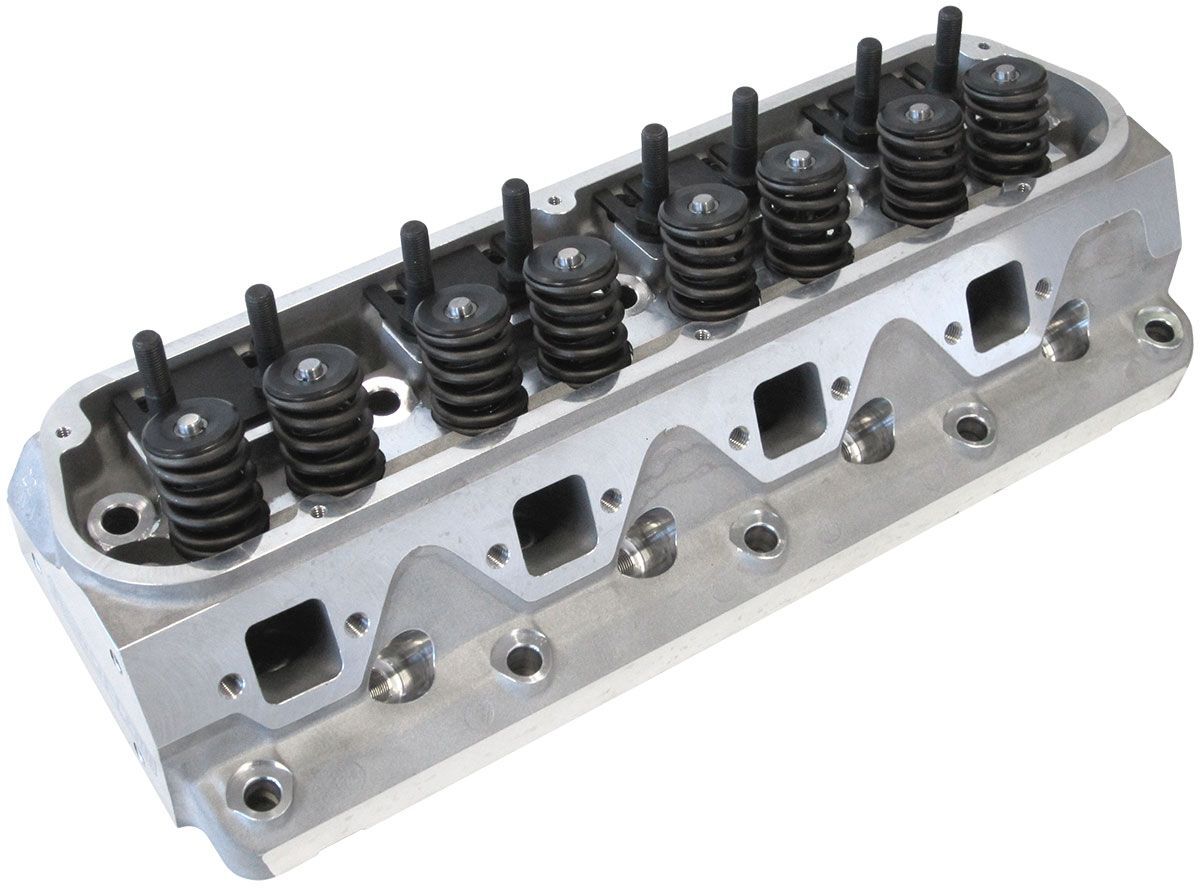

Whats in the Cylinder heads:
- Ferrea 5000 series Valves: 2.020" intake & 1.600" Exhaust
- Comp Cams valve springs and parts - suits Hydraulic Flat Tappet camshafts.
- Comp Cams guide plates - suits 5/16 pushrods
- DRP Screw in rocker studs - 3/8 screw in studs
The DRP cylinder head range are available Bare or Assembled using proven quality valve train components.

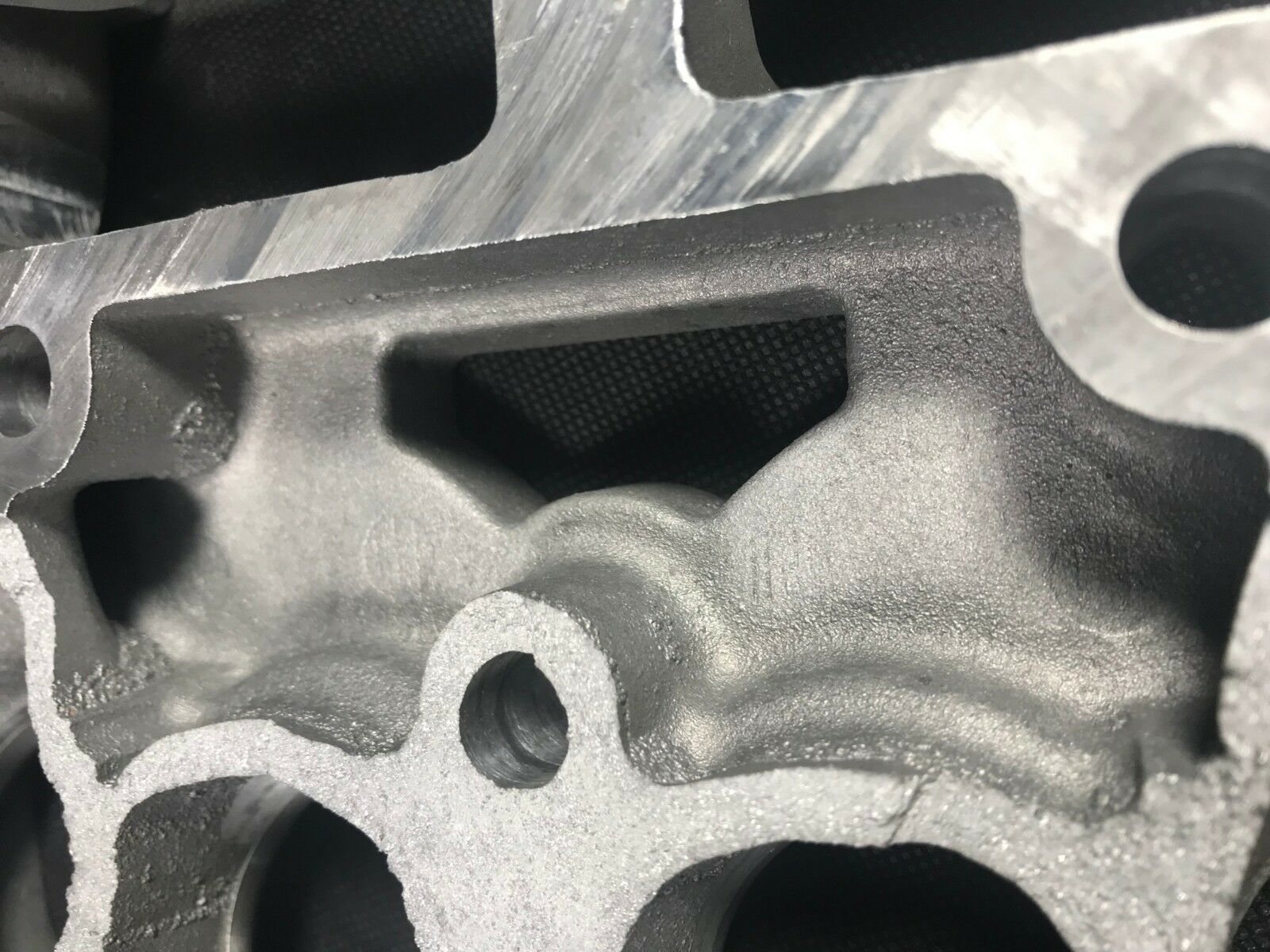

- Internal Cast Quality ( Super Smooth Water Jackets for maximum flow - see our photos of the internal casting)
- Optimal Spark Plug position.
- Premium Bronze Valve Guides.
- Hard 355-T6 Aluminium - Race Quality.
- 3 Angle CNC Valve Seats
- Inlet Port Volume: 170cc
- Exhaust Port Volume: xxcc

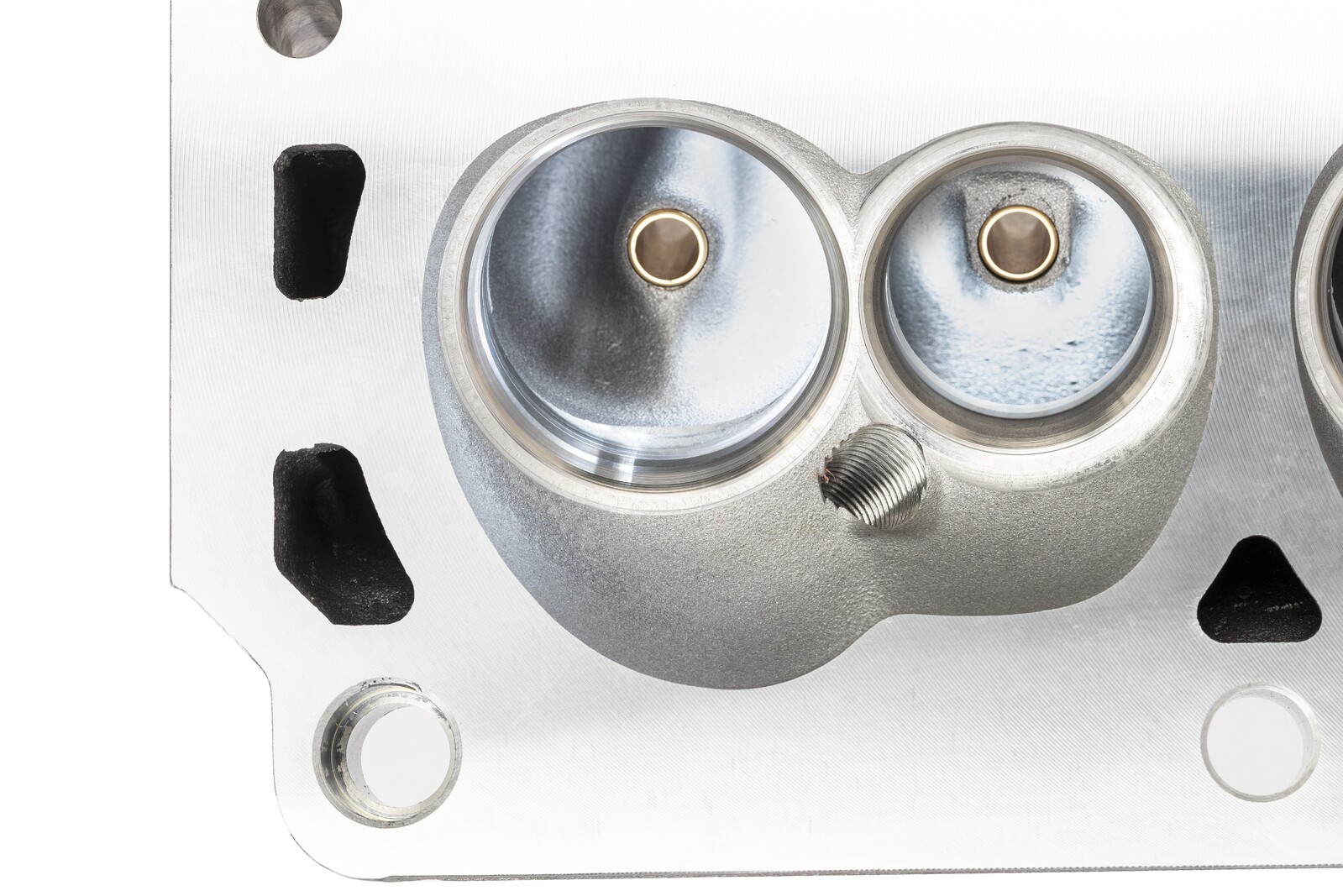

- Chamber Size: 60cc Chambers
- Intake Valve size: 2.02"
- Exhaust Valve size: 1.60"
- Recommended Spark Plugs: 750 reach gasketed 5/8 hex. NGK-BCPR7ES
- Recommended Intake Gaskets: Felpro 1262
- Guide Plates: Yes included - 5/16" Comp Cams
- Screw In studs: Yes included 3/8
- Valve Springs: Comp Cams Dual
- Minimum Chamber size 54cc (can be machined down)
- Flat Mill: .006" per cc (54cc minimum chamber size)
Flow Figures: Taken at 28"hg on a 4.030" Bore.
HP figures are "Potential" based on Flow/Velocity calculations*
Lift Intake Exhaust
200
300
400
450
500
550
600
650
700
*Output will be determined by your combination and quality of the motor build.

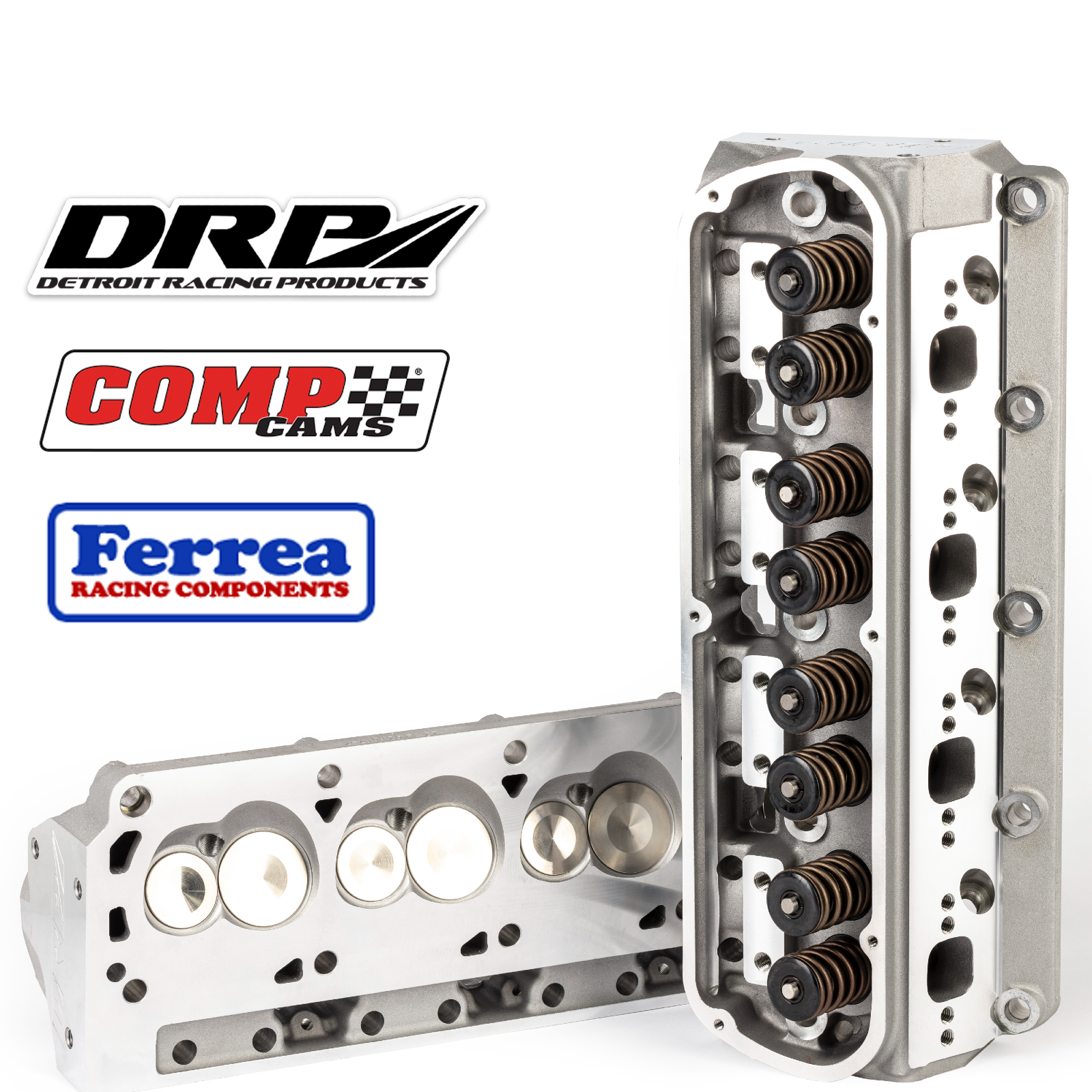

We can assemble using Ferrea Valves and Comp Cams Hardware.
Have confidence and pride these are quality items Hand Assembled right here in Melbourne Australia.
We do offer complete assemblies, valves, springs, retainers to suit your application, see our other listings for various assemblies to suit your camshaft. We use Stainless Steel Valves and Comp Cams hardware.
Specifications
SKU | DRP-SBF170-HFT |
Brand | DRP |
Unit Of Measure | ea |
Type | Small block Ford |
Bundle Description | PAIR |
