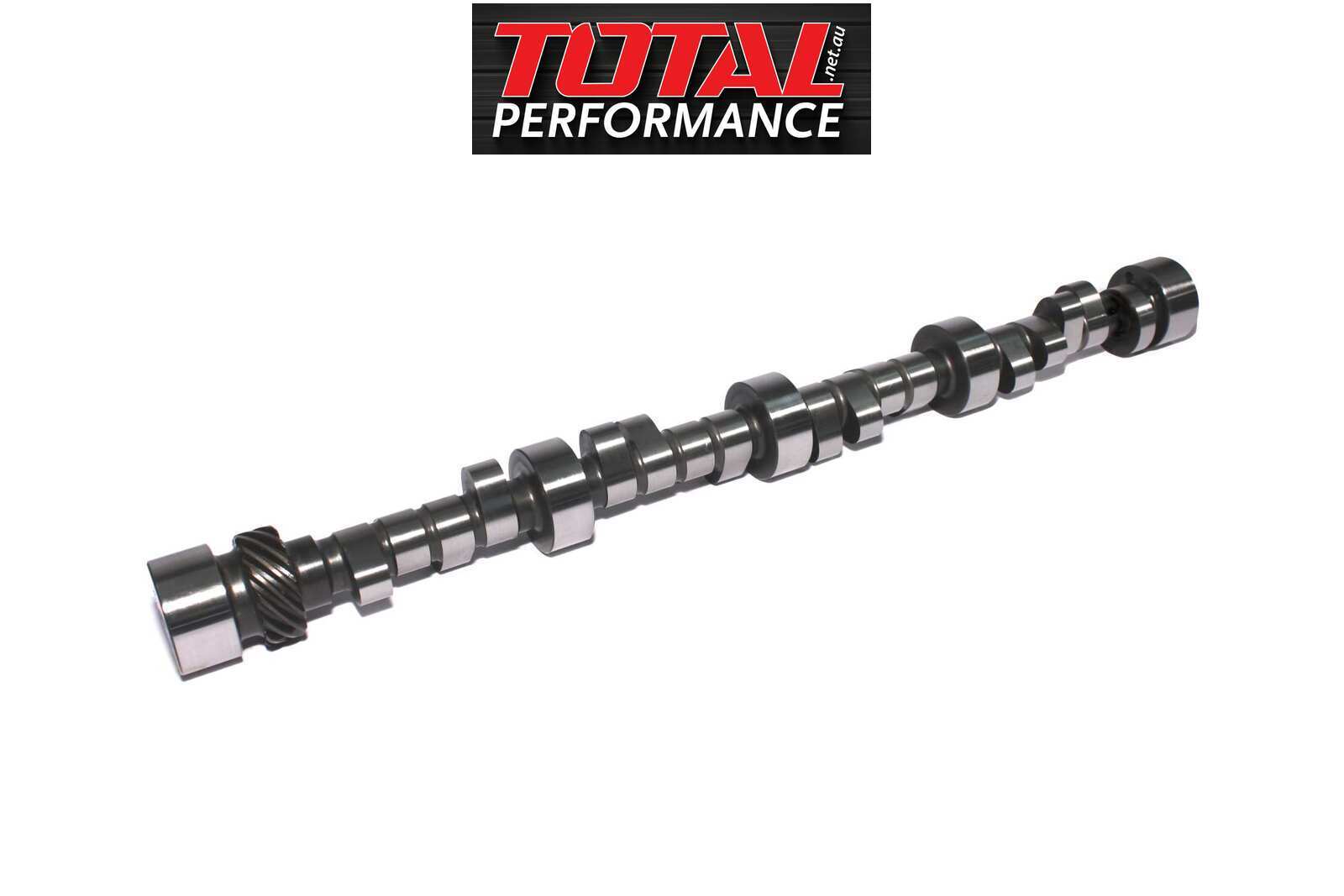

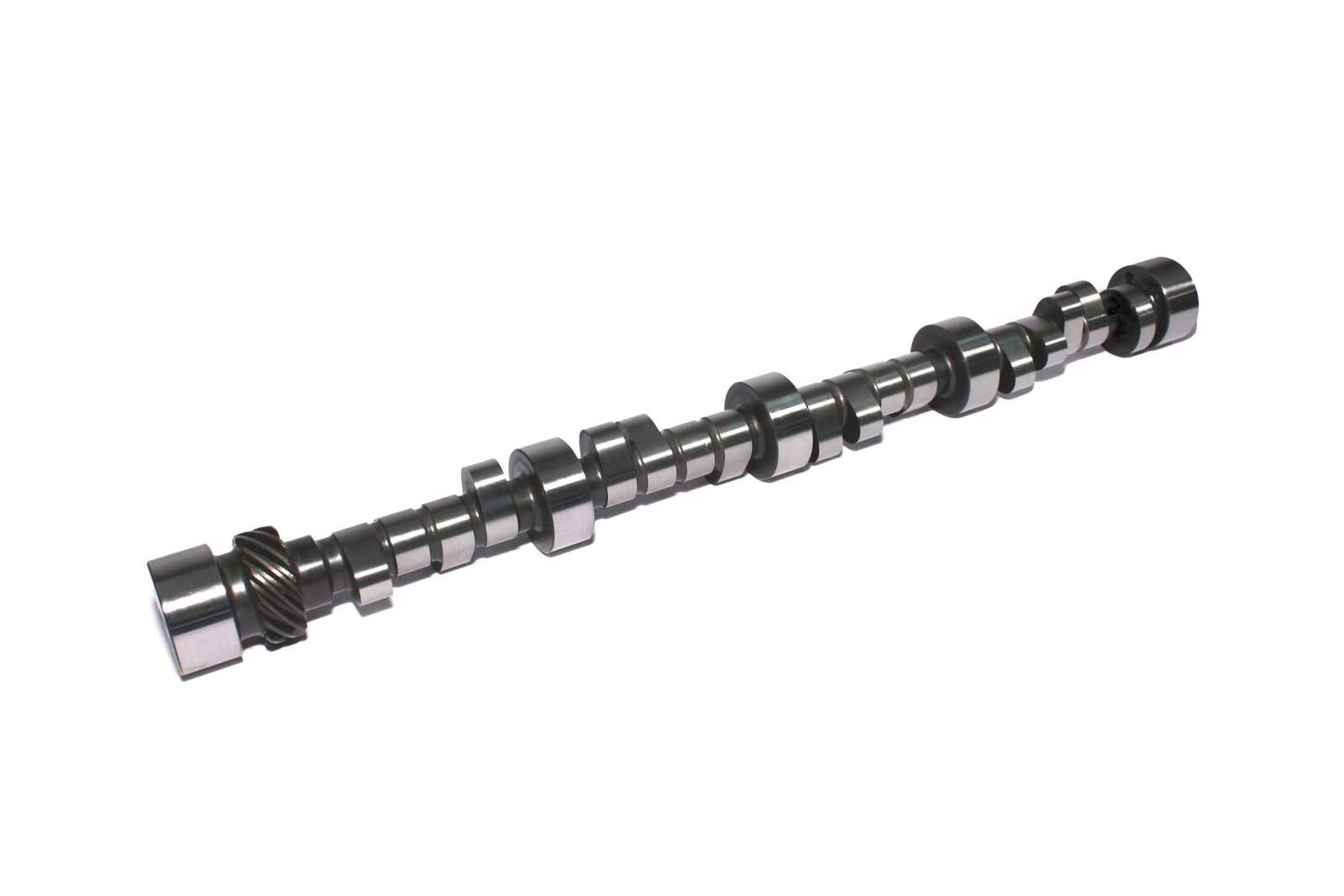

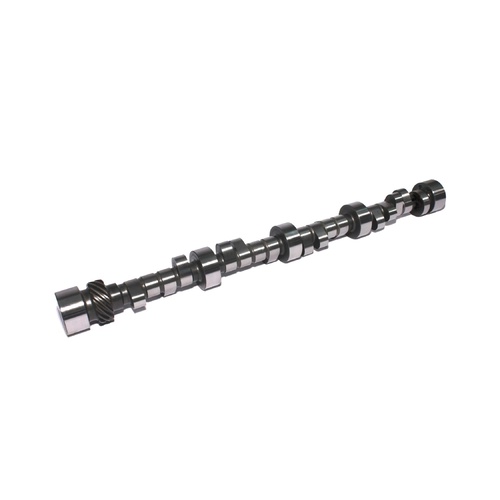

SBC Solid Roller Camshaft Oval Track 265/274 LSA 108 0.900" BC Small Base Circle Small Block Chevy 350
0.900" Small Base Circle
Description
Comp Cams - Small Block Chevy Solid Roller.
NOTE: has small 0.900" Base Circle for Stroker Crank Clearance.
Grind Number:293TKNR-8
Engine Family:Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
RPM Operating Range:3600-7,800
Cam Type:Solid Roller
Lifter Style:Solid Roller
Camshaft Series:Oval Track Xtreme TK (.900" Base Circle)
Camshaft Gear Attachment:3-Bolt
Usage:Strip
Valve Springs Required:Yes
Camshaft Material:Billet Steel
California Proposition 65:WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Advertised Intake Duration:293
Advertised Exhaust Duration:310
Intake Duration at .050 Inch Lift:265
Exhaust Duration at .050 Inch Lift:274
Intake Valve Lift:0.648
Exhaust Valve Lift:0.63
Lobe Separation:107
Assembly Lubricant Included:No
Valve Timing @ 0.02 Lift:
Exhaust Close ATDC: 23
Exhaust Open BBDC: 70
Intake Open BTDC: 29
Intake Close ABDC: 56
Specifications
| SKU | 12-864-9 |
| Barcode # | 036584015482 |
| Brand | COMP CAMS |
| intake valve lift | 0.648 |
| Exhaust Valve Lift | 0.63 |
| Lifter Type | Solid Roller |
| Advertised Exhaust Duration | 310 |
| Advertised Intake Duration | 293 |
| Cam Type | Solid Roller |
| Exhaust Duration At .050 Inch Lift | 274 |
| Intake Duration At .050 Inch Lift | 265 |
| Lobe Separation | 108 |
| Camshaft Series | Oval Track Xtreme TK (.900" Base Circle) |
| Grind Number | 293TKNR-8 |
| Basic Operating Rpm Range | 3600-7,800 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
