SKU: KB246-020-RINGS

347 Windsor Stroker Cast Hypereutectic Flat Top Pistons Rings 4.020 set kit, SBF, Ford 302 Windsor, Chev Pin 0.927

Chev Pin, suits 5.400 Rods

$1,016.18

or 4 payments of $254.04 with Info

SOLD OUT

Description

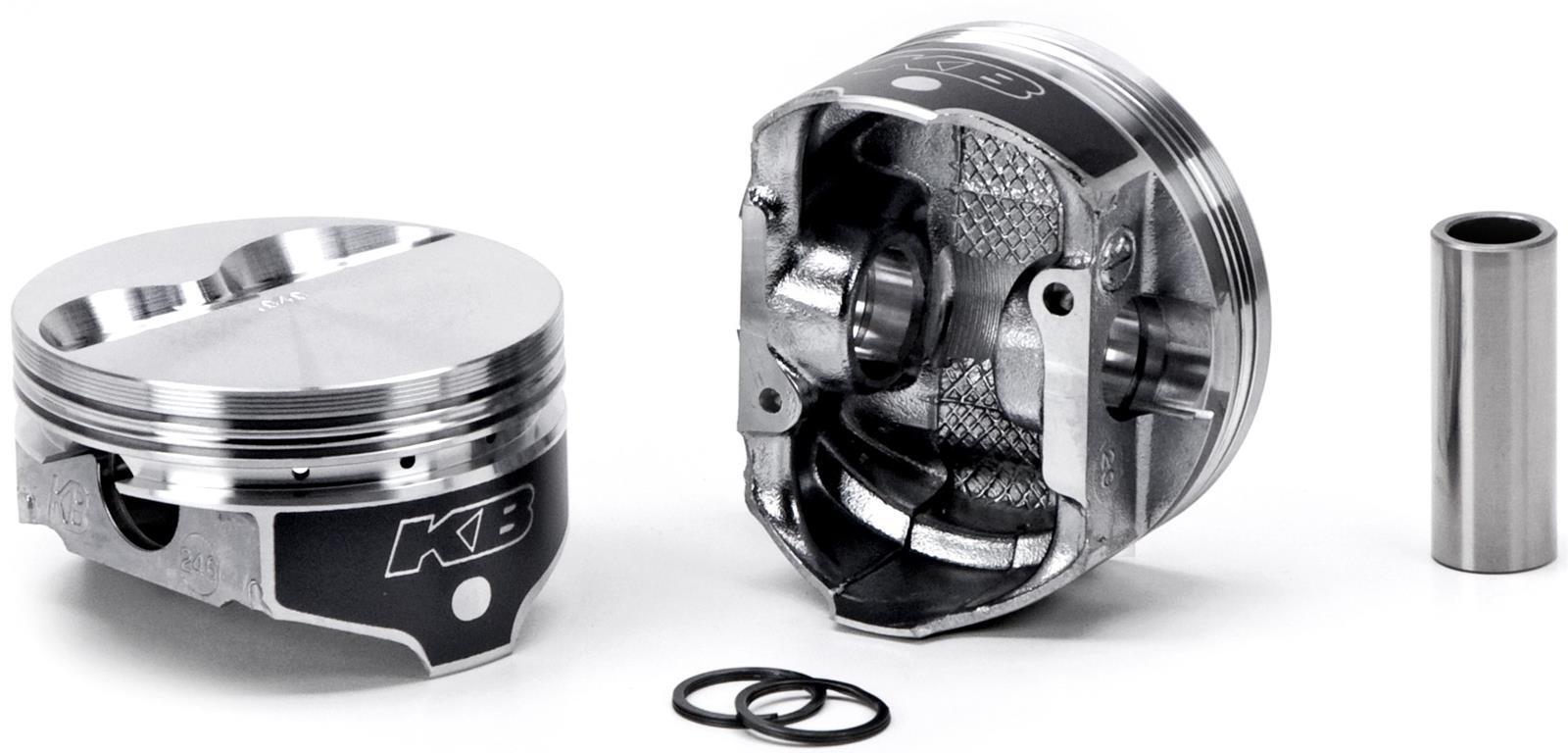

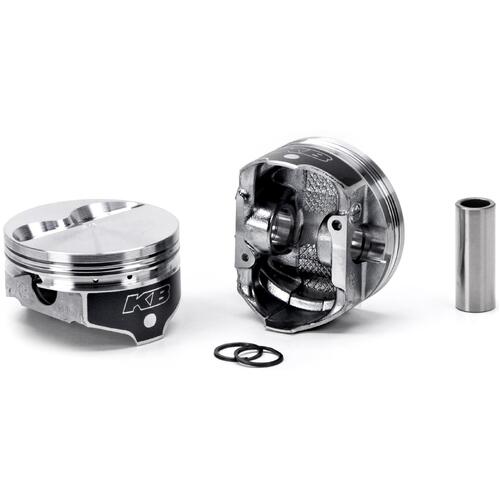

KB Hyperutectic Pistons and Ring kit

347 Windsor Stroker Cast Flat Top Pistons & Rings

Application: Ford Windsor Stroker 347

Crown: Flat Tops

Reliefs:  -6.5cc

Piston Material:  Cast alloy / Hypereutectic - 390

Bore:  4.020 "

Pin Height: 1.090"

Pin Dia:   Chevy 0.927"

Rings: 1/16 , 1/16,   3/16

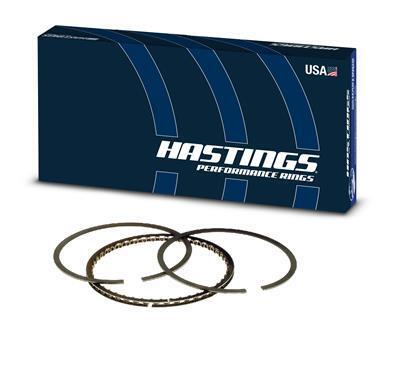

Rings - Included - Hastings - Cast Iron Plasma Moly



Specifications

SKU KB246-020-RINGS
Brand KB
Bore 4.020
Piston Top Flat Top
Compression Height 1.090"
Rod Length 5.400
Piston Material Cast Alloy
PISTON PIN 0.927
Piston Pin Family Chevy
