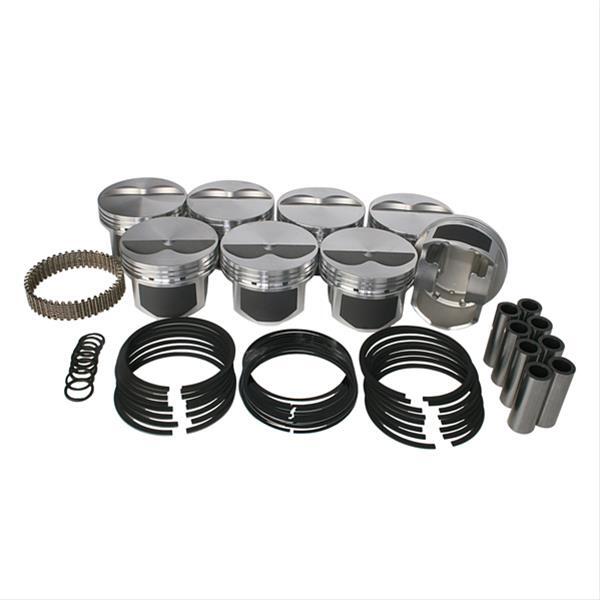

347 4.040" FORGED 4032 FLAT TOP PISTONS & RINGS FORD 302W WINDSOR STROKER (349 cu) SET KIT

Description

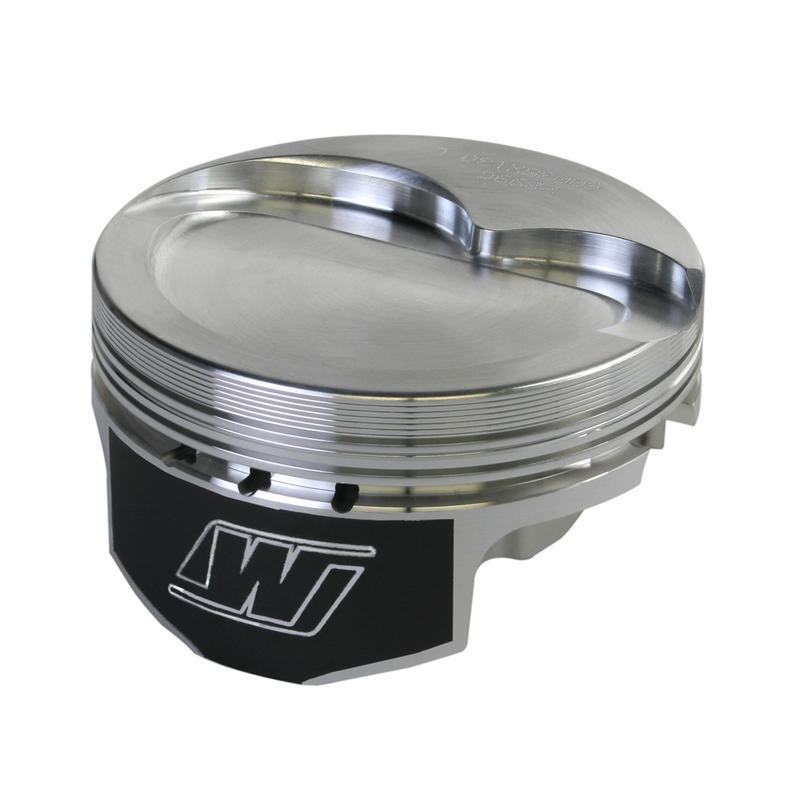

PTS511A4W Wiseco Forged Flat Top pistons to suit Ford 302W

Wiseco Pistons use the latest design technology to manufacture some of the best aftermarket performance forged pistons on the market. Trust your new engine with a set of Wiseco forged flat top Pistons, Ford Windsor 302 Stroker for a 347 Windsor Stroker.

Series: Pro Tru Street

Make: Ford

Engine: 347 SBF Windsor (302 Stroker)

Bore: 4.040” Bore

Stroke: 3.400" Stroke

Rod Length: 5.400" Rod

Crown Volume: -7.0cc Flat Top

Compression Height: 1.090" (Crank 3.400” x 5.400” conrod)

Pin Diameter: .927" Pin (Chevy Gudgeon Pin size)

Piston Material: Forged 4032 Alloy

Ring Lands: 1/16, 1/16, 3/16"

Top Ring Type: Moly-Faced Ductile Iron

Second Ring Type: Phosphate-Coated Cast Iron

Oil Ring Tension: Standard Tension

Coated Skirt Type: ArmorGlide-Coated Skirt

Quantity: Sold As Kit (for 8 cylinder)

Specifications

SKU	PTS511A4
Barcode #	00193564093141
Brand	Wiseco
Piston Top	DOME
PISTON PIN	CHEVY .927
Piston Bore	4.125
