SKU: TP-347W-HRST2-KIT

450HP Ford 347W Windsor Stroker & Top End Kit. Hydraulic Roller Full Rebuild package

Lumpy Idle, Low & strong Mid Torque - Great Cruiser

$10,603.62

IN STOCK  FREE SHIPPING

Customise Your Purchase

4.030 Ford 302W 347W Windsor Stroker Pistons Flat Top -5cc Forged 4032 SBF CH 1.090 (3.400 x 5.400)

4.030 Ford 302W 347W Windsor Stroker Pistons Flat

$1,071.38

QTY
347 Windsor Stroker Crankshaft CAST 9000 Series 3.400" External Balance 1 or 2 Piece Seal, 93023 SBF Small Block Ford 302W Windsor Crankshaft

347 Windsor Stroker Crankshaft CAST 9000 Series 3.

$565.00

QTY
Ford Windsor 347 Stroker Conrods 347W 302W I Beam 5.400" 7/16 bolt Chevy 0.927" Pin Connecting Con Rods SBF (26540716)

Ford Windsor 347 Stroker Conrods 347W 302W I Beam

$909.54

QTY
302W WINDSOR Main Bearings, P-Series, Standard Size FORD 289 SBF

302W WINDSOR Main Bearings, P-Series, Standard Siz

$108.00

QTY
FORD SBF 289 302W WINDSOR Oil Pump STANDARD Volume  Each

FORD SBF 289 302W WINDSOR Oil Pump STANDARD Volume

$84.89

QTY
EARLY SMALL BLOCK FORD FULL ENGINE GASKET SET KIT SUIT 289-302W

EARLY SMALL BLOCK FORD FULL ENGINE GASKET SET KIT

$201.99

QTY
Harmonic Balancer Dampener, Ford Windsor Cleveland, 302W 347, 351W, 351C External Neutral Internal Balance 28 oz, 3 & 4 Bolt, 6.4" Stroker

Harmonic Balancer Dampener, Ford Windsor Cleveland

$230.00

QTY
ASSEMBLED PAIR Ford V8 SBF Windsor Aluminium Cylinder Heads DRP  289 302 351W HYD ROLLER

ASSEMBLED PAIR Ford V8 SBF Windsor Aluminium Cylin

$2,249.50

QTY
302W 347 5.0L WINDSOR INLET MANIFOLD, DUAL PLANE, INTAKE, 8.2"  DECK, SBF, FORD, WINDSOR , AIR GAP STYLE

302W 347 5.0L WINDSOR INLET MANIFOLD, DUAL PLANE,

$362.50

QTY
Ford 157T Flexplate 28 Oz External Balance; 10.5" 289 302W 347 351W Windsor Pattern SBF

Ford 157T Flexplate 28 Oz External Balance; 10.5&q

$89.00

QTY
Early Windsor 302W Timing Chain Gear Set, Double Row Race  65-'88 289, 302, Boss 302 Ford SBF

Early Windsor 302W Timing Chain Gear Set, Double R

$148.00

QTY
FORD WINDSOR Conrod Bearings Standard P-Series, 289 302W SBF, Connecting Rod Big End

FORD WINDSOR Conrod Bearings Standard P-Series, 28

$73.70

QTY
PISTON RINGS 4.030 + 030 - PLASMA MOLY CAST IRON  1.5MM, 1.5MM, 3.00MM

PISTON RINGS 4.030 + 030 - PLASMA MOLY CAST IRON

$264.00

QTY

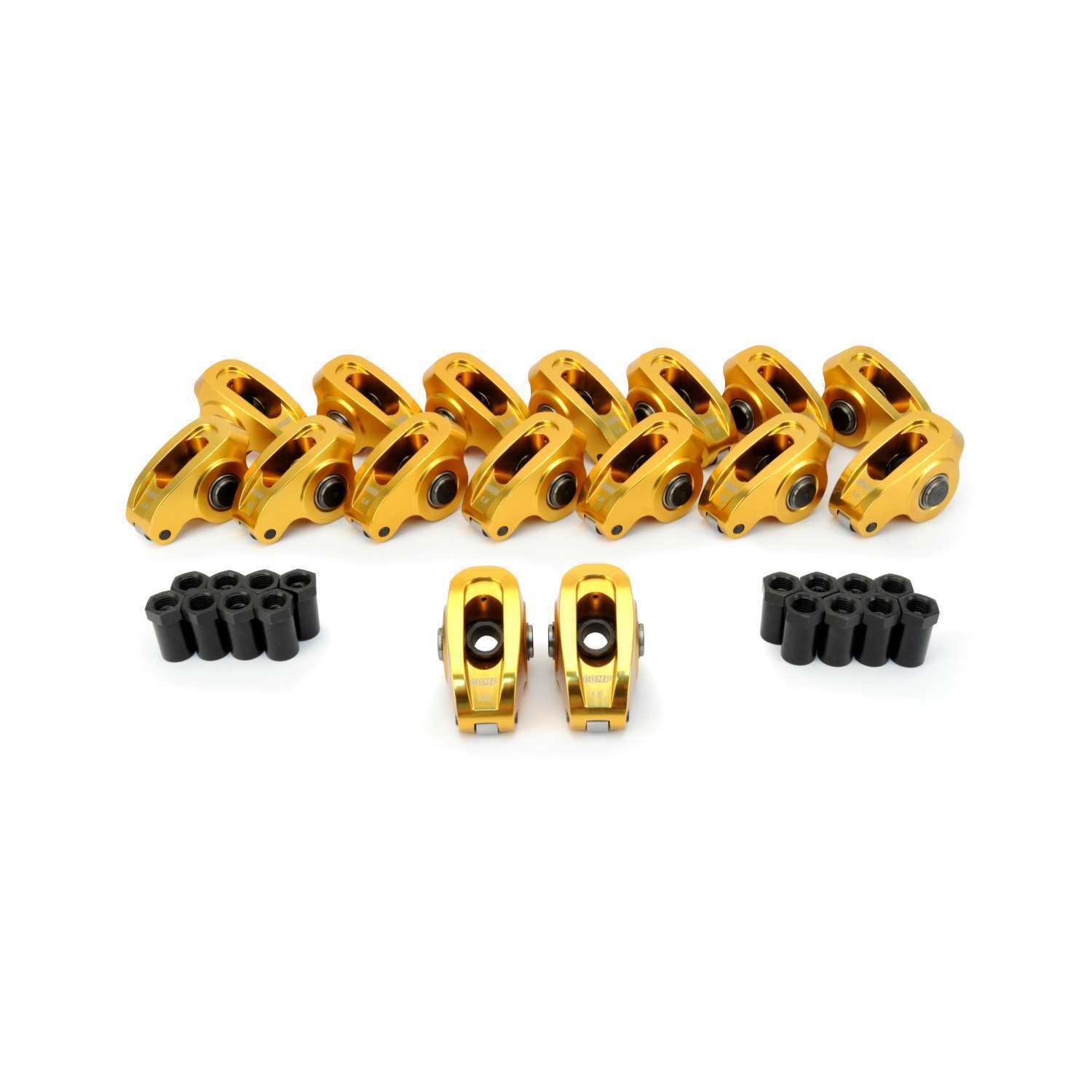

Ultra Gold Roller Rockers Arms 1.6 Ratio SBF Ford 289 302W 351W WINDSOR 7/16" stud

Ultra Gold Roller Rockers Arms 1.6 Ratio SBF Ford

$777.03

QTY

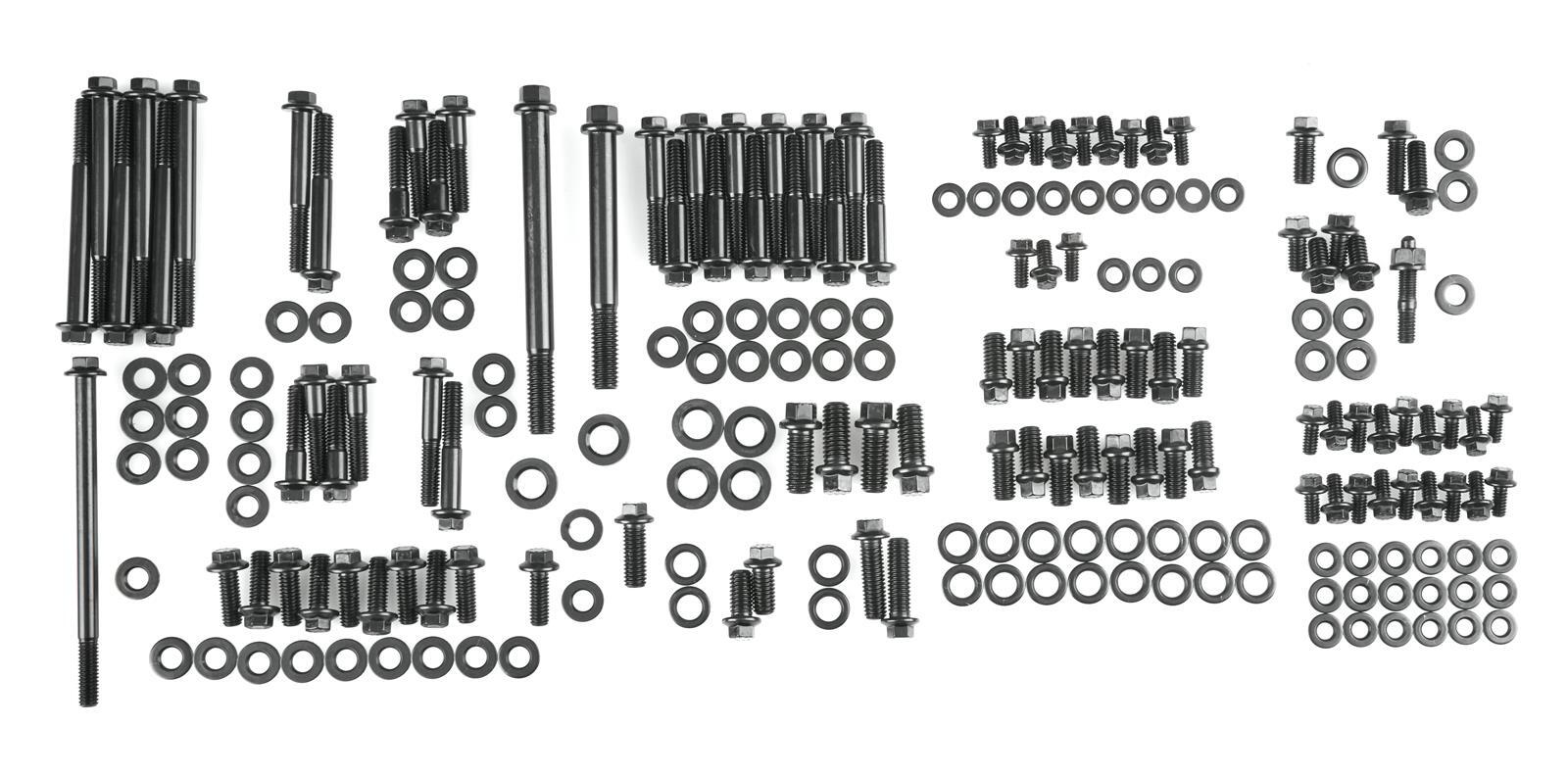

Full Engine & Accessories Bolt Kit Ford, 289, 302W, Early Windsor 12 Point Black Small Block Ford

Full Engine & Accessories Bolt Kit Ford, 289,

$360.00

QTY
FLEXPLATE BOLTS SET 7/16" X 1" 12 point CHEVY FORD HOLDEN V8 SBC BBC SBF 351C 308 302 Windsor Cleveland

FLEXPLATE BOLTS SET 7/16" X 1" 12 point

$40.73

QTY
FORD 302W Heavy Duty Oil Pump Drive Shaft Heat Treated Chrome Moly Steel SBF WINDSOR 8.2 DECK 302 BOSS

FORD 302W Heavy Duty Oil Pump Drive Shaft Heat Tre

$45.18

QTY
Mains Bolts FORD 289 302W 5.0L EFI Windsor 2-Bolt Mains Black Oxide 6 Point Hex, Small Block Ford SBF

Mains Bolts FORD 289 302W 5.0L EFI Windsor 2-Bolt

$102.27

QTY
FORD SBF WINDSOR 302W Cylinder Head Bolts Kit 6 Point HEX Head, Chromoly, Black Oxide, OEM DRP AFR EDELBROCK HEADS

FORD SBF WINDSOR 302W Cylinder Head Bolts Kit 6 Po

$107.62

QTY
FORD 351C 302w 351w WINDSOR SBF BBF CRANK HARMONIC BALANCER BOLT 12 point multi 5/8-18 X 2.050.

FORD 351C 302w 351w WINDSOR SBF BBF CRANK HARMONIC

$53.86

QTY
Ford Hydraulic Roller Lifters Tie Bar Retro-Fit SBF Ford 289 302 351W 351C WINDSOR CLEVELAND

Ford Hydraulic Roller Lifters Tie Bar Retro-Fit SB

$1,335.25

QTY
FORD WINDSOR SBF GUIDE PLATES Flat 1 Piece Ford 289 302W 351W w/ 5/16" Pushrod and 7/16" Stud

FORD WINDSOR SBF GUIDE PLATES Flat 1 Piece Ford 28

$49.54

QTY
Hi-Tech Roller Rocker Arm Screw In Studs SBC BBC SBF 351C 7/16" Base & 7/16" Rocker Thread, Chevy, Windsor, Cleveland, Holden

Hi-Tech Roller Rocker Arm Screw In Studs SBC BBC S

$136.79

QTY
286HR Magnum 230/230 LSA 110 598/598 lift Hydraulic Roller Camshaft Ford 302 5.0L Windsor -OEM large base circle

286HR Magnum 230/230 LSA 110 598/598 lift Hydrauli

$948.02

QTY
Finishing Kit SBF Ford 5.0L, 302W 351W Windsor & 302C 351C Cleveland. 2 Piece Fuel pump eccentric, keyway, head dowels

Finishing Kit SBF Ford 5.0L, 302W 351W Windsor &am

$61.16

QTY

Description

Windsor 347 Full Build Kit - Stroker & Top End Kit. Stage 2 Kit Hydraulic Roller Set up.

Build your own 347 Windsor Crate Engine

Nice Lumpy Street Cruiser. 450HP Windsor Top End Kits, combined with a SCAT Cast 347 Stroker kit for a complete package. Perfect for your hot resto build with that aftermarket performance look and all the nice quality parts!

HYDRAULIC ROLLER COMBINATION

RPM Range: 2000 - 6000 RPM

This 347 Windsor Top End Package has a very noticeable idle! Be noticed upon your entry to the car shows with this stout Full Windsor Kit. This lumpy idle Windsor Top End package will suit the stance of your Falcon, Mustang or Hot Rod and sound the goods at the weekend car shows. The Comp Cams Hydraulic Roller camshaft has crisp off throttle responsiveness and strong mid range torque and driveability. Strong mid range torque that pulls hard and mild street friendly manners. A nice 347 Windsor stroker kit & Top End package that you would be happy to hop in your Falcon and cruise all day long or even interstate.

Recommended Converter:  TCI 451100 2400 RPM Stall - Breakaway or TCI 451500 3400 RPM Stall

Whats in the Kit:

Heads come assembled with Comp Cams/PAC valve Springs. Includes ARP Screw in studs and TFC Guide Plates. This combination will give you 10.4:1 Compression when the block is zero decked.

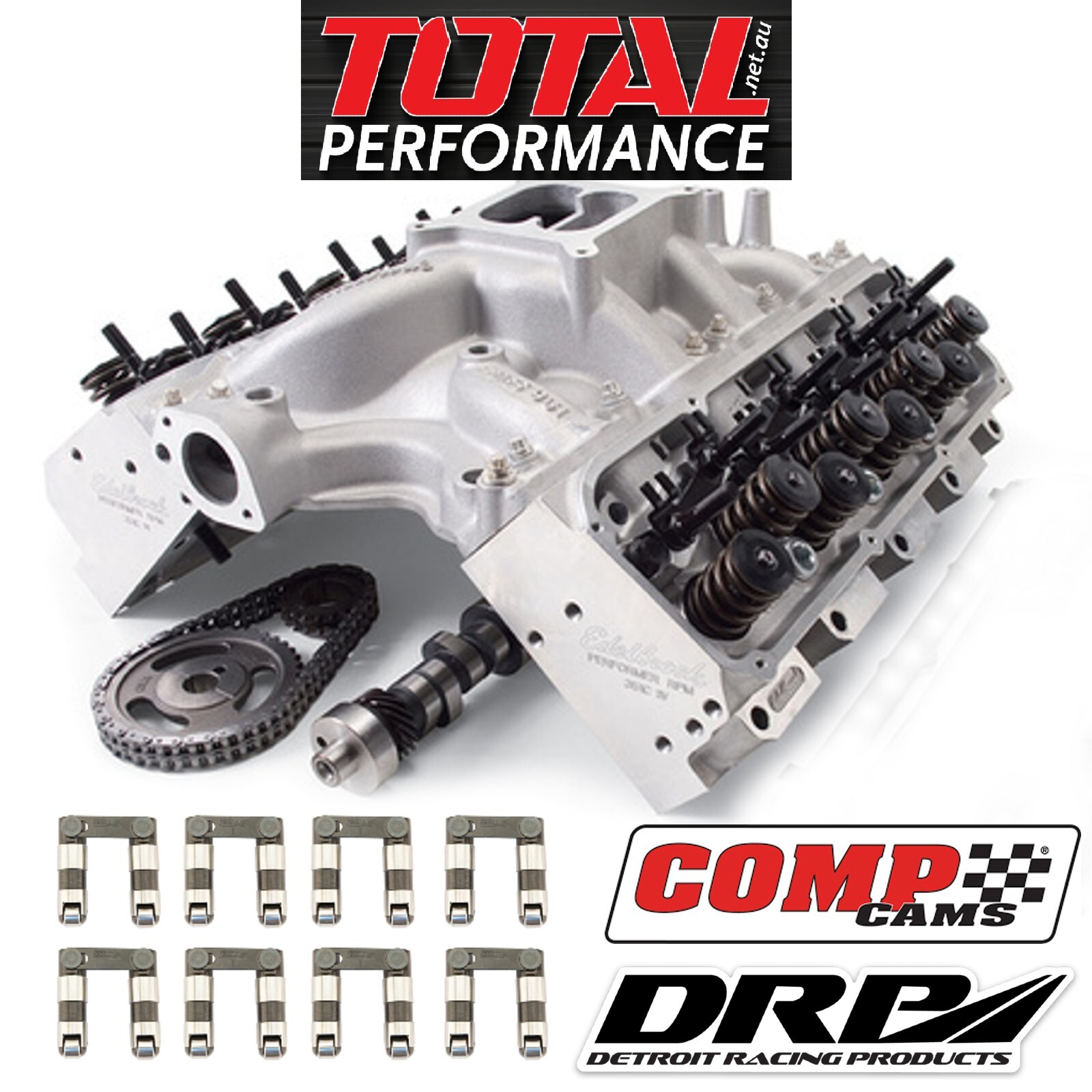

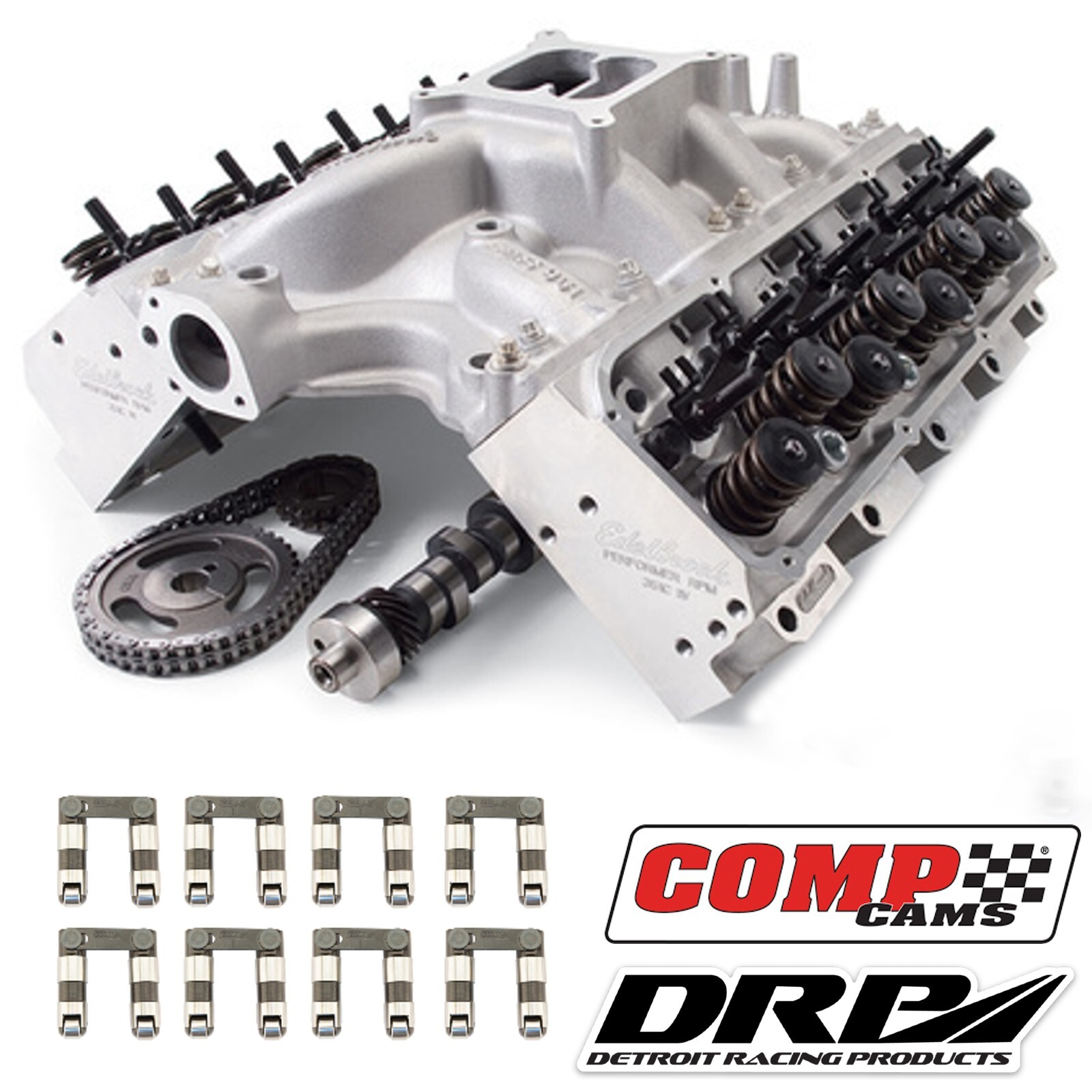

  • DRP Windsor Cylinder Heads - Complete suits Hydraulic Roller Camshaft
  • DRP Air Gap type intake Manifold
  • Comp Cams - Hydraulic Roller Camshaft (290HR - 230/230 @ 050)
  • Comp Cams - Hydraulic Roller Lifters - Tie Bar
  • Comp Cams - Double Row Timing Chain.
  • Comp Cams – Ultra Gold Roller Rockers
  • Comp Cams – Finishing kit

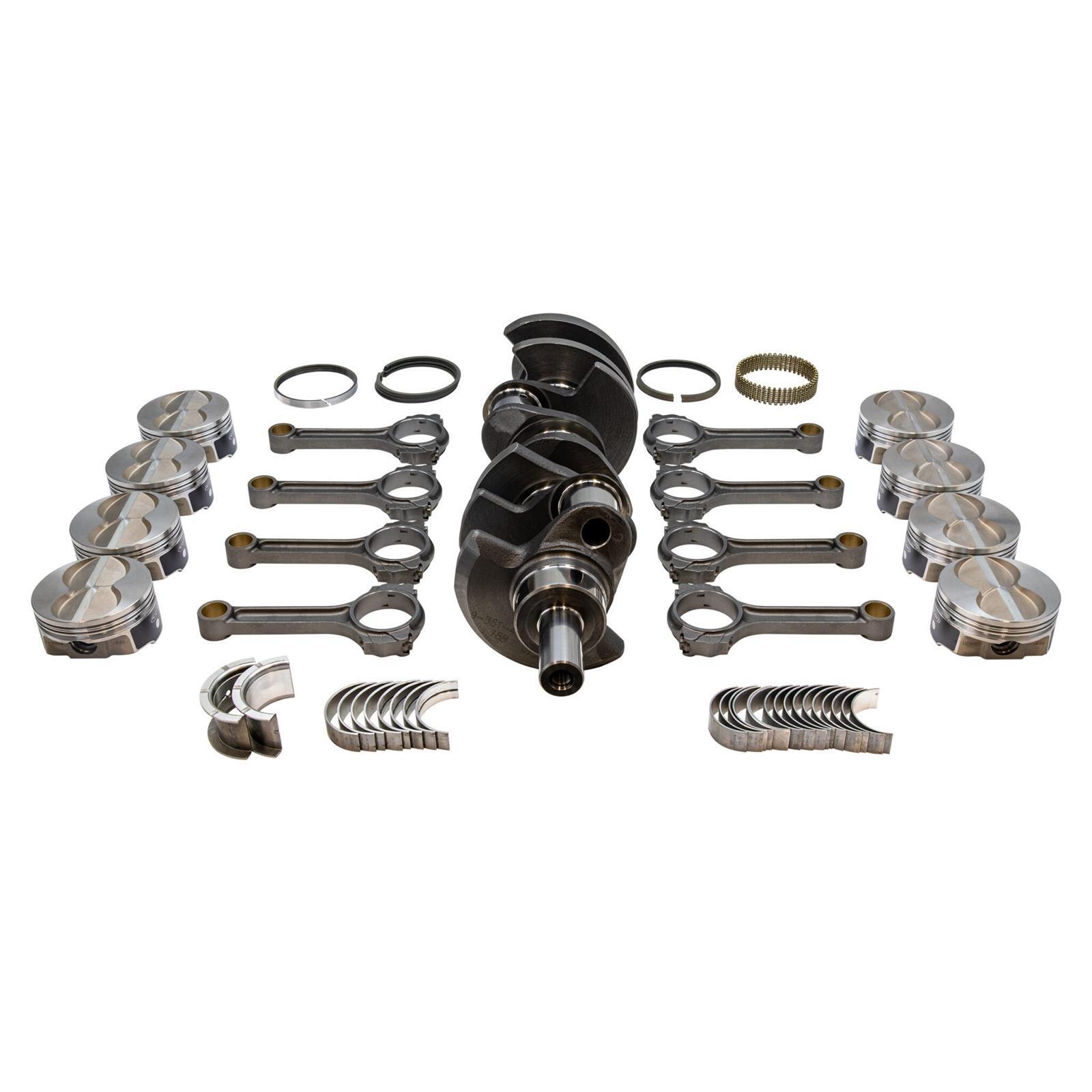

  • SCAT - Stroker Crank & Rods - Cast Crank & I Beam Rods 7/16 bolts
  • Racetec Pistons - Forged 4032 Flat Top Pistons & Rings
  • Melling - Oil pump & ARP heavy duty drive shaft
  • Clevite - Engine Bearings - P Series
  • ARP – Engine Bolts Kit, Head bolts, Main Bolts, Screw in rocker studs.

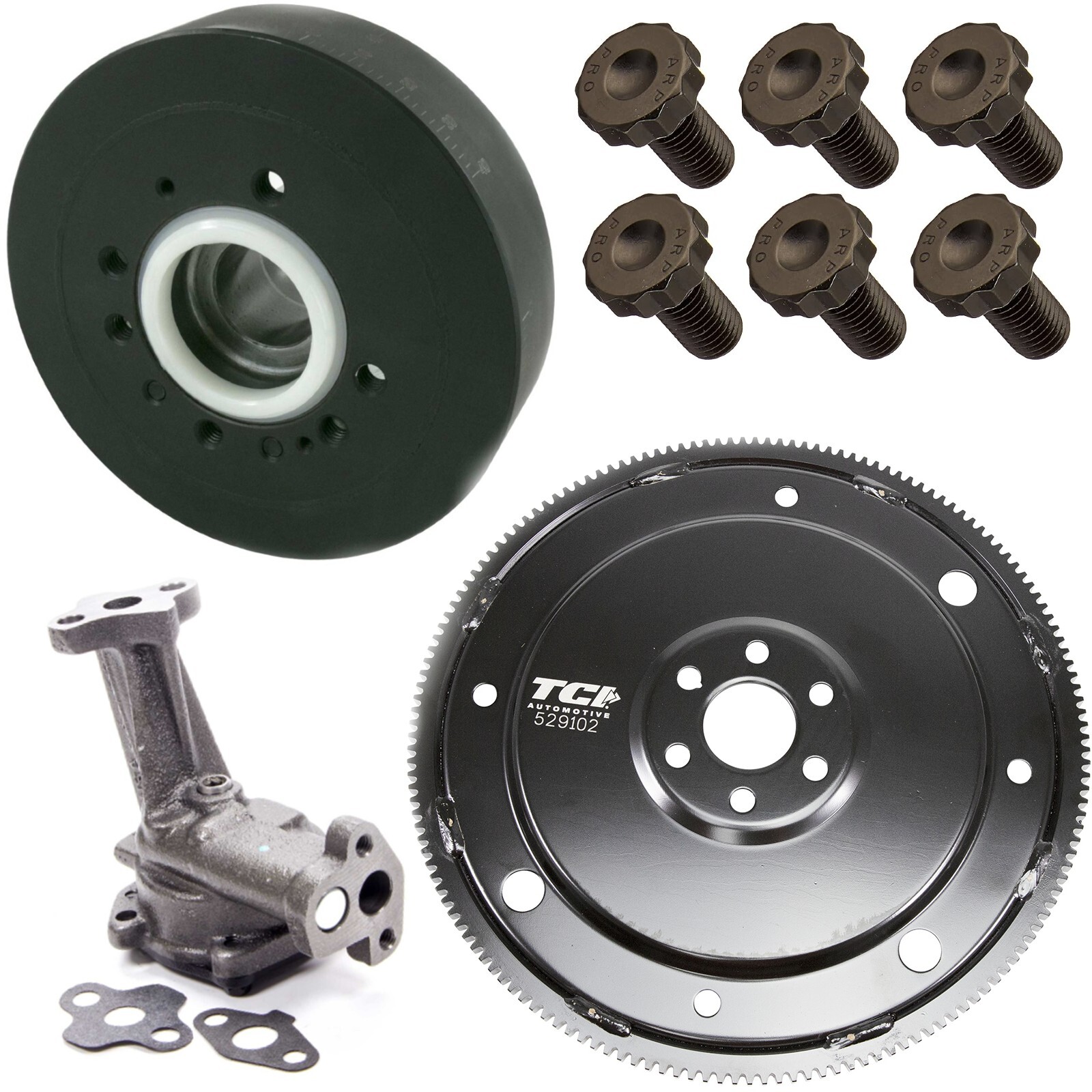

  • DRP - Harmonic Balancer & Flexplate

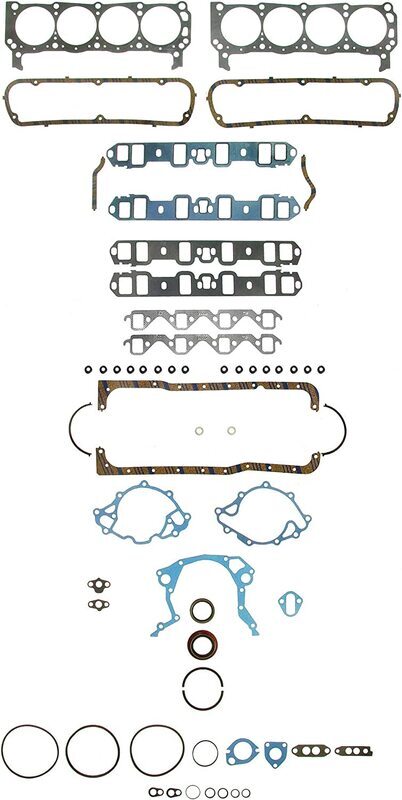

  • Fel-Pro – basic gasket kit

Free Freight!

Notes: Does not include a cylinder block, does not include machine work, balancing or assembly.

*If you require other items to finish your build, We have a range of Carburetor's, upgrade gaskets and a balancing service. Please contact us and we can assist and add these to your order.

**NOTE: Image is not of actual product.

Specifications

Ford:Small-Block Windsor:351 (5.8L)

SKU TP-347W-HRST2-KIT
Brand DRP
