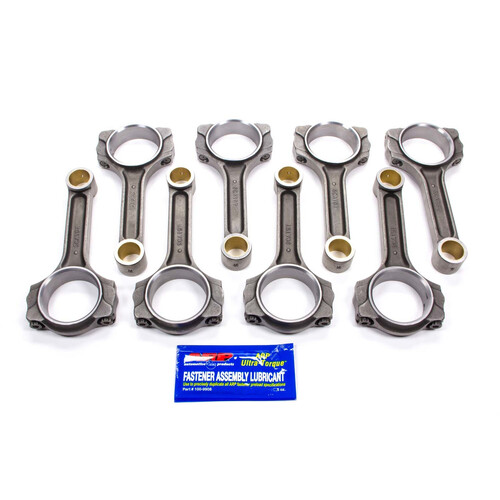

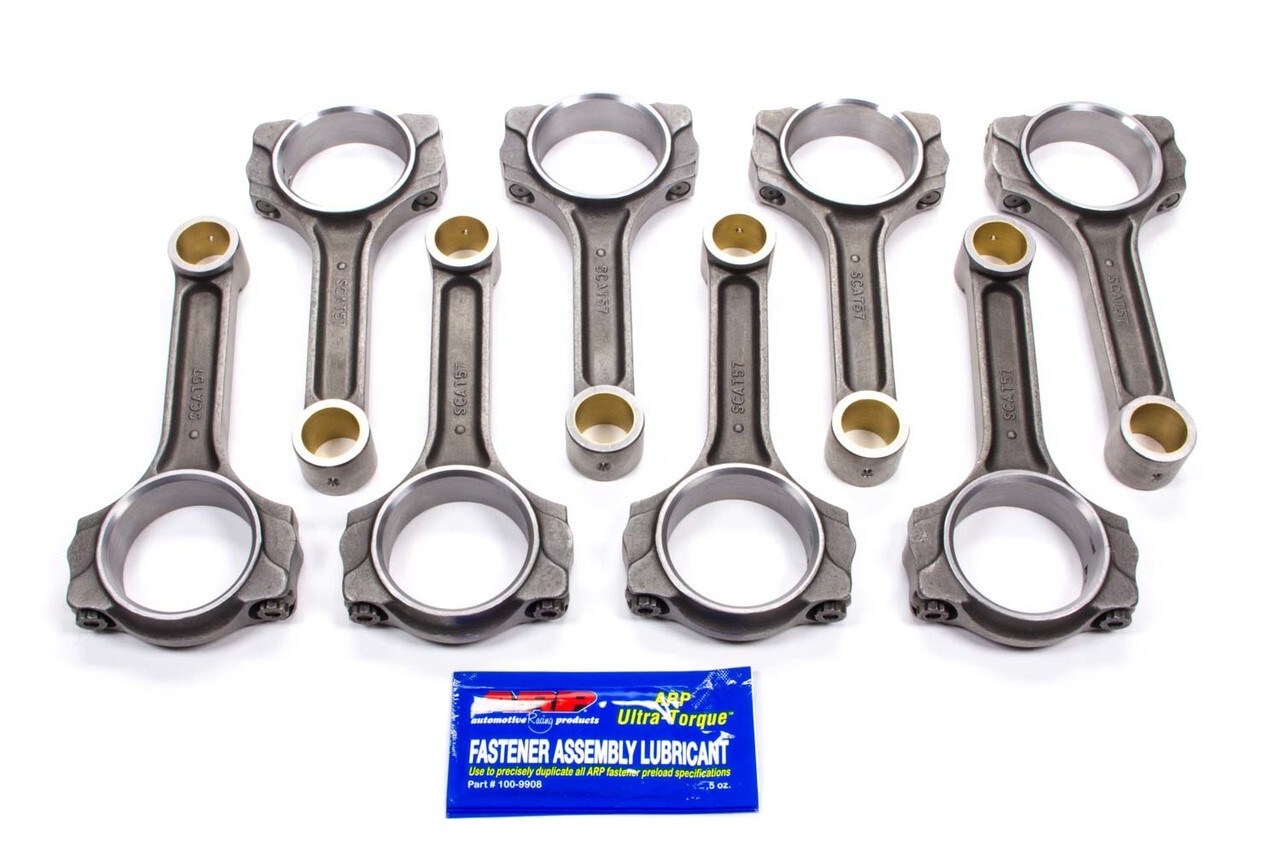

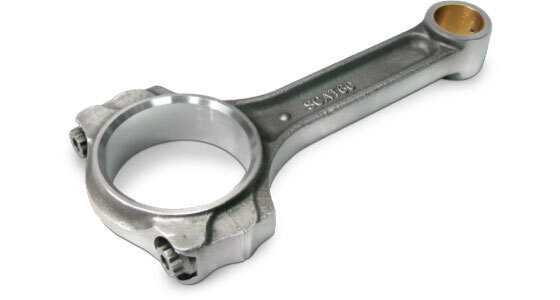

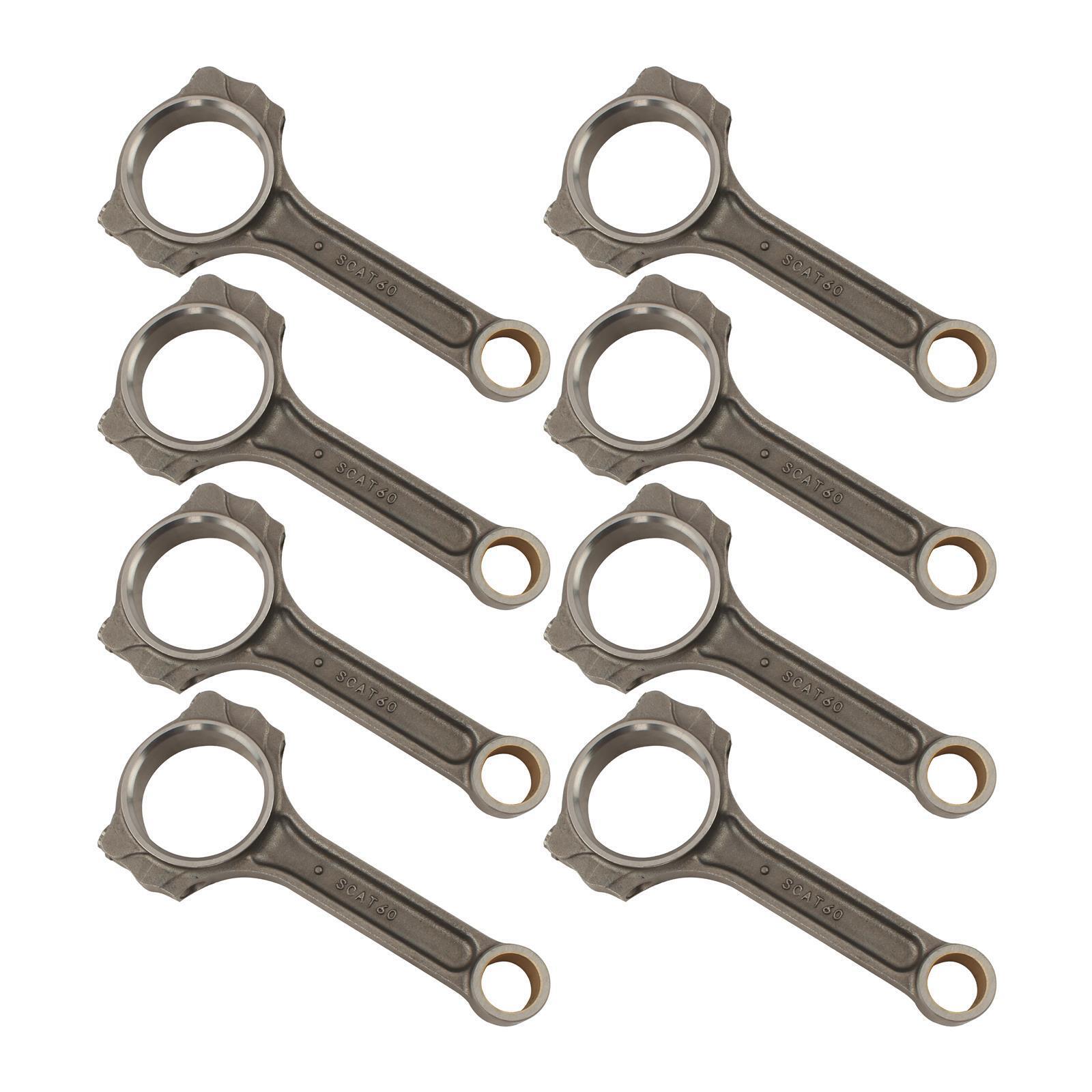

6.200" Pro Series I-Beam Conrods, 7/16ARP 8740 Bolts. SBC Small Block Chevy 350 LJ Connecting Rods, Bushed 26200716

Scat Pro Series 2-ICR6200-7/16 I-Beam Connecting Rods SBC Small Block Chevy 350 & 383 Stroker

Scat Pro Series I-Beam Connecting Rods - Stage 2 Scat Conrods

Suits CAST crankshaft stroker kits - Chevy 383 & 400 Plus Windsor 393, 408, 427 Strokers.

Scat Pro-Series 7/16 rod bolts, Chevy Stroker I-beam connecting rods have all the best features for a budget priced I-beam conrod. These I beams rods have strength-adders found in H-beam designs. These SCAT Chevy I beam rods are profiled with clearance for long stroke applications. These Chevy 6.000" connecting rods feature a one-rib cap design for added strength and bearing support and special hollow dowels with 7/16" ARP 8740 cap screw bolts to increase strength, horsepower capability & reliability, all at a budget price.

Scat Short part#:  26200716

Applications:  Small Block Chevy 383 Stroker & Ford Cleveland 393, 408 Strokers.

Connecting Rod Length Center to Center (in.):  6.200 in.

Connecting Rod Beam Style:  I-beam

Connecting Rod Material:  Forged 4340 steel

Wrist Pin Style:  Floating

Pin End Bore Diameter:  0.927 in.

Rod Journal Diameter (in.):  2.100

Big End Bore Diameter (in.):  2.2250

Quantity:  Sold as a set of 8.

Cap Retention Style:  Cap screw

Big End Width (in.):  0.940

Clearanced for Stroker:  No

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Material: 8740 chromoly steel

Fastener Tensile Strength (psi):  180,000 psi

Connecting Rod Bolt Head Style:  12-point

Weight Matched Set:  Yes

Notes:  Custom pistons are required when using connecting rods with any length other than OE length.
