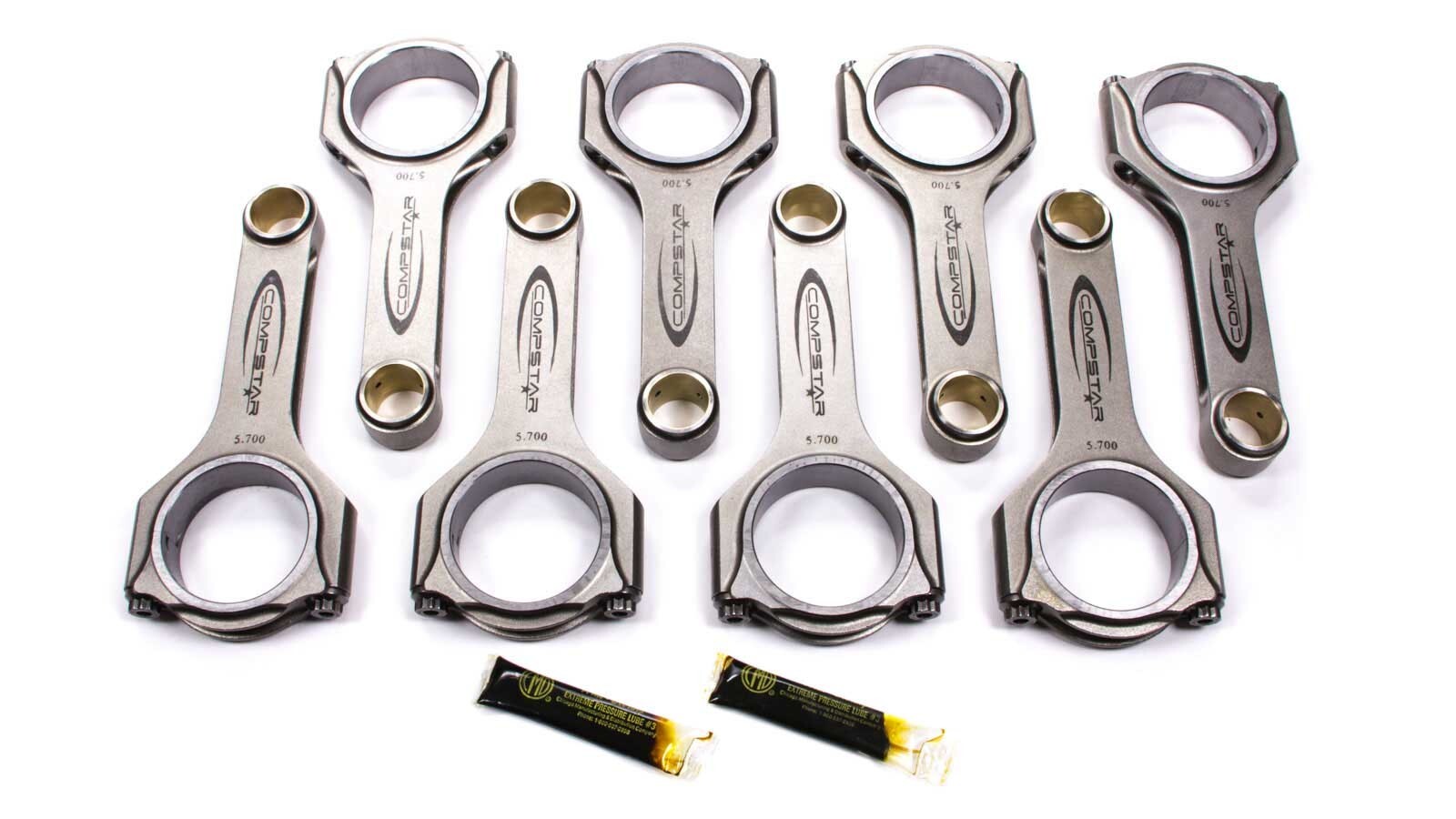

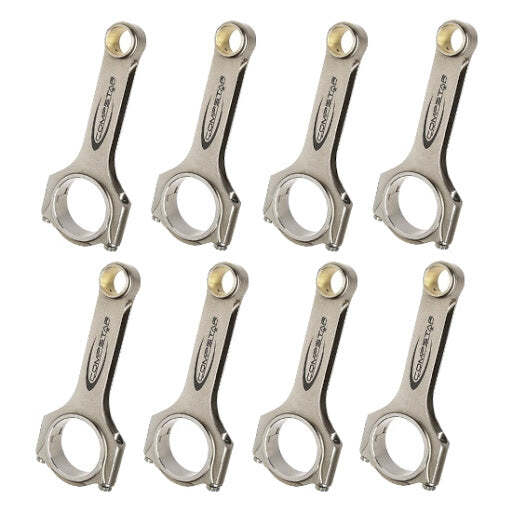

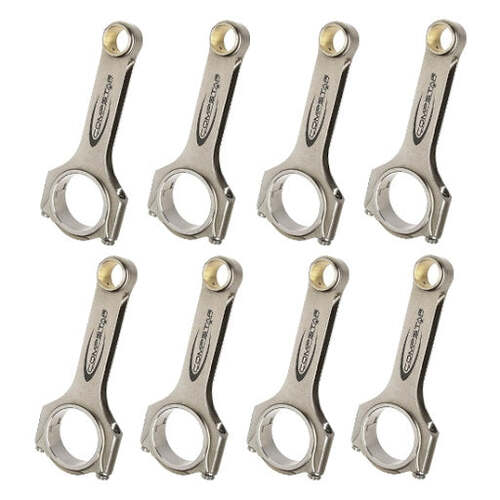

6.125" Chevy 350 4340 H BEAM CONNECTING RODS ARP 2000 ROD BOLTS Stroker Conrods

Callies Compstar Connecting Rods

Better by design, Callies Compstar connecting rods offer high performance and a trouble-free engine build.Their forged 4340 steel rods are put through a lengthy stress-relief process and burnishing of threads and bolt spot faces to ensure dimensional repeatability, no matter how many times rods are torn down and reassembled. Pin bushings are chamfered and honed, parting line edges are generously chamfered, and bearing locating tab slots are deburred, all in an effort to save you time and trouble. ARP 2000 bolts and stroker clearances are standard with Compstar rods.

Quantity: set of 8.

Connecting Rod Length Center to Center (in.):  6.125 in.

Connecting Rod Beam Style:  H-beam

Connecting Rod Material:  Steel

Connecting Rod Finish:  Shot-peened

Wrist Pin Style:  Floating

Rod Journal Diameter (in.):  2.100 in. Large Journal Chev

Big End Bore Diameter (in.):  2.2250 in.

Big End Width (in.):   0.940 in.

Pin End Bore Diameter:  0.928 in.

Pin End Width (in.):  0.960 in.

Clearanced for Stroker:  Yes

Cap Retention Style:  Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Material:  ARP2000 alloy

Fastener Tensile Strength (psi):  200,000 psi

Connecting Rod Bolt Head Style:  12-point

Approximate Connecting Rod Weight (g):  617

Advertised Horsepower Rating:  650 hp

Advertised RPM Rating:  7,500 rpm

Weight Matched Set:  Yes

Magnafluxed:  Yes

Stroker Clearance (SBC): Compstar rods will clear a .660" lift cam on a .900" base circle with a 4.000" stroke crank without any modification to the rod
