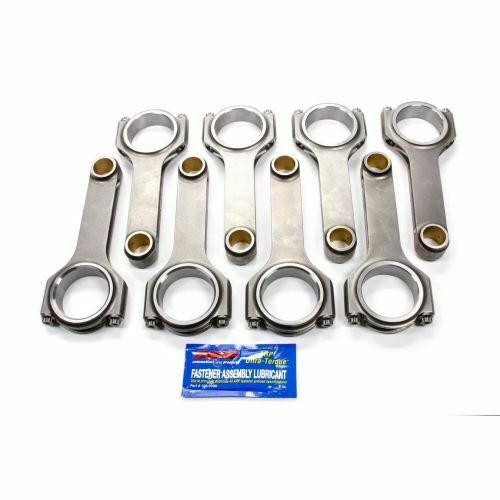

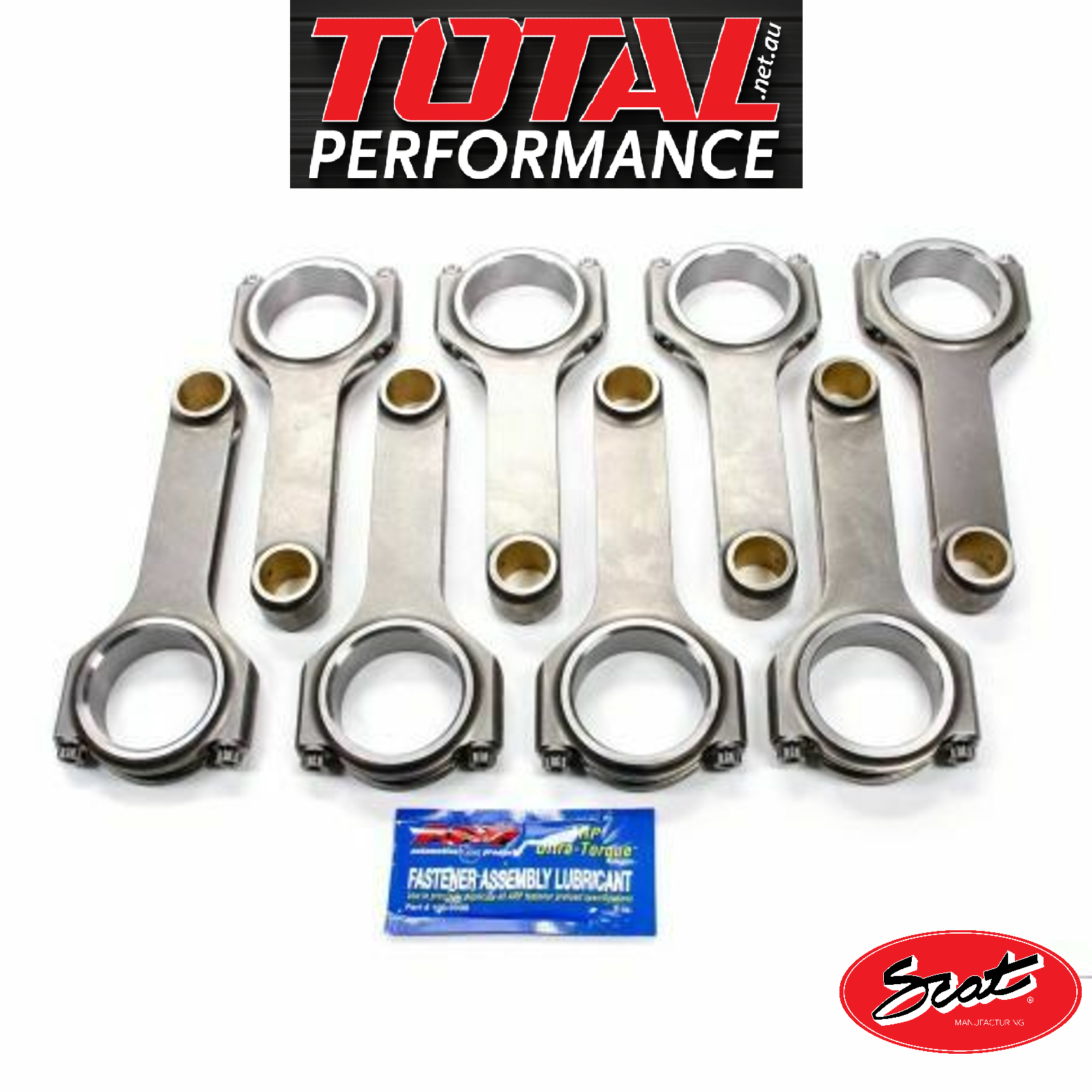

6.385" BBC 454 CHEVY BIG BLOCK STROKER 4340 H BEAM CONRODS W/ ARP 2000 BOLTS SET OF 8

Compstar Xtreme, H Beam  BIG BLOCK CHEVY, 454, STROKER, CONRODS, H BEAM, WITH ARP 2000 ROD BOLTS.

CSB6385ES3BDAX

6.385" Long, Bushed, 7/16" Cap Screws, ARP2000

SUITS BBC BIG BLOCK CHEVY WITH A STROKER CRANKSHAFT.

Connecting Rods

Designed for power adder or diesel applications, Compstar Xtreme connecting

rods feature 4340 steel construction and thickened H-beam flanges for enhanced

strength. Non-essential weight is then removed from the rod to keep the overall

weight in check. All Compstar Xtreme rods come with ARP2000 or ARP L19 fas-

teners, as indicated. Sold as a set of eight.


• 6.385" LONG BY BBC CHEV JOURNAL
• SET OF 8 HIGH QUALITY H BEAM RODS
• COMES WITH GENUINE 2000 SERIES ARP ROD BOLTS
• INCLUDES ARP ASSEMBLY LUBE

• Connecting Rod Length Center to Center (in.):  6.385 in.

  Connecting Rod Beam Style:  H-beam

  Connecting Rod Material:  Forged 4340 steel

  Connecting Rod Color:  Shot-peened and tumbled

  Wrist Pin Style:  Floating

  Rod Journal Diameter (in.):  2.200 in.

  Big End Bore Diameter (in.):  2.3250 in.

  Big End Width (in.):  0.992 in.

  Pin End Bore Diameter:  0.990 in.

  Cap Retention Style:   Cap screw

  Connecting Rod Bolt Brand:    ARP

  Connecting Rod Bolt Diameter:   7/16 in.

  Connecting Rod Bolt Material:   ARP2000 alloy  200,000 psi

  Connecting Rod Bolt Head Style:   12-point

  Weight Matched Set:Yes

  Notes:   Custom pistons are required when using connecting rods with any length other than OE length.
