650 cfm AVS2 Manual Choke 4x4 Off Road Carburetor Carby 4 Barrel, Mechanical Secondary, Square Bore Annular Boosters Carburettor

ED1915, Edelbrock 650 AVS 4x4 Off Road, 650 cfm, Mechanical Secondary, Four Barrel, 4150, Carby Carburetor

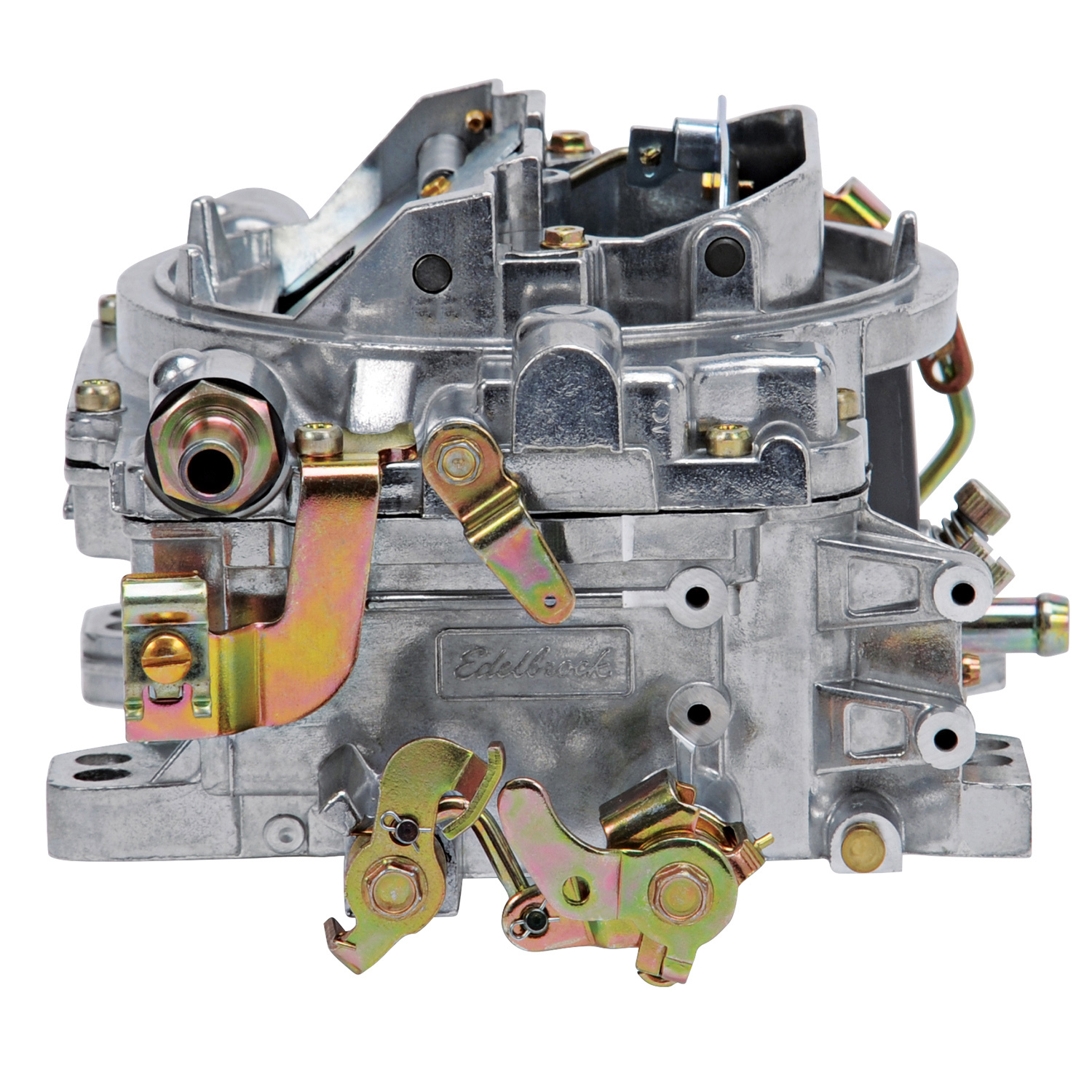

The Edelbrock 1915 AVS2 4x4 Off-Road Carburetor has a Manual Choke. This Edelbrock Off Road Carby is a special 650 CFM version of the proven ED1905 street carburettor with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you stand on the peddle.

FEATURES AND BENEFITS

• Annular Flow Booster technology (AVS); Spring-loaded needle and seat for rough terrain; Spring-loaded anti-syphon ball eliminates drip; No power valves to blow out; Available with manual or electric choke

The Edelbrock AVS2 Off-Road Carburetor #1915 with Manual Choke is a special 650 CFM version of the proven #1905 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. Like AVS2 street carbs, the AVS2 Off-Road features an annular ring with eight orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 Off-Road booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low- to mid-RPM range without sacrificing top-end power. For superior fuel control over rough terrain, the AVS2 Off-Road features a new spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to prevent fuel drip common with standard carbs in off-road situations. The AVS2 Off-Road is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 Off-Road carbs have the unique ability to "hold a tune? when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 Off-Road offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Off-Road Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The AVS2 Off-Road 650 CFM is available with a manual (#1915) or electric (#1916) choke and is manufactured by Edelbrock in the USA.

Manufacturer    Edelbrock

Application         4x4 Off Road

Series    AVS2

Metering Rod Size   .073 x .042 in

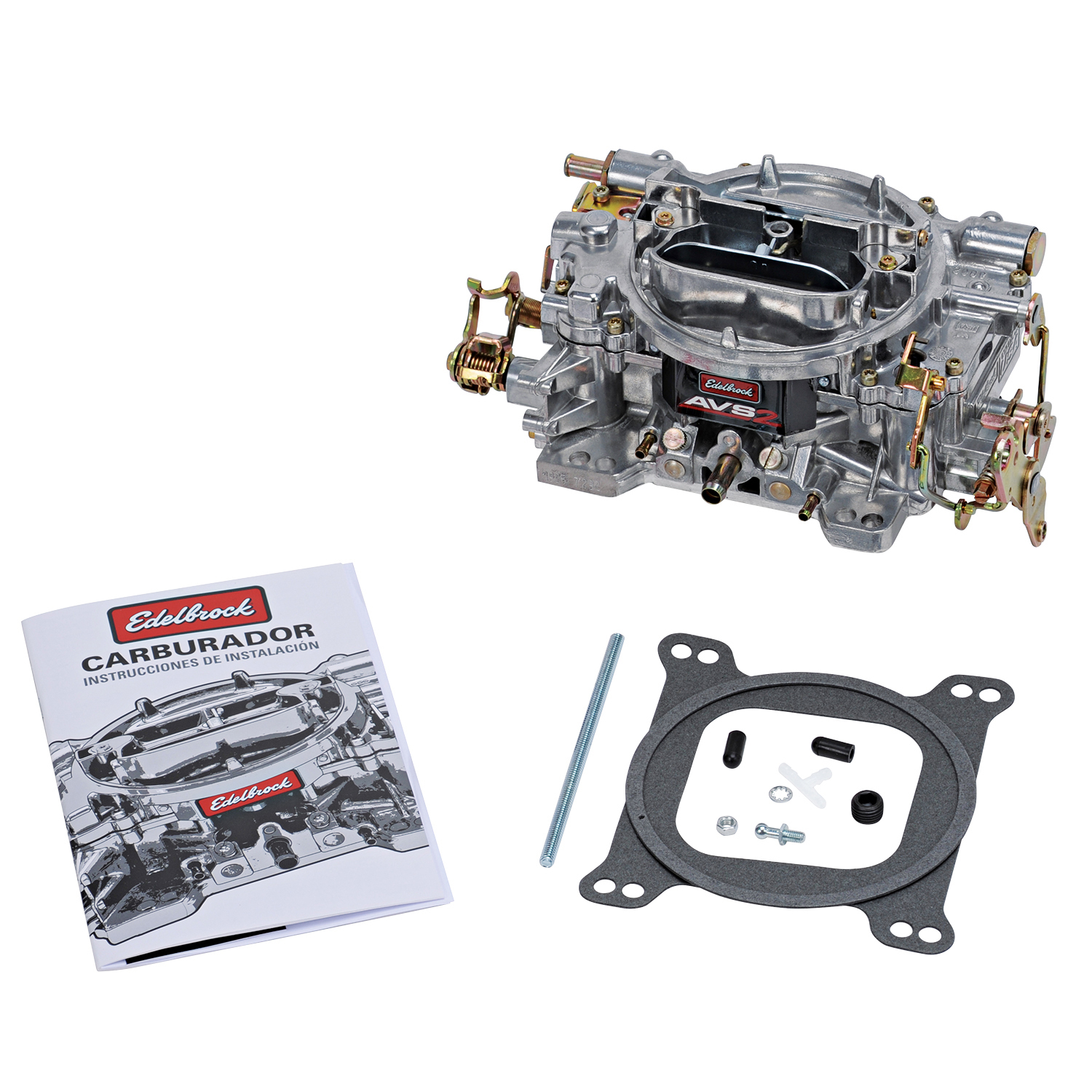

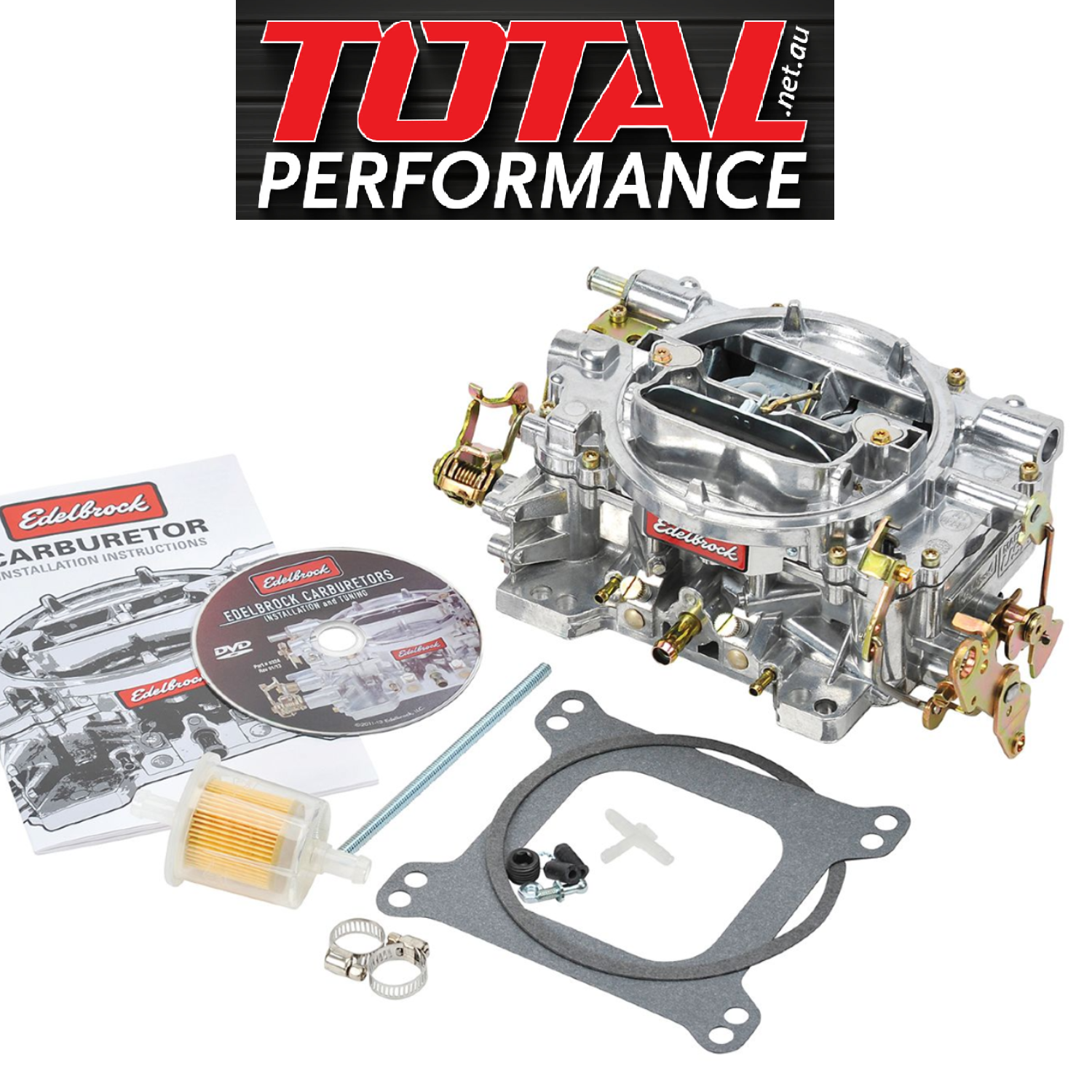

Gasket Or Seal Included   Yes

Barrel Quantity    4 Barrel

Flange Type        Square

Secondary Jet Diameter 0.098

Main Venturi Diameter   1.19

Body Height        3.25

Bore Diameter   Primary Bore 1.44; Secondary Bore 1.75

Spring Force       5" Hg (Orange)

Choke Type         Manual

Finish    Satin

Material               Aluminum

CFM Rating         650 cfm

Primary Jet Diameter      0.104
