7 AMP 2 step/rev limiter Ignition Control Box - Street Series
Description
7 AMP 2 step/rev limiter Ignition Control Box - Street Series
The 7062MC kit is a very popular package aimed at highly modified street / race cars. It features 128 pre-programmed advance curves push button adjustable in 1 degree increments from 0 to 20 degrees with various rates of advance as well as two fully adjustable RPM limiters. This provides easy and effective tune-ability for all combinations with the added security of one RPM limiter to protect the engine and a second RPM limiter which can be used as a launch RPM, valet mode or for anti-theft purposes. It results in excellent performance and exceptional long term reliability.
Kit includes:
ICE Billet 6061-T6 alloy distributor in small or large cap with either spheroidal graphite cast iron, silicon bronze or hardened steel gear.
7 Amp digital ignition control with signal LED indicator, dedicated tach output and two RPM limiters adjustable from 1000rpm through to 10900rpm in 100rpm increments.
Suitable for both 6cyl and 8cyl applications.
High voltage ICE Pro Series Race Coil.
9mm Pro 100 Series plug wire kit to suit your engine with numbers markers.
3 Year Warranty.
Warranty
12
Features
Full power, multi-strike CD ignition control designed for carbs and EFI;Modern digital controller, transformer and capacitor for improved efficiency;High energy sparks from idle to redline ensure complete combustion for increased power;Completely encased in soft urethane for protection against moisture and vibration
Specifications
| SKU | ICE-7062MV |
| Brand | ICE IGNITION |

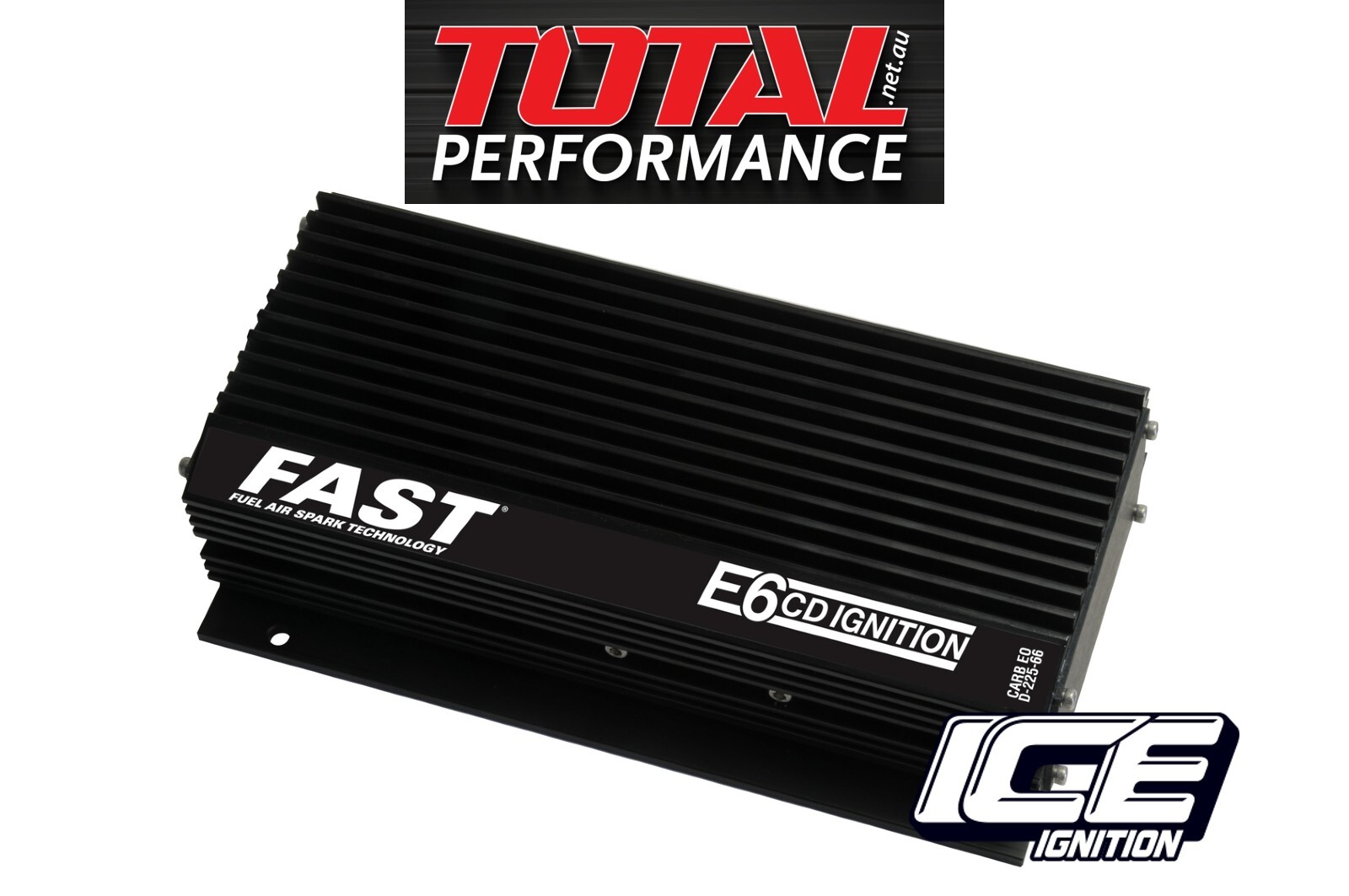

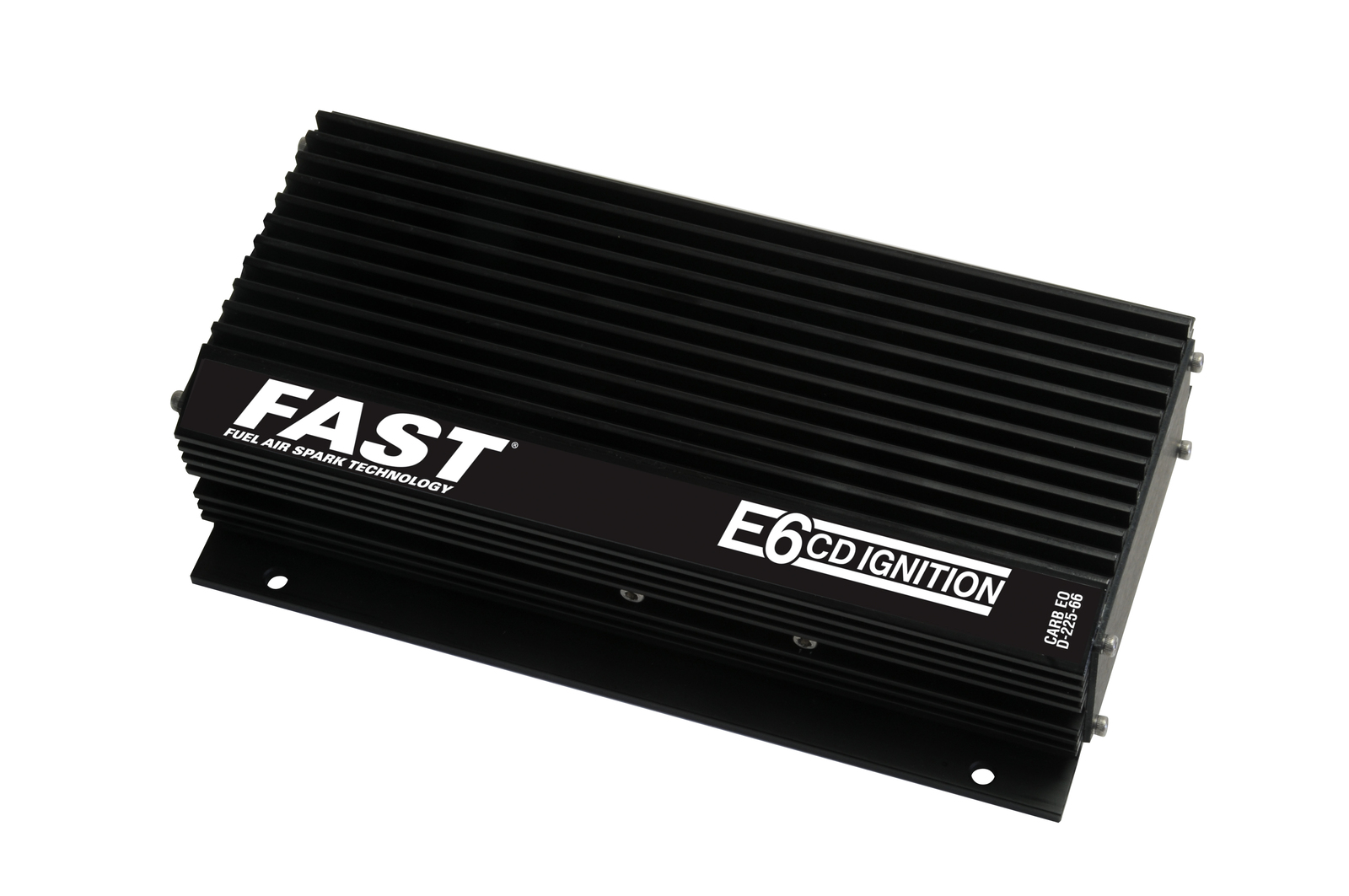

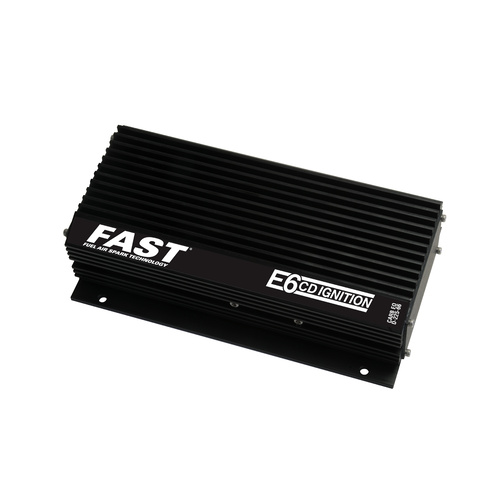

| Title | E6 CD Ignition Box |
| Height | 2.00 |
| Peak Spark Gap Current | 510 |
| Primary Energy Output | 1.2 |
| Primary Voltage Output | 450 |
| Multi-strike Duration (crankshaft Rotation) | 20 |
| Operating Range | 12,000 |
| Current Draw | 7.0 |
| Operating Voltage | 6-18 |
| Weight | 4.250 |
| Coil Shape | N/A |
| Rev Limiter Included | No |
| Maximum Rpm | 12000 |
| Minimum Operating Voltage | 6 |
| Instruction Manual Included | Yes |
| Coil Wire Included | No |
| Width | 4.50 |
| Length | 8.00 |
