Ford, FE 390 428 Intake Inlet Manifold Dual-Plane, Performer RPM Satin FE Big Block

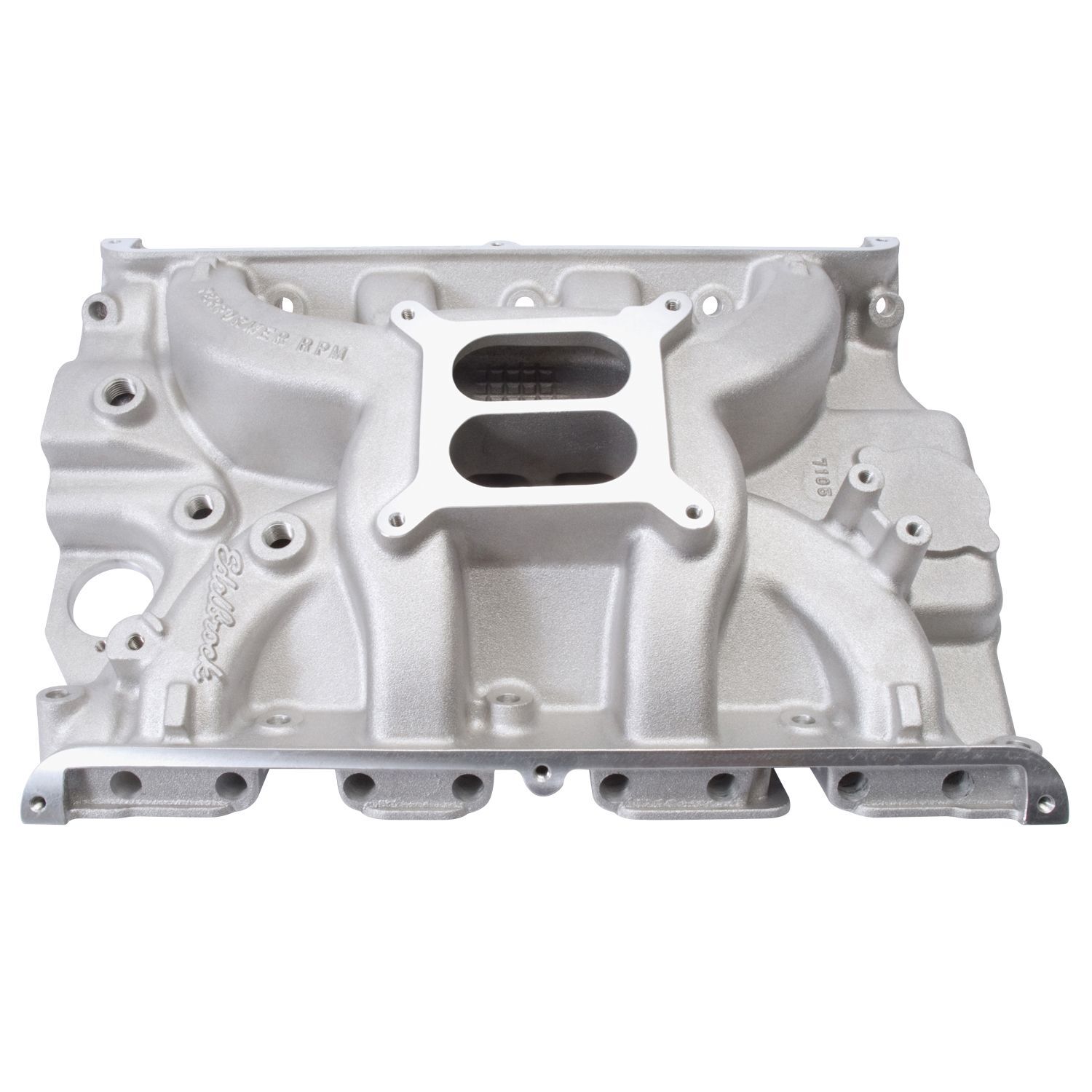

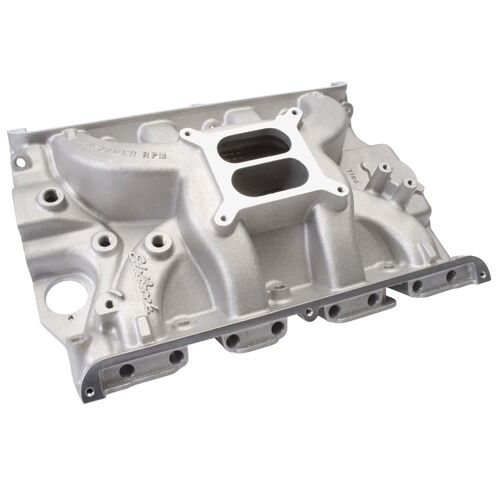

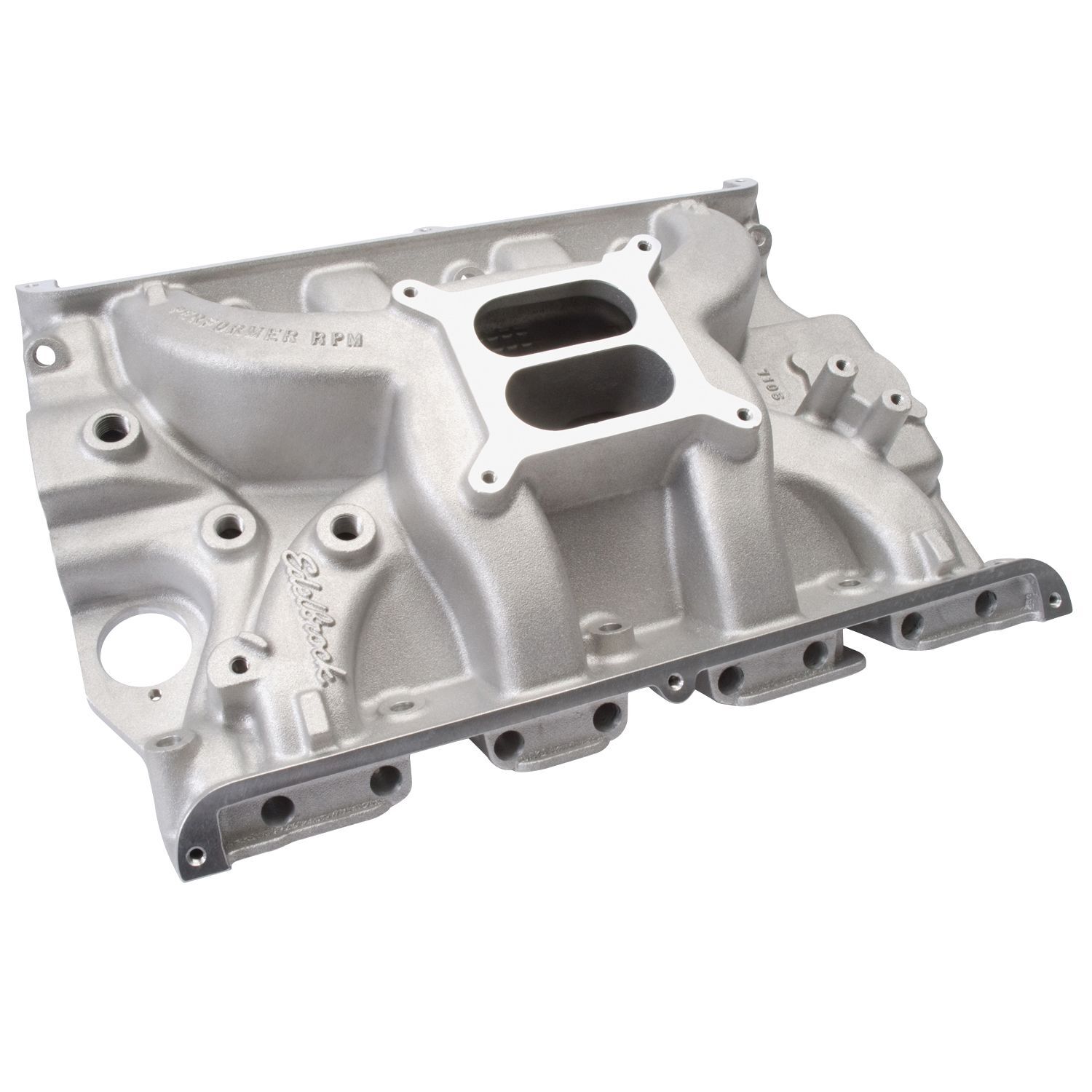

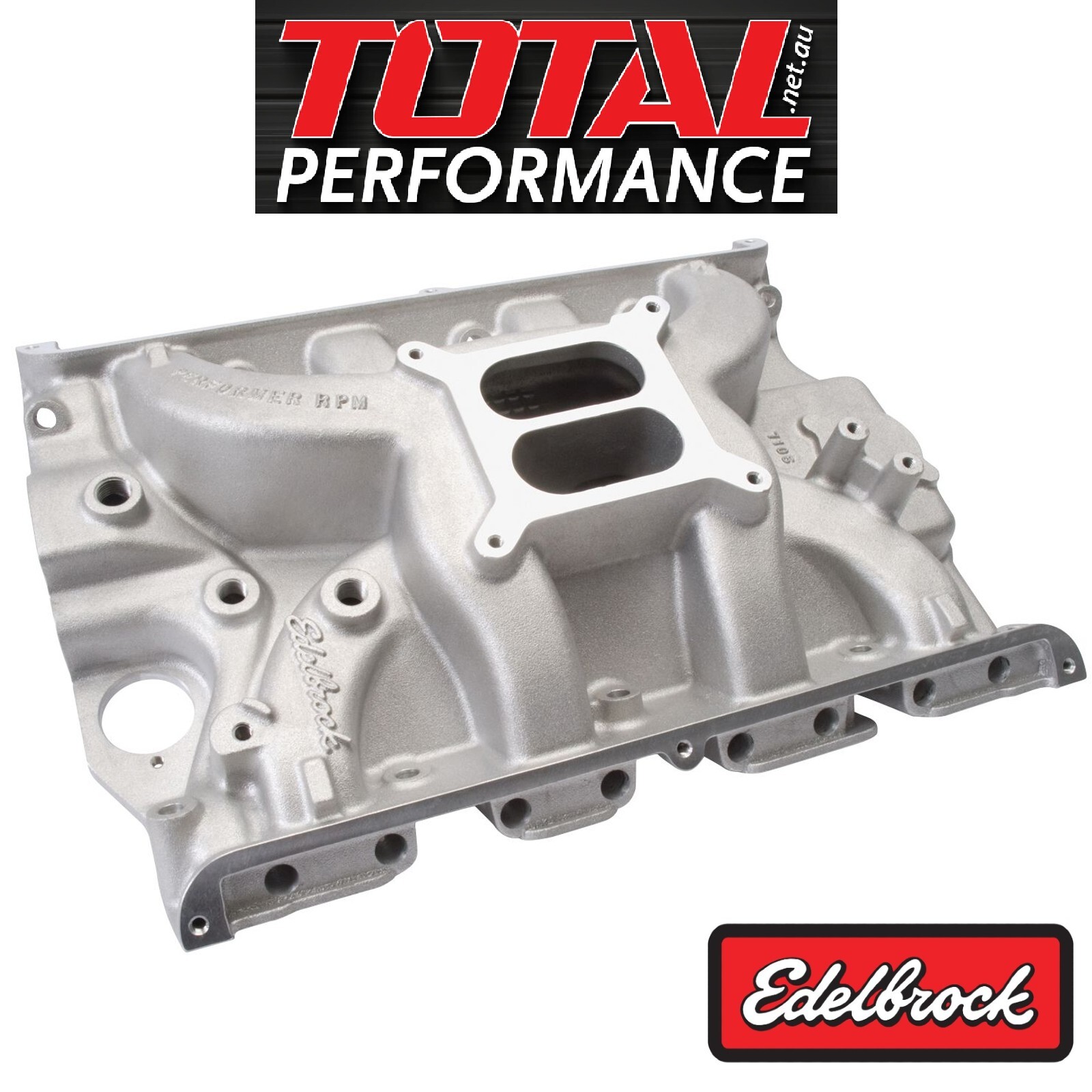

ED7105 Edelbrock Performer RPM 390 Intake Manifold for 1958-1976 Ford FE 3290 427 428 Big-Block V-8

Edelbrock part 7105 Performer RPM FE intake manifold is designed for high-performance's street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 low/medium-rise or Edelbrock Performer RPM FE Cylinder heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage.

Intake Section Included:  Complete

Engine Block Deck Height:  Standard deck

Carburetor Quantity:  One

Intake Style:  Dual plane

Basic Operating RPM Range:  1,500-6,500

Intake Manifold Height:  5.460 in.

Intake Finish:  Natural

Intake Material:  Aluminum

EGR:  No

Quantity:   Sold individually.

Notes:   Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage. Please see the charts and guides tab for a comparison of square bore vs spread bore.
