SKU: BTR-SK013

GM GEN V LT LS Conical Valve Springs Kit - .650" LIFT

$659.14

or 4 payments of $164.78 with Info

IN STOCK  FREE SHIPPING

Description

BTR GEN V LT CONICAL SPRING KIT - .650" LIFT - SK013

We were first to market with a conical valve spring kit for Gen V LT engines. If your cam isn't too radical, a dual spring kit isn't required. These springs will vastly improve valvetrain stability at high RPM while still supporting up to .650" lift. This kit includes springs, locks, seals and locators.

- Does not include retainers. You can use your existing retainers or Comp 792-16 Retainers.

- LT4 engines require spring kit part number SK014.

- Pushrod replacement is highly recommended.

INSTALL HEIGHT     160 LB SEAT @ 1.875"

OPEN PRESSURE   395 LB OPEN @ 1.225"

COIL BIND                @ 1.165"

SPRING RATE

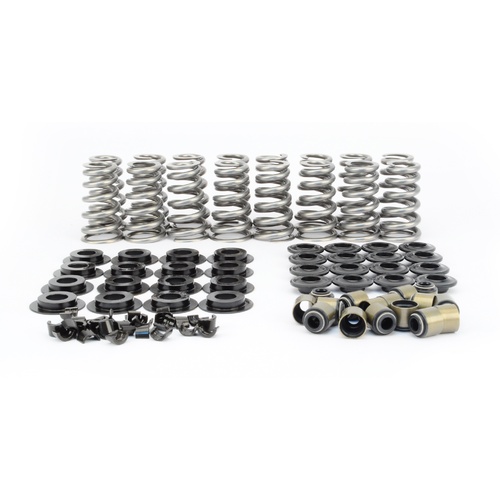

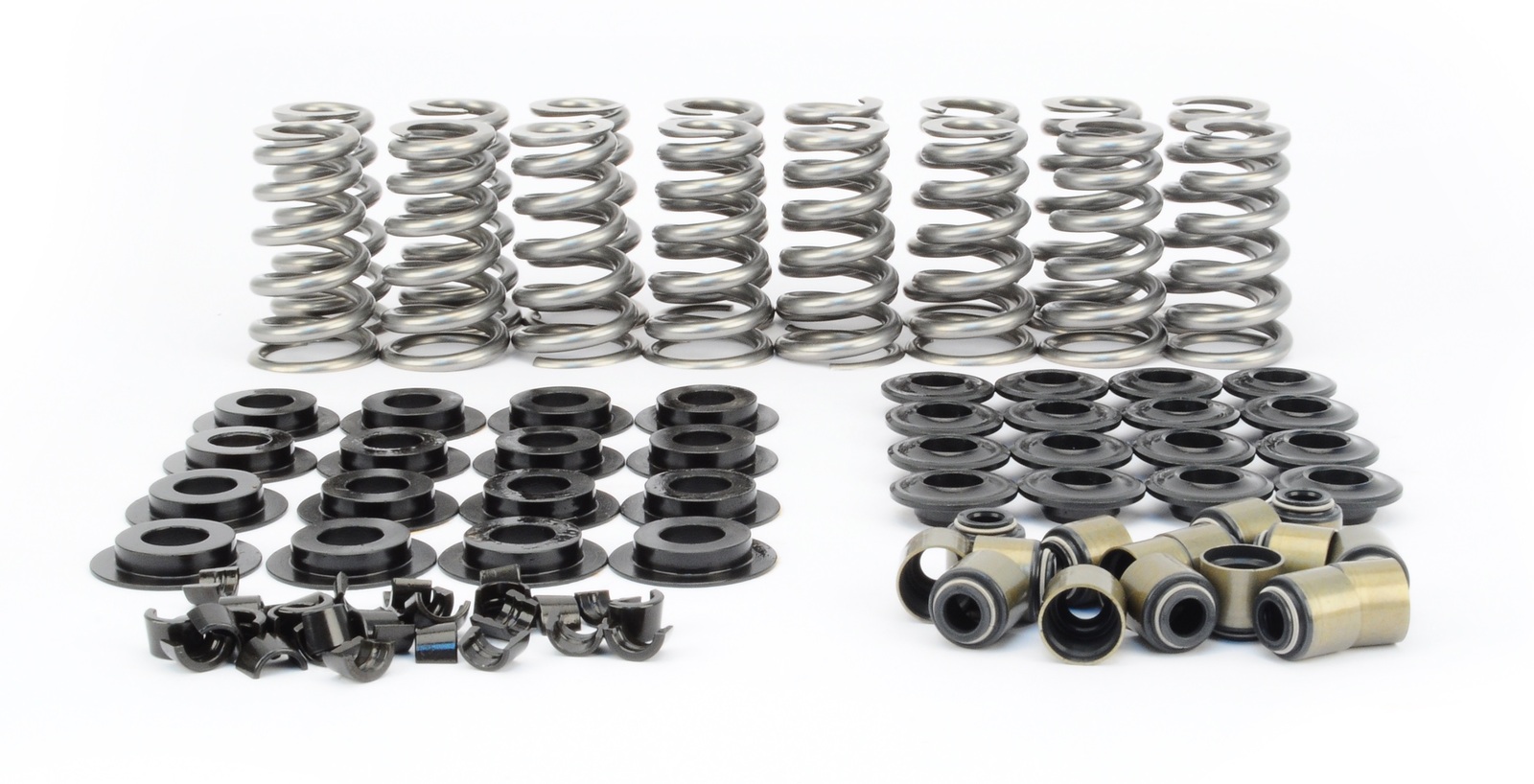

Kit includes:

- SP014-1 valve spring (QTY 16)

- SL505045CON-16 valve spring locator set (QTY 1)

- VS LS KIT valve seal kit (QTY 1)

- VL7°8MM-32 valve lock set (QTY 1)

Specifications

SKU BTR-SK013
Barcode # 036584286066
Brand BTR BRIAN TOOLEY
