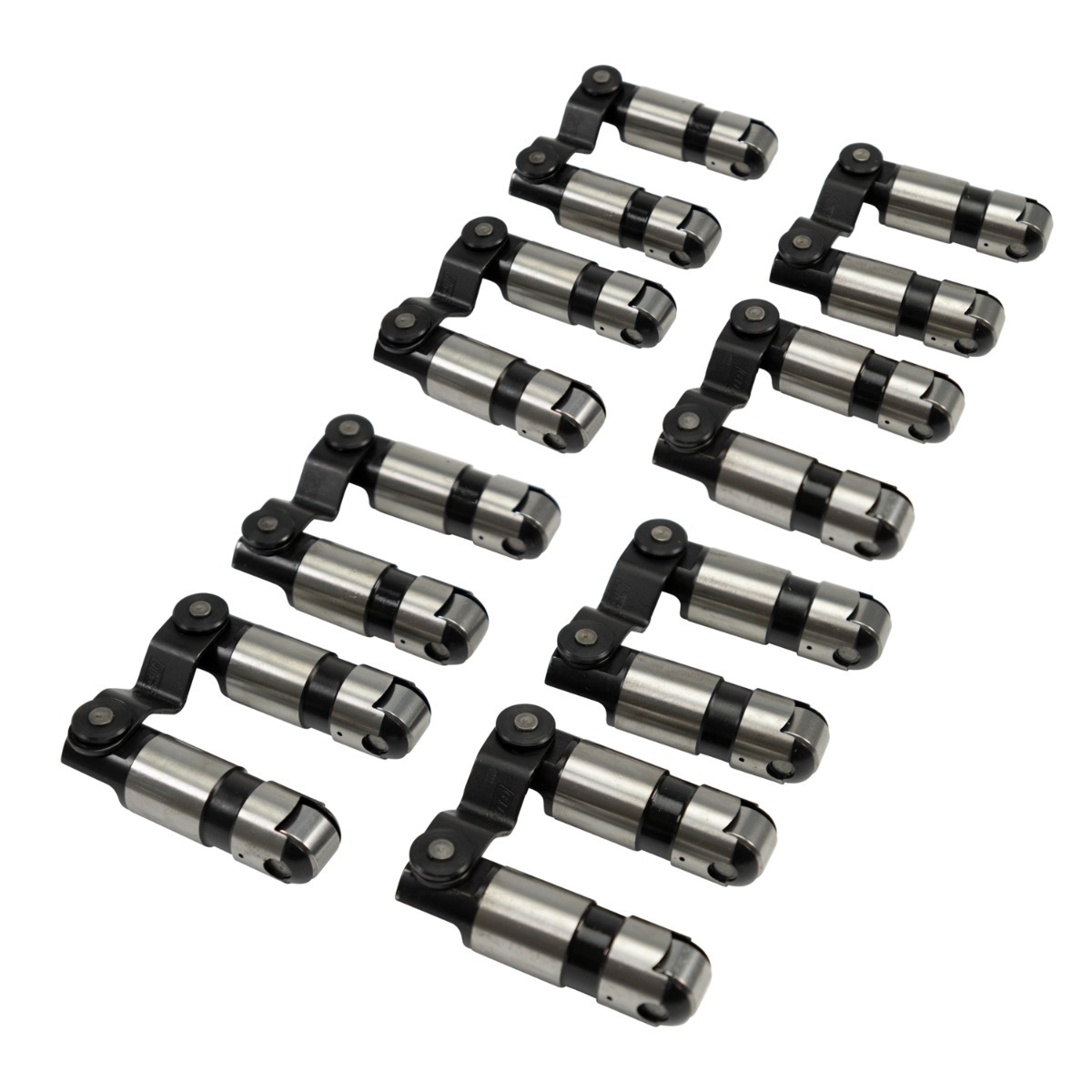

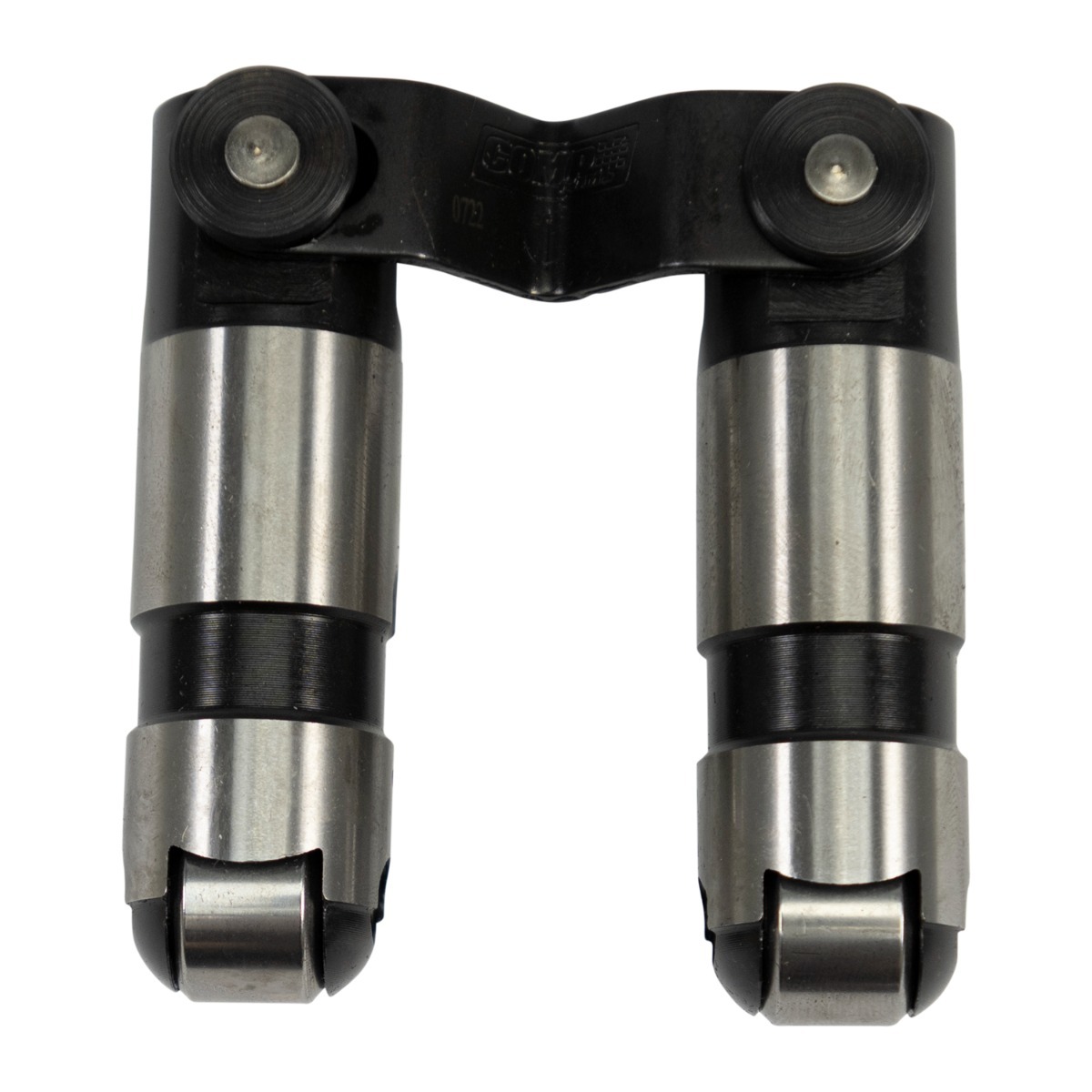

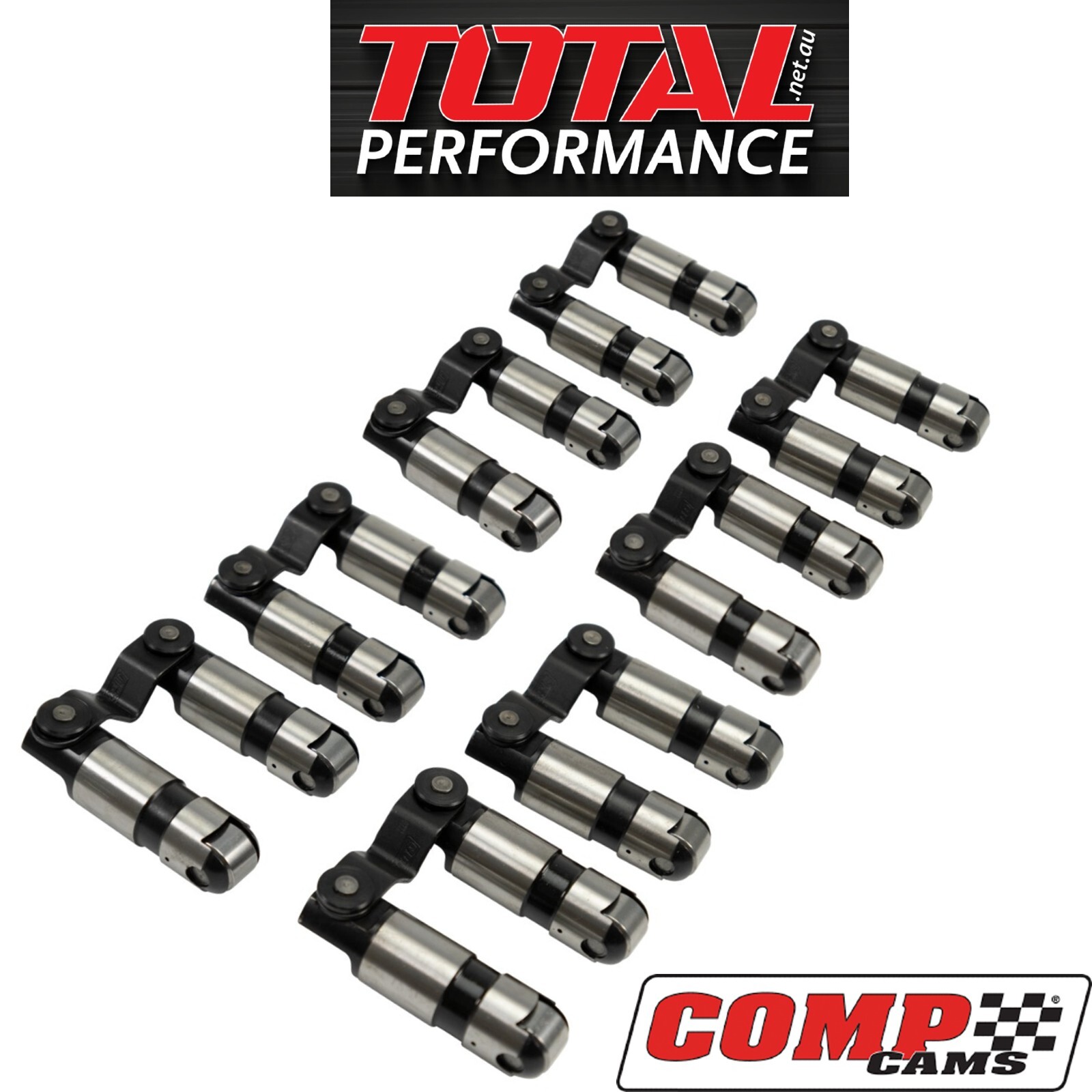

Chrysler Small Block V8 318 340 360 Evolution Retro-Fit Hydraulic Roller Lifters Link Tie Bar - Set of 16

COMP Cams 89201-16 New Evolution Retro-Fit Hydraulic Roller Lifters for Chrysler Small Block 318 340 360.

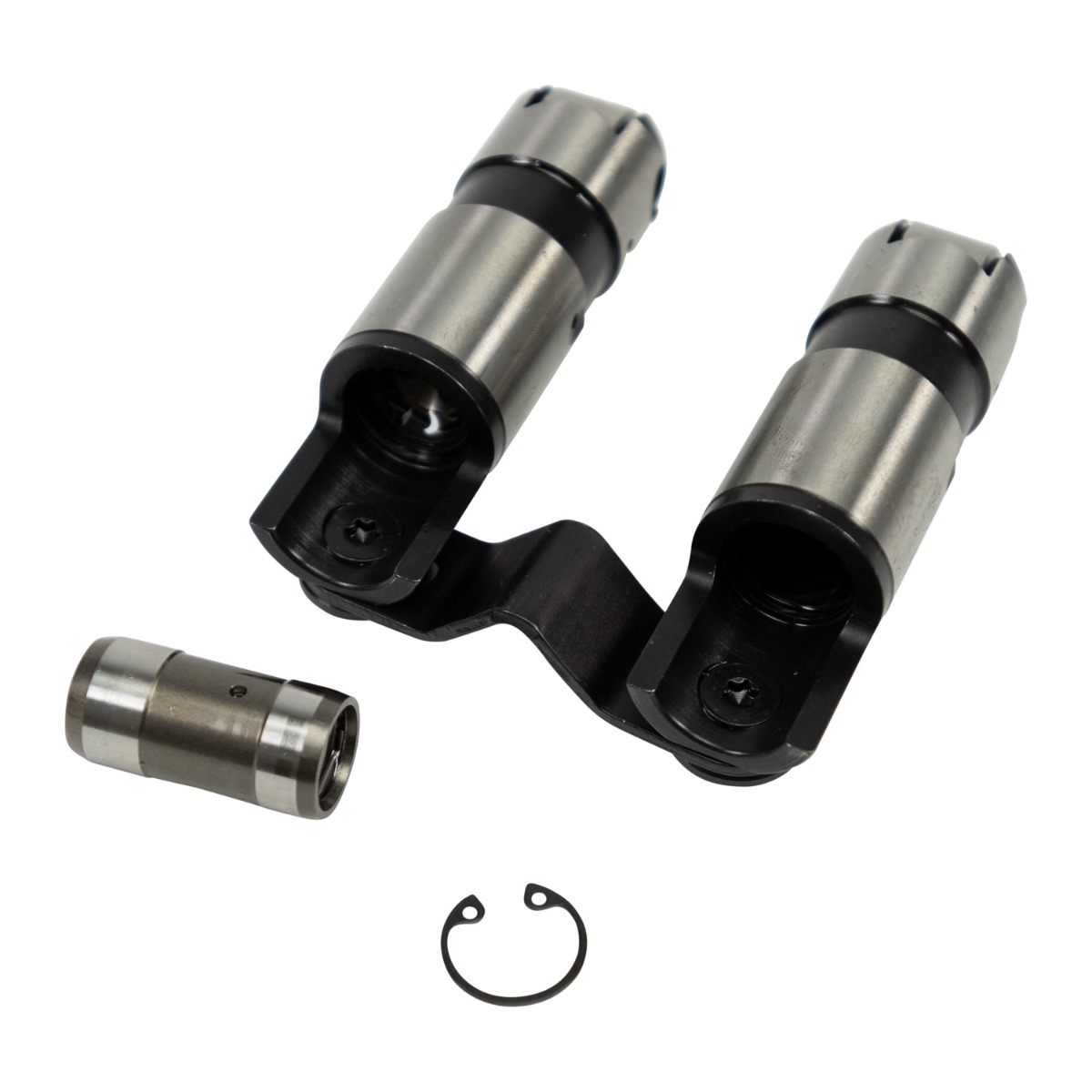

Retro-fit roller lifter for early model blocks originally equipped w/ flat tappet cam - Set of 16 with Hydraulic Cartridge Technology is a revolutionary patented tappet. A combination of a self-contained hydraulic cartridge within a thick wall lifter body and accompanying reduced oil volume that is less effected by oil aeration delivers the most consistent bleed rates between each lifter on the market.

The smaller volume within the hydraulic cartridge creates one of the most responsive and quietest lifters on the market today. Startup noise is greatly reduced and a precision-controlled bleed down rate ensures excellent performance at high RPM. The cartridge design also allows for an incredibly stiff lifter body, greatly reducing body distortion and further ensuring consistent hydraulic performance. This patented HCT tappet is completely new design that was developed specifically by COMP Cams to meet the demanding performance and durability required for modern street and performance street engines. The HCT and proprietary manufacturing processes of these lifters ensure precision and longevity that exceed any lifter on the market. Other features include increased duration and lift to the camshaft and two oiling features. Another industry first is the fact that the hydraulic element of this patented lifter is serviceable, allowing anyone to rebuild lifters in his or her own garage.

Specifications

Chrysler Small Block 318 340 360
Lifter Diameter: 0.904 in
Lifter Style: Hydraulic Roller - Tie Bar, Link Bar
Lifter Seat Height: 2.30
Retainment: Factory Tray
Lifter Travel: .150 in
Recommended Preload: 0.100 in
Pushrod Seat Offset: N/A
Oil Band Top: 1.28 in
Oil Band Bottom: 0.88 in
Lifter Overall Height: 3.07 in
Linkbar Bottom: 2.45 in
Lifter Wheel Diameter: 0.700 in
Roller Type: Needle Bearing
Lifter Finish: As Ground
Lifter Seat Cup Diameter: 0.3125 in
