4.040" 302 Windsor Dome Top 4032 Forged Pistons, +11cc, Standard Stroke, Ford Pin

1800351351

**We are closed from 20th December to 14th January 2025**

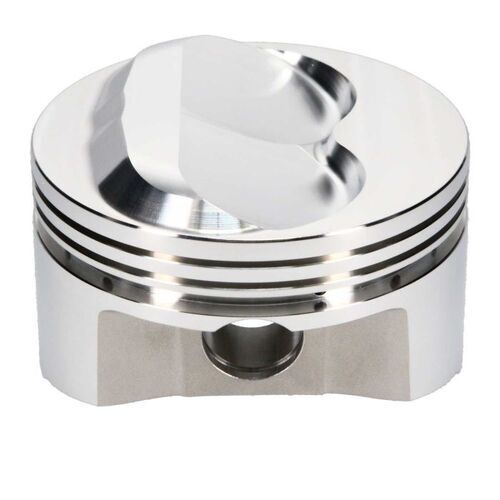

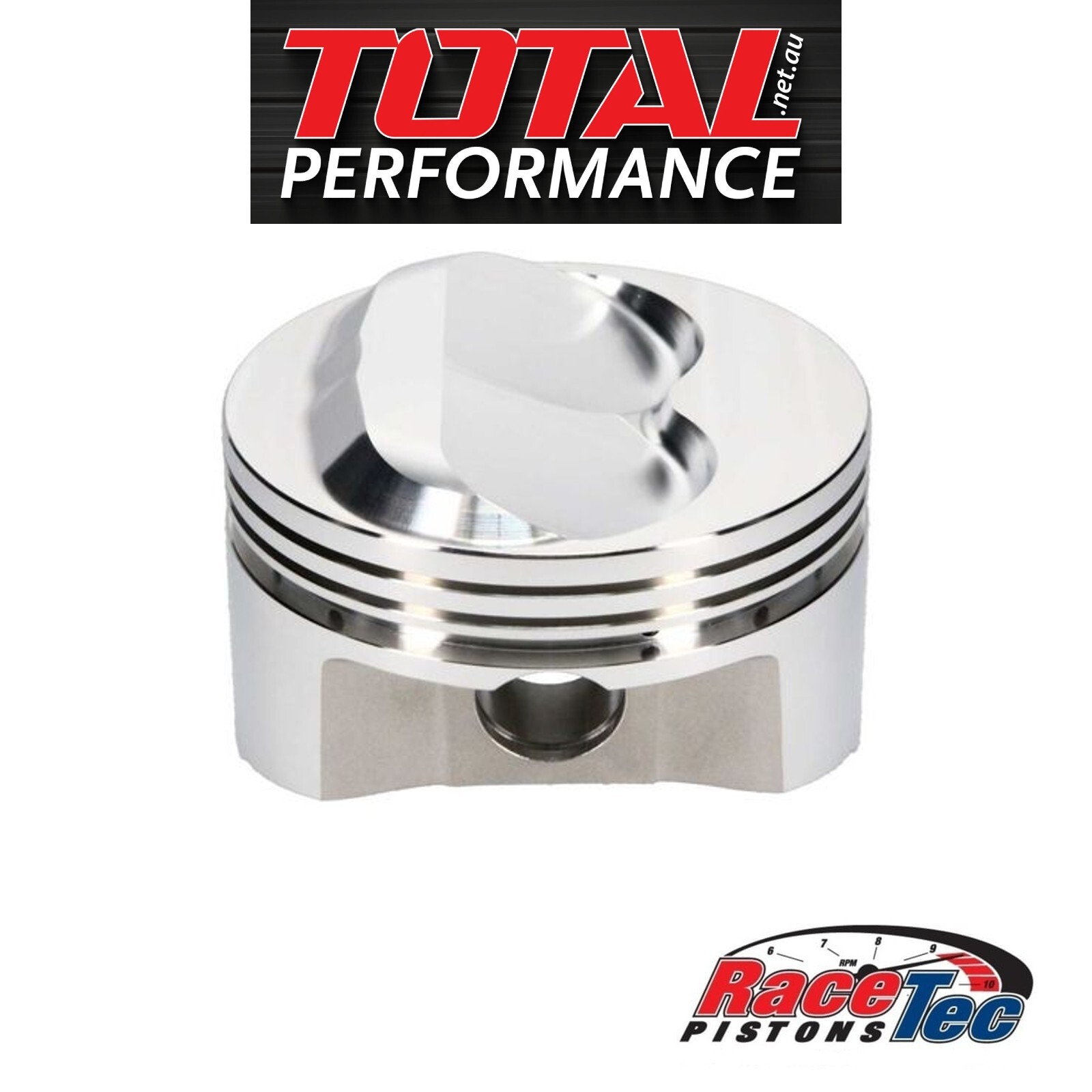

4.040" +040" Ford 302 Windsor Dome Top Forged Pistons 4032, +11cc, Standard Stroke, Ford Pin CH 1.600"

Description

1000417 Racetec / Autotec Small Block Ford 302W Dome Top Forged Pistons

Small Block Ford 302 Windsor Dome Top pistons

CNC Precision machined ring grooves for 1.5mm, 1.5mm, 3.0mm Rings.

Top ring land gas distribution groove to enhance performance and improve ring seal.

Autotec Pistons have wire locks, broached pin oilers and accumulator grooves as standard along with

Diamond turned skirts.

Windsor Piston Bore size: 4.040"
Windsor Oversize Piston: + 040"
Engine Capacity: 307 cu
Compression Height CH: 1.600"
Dome Volume: +11.1cc
Standard Combination: 3.000" stroke x 5.090" Conrod. (Standard Stroke & Standard conrod)
Compression Ratios: 11.9:1 @ 60cc / 11.1:1 @ 64cc
Rings Size: 1.5mm x 1.5mm x 3.00mm
Rings Included: NO
Gudgeon Pin size: 0.990" Ford Pin

AutoTec pistons are the Street/Strip family of the Ractec brand. These Forged Autotec Windsor pistons a High Quality, Precision Manufactured Forged piston option at an extremely competitive price.

Specifications

SKU	AT-1000417
Brand	AUTOTEC
