SKU: ED5093

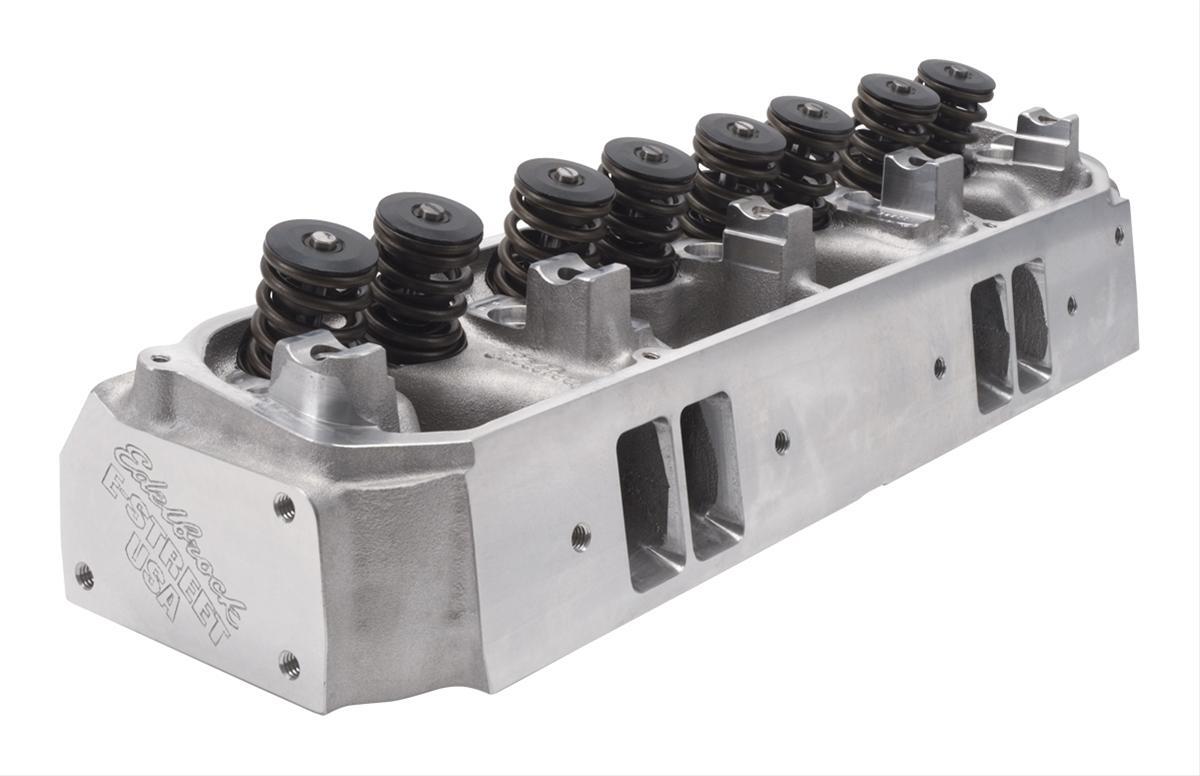

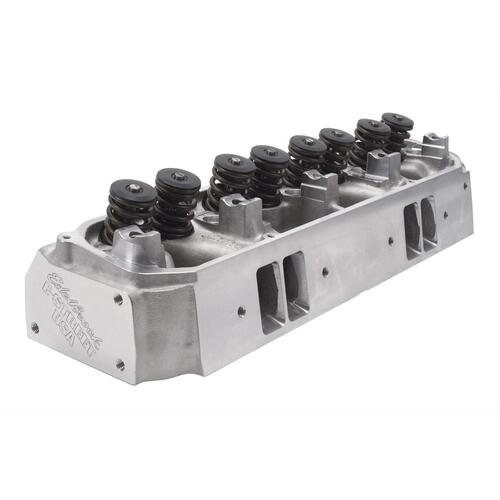

440 Big Block Chrysler Cylinder Heads 210cc runner, 84cc chamber, E-Street Cylinder Heads, Early Model Mopar. (Pair)

Sold as a Pair.

$2,415.89

SOLD OUT

Description

The #5090 E-Street cylinder heads are designed for 1961-1979 Chrysler 361-440 Wedge engines.

American made affordable power, the combustion chamber improve the combustion process and larger than stock intake and exhaust ports move more air.

Edelbrock Chrylser Cylinder Heads # 5093 Specs:

Combustion Chamber Volume (cc):  84cc

Intake Runner Volume (cc):  210cc

Exhaust Runner Volume (cc):  70cc

Cylinder Head Style:  Assembled suits Hydraulic flat tappet

Cylinder Head Material: Cast aluminium

Intake Port Shape: Rectangular

Intake Valve Diameter (in.):  2.140 in.

Intake Port Location:  Standard

Exhaust Port Shape:  Square

Exhaust Port Location:  Standard

Spark Plug Style:  Straight

Exhaust Valve Diameter (in.):  1.810 in.

Maximum Valve Lift (in.):  0.600 in.

Outside Diameter of Outer Spring (in.):  1.550 in.

Valve Spring type:  Single with damper

Lock Style:  7 degree

Intake Valve Angle: 15

Exhaust Valve Angle: 15

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes  3-angle

Quantity:  Sold as a pair.

Notes: Assembled to suit hydraulic flat tappet camshafts.

Specifications

Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)

SKU ED5093
Barcode # 00085347050932
Brand Edelbrock
