Description
GEN 3 Hemi 5.7L 6.4L Valve Springs Upgrade.
COMP Cams Conical Valve Springs: A Revolution in Performance

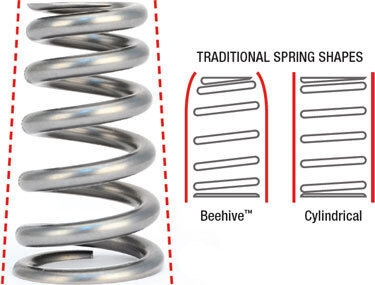

COMP Cams Conical Valve Springs set a new standard in high-performance valve spring technology. Utilizing round wire with a diameter and progressive pitch-driven natural frequency, these springs enhance valve train RPM limits, reduce resonance, and decrease dynamic oscillations. This innovative design extends spring life and supports more aggressive camshafts, marking a breakthrough in valve spring development. COMP Cams® is the first to bring this advanced conical design to the market.
Max Lift 0.665
Installed Height 1.9
Coil Bind Height 1.175
O.D. of Outer 1.060/1.332
I.D. of Outer .660/.932
Spring Style Conical
Spring Rate 519
Seat Pressure 145
Damper No
RECOMMENDED COMPONENTS:
Component Part Number
Steel Retainers 787-16
Tool Steel Retainers 1772-16
Chromemoly Steel Retainers 761-16
Titanium Retainers 762-16
Chromemoly Steel Retainers 774-16
Titanium Retainers 788-16
Titanium Retainers 772-16
Spring Seat (.570" Guide Dia.) 4677-16
Specifications
SKU | 7230-16 |
Barcode # | 036584283188 |
Brand | COMP CAMS |
Outer Bottom Spring Outside Diameter | 1.332 |
Spring Rate | 519 |
Number Of Springs | 1 |
Seat Height | 1.9 |
Outer Top Spring Inside Diameter | 0.66 |
Coil Bind Height | 1.175 |
Seat Pressure | 145 |
outer bottom spring inside diameter | 0.932 |
Outer Top Spring Outside Diameter | 1.06 |
Valve Spring Series | Race Sportsman |
Damper | No |
