SKU: K12-212-2

Chevy 350 Cam Kit, Magnum 230/230 LSA 110 Hydraulic Flat Camshaft, Lifters, Springs, Timing Chain Kit SBC Chevrolet Small Block

Magnum 280H 230/230 LSA 110 Hydraulic Flat Cam

$903.17

or 4 payments of $225.79 with Info

IN STOCK  FREE SHIPPING

Description

COMP CAMS Magnum, Hydraulic Flat Tappet, Camshaft, Lifters, Springs, Timing Chain, full kit. Rough, Lumpy Idle.

Chevy 350 Cam kit, Small Block Chevy, 327, 350, SBC,

Great for street machines. Needs 2500+stall, headers and gears. Rough idle.

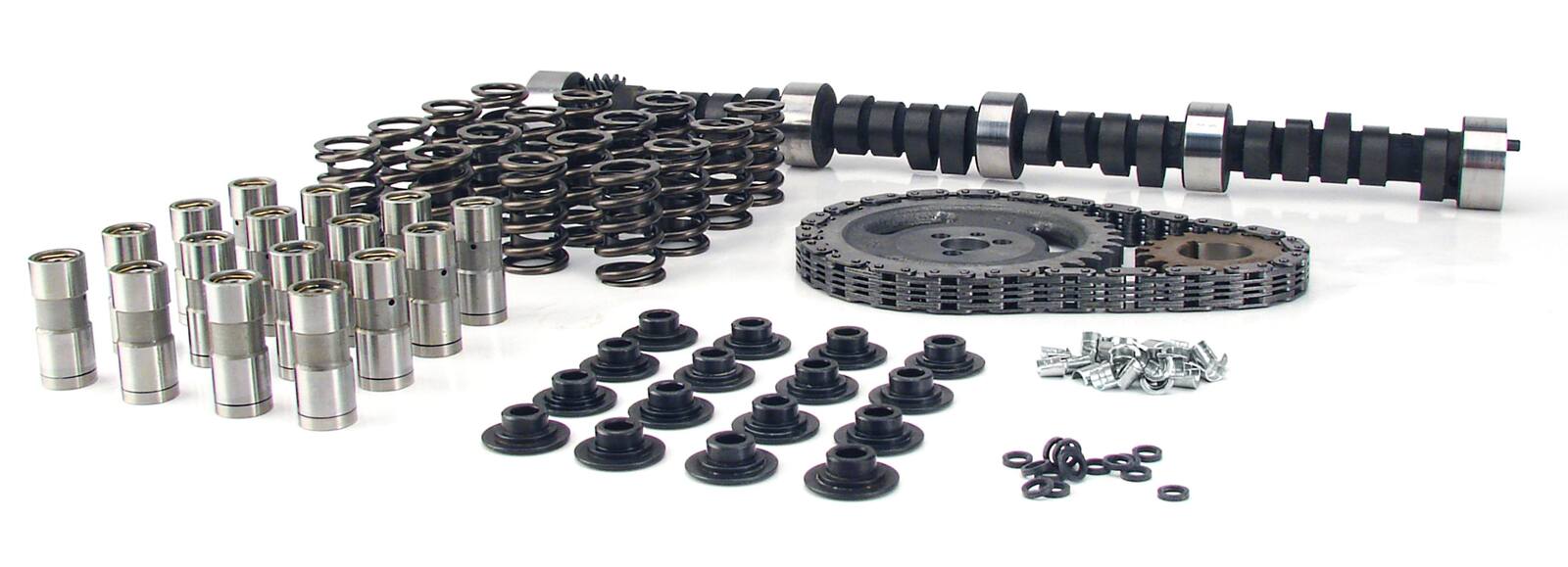

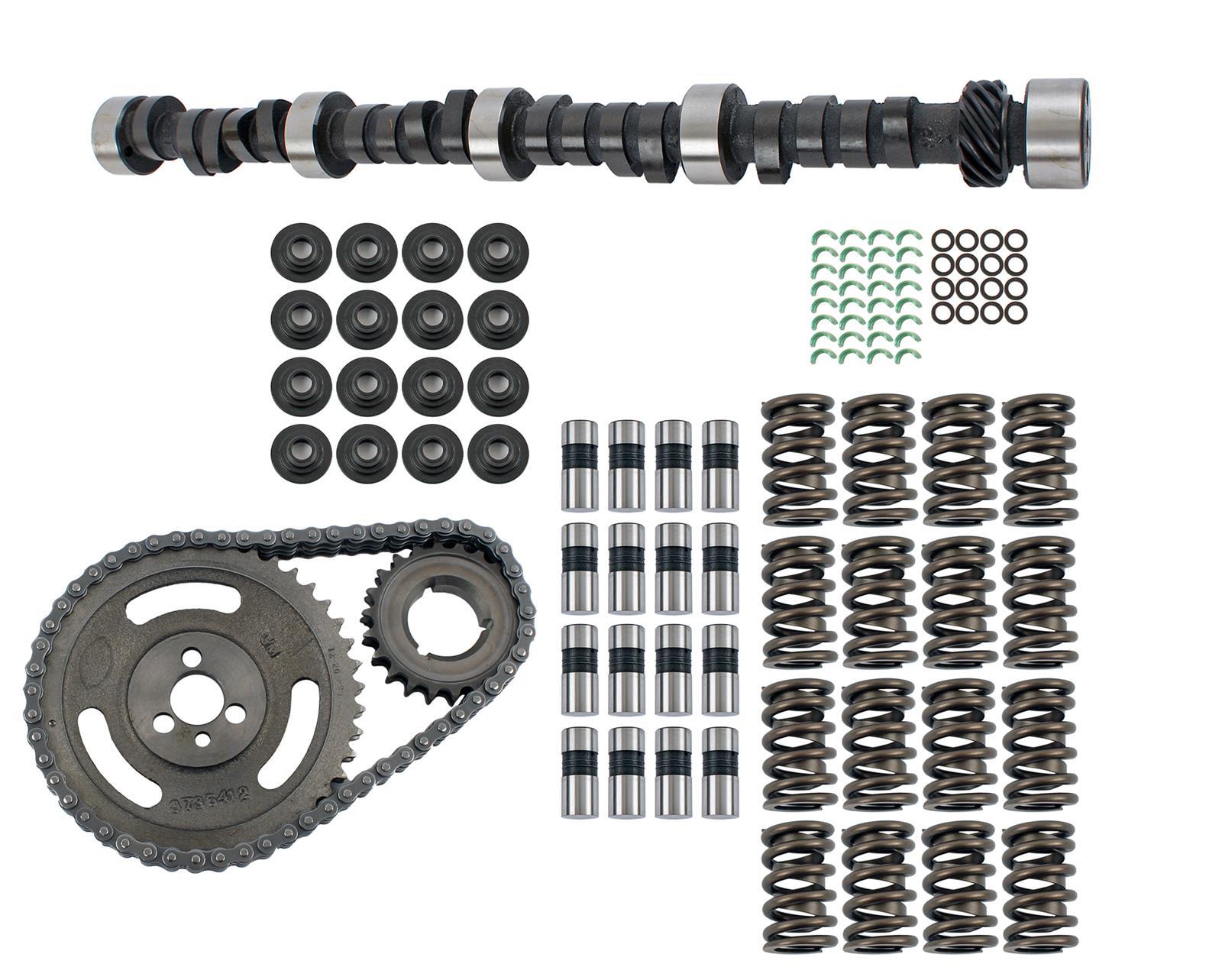

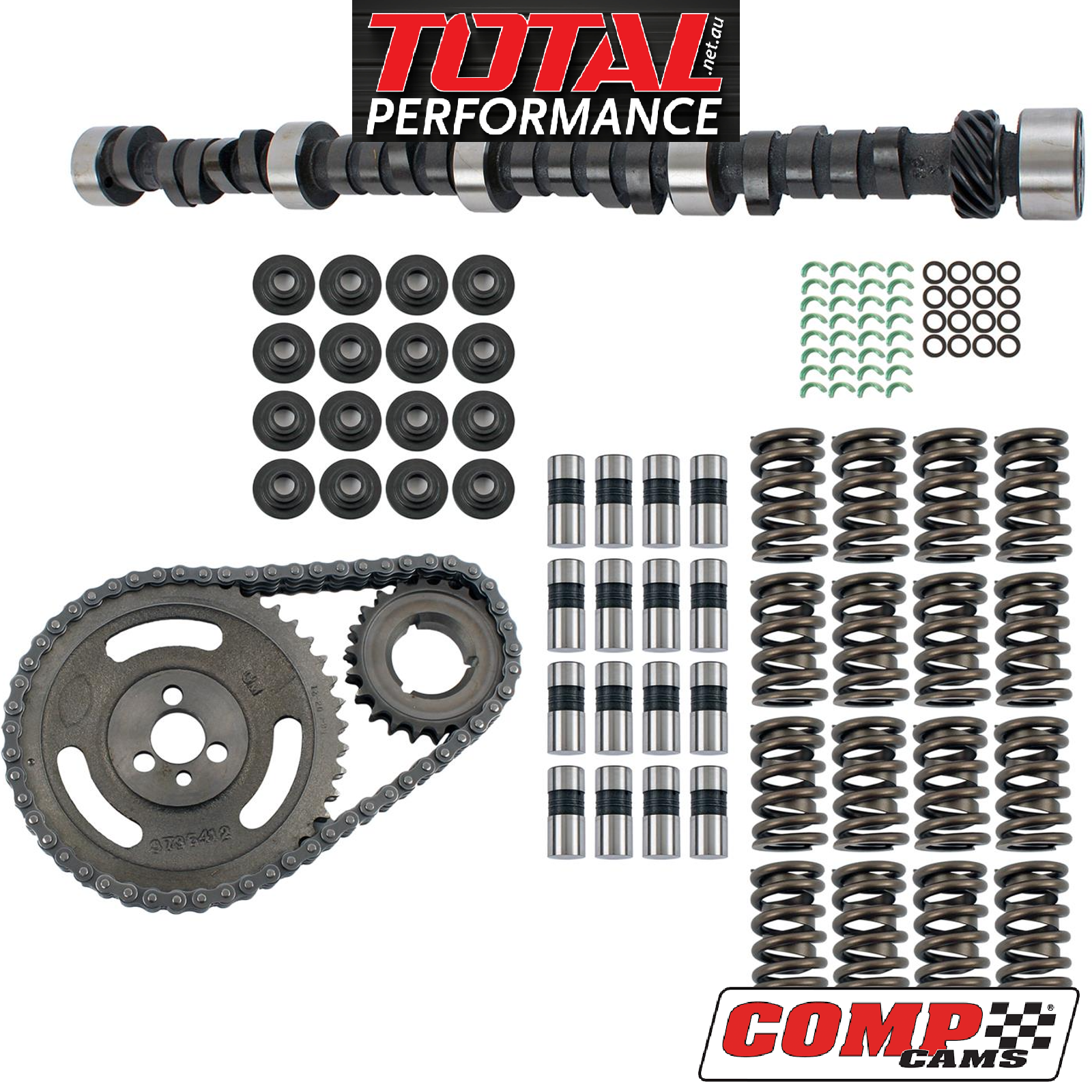

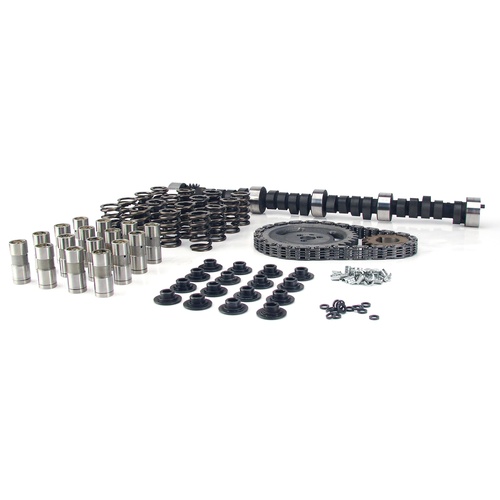

Includes Camshaft, Lifters, Valve Springs, Retainers, Locks, Seals, & Timing Set

COMP Cams Magnum Hydraulic Cam and Lifter Kits

Designed for hot street/strip chevy 350 motors, COMP Cams Magnum Hydraulic Flat Tappet Series cam and lifter kits require a higher compression ratio, rear-end gear ratio, and stall torque converter higher than stock. These Comp Cams 12-212-2 camshaft have a very aggressive profile, these Magnum hydraulic cam and lifter kits provide maximum top-end performance for your high performance car.

Basic Operating RPM Range:  2,000-6,000

Camshaft Use:  Street/Strip

Intake Duration at 050 inch Lift: 230

Exhaust Duration at 050 inch Lift:  230

Duration at 050 inch Lift:  230 int./230 exh.

Advertised Intake Duration:  280

Advertised Exhaust Duration:  280

Advertised Duration:  280 int./280 exh.

Intake Valve Lift with Factory Rocker Arm Ratio:  0.480 in.

Exhaust Valve Lift with Factory Rocker Arm Ratio:  0.480 in.

Valve Lift with Factory Rocker Arm Ratio:  0.480 int./0.480 exh.

Lobe Separation (degrees):  110

Camshaft Gear Attachment:  3-bolt

Grind Number:  CS 280H-10

Computer-Controlled Compatible:  No

Lifters Included:  Yes

Lifter Style:  Hydraulic flat tappet

Valve Springs Included:  Yes

Valve Spring Style:  Standard

Outside Diameter of Outer Spring (in.):  1.254 in.

Retainers Included:  Yes

Locks Included:  Yes

Valve Stem Seals Included:  Yes

Timing Chain and Gears Included:  Yes

Timing Chain Style:  Double roller

Assembly Lubricant Included:  Yes

Pushrods Included:  No

Rocker Arms Included:  No

Gaskets Included:   No

Valve Springs Required:    No

Quantity:   Sold as a kit.

Specifications

SKU K12-212-2
Barcode # 036584460251
Brand COMP CAMS
Gaskets Included No
intake valve lift 0.48
Exhaust Valve Lift 0.48
Lifter Type Hydraulic Flat Tappet
Advertised Exhaust Duration 280
Advertised Intake Duration 280
Cam Type Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift 230
Intake Duration At .050 Inch Lift 230
Lobe Separation 110
Camshaft Series Magnum
Basic Operating Rpm Range 2,000-6,000
Lifters Included Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Cast Iron
Valve Springs Included Yes
