SKU: BF6050-030

4.030" Ford 351C 393 Cleveland Stroker Pistons, Flat Top, 2618 Forged Pistons, -3cc CH 1.250" (3.850" stroke x 6.000" rod)

Flat Top - 393 Stroker, includes RINGS

$1,795.20

or 4 payments of $448.80 with Info

SOLD OUT

Description

4.030" RACE FORGED STROKER PISTONS, FORD CLEVELAND, 393 STROKER, FLAT TOP

SUIT: FORD CLEVLAND - 393 STROKER

GUDGEON:   927-2700-51-15C wall wrist pin included (CHEVY SIZE)

HP Rating: 600hp to 800hp **

BORE:  + 030

ROD:    6.000

DISH:   -2.600cc

COMP HEIGH: 1.250"

TOP RING:  1.5 mm

2ND RING:  1.5 mm

OIL RING:  3.00 mm

PIN:  0.927"

RINGS:  INCLUDED

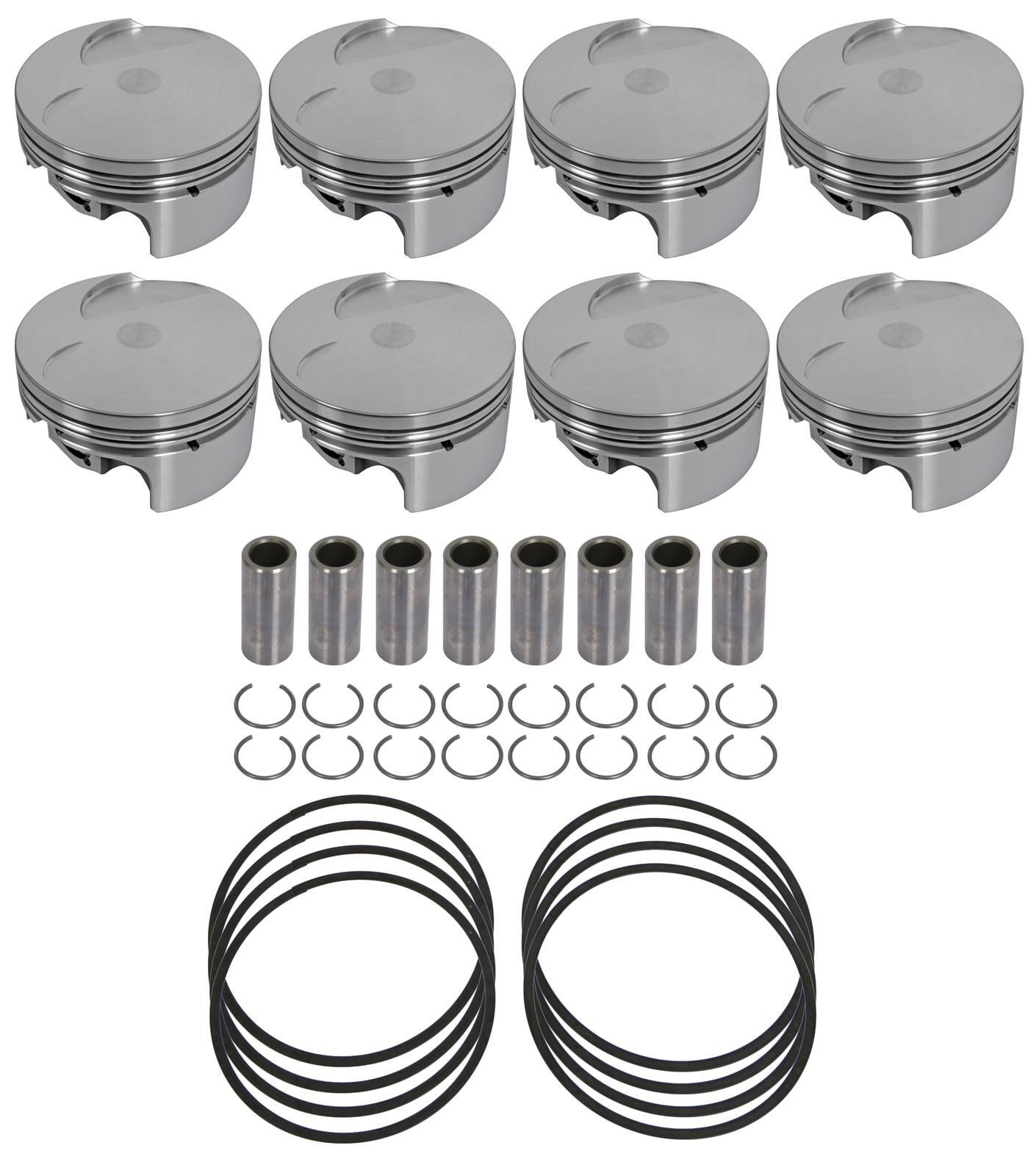

Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.

Rail Supports Included (when requiured) YES

Compression Ratios:

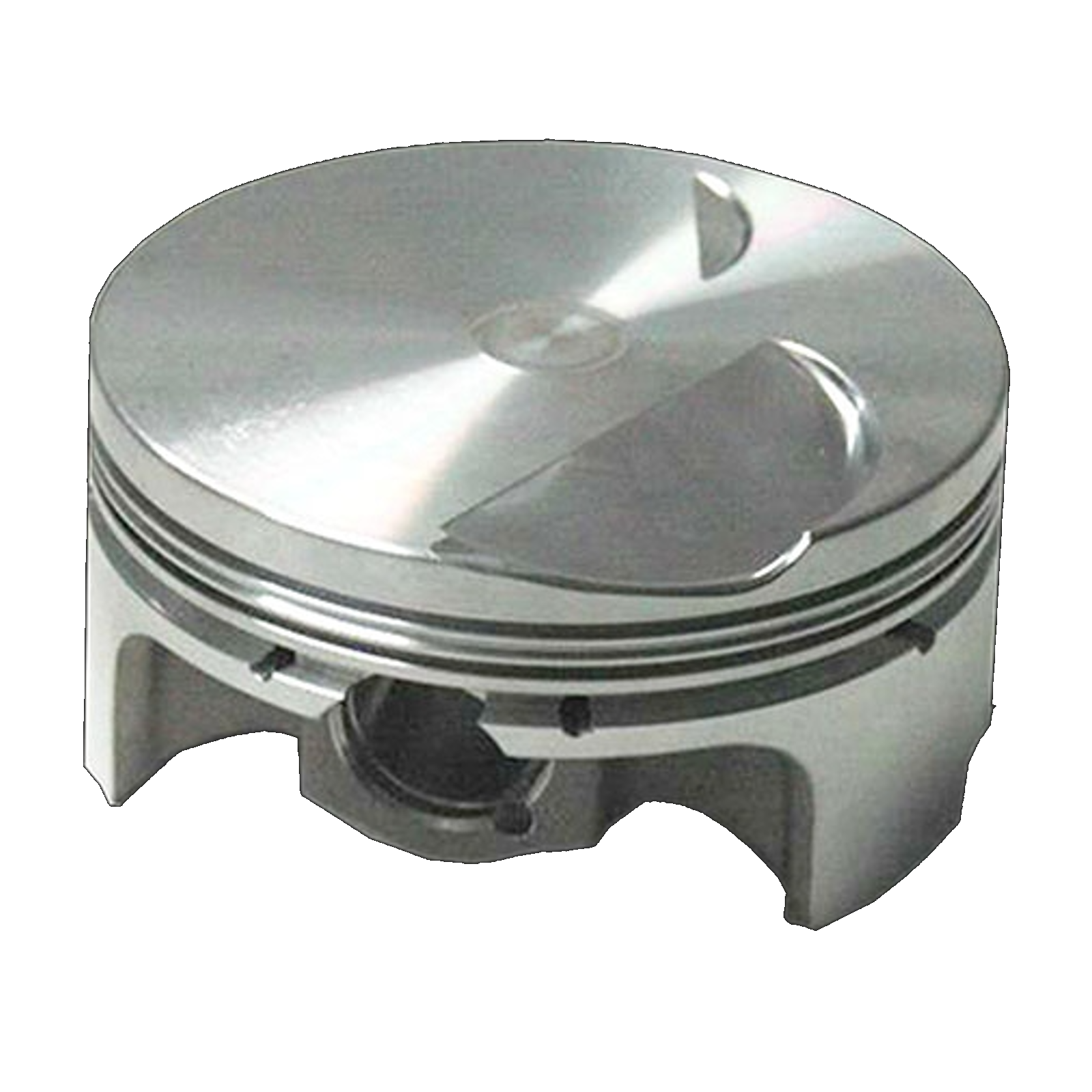

NOTE: image is not of actual product.

Specifications

SKU BF6050-030
Brand CP-Bullet
Stroke Length 3.850"
Compression Height 1.260"
Rod Length 6.000"
Piston Bore 4.030"
Piston Bore Oversize 0.030"
Piston Dish Volume (cc) -3.0
Piston Weight (g) 461
