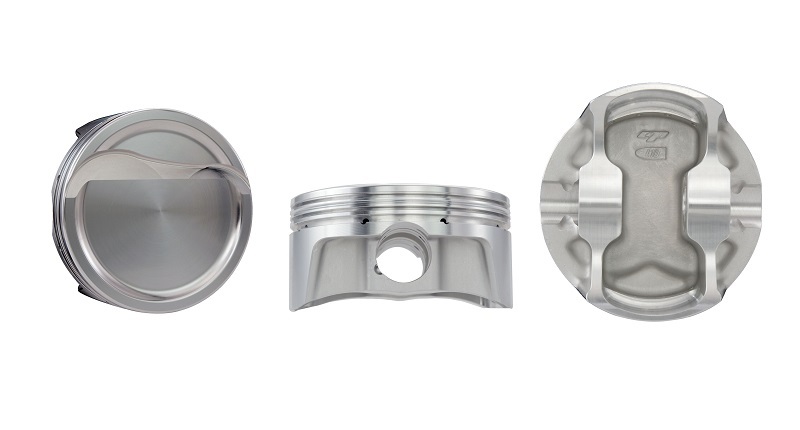

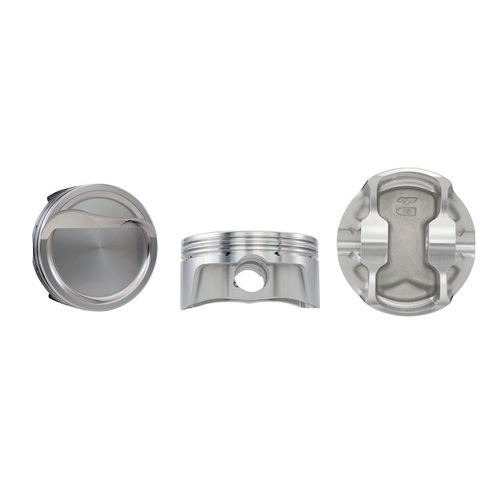

4.065 CHEVY LS3 Forged Pistons, 2618, DISHED -14.5cc CH 1.300" (3.622" x 6.125")

CP Pistons Bullet Series Piston and Ring Kits

CP Pistons, The Bullet Series LS pistons & rings kits are super value-packed upgrade piston set. The LS pistons & rings are at an affordable price and high-quality pistons. They incorporate everything that has made CP Bullet pistons an industry leader—extensive research, computer-designed forgings, tight tolerances, and rigorous quality control. Having the CP Bullet Series pistons allows you to have high performance, while staying on budget.

They're manufactured from 2618 forged aluminum alloy for strength and durability.
Additional features include:
* Piston balance 1 gram
* Dual forced pin oilers
* Contact reduction grooves
* Accumulator groove
* Contemporary high performance ring sets
* Forged side relief
* Chromoly wrist pins with wire locks

LS3 Piston Specs:

Piston Rings Included:  Yes

Bore (in.): 4.065 in.

Bore (mm): 103.251mm

Compression Height (in.):  1.300 in.

Stroke Combination:  Stroke: 3.622 in. Rod Length: 6.125 in.

Piston Style: Dish, with two valve reliefs

Piston Material: 2618 Forged Aluminium

Dish Depth (in.):  0.094 in.

Piston Head Volume (cc):  Dished -14.50cc

Wrist Pin Style:  Press-fit or floating

Wrist Pin Locks:  Yes - included

Wrist Pin:  Yes - Included

Pin Diameter (in.):  0.927 in.

File Fit:  No

Gapless:  No

Top Ring Thickness:  1.5mm

Top Ring Material:  Ductile iron Plasma-moly

Second Ring Thickness: 1.5mm

Second Ring Material: Cast iron Phosphate coated

Oil Ring Thickness: 3.0mm

Quantity: Set of 8.
