SKU: 1677-16

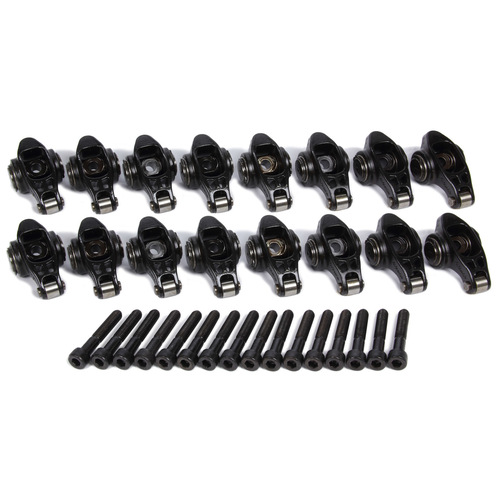

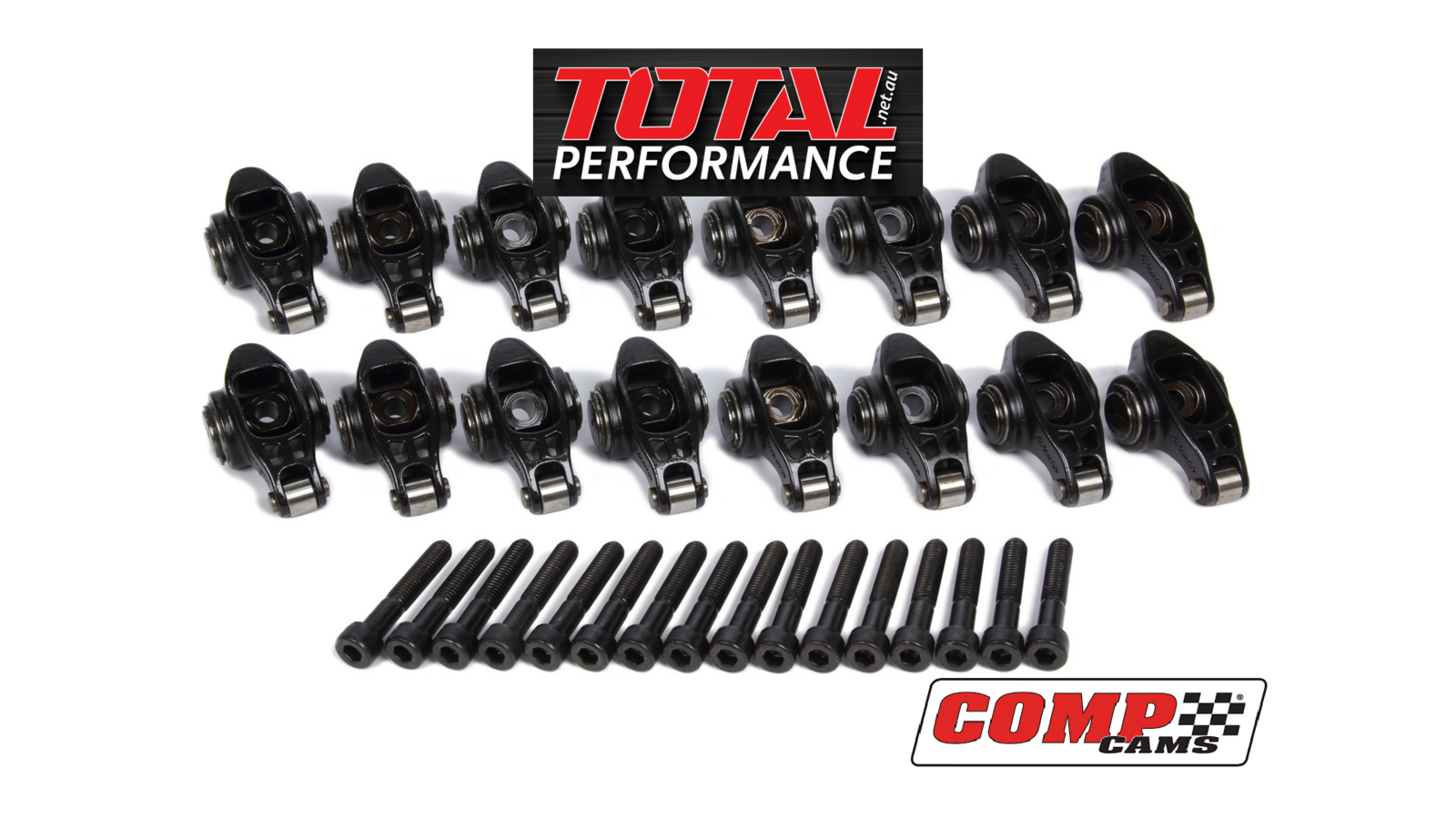

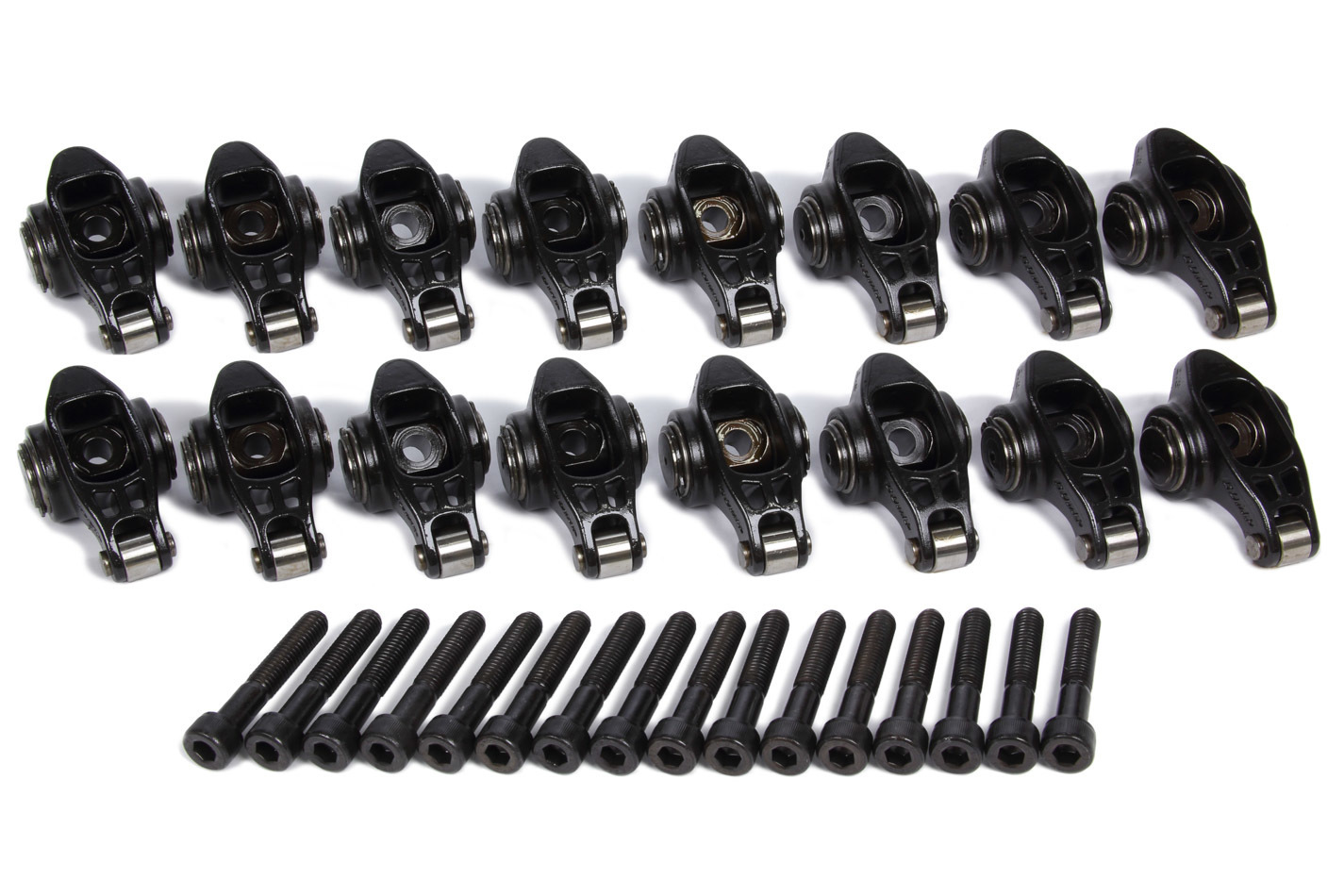

LS1 LS2 LS6 Ultra Pro Magnum 1.8 Ratio All Straight - Rocker Arms for Pedestal Mount GM 5.7L 6.0L Cathedral Port

Full Roller - bolt down type

$962.68

or 4 payments of $240.67 with Info

IN STOCK  FREE SHIPPING

Description

COMP Cams Ultra Pro Magnum Rocker Arms

These Ultra Pro Magnum rockers are made of black oxide coated 8650 chromemoly steel that can withstand up to 850 lbs of spring pressure. Featuring a 1.8 ratio, these rockers fit non-adjustable pedestal mount LS1 Cathedrail Port Heads (all straight rockers).

Utilizing years of valvetrain design experience, the latest FEA stress analysis technology, and an exhaustive testing regiment (dyno and Spintron), COMP Cams engineering team left no detail to chance. Everything from casting techniques to valve spring clearance was scrutinized to ensure that Ultra Pro Magnum rocker arms not only lived up to the lofty standards of their predecessor, but also took stud mount rocker performance, stability, and value to a whole new level. The most noticeable advancement centers around their nearly unbreakable investment cast 8650 chromoly body. The arched, web-like design delivers a nearly 29 percent increase in strength and rigidity, while reducing the moment of inertia and optimizing the dynamic balance. The resulting rockers maximize lift and valvetrain control at high rpm. The increased retainer and valve spring clearances of the new design enable the use of large-diameter valve springs, retainers, and locks, without clearance or fitment issues. The new black oxide exterior finish offers a distinctive appearance, along with long-term corrosion resistance. The COMP Cams Ultra Pro Magnum rocker arms feature an oversized trunnion and precision-sorted needle bearings designed for use with high-load valve springs. These unique rockers also feature hardened roller tips for reduced friction and elimination of the valve stem "side loading" that causes premature valve guide wear. The COMP Cams Ultra Pro Magnum rocker arms feature a fully rebuildable design, which means that they very well may be the last rocker arms that you ever have to purchase

Rocker Arm Style:  Full roller

Rocker Arm Mounting Style:  Pedestal

Self-Aligning:  No

Rocker Arm Ratio:  1.8

Suit: LS1 Cathedral Heads (all straight rockers)

Specifications

SKU 1677-16
Barcode # 036584240655
Brand COMP CAMS
Rocker Arm Material 8650 Chromemoly Steel
Rocker Arm Ratio 1.8
Rocker Arm Series Ultra Pro Magnum
Rocker Stud Diameter Pedestal Mount
Maximum Valve Spring Open Pressure 850
