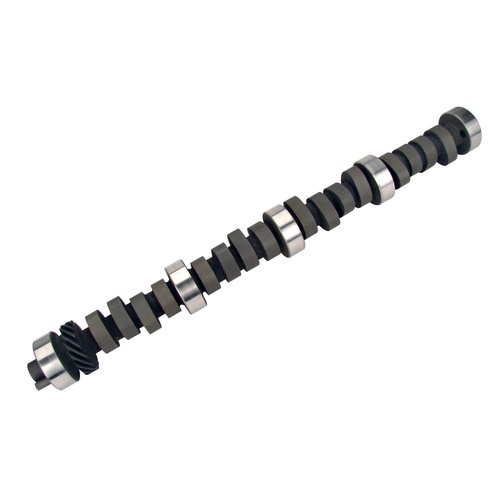

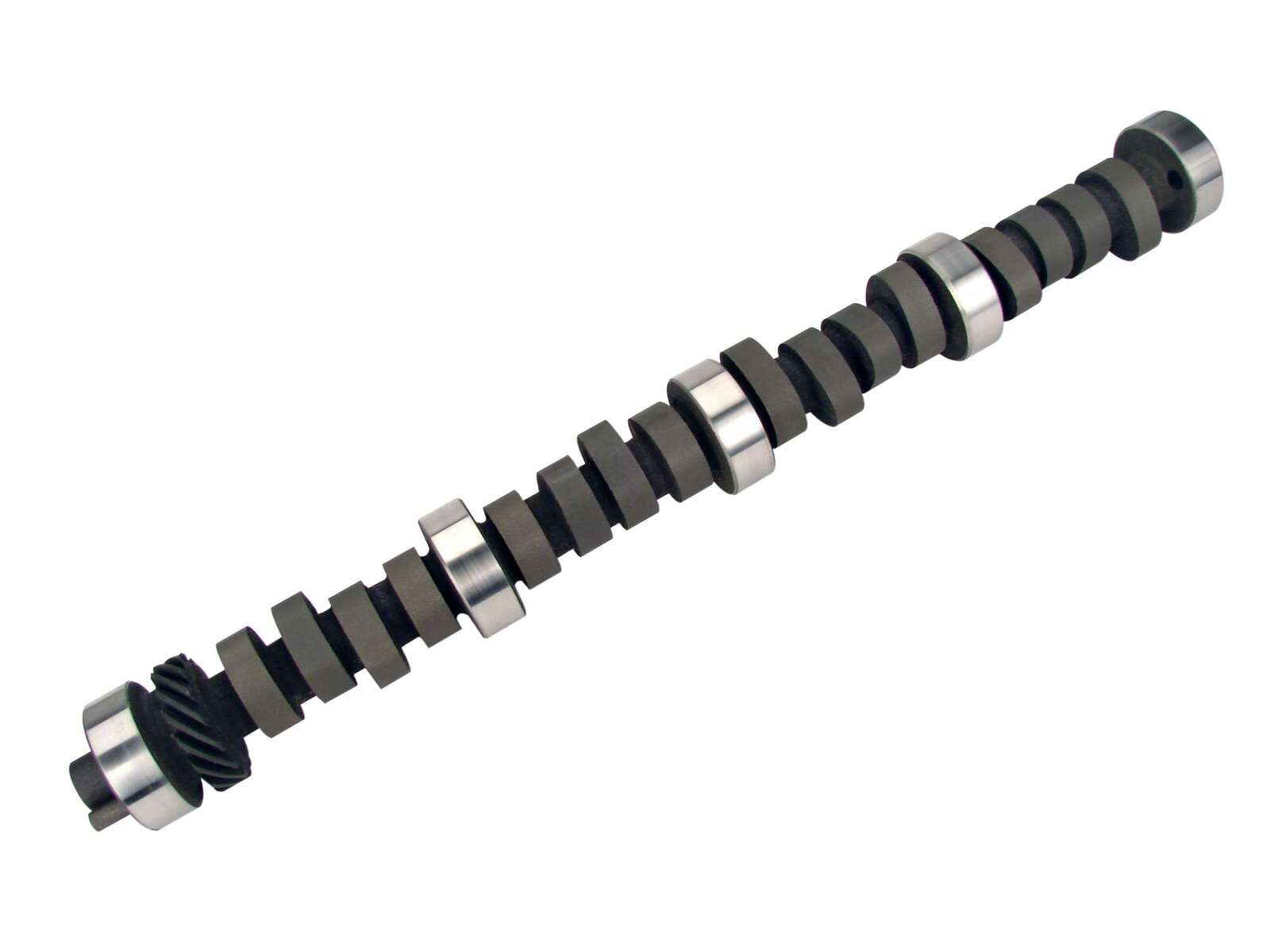

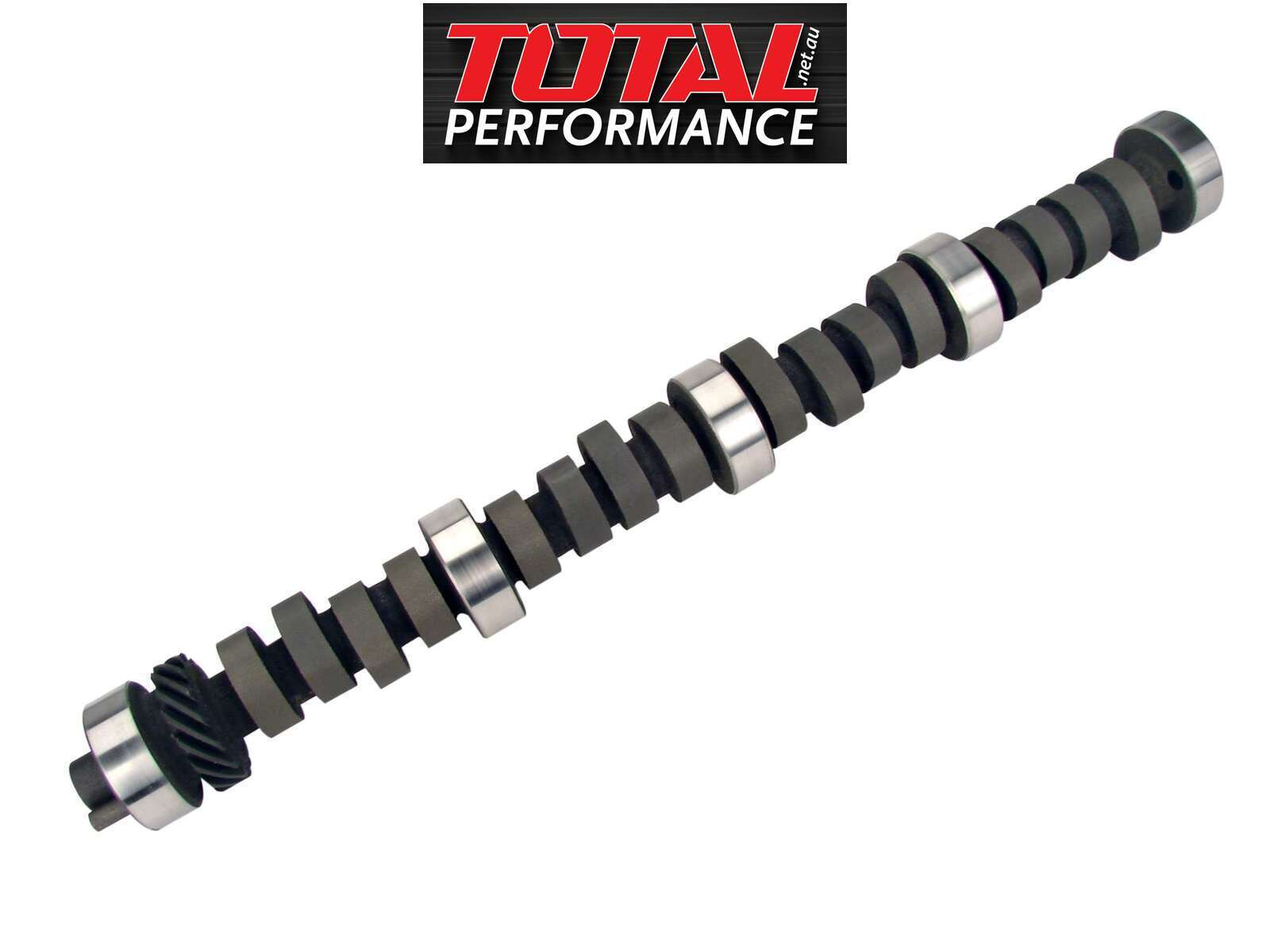

351C Drag Race 247/255, high lift, 0.633/0.659" Solid Flat Tappet camshaft LSA 108 Ford 351C, Cleveland 393 408
RPM Range: 3200-6200 - Race Lobes - Race only
Description
Ford 351 Cleveland Solid Flat Tappet Camshaft - Drag Race 247/255 Solid Flat Tappet Camshaft Ford 351C Cleveland
Best in large c.i. street machine Cleveland Engines. 10:1 + compression, 3500+ stall, 4.10 gear. High Torque with strong mid and high RPM power.
Cleveland Camshaft Specs:
Grind Number: Total Performance Custom - Fast Race Lobes
RPM Operating Range: 3,200-6,200 +
Advertised Duration: 276/284
Duration @ .050 Inch Lift: 247/255
Valve Lift: 0.633/0.659"
Lobe Lift: 0.366/0.381
Lobe Separation: 108
Notes: use of EDM lifters or extra oiling provisions required (lifter bore groove)
Design: Total Performance - Custom Cams Series
Specifications
| SKU | 32-247255-SFT-08 |
| Brand | COMP CAMS |
| intake valve lift | 0.564 |
| Exhaust Valve Lift | 0.589 |
| Lifter Type | Solid Flat Tappet |
| Advertised Exhaust Duration | 294 |
| Advertised Intake Duration | 284 |
| Cam Type | Solid Flat Tappet |
| Exhaust Duration At .050 Inch Lift | 256 |
| Intake Duration At .050 Inch Lift | 246 |
| Lobe Separation | 108 |
| Camshaft Series | Drag Race |
| Grind Number | 284B-8 |
| Basic Operating Rpm Range | 3,200-6,200 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
