SKU: 26001-32

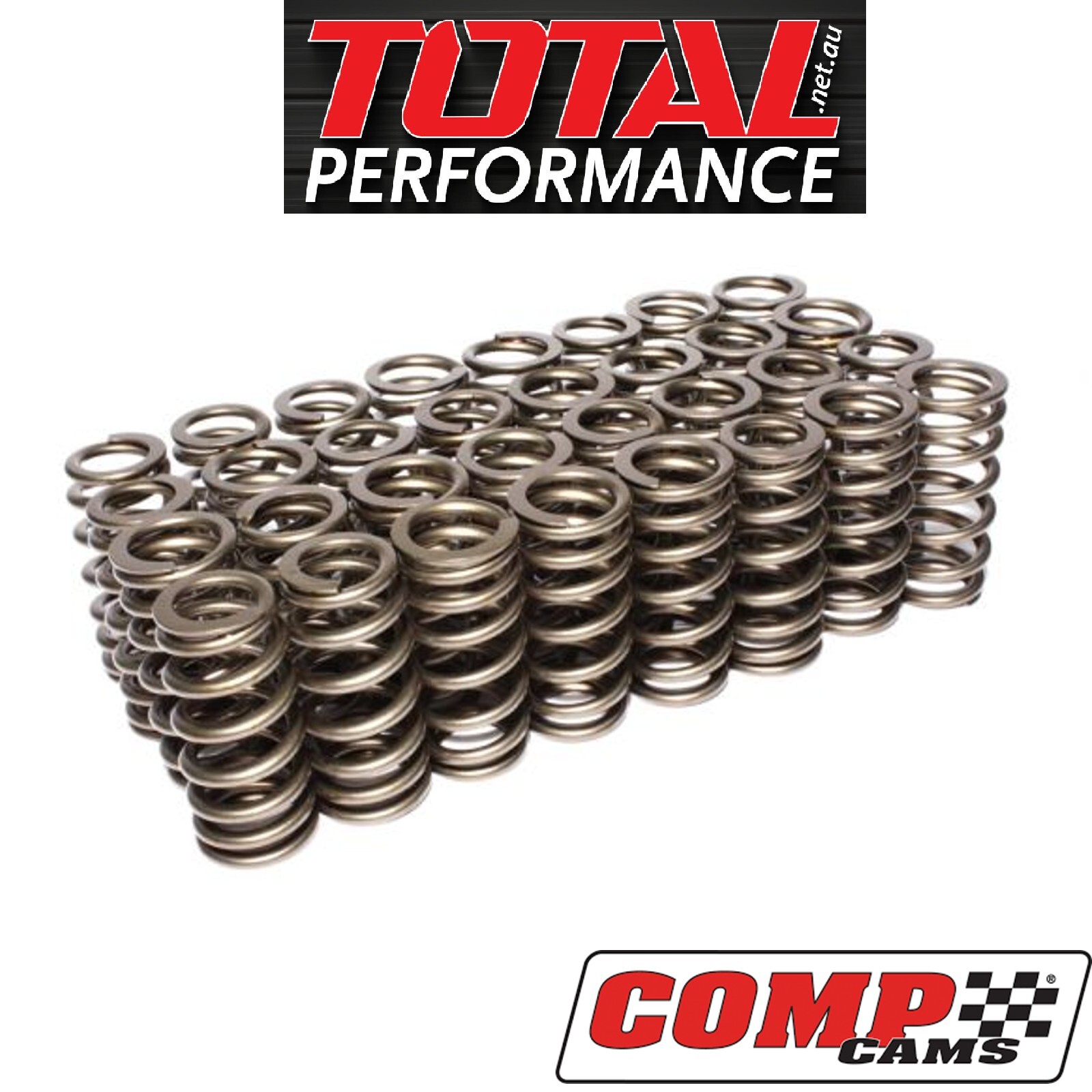

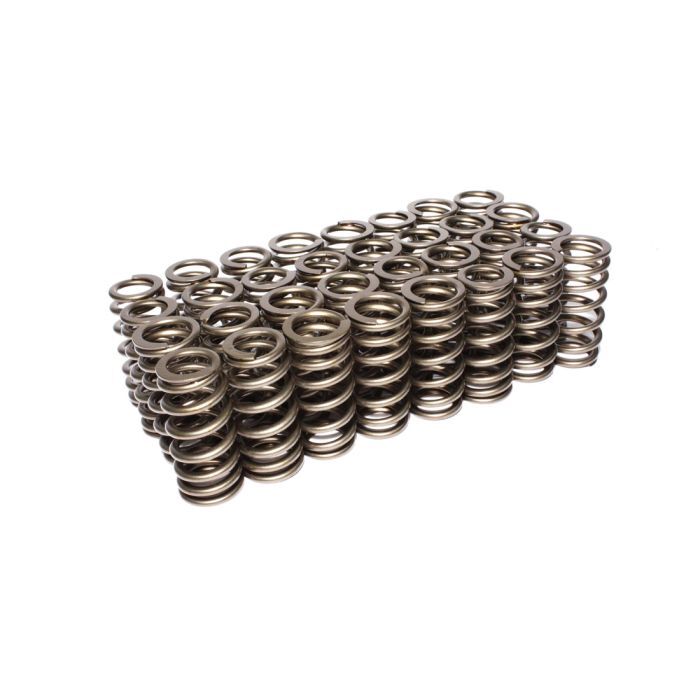

26001-32 Beehive Valve Springs Set for 2018+ Ford 5.0 Coyote

Suits 2018+ Coyote

$1,018.07

or 4 payments of $254.52 with Info

IN STOCK  FREE SHIPPING

Description

Comp Cams, Ford Coyote 5.0L, Valve Springs, upgrade.

Beneficial to both naturally aspirated and boosted Coyote engines, thiese Beehive valve springs improve valve control and increases valve lift capacity to 0.600".



Max Lift:   0.615

Installed Height:   1.765

Coil Bind Height:   1.09

O.D. of Outer:.   .999/1.083

I.D. of Outer:.   .636/.720

Spring Style:    Beehive

Spring Rate:   291

Seat Pressure:   105

Damper:   No

Specifications

SKU 26001-32
Barcode # 036584399421
Brand COMP CAMS
Damper No
Seat Pressure 105
Valve Spring Series Performance Street
Coil Bind Height 1.090
Spring Rate 291
Spring Style Beehive
Open Load 280
Installed Height 1.765
Top Inside Diameter 0.6360
Bottom Inside Diameter 0.720
Bottom Outside Diameter 1.0830
Max Lift 0.600
