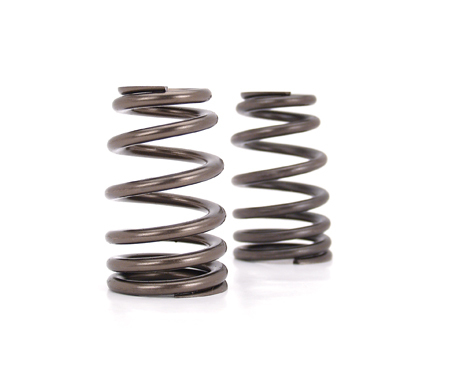

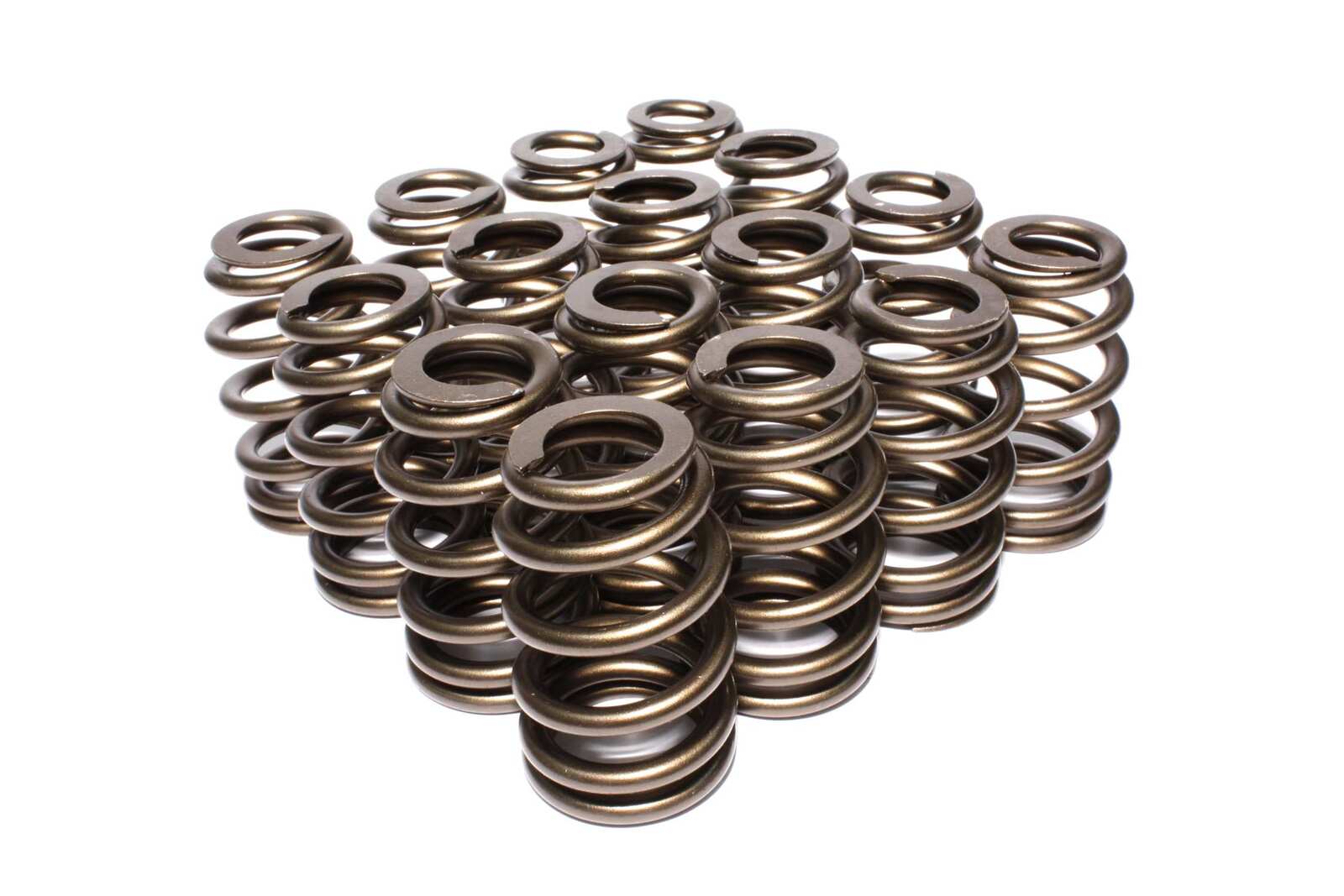

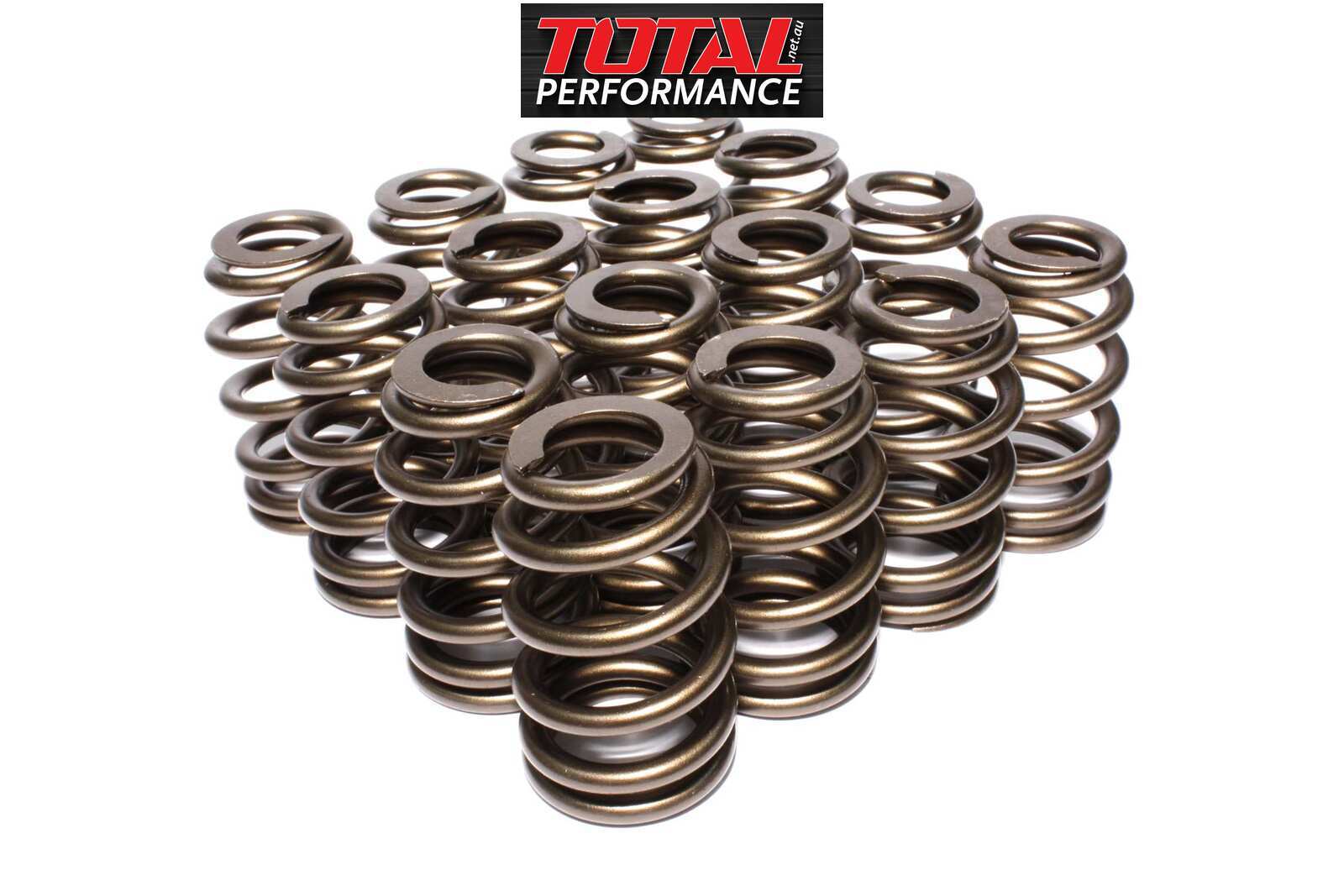

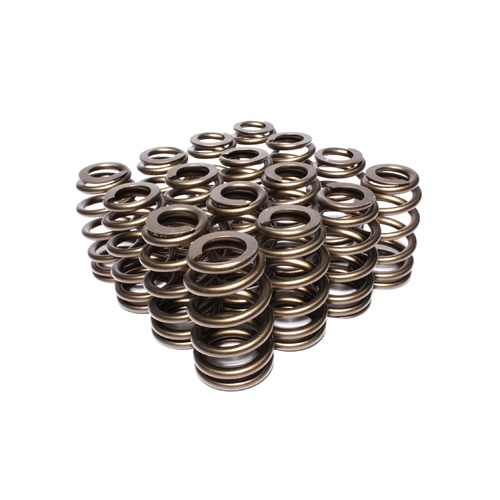

Race Sportsman Beehive Valve Springs 160 lbs @ 1.900" / 400 lbs / 1.585" OD ; 16 Springs

With a .640" maximum lift, these Beehive™ Valve Springs were designed for high end solid flat tappet and hydraulic roller cams. They have great for high performance street and oval track capabilities, and are also good for endurance applications. COMP Cams® Beehive™ Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive™ shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive™ design, the valve train can handle more RPM and more aggressive cam profiles.

Max Lift:  0.64

Installed Height:  1.925

Coil Bind Height:1.225

O.D. of Outer:1.204/1.585

I.D. of Outer:1.102

Spring Style:Beehive

Spring Rate:400

Seat Pressure:150

Damper:No

Recommened parts;

Component Part Number

Chromemoly Steel Retainers:703-16  /   705-16

Spring Cup (O.D. Locator):4702-16

Spring Seat (.570" Guide Dia.):4640-16

Spring Seat (.630" Guide Dia.):4697-16

Steel Retainers:785-16

Tool Steel Retainers:1756-16
