SKU: 30227-06KIT

650HP KIT EZ EFI KIT Fuel Self-Tuning Throttle Body Injection System w/ Inline Fuel Pump & 4150 Base.

650HP with INLINE FUEL PUMP

$2,877.70

IN STOCK  FREE SHIPPING

Description

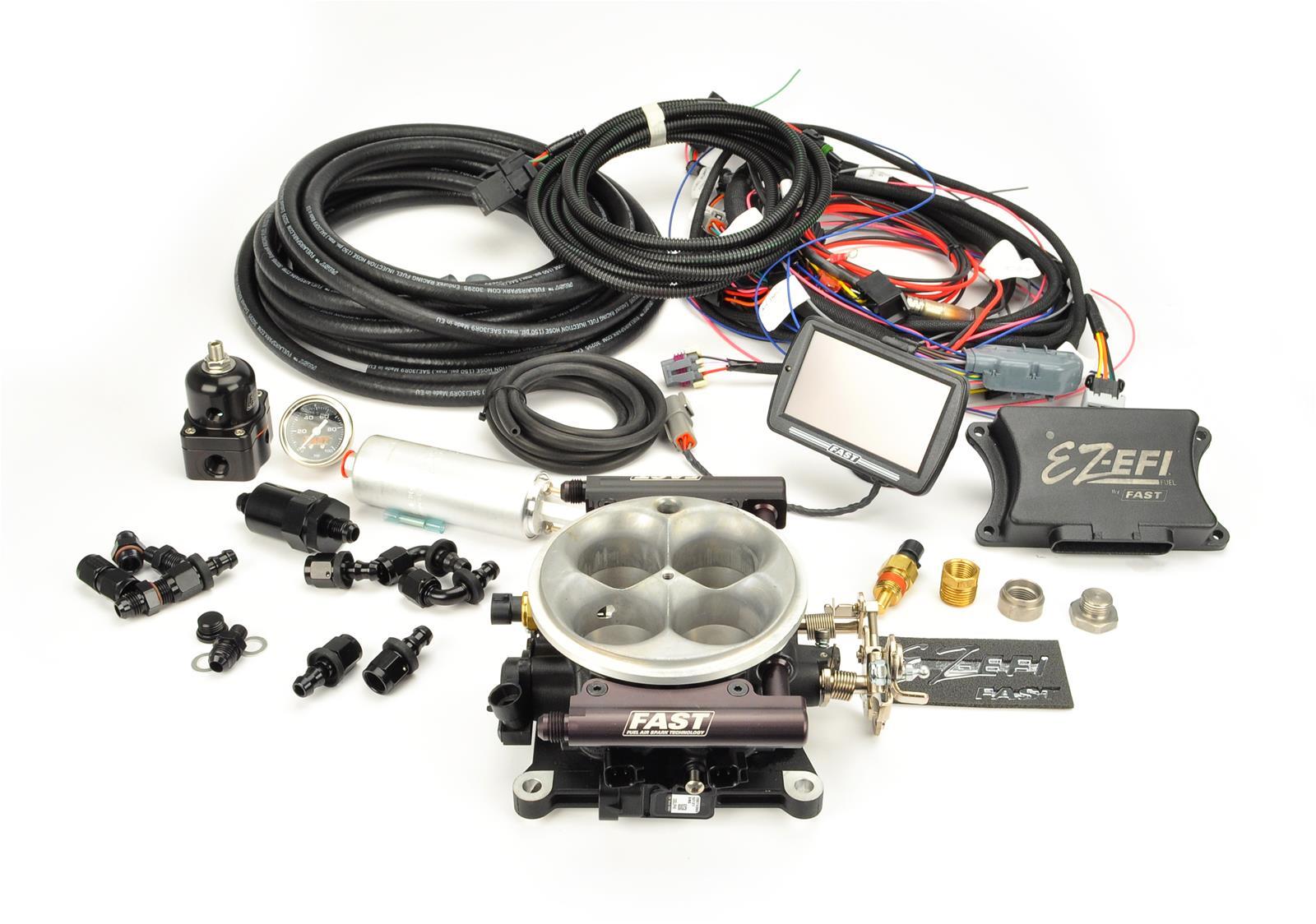

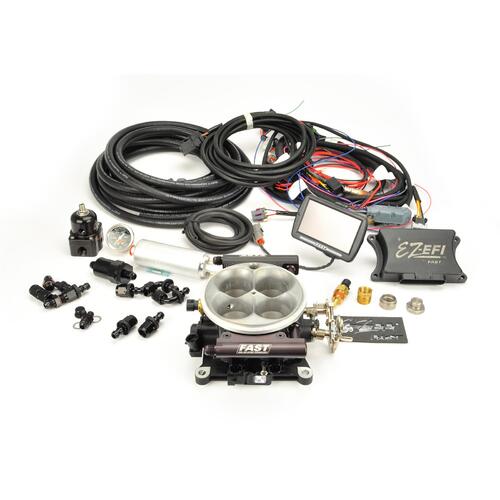

FAST 30227-06KIT  Bolt-On Self-Tuning Throttle Body Injection System for 4150 Flange Carburetor Manifolds with Inline Fuel Pump Kit

Includes inline fuel pump that can support 650HP.

The next generation of the world’s simplest self-tuning fuel injection system is here. Designed for all applications making up to 650 horsepower, FAST® EZ-EFI® Fuel features a new die cast and black powdercoated, four-injector throttle body with integrated fuel rails. It provides even better fuel distribution and more airflow than the original. It is made in the USA and features a secondary idle stop to help with idle adjustment. A color touchscreen hand-held also features a new-and-improved Setup Wizard. The intuitive program asks a few basic questions and then the EZ-EFI® Fuel System tunes itself as the user drives. No laptop or previous tuning experience is required. The hand-held includes a variety of display dashes, a clean and easy-to-use interface and an LED indicator that can alert users to any error (including overheating) or be used as a shift light. Finally, an updated wiring harness features premium loom, added protective fuses and a streamlined design, while the ECU hardware has been upgraded to provide added protection against electrical/ignition noises and hardware damage. FAST® EZ-EFI® Fuel kits are available in throttle body injection (with or without fuel pumps) or multi-port options.





Maximum Horsepower:650

Injection Style:Throttle body

Timing Control Compatible:No

Power Adder Compatible:No

ECM Included:Yes

Self Tuning:Yes

User Tunable:Yes

Fuel Pump Included:Yes

EGR:No

Transmission Controller Included:No

Metering Style:Speed density

Intake Manifold Included:No

Multi-Port Fuel Rails Included:No

Throttle Body Included:Yes

Throttle Body Mounting Flange:4-barrel square bore

Venturi Quantity:4

Throttle Body Material:Cast aluminum

Throttle Body Finish:Natural

Injectors Included:Yes

Calibration Module Included:Yes

Wiring Harness Included:Yes

Oxygen Sensor Included:Yes

Fuel Pressure Regulator Included:Yes

Distributor Included:No

MAP Sensor Included:Yes

IAT Sensor Included:Yes

TPS Sensor Included:Yes

IAC Motor Included:Yes

Quantity:Sold as a kit.

Notes:Designed for engines making less than 650 hp. Not recommended for supercharged applications. The MAP, TPS, and IAC sensors are all GM style.

*** Upgrades for Blower Applications: Use ECU pn 30371 (direct plug in for the 30227-06KIT) and will be Lap Top Programable set up.

Warranty

12

Specifications

SKU 30227-06KIT
Barcode # 036584261339
Brand FAST
Title EZ Fuel Self-Tuning Throttle Body Injection Kit w/ Inline Fuel Pump
Able To Control Boost? No
Able To Control Ignition Timing? No
Boost Compatible? No
Can Support Internal Datalogging? No
Fuel Injection Series EZ-EFI Fuel
Individual Cylinder Corrections? No
Injection Type Throttle Body Injection
Knock Retard Compatibility? No
Laptop Datalogging Support No
Nitrous Compatible? No
Requires Separate Personal Computer? No
Uses Fuel Pressure Sensor? No
Mounting Flange Style 4150
