SKU: 201-304-17

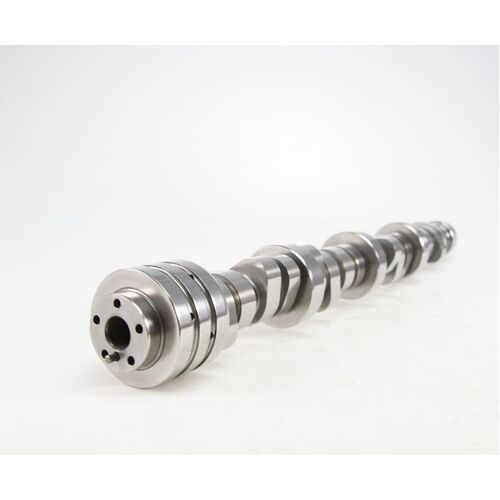

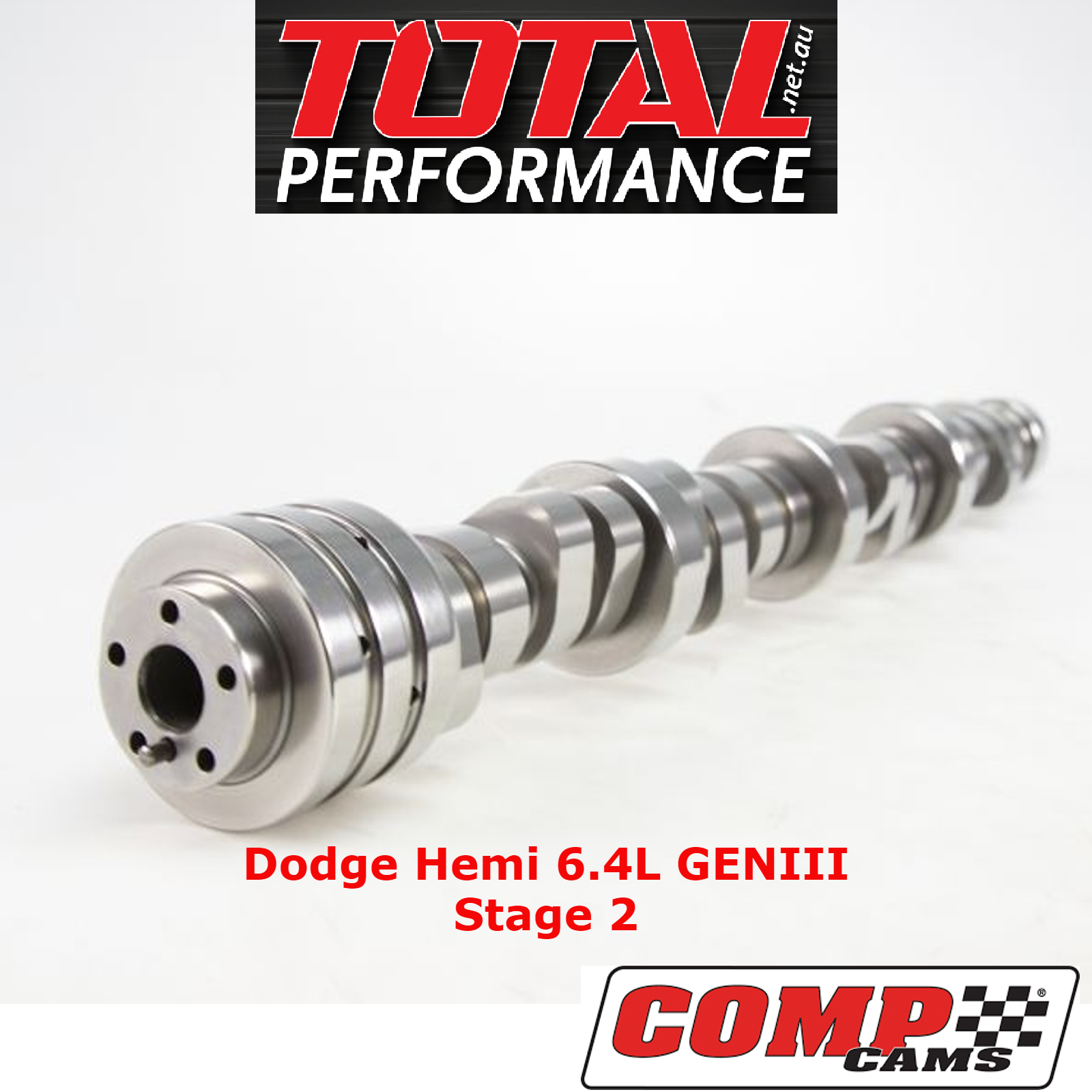

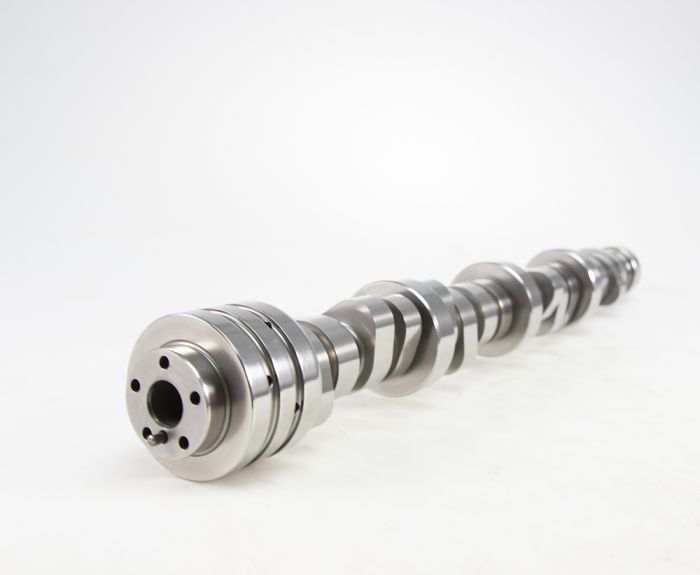

Stage 2 Chrysler Dodge 6.4L HEMI HRT Camshaft, 222/230 Hydraulic Roller 2009+ Chrysler, Mopar, SRT, Jeep LST275HR15

RPM Range: 2000-7200

$1,072.54

or 4 payments of $268.13 with Info

IN STOCK  FREE SHIPPING

Description

Comp Cams 201-304-17, Dodge Hemi Gen 3 Stage 2 Camshaft Upgrade.

Suits the Chrysler Track Hawk and SRT Jeeps.

Widest torque curve of any camshaft tested, with impressive low end gains & outstanding high end performance. Designed for Comp Cams #26918 spring.

- Requires disabling of the MDS system and use of Non-MDS lifters

- Requires Custom Tuning

- Requires Use of Comp Cams camshaft phaser limiter kit (part # 5761) or camshaft phaser lock kit (Part Number 5760)

Engine Family:     Dodge 5.7L and 6.4L HEMI w/ VVT (2009+)

RPM Operating Range:    1,900-7,000

Cam Type:    Hydraulic Roller

Lifter Style:    Hydraulic Roller

Camshaft Series:    HRT

Advertised Intake Duration:    275

Advertised Exhaust Duration:    278

Intake Duration at .050 Inch Lift:   222

Exhaust Duration at .050 Inch Lift:   230

Intake Valve Lift:    .599

Exhaust Valve Lift:    .604

Lobe Separation:    115

Stage:   2

VVT Limiter Required?:    Yes

The Gen III Hemi market is rapidly expanding, and the HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque camshafts available for these engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. The new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild to wild! All HRT Stage 1 Camshafts are No Springs Required, which keeps cost down while still providing awesome horsepower increases over stock. Stages 2 and 3 applications work with COMP Cams Beehive and Conical Valve Springs, but COMP Cams is also introducing new HEMI Valve Spring Kits, engineered to produce the most power and RPM of any current options.

Comp Cams - made in USA. Total Performance is a Comp Cams Australian Dealer.

Specifications

SKU 201-304-17
Barcode # 036584405344
Brand COMP CAMS
Lifters Included No
Lifter Style Hydraulic Roller
Estimated Horsepower Gain With Kit 85
Valve Spring Seats Included Yes
Valve Seals Included Yes
Timing Set Included No
Stage 2
Pushrods Included Yes
Locks Included Yes
Retainers Included Yes
Valve Springs Included Yes
Camshaft Material Billet Steel
Camshaft Gear Attachment 1-Bolt
Gaskets Included No
Basic Operating Rpm Range 2000-7200
Grind Number LST275HR15
Camshaft Series HRT
Lobe Separation 115
Intake Duration At .050 Inch Lift 222
Exhaust Duration At .050 Inch Lift 230
Cam Type Hydraulic Roller
Advertised Intake Duration 275
Advertised Exhaust Duration 278
Exhaust Valve Lift 0.604
intake valve lift 0.599
