Description

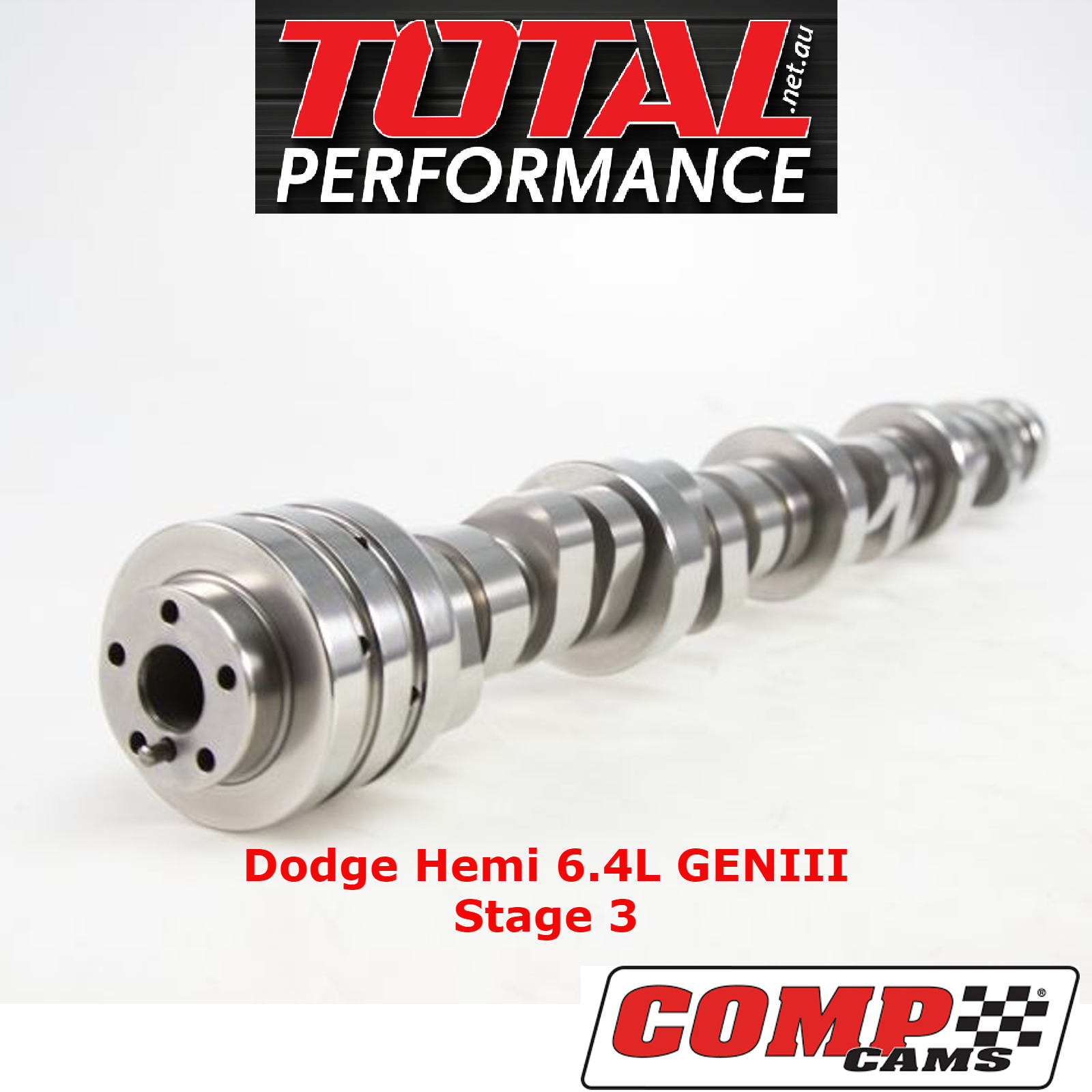

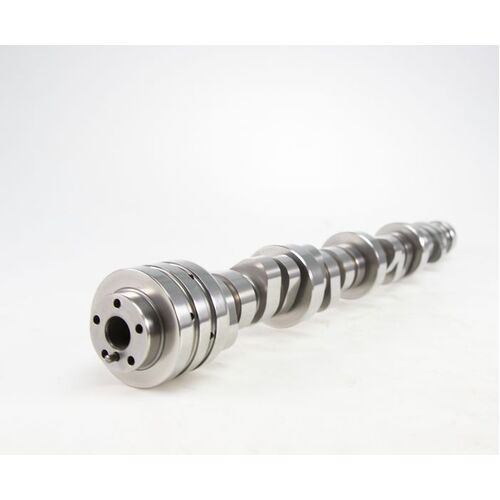

Comp Cams 201-306-17, Dodge Hemi Gen 3 Stage 3 Camshaft Upgrade.
Suits the Chrysler Track Hawk and SRT Jeeps.
Gains in mid range torque and drastic power increase at high RPM. Works best w/ ported heads, stroker cranks and other modifications. Designed for Comp Cams 7230-16 springs
Requires disabling of the MDS system and use of Non-MDS lifters
- Requires Custom Tuning
- Requires Use of Comp Cams camshaft phaser limiter kit (part # 5761) or Comp Cams camshaft phaser lock kit (Part Number 5760)
The Gen III Hemi market is rapidly expanding, and the HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque camshafts available for these engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. The new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild to wild! All HRT Stage 1 Camshafts are No Springs Required, which keeps cost down while still providing awesome horsepower increases over stock. Stages 2 and 3 applications work with COMP Cams Beehive and Conical Valve Springs, but COMP Cams is also introducing new HEMI Valve Spring Kits, engineered to produce the most power and RPM of any current options.
Comp Cams - made in USA. Total Performance is a Comp Cams Australian Dealer.
Specifications
SKU | 201-306-17 |
Barcode # | 036584405351 |
Brand | COMP CAMS |
Lifters Included | No |
Lifter Style | Hydraulic Roller |
Estimated Horsepower Gain With Kit | 105 |
Valve Spring Seats Included | Yes |
Valve Seals Included | Yes |
Timing Set Included | No |
Stage | 3 |
Pushrods Included | Yes |
Locks Included | Yes |
Retainers Included | Yes |
Valve Springs Included | Yes |
Camshaft Material | Billet Steel |
Camshaft Gear Attachment | 1-Bolt |
Gaskets Included | No |
Basic Operating Rpm Range | 2200-7400 |
Grind Number | LST281HR17 |
Camshaft Series | HRT |
Lobe Separation | 117.5 |
Intake Duration At .050 Inch Lift | 228 |
Exhaust Duration At .050 Inch Lift | 236 |
Cam Type | Hydraulic Roller |
Advertised Intake Duration | 281 |
Advertised Exhaust Duration | 284 |
Exhaust Valve Lift | 0.609 |
intake valve lift | 0.632 |
