SKU: 26918-16

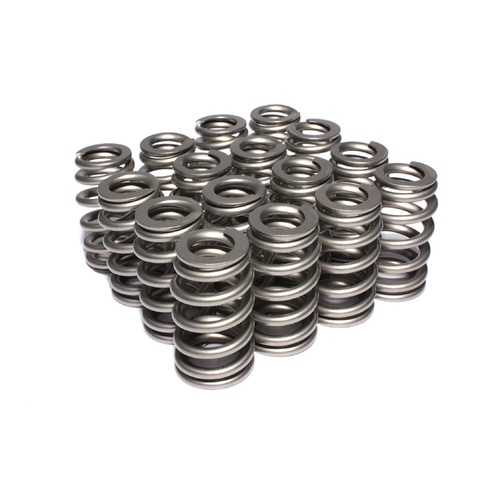

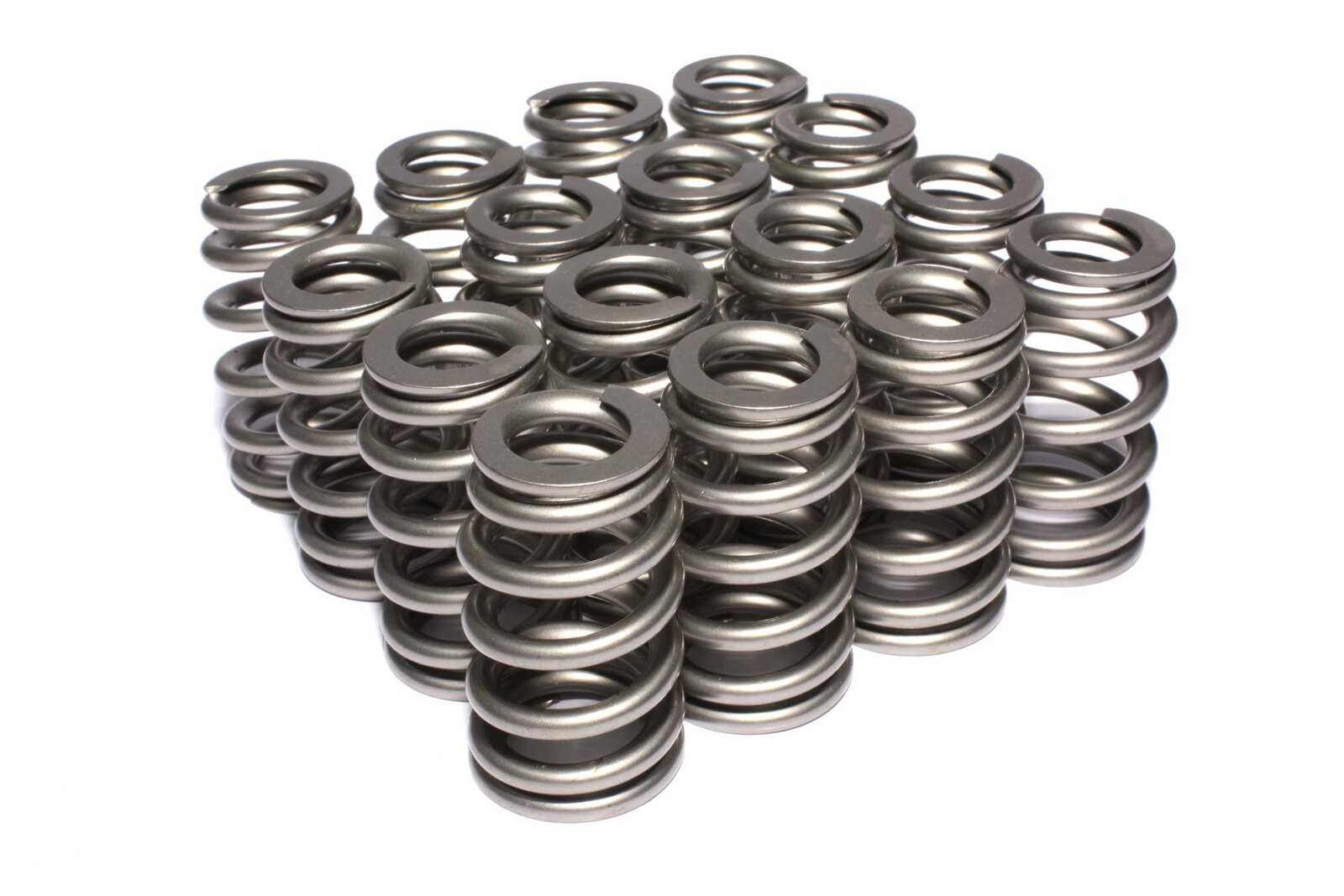

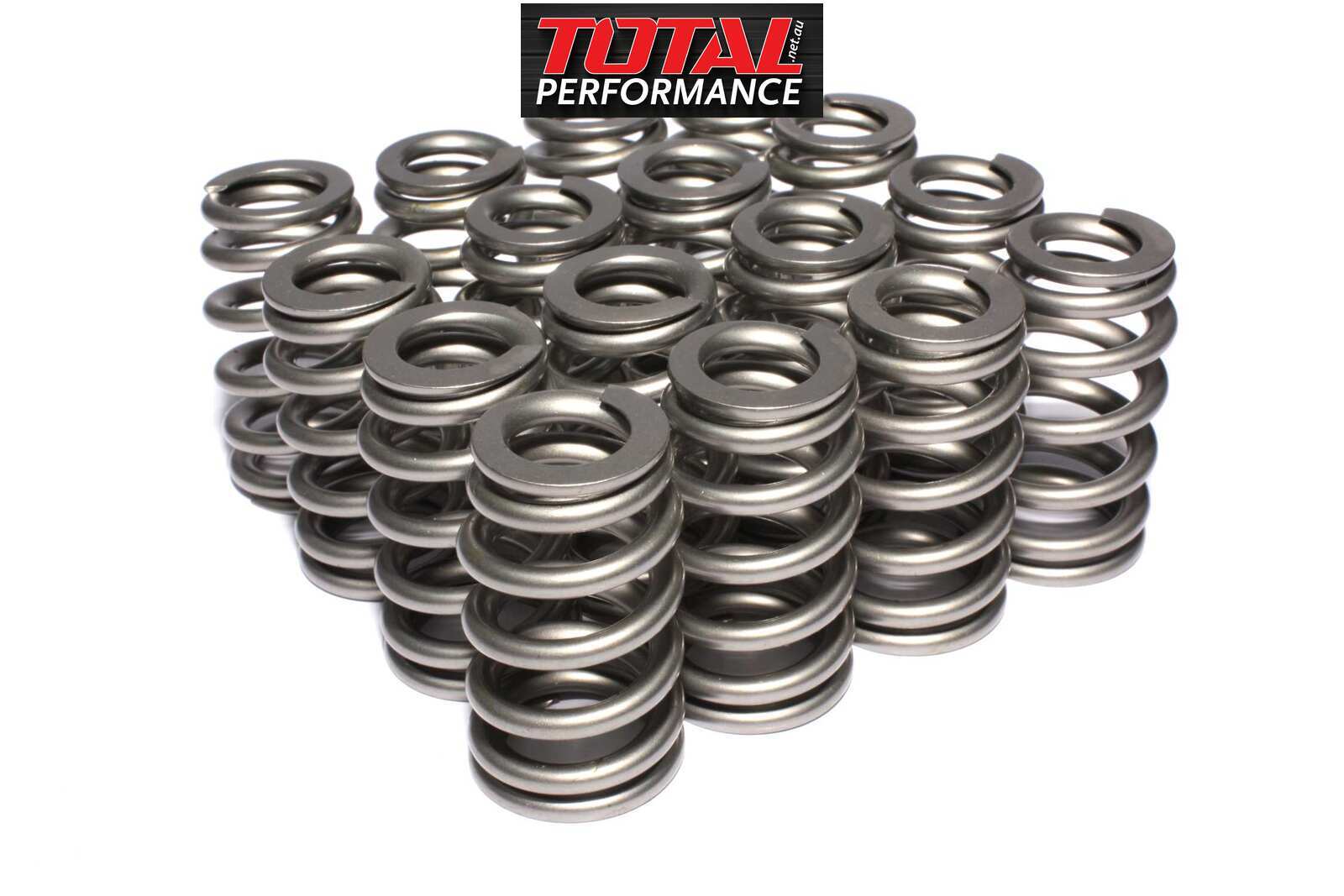

LS1 LS2 LS3 High Performance Street 1.310" OD Beehive Valve Springs 1.800" Installed Height; 16 Springs

Street/Strip Max Lift .625"

$500.25

or 4 payments of $125.06 with Info

IN STOCK  FREE SHIPPING

Description

Comp Cams 26918-16 LS1 LS2 LS3 Beehive Valve Springs - LS Upgrade Valve Springs 5.7L 6.0L 6.2L

*Also used on Holden 304 308 Cylinder heads with modifications.

Ideal for Street/Strip high performance LS hydraulic roller cams, these Comp Cams beehive Valve Springs offer more stability for high RPM potential, longer life and more power. Beehive design reduces spring weight while eliminating damaging harmonics.

With a .625" maximum lift, these Beehive™ Valve Springs were designed for hydraulic roller cams in LS1, LS2 and LS6 engines. COMP Cams® Beehive™ Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive™ shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive™ design, the valve train can handle more RPM and more aggressive cam profiles.

Max Lift:  0.625”

Installed Height:  1.800”

Coil Bind Height:  1.140”

O.D. of Outer:  1.075/1.310”

I.D. of Outer:  0.650/.885”

Spring Style:  Beehive

Spring Rate:  372 lbs/inch

Seat Pressure:  125lbs

Damper:  No

Specifications

SKU 26918-16
Barcode # 036584077473
Brand COMP CAMS
Seat Height 1.8
Damper No
Seat Pressure 125
Number Of Springs 1
Valve Spring Series Performance Street
Coil Bind Height 1.140
Spring Rate 372
Outer Top Spring Outside Diameter 1.075
Outer Top Spring Inside Diameter 0.65
Outer Bottom Spring Outside Diameter 1.31
outer bottom spring inside diameter 0.885
