LS Dual valve springs,1.290" o.d. Suits LS1 LS2 LS3
Valve Springs only.
Description

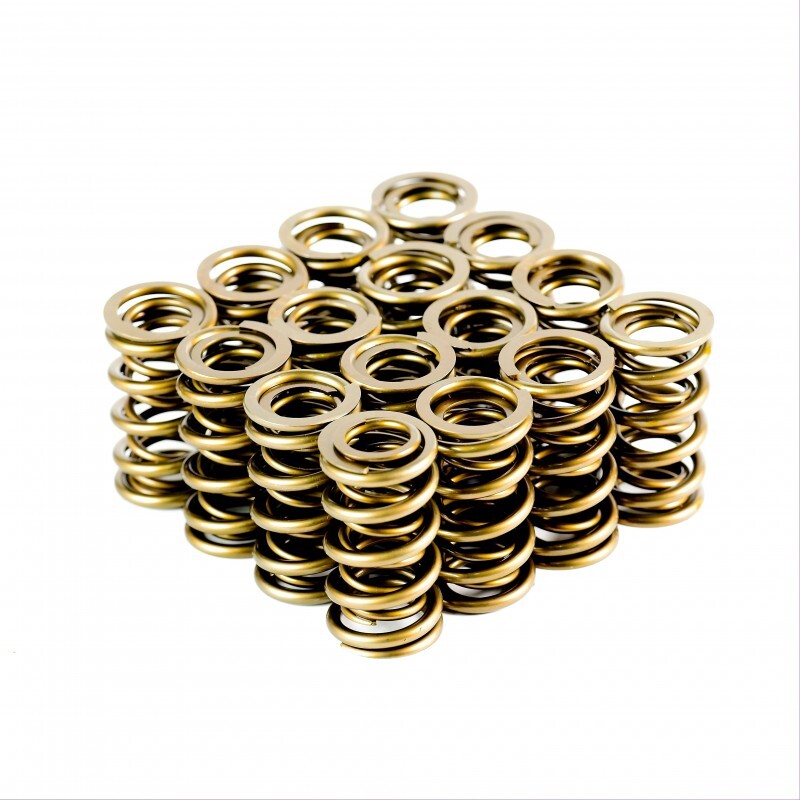

Crow Cams LS Dual valve springs 1.290" OD
LS1, LS2, LS3, Valve Springs (spring pressure 165lbs @ 1.780" and 330lbs @ .500" lift) (4438-16)
Crow 4438-16 SPRINGS SPECS:
O/D: 1.290"
ID of outer: 0.948"
ID of inner: 0.690"
Spring Type: Dual
Free Length: 2.345"
Spring Rate: 365lb/in
Installed @ 1.850" 145 lbs
Open @1.250" 360 lbs
Open @ 1.300 340 lbs
Solid Hight/Coil bind: 1.050"
Specifications
| SKU | CROW-4438-16 |
| Brand | CROW CAMS |
| Seat Height | 1.8 |
| Damper | No |
| Outer Top Spring Outside Diameter | 1.055 |
| Outer Top Spring Inside Diameter | 0.65 |
| Outer Bottom Spring Outside Diameter | 1.29 |
| outer bottom spring inside diameter | 0.885 |
