Description
DETROIT RACING PRODUCTS
CHEV LS1 LS6 2 PIECE TIMING COVER BLACK. NO CAM SENSOR
The 2 Piece covers fit double roller timing chains with high pressure/volume oil pumps*
(*Must use a Mushroom bolt for the oil pump mounting as the hex head bolts hit the covers. Recommended to check clearance before final assembly).
GM/ Chevy LS Engine

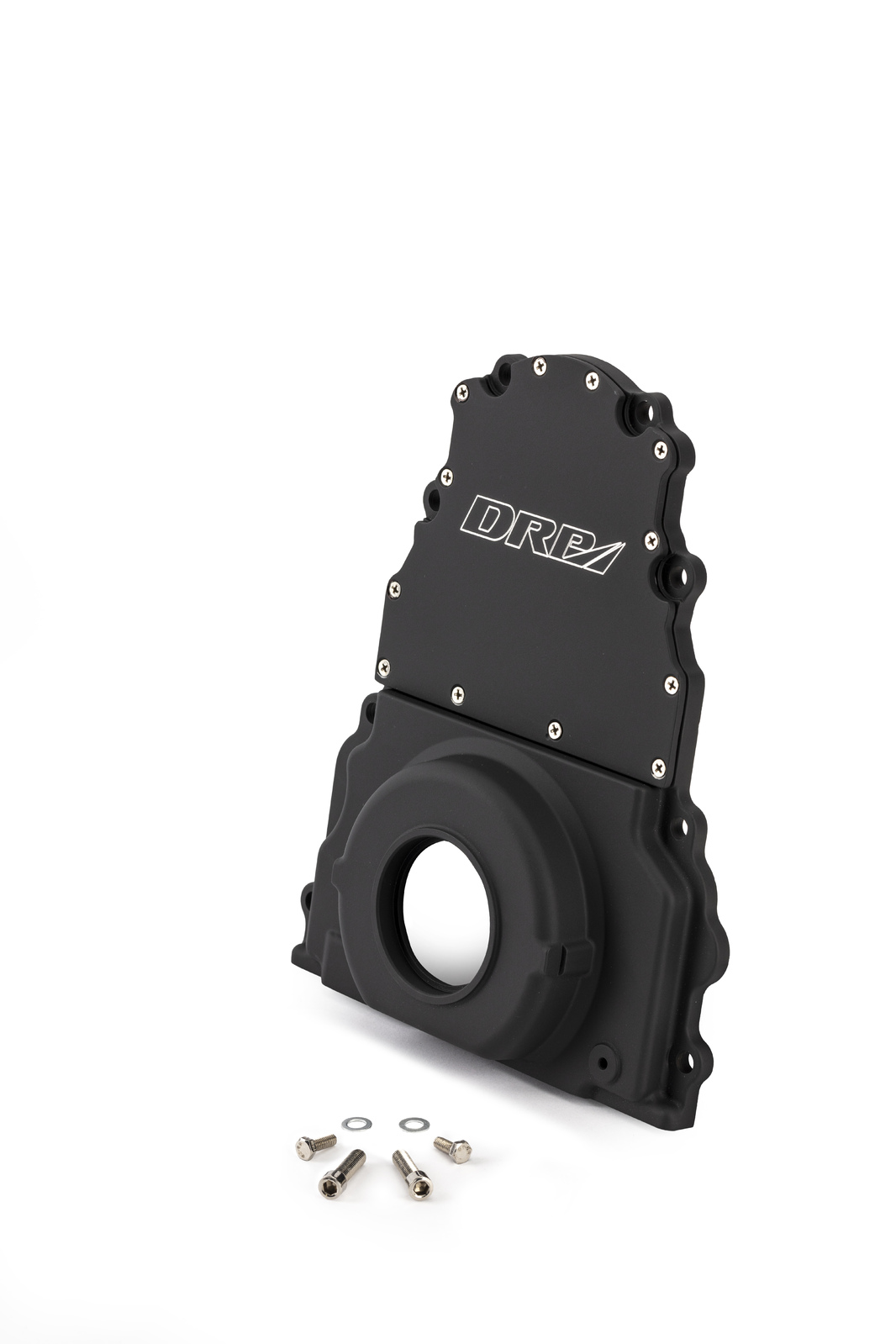

2 Piece Premium Aluminum Black Timing Chain Cover.
Engraved with DRP logo.
This is a new Black timing chain cover for GM/Chevy LS based engines. These two-piece aluminum timing covers allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and o-ring for superior leak prevention.
- Black aluminum cover
- 2-Piece removable front
- Includes o-ring for removable cover section
- Includes mounting hardware.
- NO Cam sensor provision
- May not clear double roller timing chains (*Recommended to check clearance before final assembly)
- Does NOT include Crank Seal or cover gasket.
Features
Features provisions for a timing pointer, OE camhaft sensor and Chevrolet Big Block crank trigger.;Accommodates aftermarket double roller timing sets and high pressure/high volume oil pumps.;Includes crankshaft seal and timing cover gasket.
Specifications
SKU | DRP-LS1-TC-BK |
Brand | DRP |
Grade Type | Performance |
Color | Natural |
Gasket Or Seal Included | Yes |
Hardware Included | Yes |
Finish | Natural |
Timing Cover Gasket Included | Yes |
