SKU: DRP-BHS-LSOEM

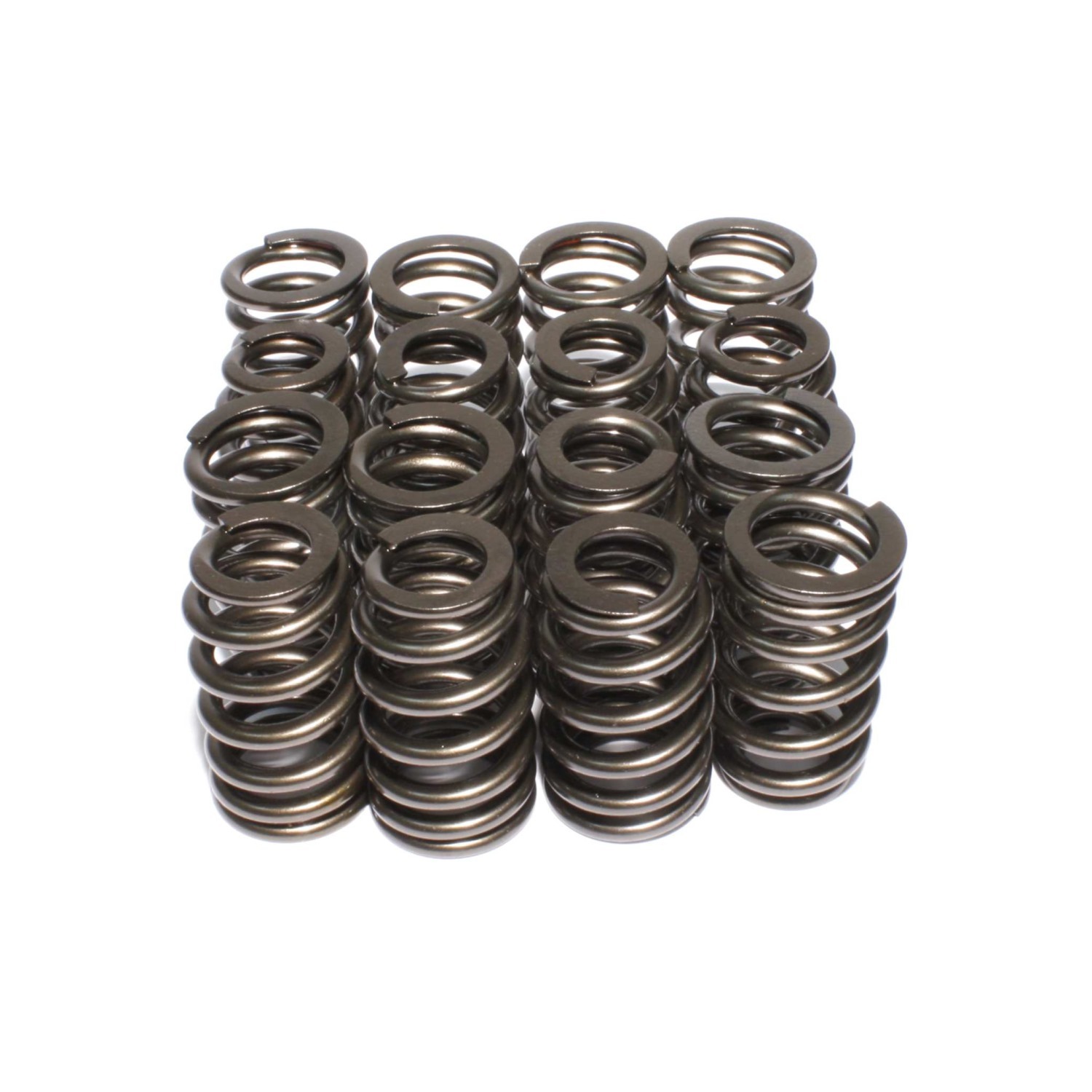

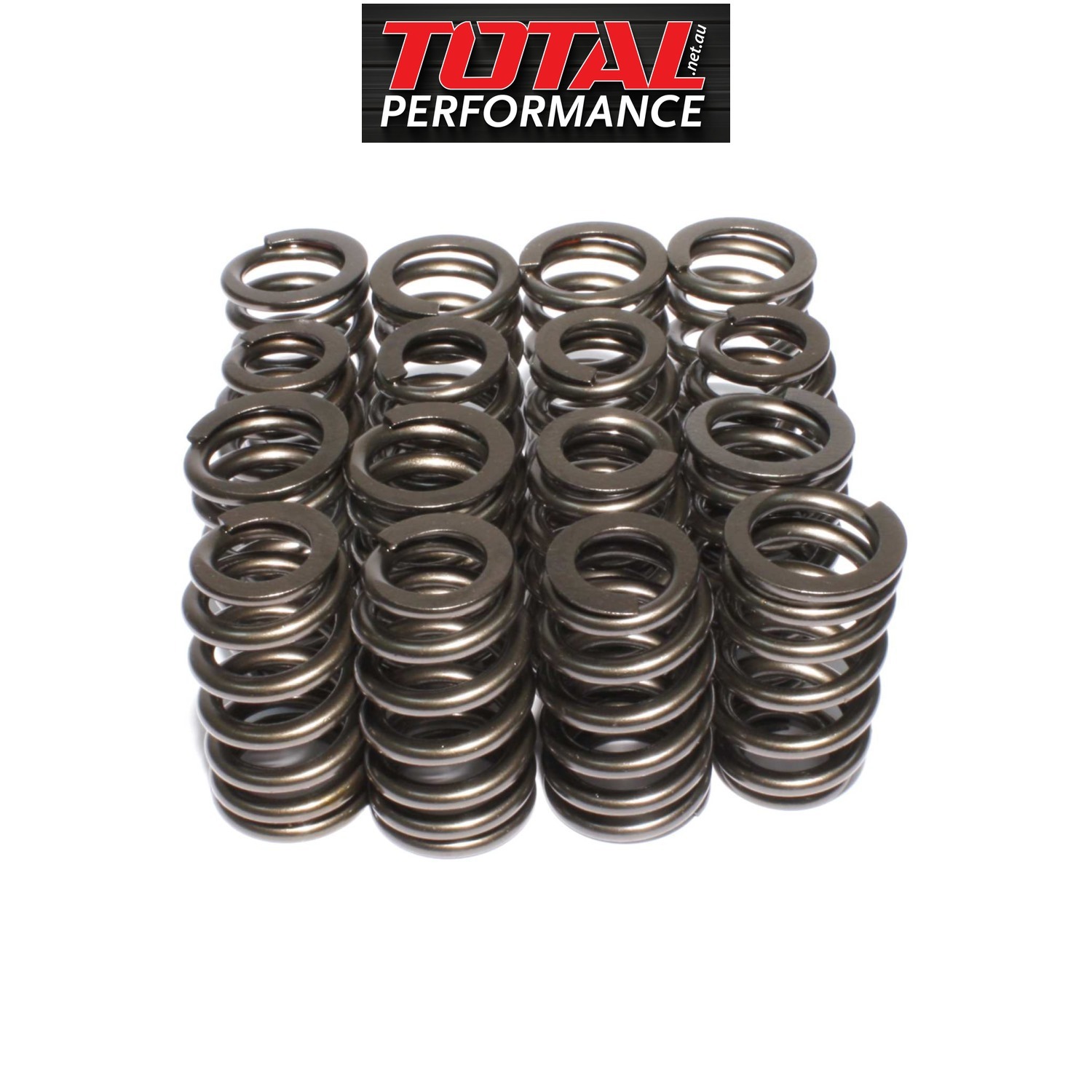

LS1 LS2 LS3 BEEHIVE OEM REPLACEMENT 1.290" OD Beehive Valve Spring; 1.800" Installed Height

$143.00

or 4 payments of $35.75 with Info

SOLD OUT

Description

Beehive Spring set.

  • OEM factory Replacement upgrade springs for the LS1 (Cathedral port) and LS3 (Square port) heads. Can use existing spring seats and retainers and locks. Replacement for GM 12499224 springs.
  • Can be used to retrofit* to Holden V8, Chevy Small Block and Ford Windsor.

    1.29" O.D.

    1.170" Coil Bind Height

  • 370 lbs./in. Spring Rate
  • 90lbs Seat pressure/ installed @ 1.800"
  • 300lbs @ 0.570" lift
  • Max Lift .570"   (with 060" clearance)
  • Set of 16
  • See DRP matching Parts:
  • DRP seals - part# DRP-LS-VSS
  • Comp cams retainers: 774-16 - 7° Retainer /8mm valve stem
  • Locks - DRP-LSLK8
  •
  • * Retro Fit to Early V8 heads: *use Comp Cams retainer: 787-16    needs 7° locks to suit 11/32" valve stem, use Comp Cams 648-16

Specifications

SKU DRP-BHS-LSOEM
Barcode # 036584072676
Brand DRP
Seat Height 1.8
Damper No
Outer Top Spring Outside Diameter 1.055
Outer Top Spring Inside Diameter 0.65
Outer Bottom Spring Outside Diameter 1.29
outer bottom spring inside diameter 0.885
