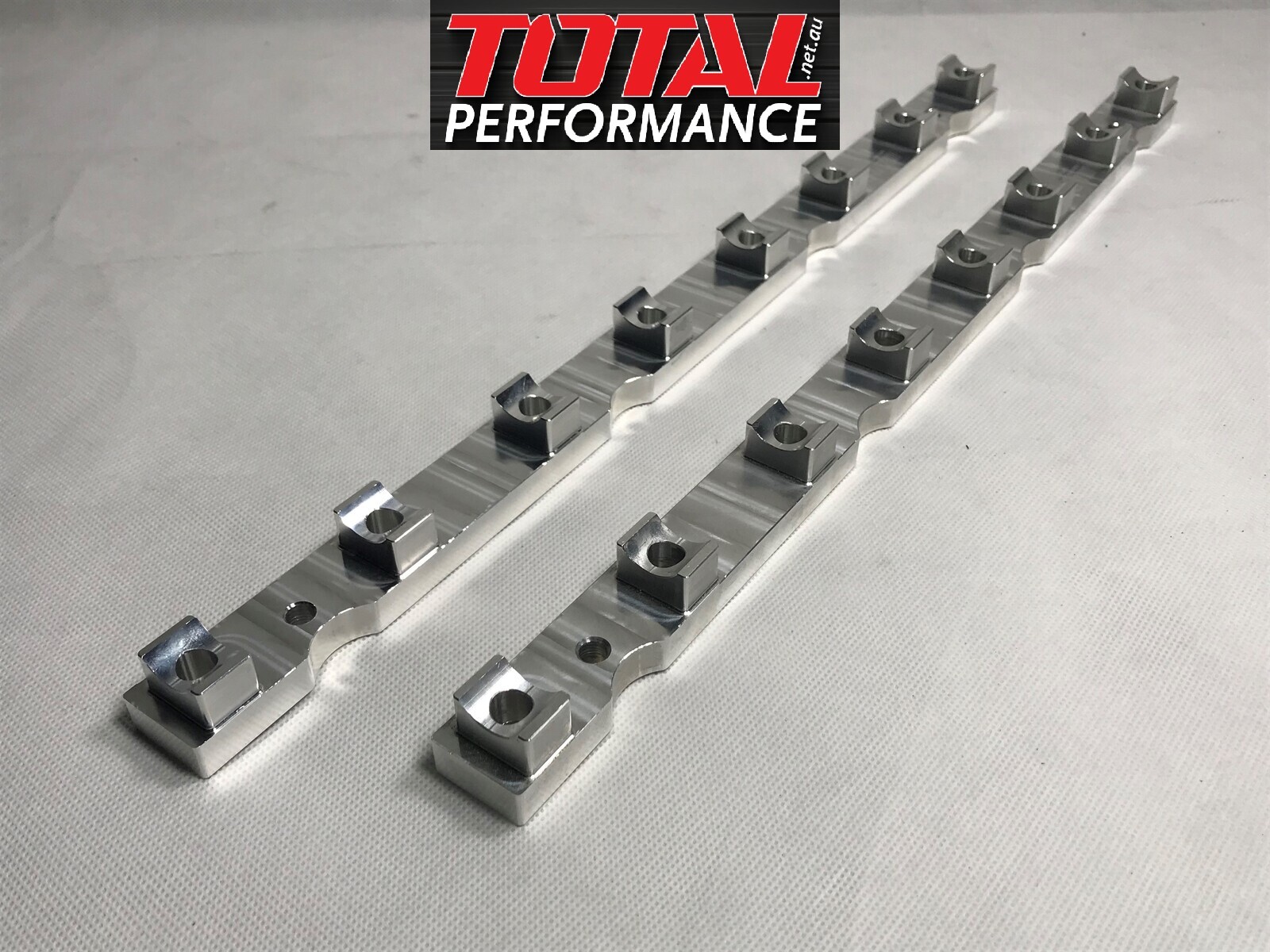

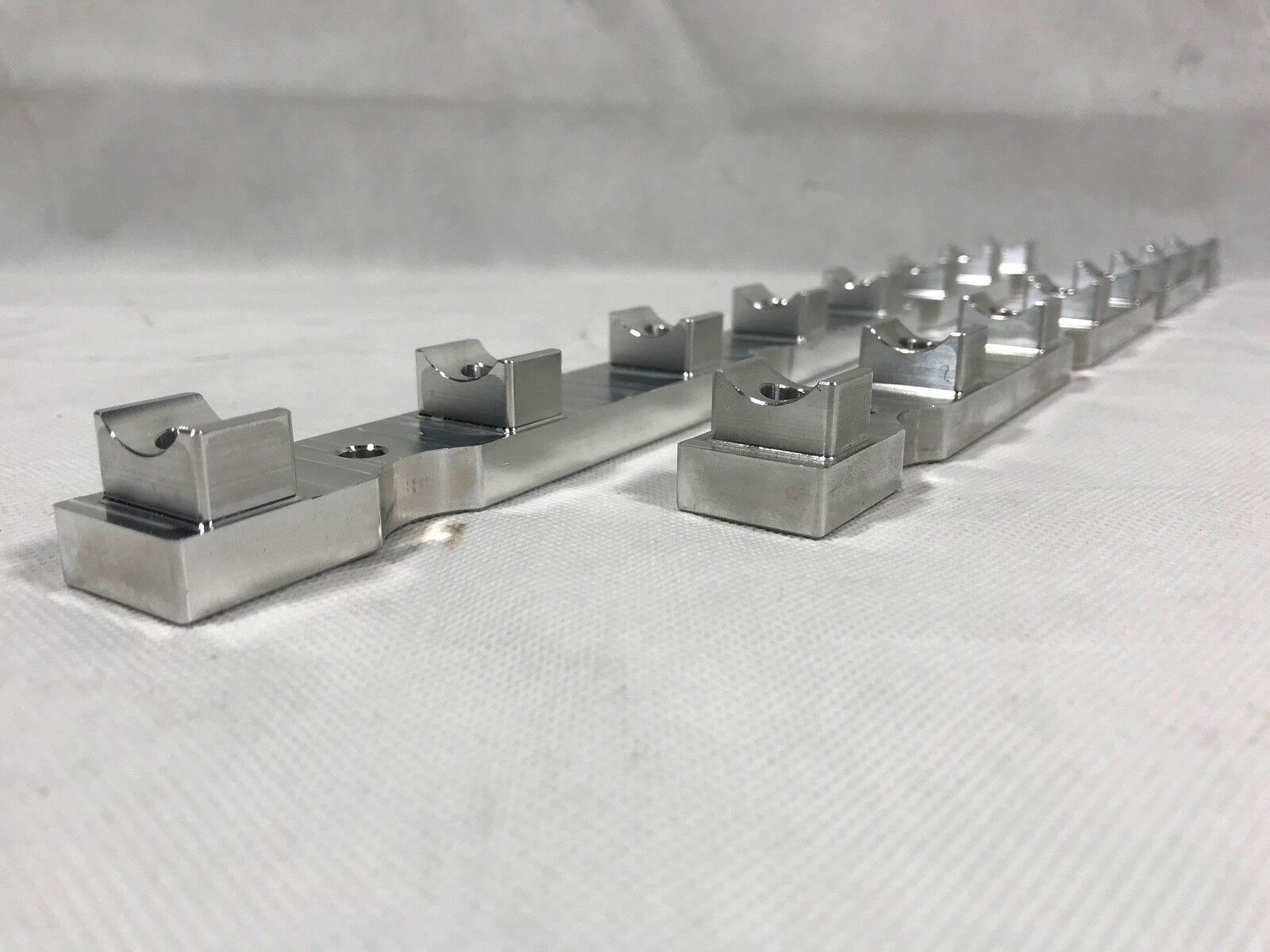

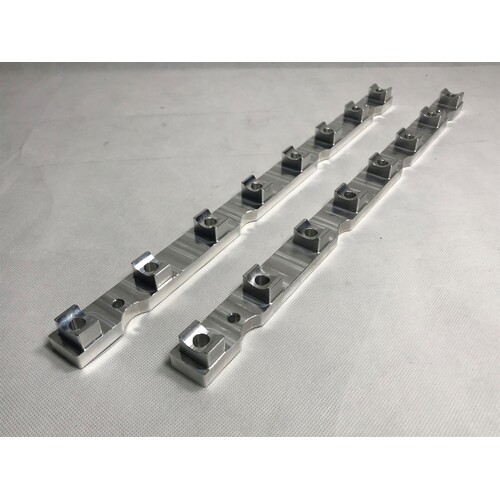

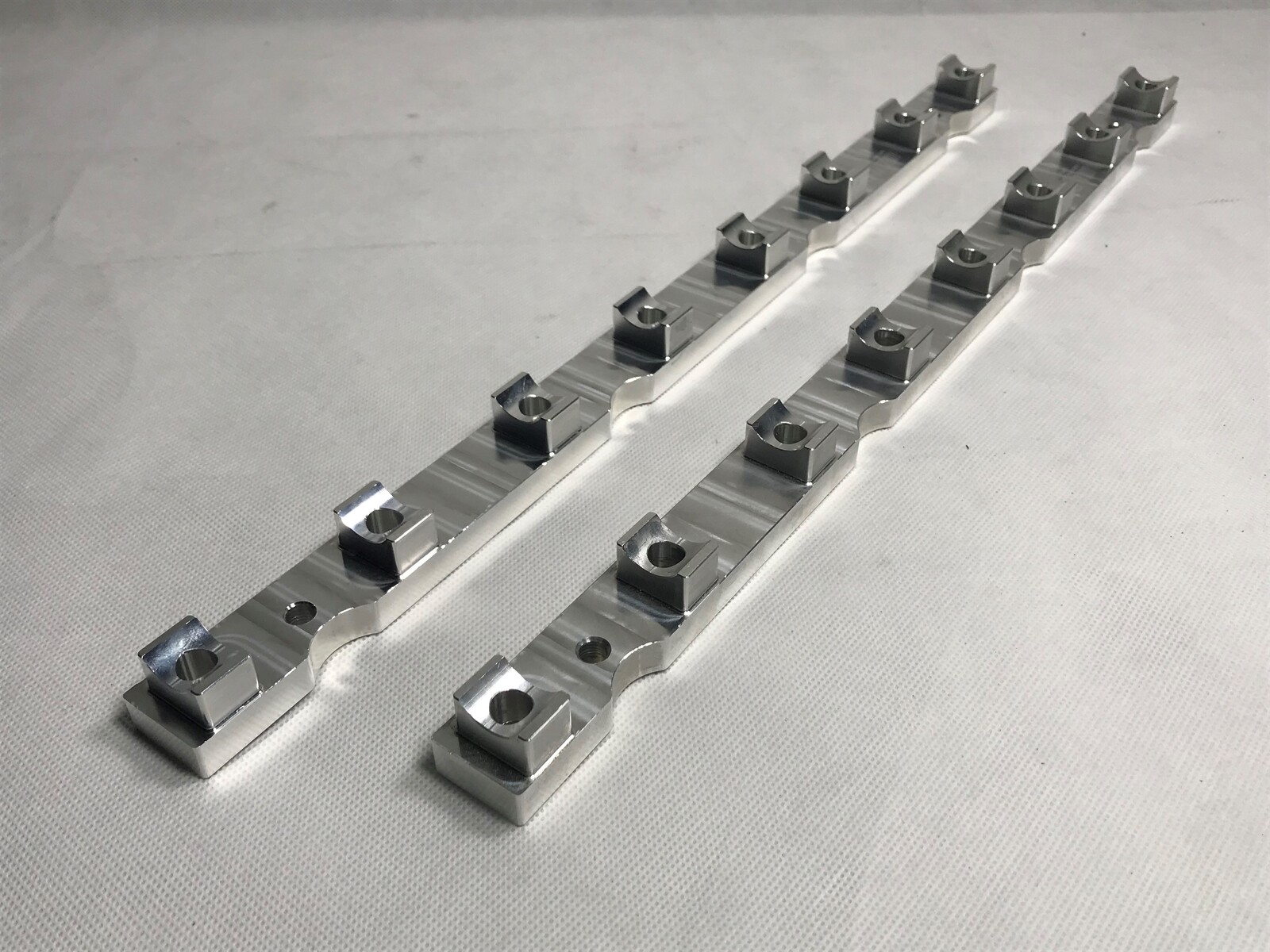

Pair LS3 to LS7 Conversion Rocker Arm Rail Pedestal Stands, suits Bolt Down, Non Adjustable OEM 1.7 LS3 rockers
Suits LS3 Heads with LS7 valve spacing / 6 bolt - PAIR
Description
LS3 Conversion to LS7 spacing, Bolt Down OEM rocker arm stands pedestals.
These LS3/LS7 Conversion Pedestal stands suit the Aftermarket LS3 performance cylinder heads with the LS7 valve spacing. Use the 1.7 ratio rockers.
Use the existing OEM LS3 offset rockers and simply bolt down for the correct valve tip alignment, using this conversion pedestal stand. Made from high quality aircraft aluminium and precision CNC machined for precise and accurate fitment.
Quantity: SOLD AS A PAIR.
Bolts Included: NO (use your OEM type)
Rocker arm: use the LS3 with offset 1.7 rockers.
NOTE: You can use the 1.8 ratio rockers eg Comp Cams part# 1982-16 shaft rockers. When using these rockers, you may machine down the bottom of the pedestal stand to correct the geometry. You will need to machine approx. .150” to .180” off the bottom – this must be measured before final machine work.
Made in Australia.
Specifications
| SKU | DRP-LS7-STANDS |
| Brand | DRP |
