SKU: ED8843

Ford SBF 302 Windsor Water Pump, LEFT SIDE INLET (1970-87) Windsor 289 302 351W 5-13/16'' Clockwise Australia passenger side intake

Australian Passenger Side Inlet

RRP $567.60 SAVE $39.60 (7%)
$528.00

or 4 payments of $132.00 with Info

IN STOCK  FREE SHIPPING

Description

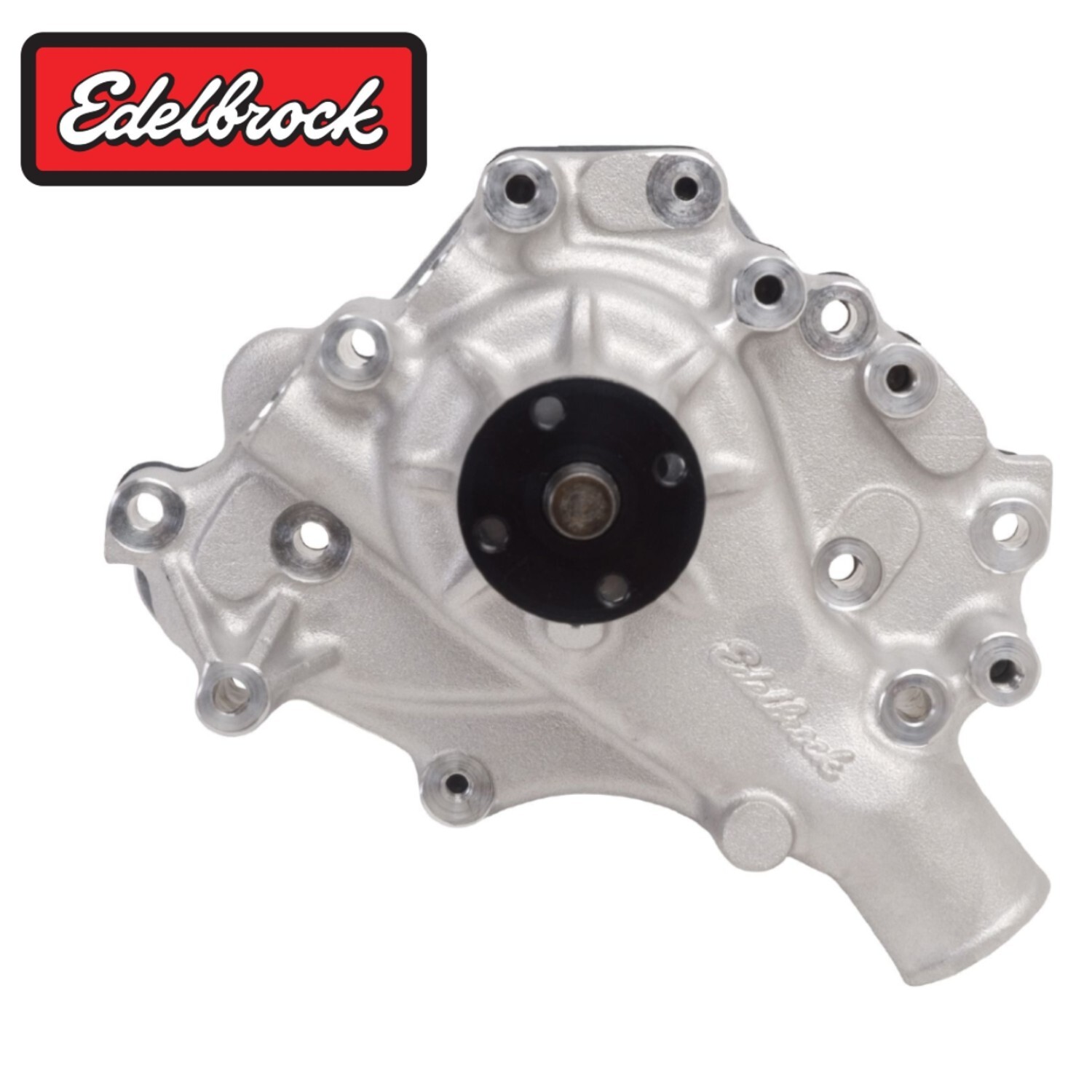

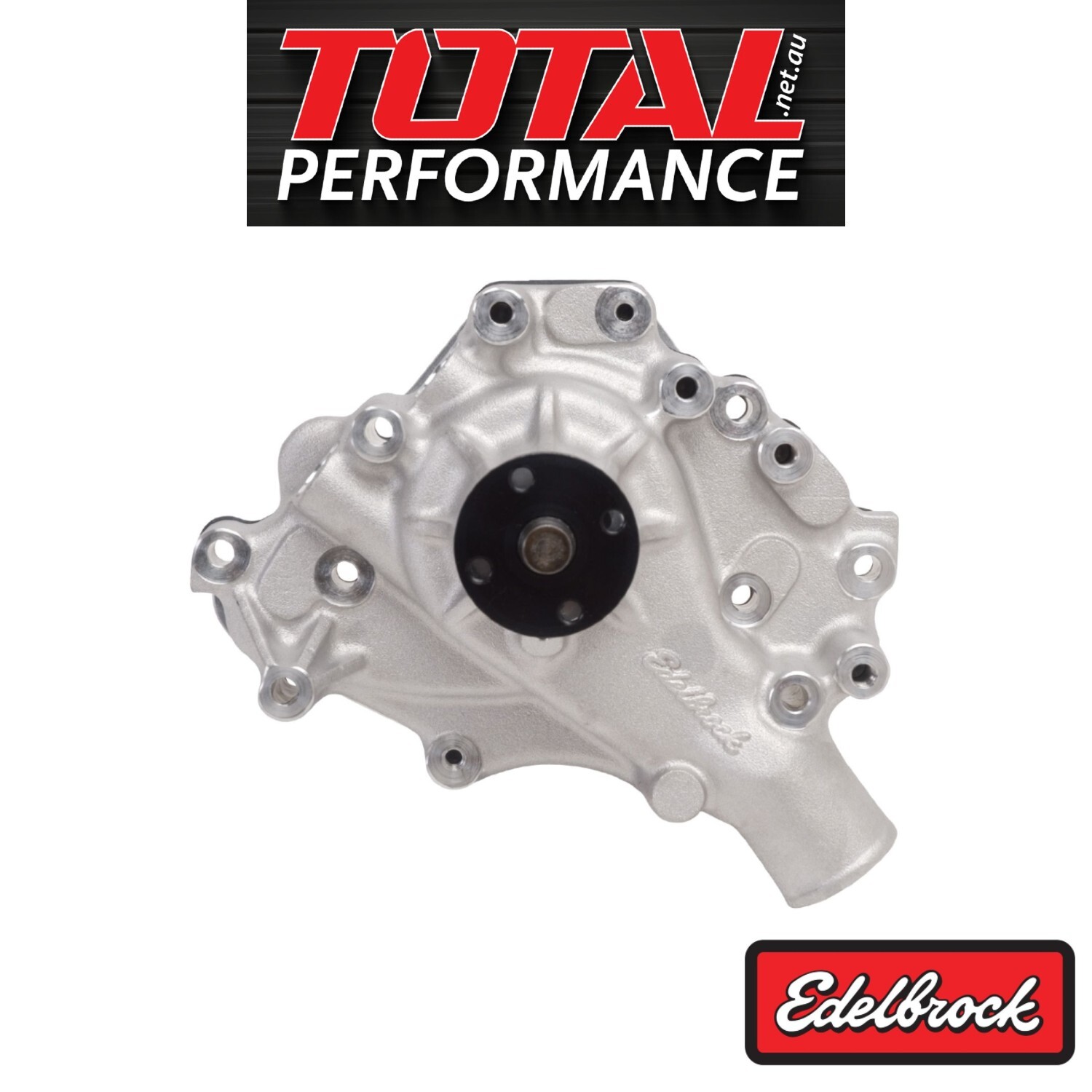

Edelbrock 302 351 Windsor Water pump, Aluminium Water Pump

SBF Water Pump, Ford 1970-78 302 & 1970-87 351w V8

Australian Passenger side inlet (same as Cleveland)

Ideal to prevent overheating in street rods and street machines.

Edelbrock 8843 302 Windsor Water Pump, suits the Ford 1970-78 302 & 1970-87 351w v8. Ideal to prevent overheating in your 302 351 Windsor street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Ford Windsor Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.

Thermostat And Housing Included           No

Thermostat And Housing Included           No

Mounting Hole Quantity               10

Housing Material              Aluminum

Impeller Material             Powdered Metal

Installation Warnings      Yes

Hub Hole Quantity           6

Fan Clutch Included        No

Impeller Vane Quantity 6

Includes Back Housing   Yes

Hub Height         5.70 in

Impeller Rotation             Standard

Outlet Quantity 1

Pulley Included No

Water Pump Drive Type                V-Belt

MADE IN USA   Edelbrock



Specifications

  • Installation is the same as for original equipment water pumps; Consult service manual for specific procedures, if necessary; Remove two screws from backing plate and apply RTV silicone to gasket just before installation; Reassemble backing plate and install on engine using RTV silicone; Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing; Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications; The distance from the flange surface to the hub should measure 5.75".; Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch with the pump shaft. Concentricity is not assured when universal type clutches are used. The universal fan clutch has a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft. This adapter bushing is supplied with the unit. These adapter bushings add to the machine tolerances of the assembly, so special care must be taken to maintain concentricity with the shaft and the clutch fan. The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump.
SKU ED8843
Barcode # 00085347088430
Brand Edelbrock
