Description

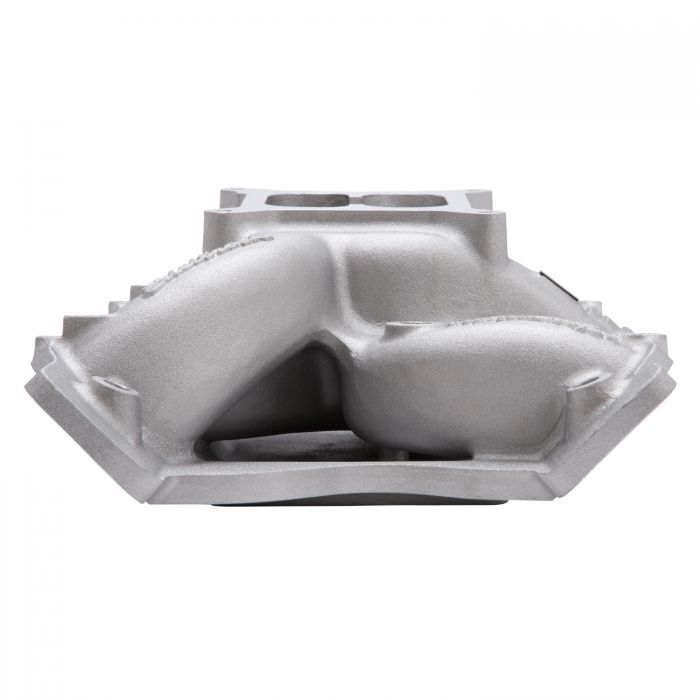

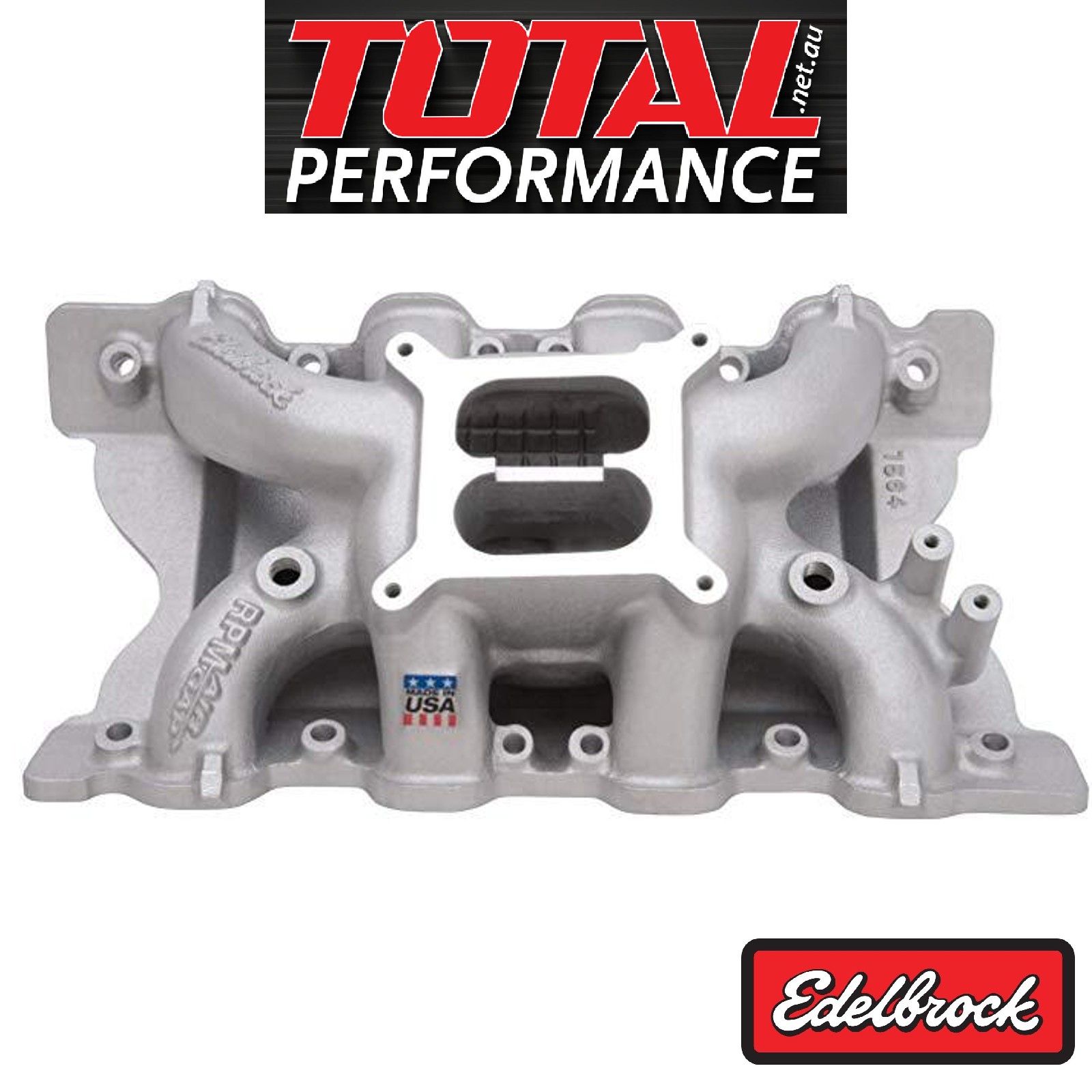

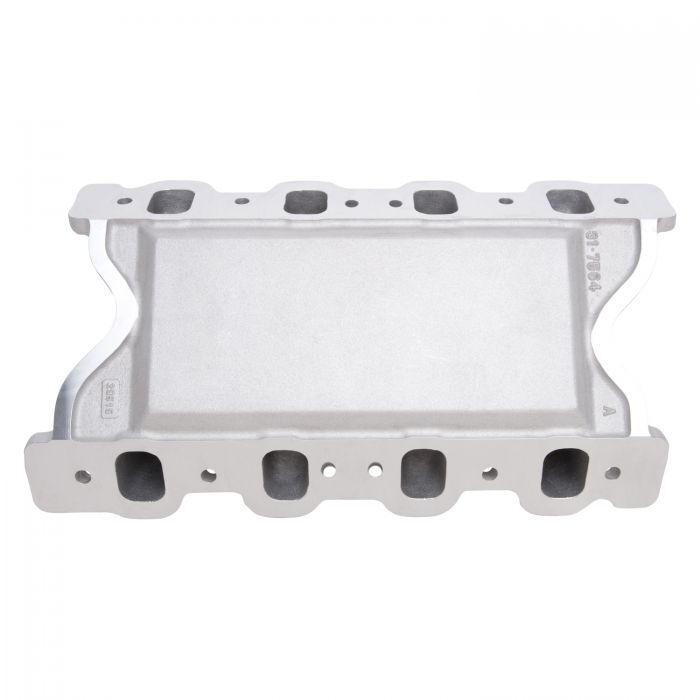

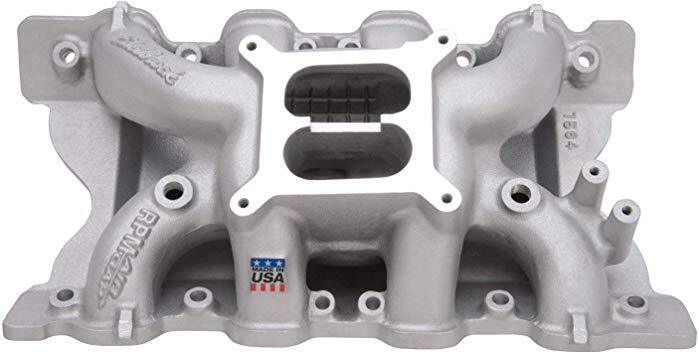

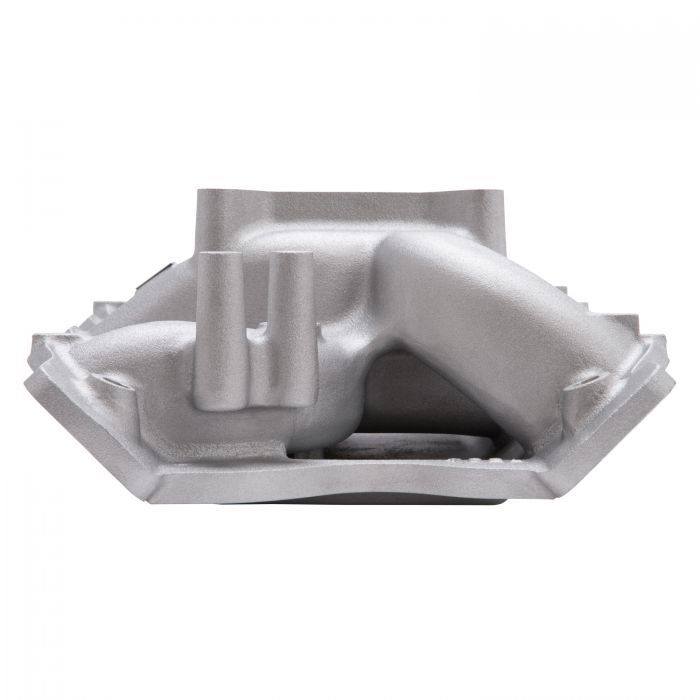

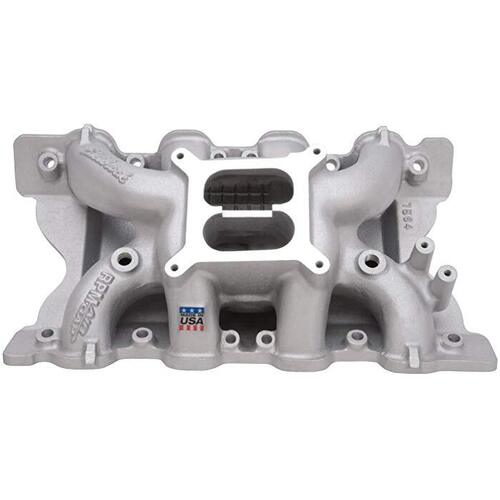

RPM Air-Gap, Ford 351C 2V Cleveland, Intake Manifold - 7564
Edelbrock's 351 Cleveland, Performer RPM Air-Gap (ED7564) intake manifolds incorporate race-winning technology that's been used on Victor series competition intakes for years. The open air space from the Air-Gap design separates the runners from the heat of the lifter-valley cover. So, the air/fuel mixture stays cooler all the way to the heads, which produces a denser charge for more power. Runners are tuned to move the power band 1,000 rpm higher than Performer Air-Gap manifolds, from idle-5,500 rpm up to 1,500-6,500 rpm.
Note: Suits the factory port opening of a 2V Cleveland cylinder head. This manifold will also fit a 4V Cleveland cylinder head, the ports of the manifold are smaller than the 4V and the mis-match is acceptable and still works well.
Edelbrock Part# 7564 Specs:
Requires Edelbrock # 8565 bolt kit
Recommended intake gaskets:
- Edelbrock # ED7265
- Felpro # FEL-1240
Manifold height: A-4.48", B-5.56
CNC Ported No
Engine Block Deck Height: Standard deck 351 Cleveland, 9.2"
Carburetor Quantity: One – Square Bore 4150 Style Base.
Intake Style: Dual plane
Basic Operating RPM Range: 1,500-6,500
Intake Manifold Height: 5.020 in.
Intake Finish: Natural / Satin
Intake Material: Aluminum
EGR: No
EDELBROCK - MADE IN USA. TOTAL PERFORMANCE IS AN EDELBROCK DEALER.
Edelbrock Cylinder heads & intake products offer increased performance and improved looks for a most Chevy, Ford & Chrysler engines. The Edelbrock 'Proven performance' is a philosophy that Edelbrock was founded on and it continues to this day with now “Dyno Proven Performance”. Edelbrock has the highest standards for performance and quality. Edelbrock main products are engineered, manufactured, and tested in the USA to have the best quality possible. Edelbrock has some of the best warranties in the industry and Total Performance highly qualified technical support staff to assist when choosing an Edelbrock performance product.
Specifications
Center Maximum Height | 5.020 in |
---|---|
CNC Ported | No |
Finish | Satin |
Front Maximum Height | 4.480 in |
Material | Aluminum |
Rear Maximum Height | 5.560 in |
Single Or Dual Plane Type | Dual Plane |
SKU | ED7564 |
Brand | Edelbrock |
