600 cfm Electric Choke Economy Vacuum Secondary 600 Carburetor Carby 4-barrel square bore 4150 Carburettor

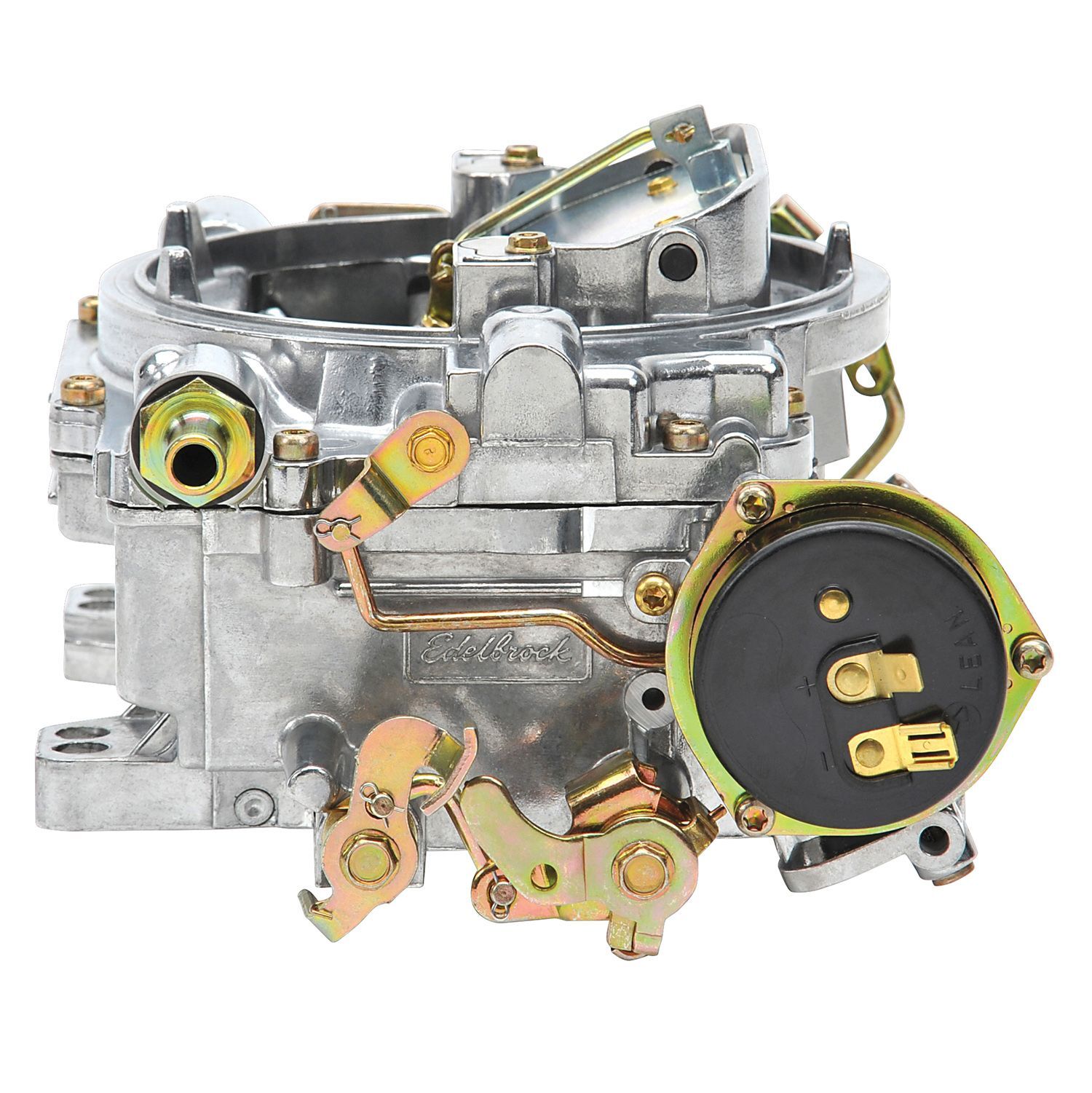

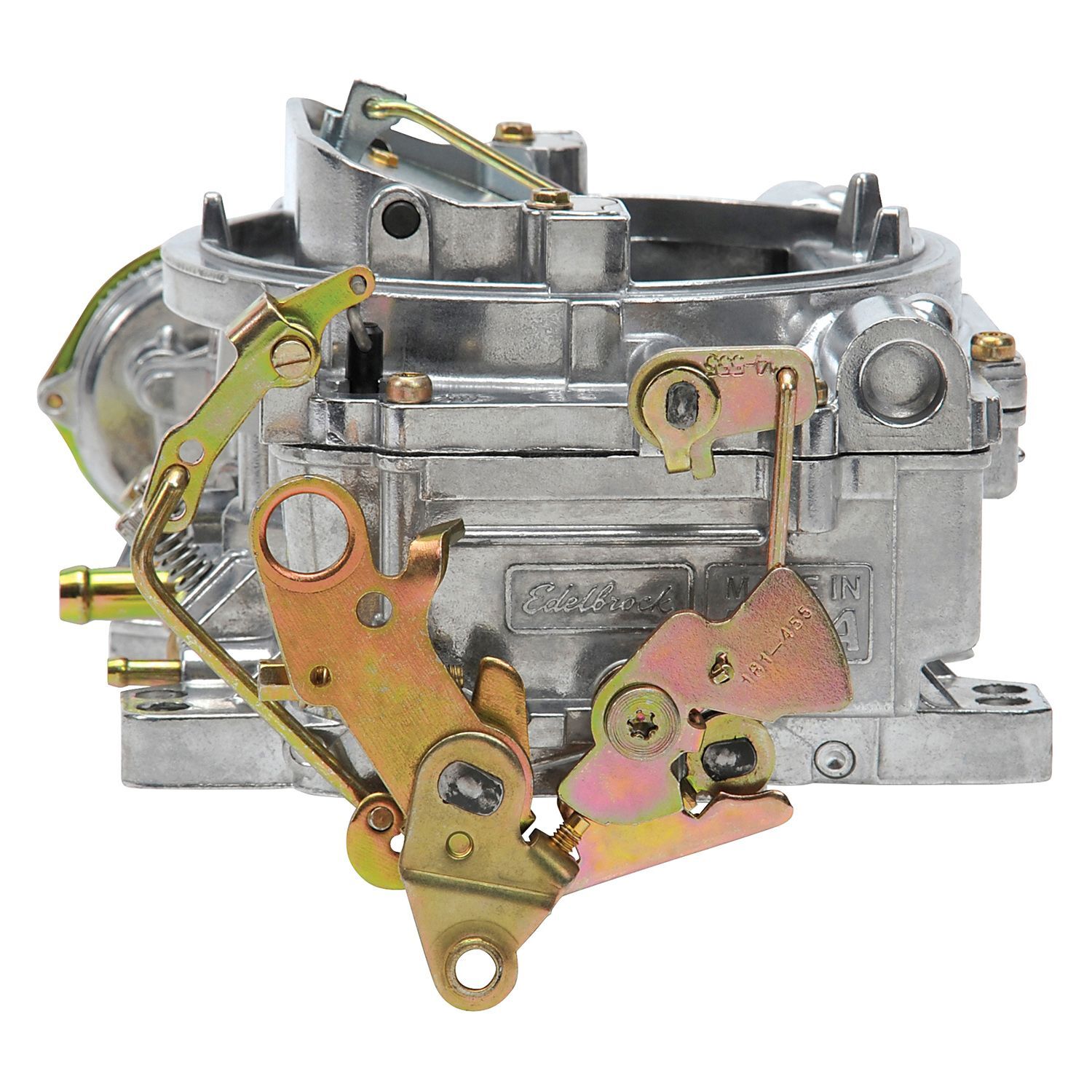

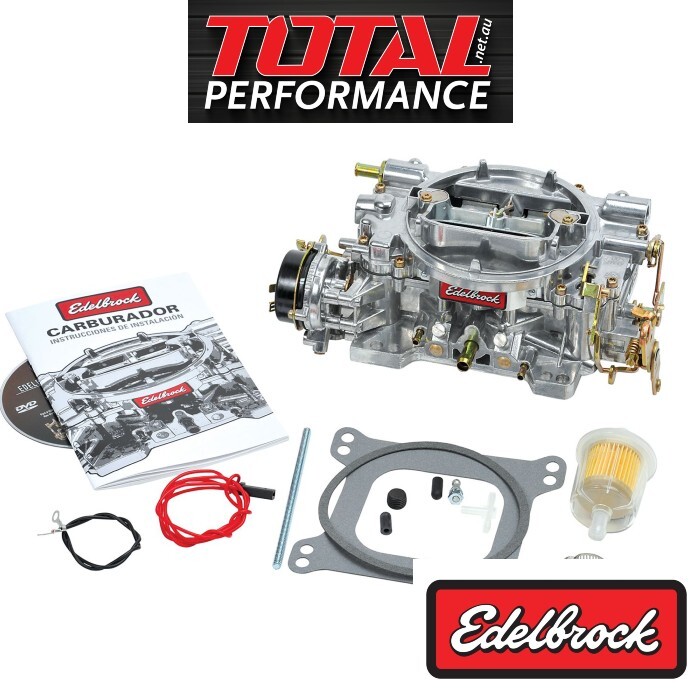

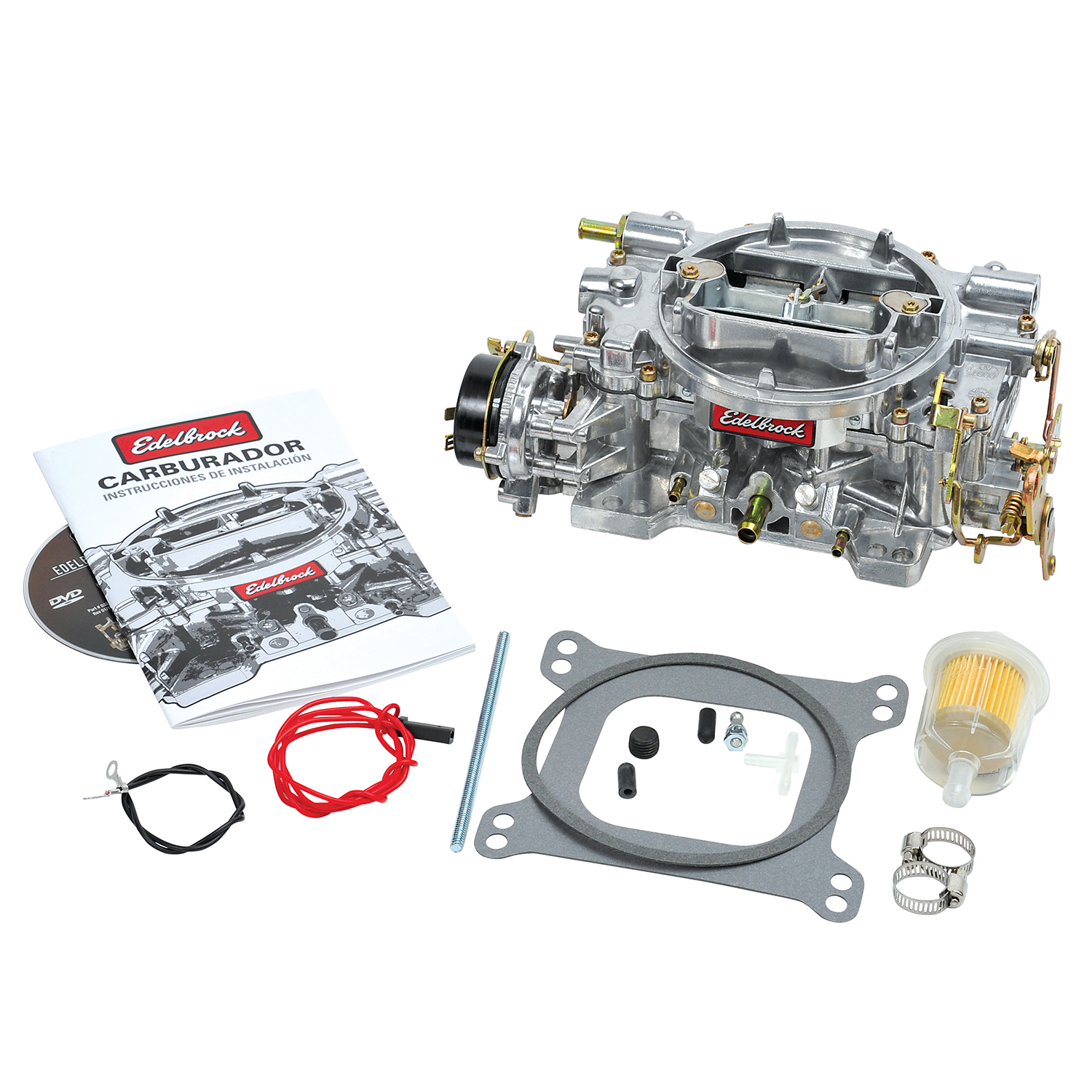

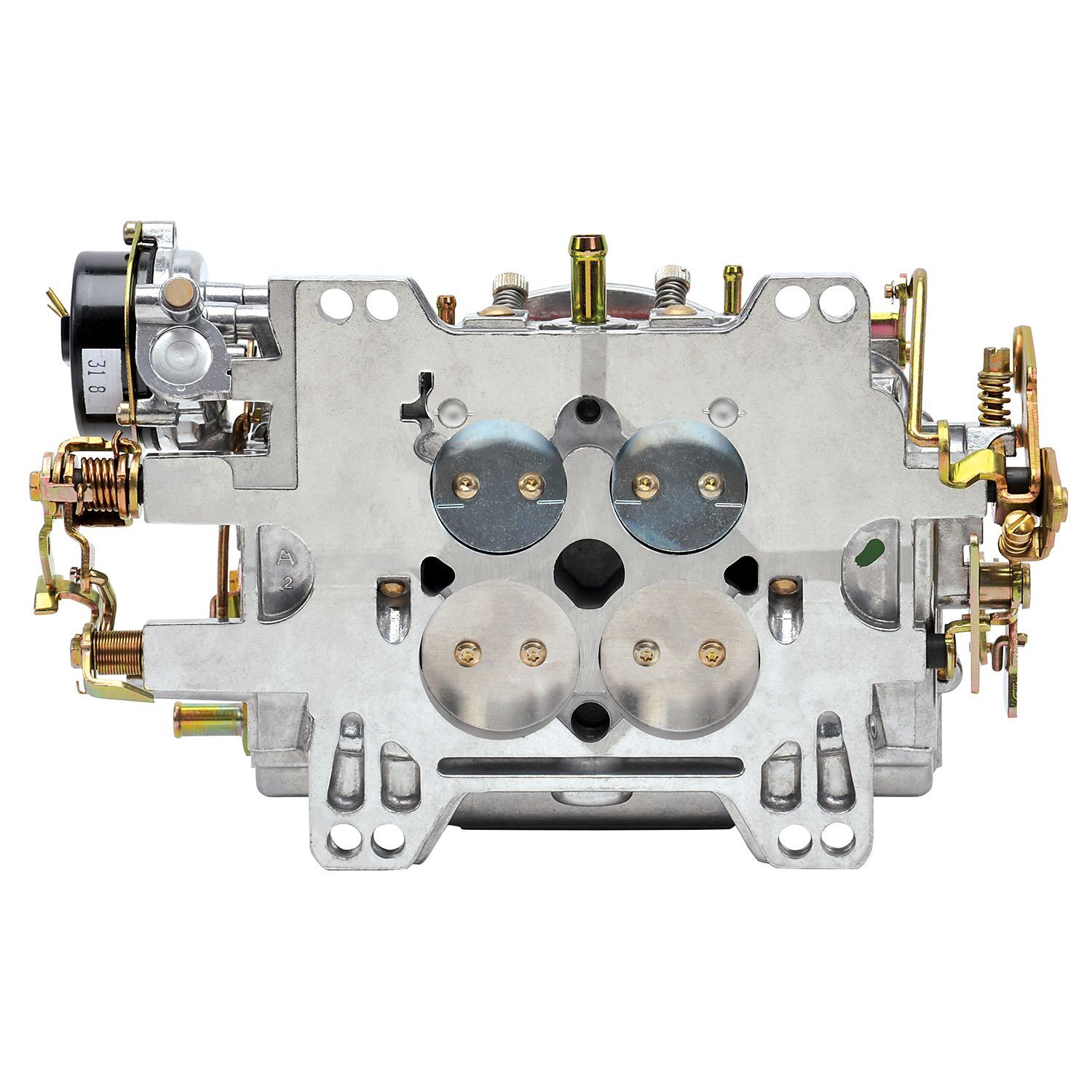

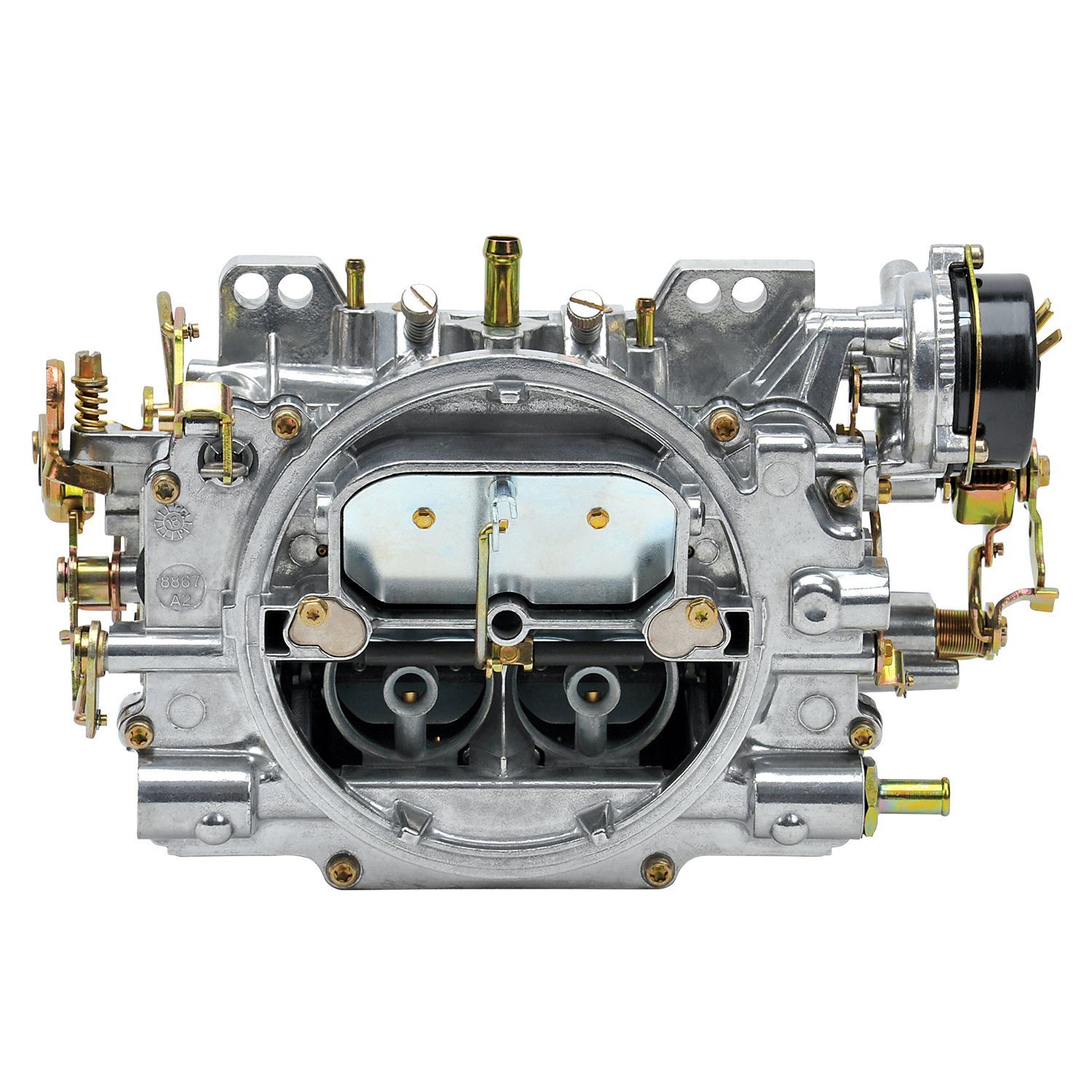

ED1406 Edelbrock Carburetor, Performer Series 600 cfm Carburetor

Electric Choke + Calibrated for Economy - Carby suits standard to mild enignes.

Square-Flange (non-EGR).

Not recommended for RPM or Torker II Manifolds.

The Edelbrock carburetor 1406 Performer Series 600 CFM carb has electric choke and tuned for economy.  This Edelbrcock carby is a precisely tuned, quality-built 600 carburetor that suits stock to mild SBC 350 and 351 Clevelands. These Carbst can handle the rigors of daily driving while delivering consistent, reliable street economy from day to day. Several characteristics make the Edelbrock ED1406 Performer Series 600 carburetor with electric choke an outstanding replacement carb. The metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. This 600 cfm carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation.

Size:   600 CFM

Barrels:  4 Barrel

Choke:  Electric Choke

Secondary Type: Vacuum over mechanical

Carburetor Colour:  Satin Silver

Fuel Inlets:  1 inlet

Carburetor Height:   3.250"

Series:  Economy Performer

Metering Rod Size:           .075 x .047 in

Gasket Or Seal Included:  Yes

Secondary Jet Diameter  0.095

Main Venturi Diameter     1.19

Bore Diameter  Primary Bore 1.44; Secondary Bore 1.69

Spring Force                       5" Hg (Orange)

Primary Jet Diameter         0.98

GM Trans Cable Adapter:  not included see   SKU: ED8026
