Description

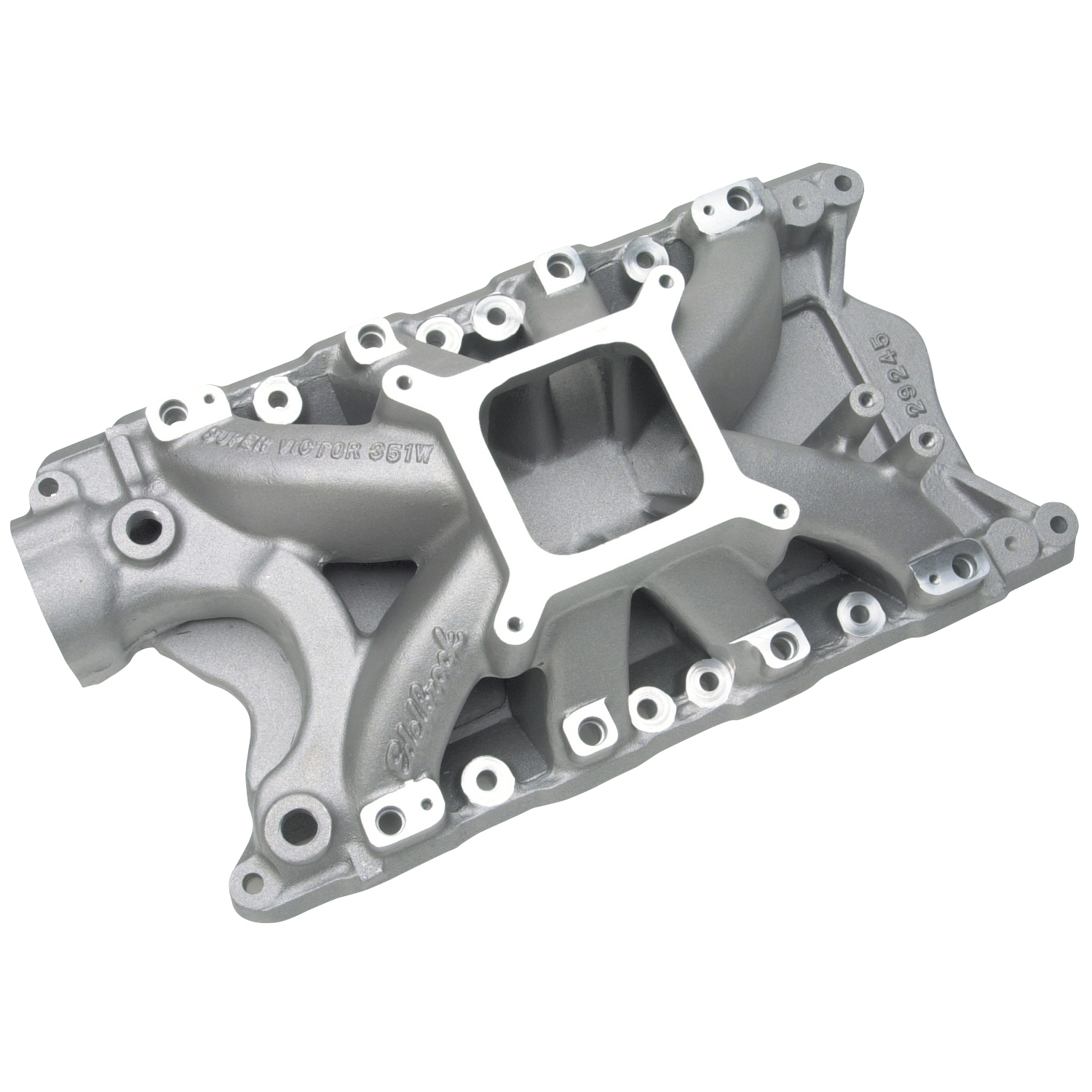

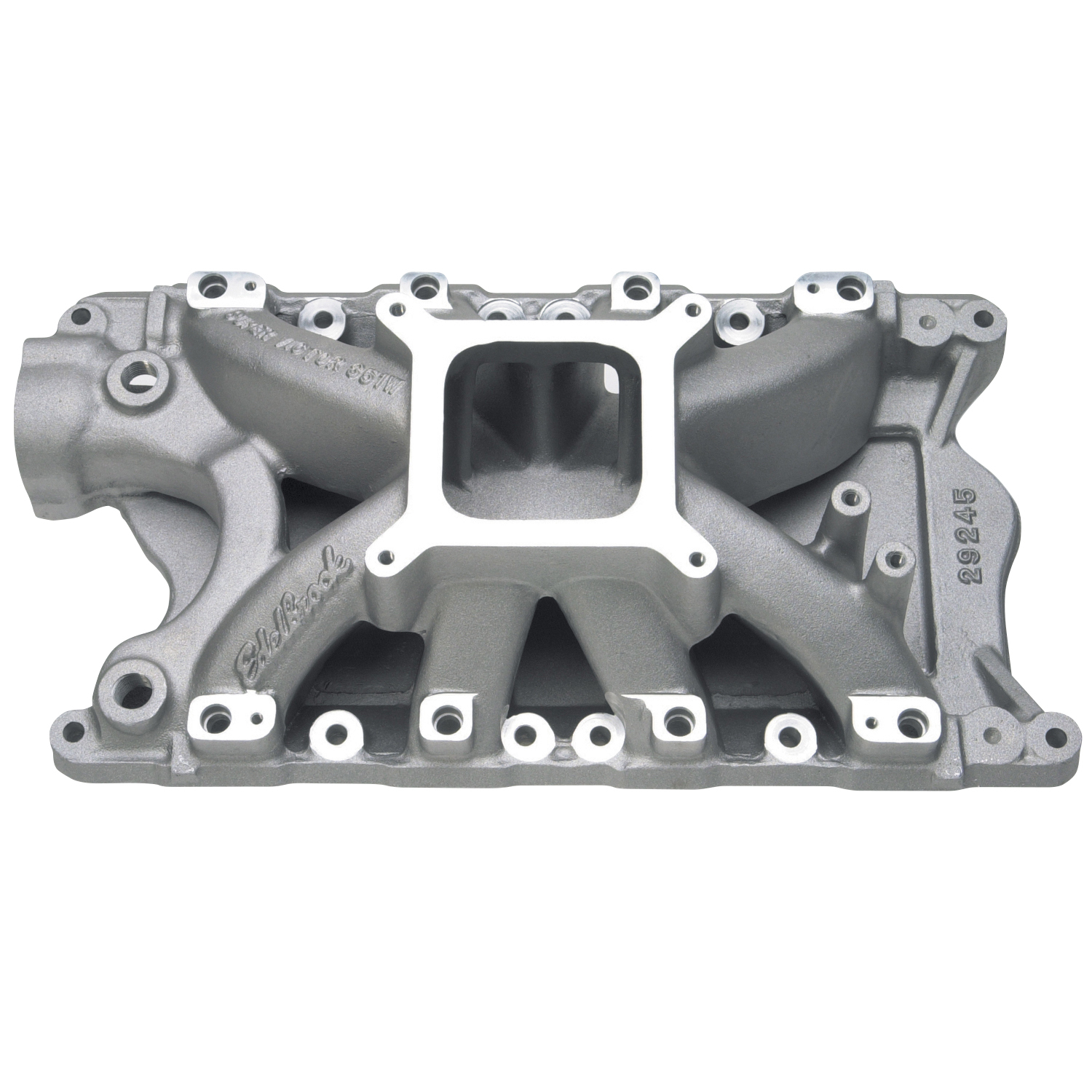

Edelbrock 351 Windsor EFI Manifold, Super Victor EFI 351W (9.5" deck) Intake Manifold Ford Small-Block Windsor V8.
This Edelbrock part # ED29245 is a Single Plane EFI Super Victor 351W intake manifold for sale. This Ford 351 Windsor manifold is designed for high rpm or stroker Windsors. Fits competition 351 Windsor Ford V8's with a deck height of 9.5". Perfect intake manfold for EFI, high rpm or drag racing engines. Approximate operating RPM range is 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended,
Runner size: 3.20 square-inch cross sectional area.
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 4,500-8,500
Engine Block Deck Height: Standard deck 351 Windsor 9.5" Deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
Aftermarket Fuel Rail Required: Yes
Manifold Material: Aluminum - Satin Natural
Quantity: Single / Sold individually.
Notes: Fits 9.500 in. deck height only which is 351W engines.
Warranty: 12 Months
Installation Notes:
Recommended intake gasket: Fel-Pro #1262 or #1262R.; Throttle body recommendations: Edelbrock #38783 4150 style 4V; or use #3849 EFI elbow and Ford style single 90mm throttle body #3818; Fuel rail kit: Edelbrock #3620; MSD distributor #8578 must be used to clear the front water crossover.; Manifold height: A-6.25", B-6.25"
Specifications
Ford:Small-Block Windsor:351 (5.8L)
SKU | 29245 |
Barcode # | 00085347292455 |
Brand | Edelbrock |
