SBC Victor JR. 23 Deg Intake Inlet Manifold Single Plane Natural Small Block Chevy 350 Low profile High Rise intake.

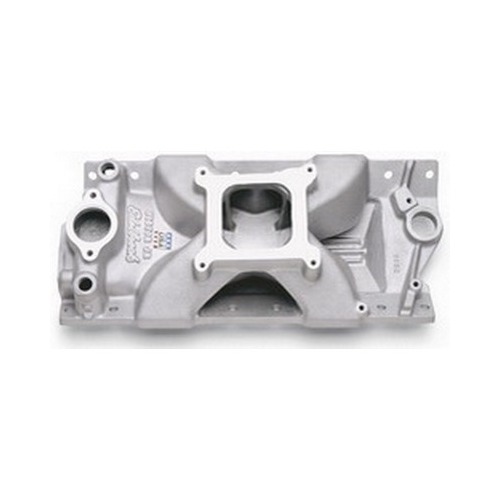

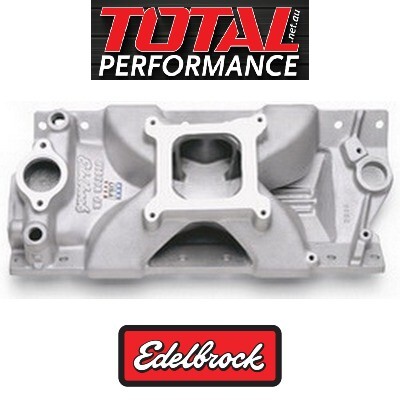

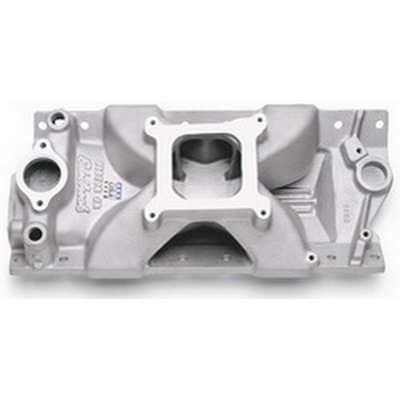

Edelbrock 2975 Victor Jr Small Block Chevy 350 Intake Manifold, High Rise Single Plane

The Edelbrock Victor Jr. 2975 is a single plane, high rise intake designed for maximum race-winning power at higher engine speeds.

This high quality Edelbrock ED2975 manifold is excellent for many Small Block Chevy builds from drag to circle track racing and tough street. This Edelbrock intake manifold provides maximum performance for engines from 3500 to 8000 RPM. These manifold suits standard port locations on the iron and aluminium aftermarket cylinder heads. The Edelbrock single plane low-profile manifold works well in applications with minimal bonnet clearance. Depending on applications, you can install 1" or 2" spacers to fine tune.

Edelbrock 2975 Specs:

Suits Engine: Chevy 350 Small Block and Chevy 400 Small Block

Manifold Series: Victor Jr

Application: Drag Racing, High Performance Street.

RPM Range: 3500-8000

Intake Manifold Type: Single Plane, High Rise

Carby Type & Quantity: Single Carburetor, 4150 base, Square Bore.

Intake Manifold Material: Aluminium - Satin Finish.

Warranty: 12 Months Warranty.

Installation Notes: Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206.; No provisions for exhaust heated chokes or EGR.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used

Edelbrock - Made in USA.

Edelbrock Cylinder heads & intake products offer increased performance and improved looks for a most Chevy, Ford & Chrysler engines. The Edelbrock 'Proven performance' is a philosophy that Edelbrock was founded on and it continues to this day with now “Dyno Proven Performance”. Edelbrock has the highest standards for performance and quality. Edelbrock main products are engineered, manufactured, and tested in the USA to have the best quality possible. Edelbrock has some of the best warranties in the industry and Total Performance highly qualified technical support staff to assist when choosing an Edelbrock performance product.
