SKU: ED5076

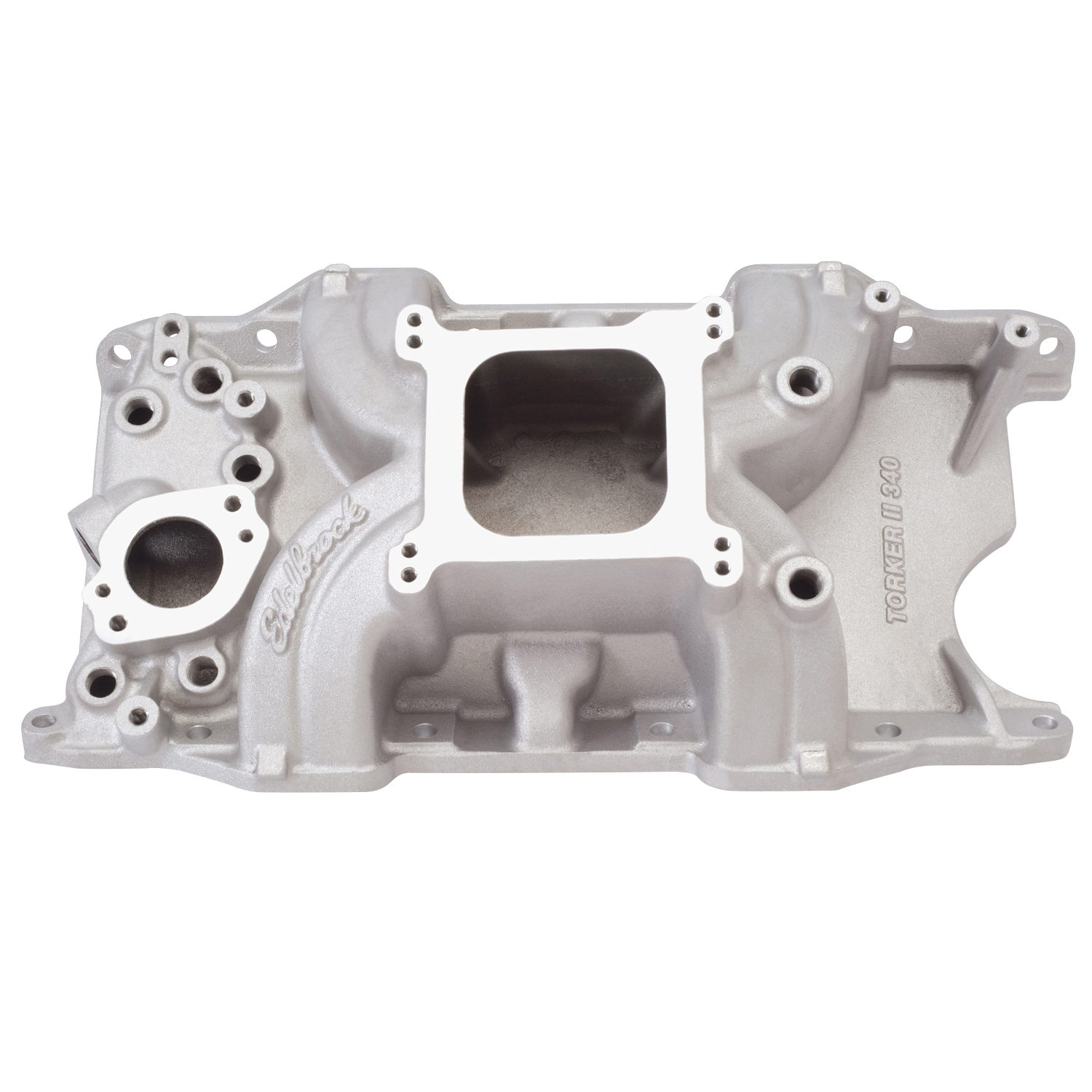

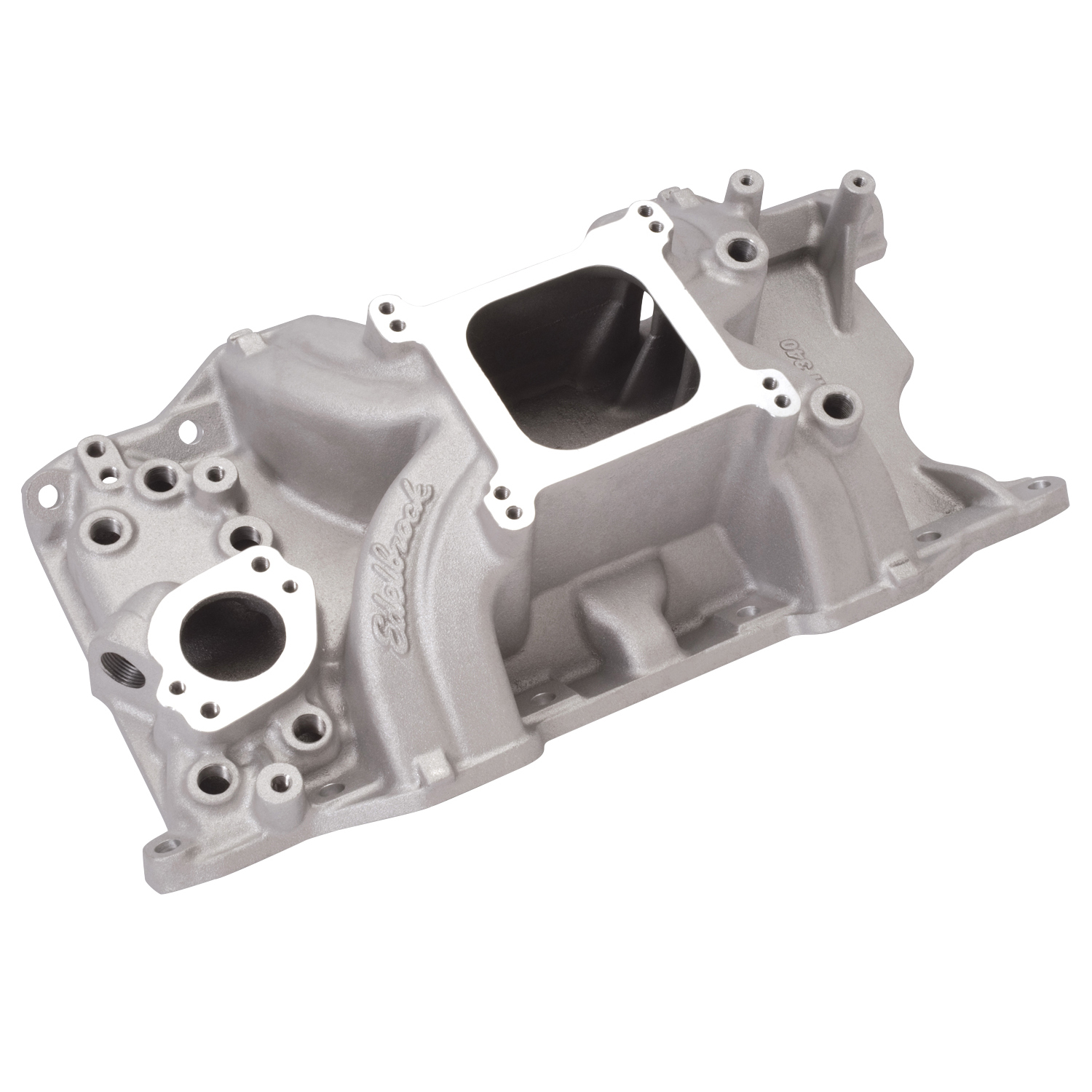

340 360 Chrysler Intake Manifold, Low Rise Single Plane, Torker II, Torker 2, Satin, Small Block Chrysler LA V8, 318 340 360

RPM Range: 2500-6500

$784.30

or 4 payments of $196.07 with Info

IN STOCK  FREE SHIPPING

Description

Edelbrock 5076 Chrysler 360 Low Riser Single Plane Intake Manifold. Small Block Chrysler V8 318 340 360,

Torker II Intake Manifold for Chrysler Small Block LA engines.

Edelbrock part ED5076 Torker II intake manifold is designed for high Performance's street 340 & 360 c.i.d. Chrysler V8's. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Edelbrock 5076 Small Block 360 Chrysler intake manifold is a single-plane, low-rise design that gives you strong mid range through to top end power performance. What Edelbrock did was increase the plenum volume and alter the short-side radius of the runners, to give a high velocity, smooth transition to a straight shot at the intake valves. That straight shot produces a potent power build from 2,500 to 6,500 rpm!

Chrysler Engine Block Deck Height:  Standard deck

Carby Flange Size:  4150

Carburetor Quantity:  One

Intake Style:  Single plane

Basic Operating RPM Range:  2,500-6,500

Intake Manifold Height:  5.720 in.

Intake Color:  Natural

Intake Material:  Aluminum

EGR:  No

Quantity:  Sold individually.

Notes:  Will fit 318 if heads from a 340 or 360 are used. Will not fit 1992 and later Magnum engines.



Specifications

Chrysler:Small-Block:318 (5.2L)/340 (5.6L)/360 (5.9L)

SKU ED5076
Barcode # 00085347050765
Brand Edelbrock
