Description

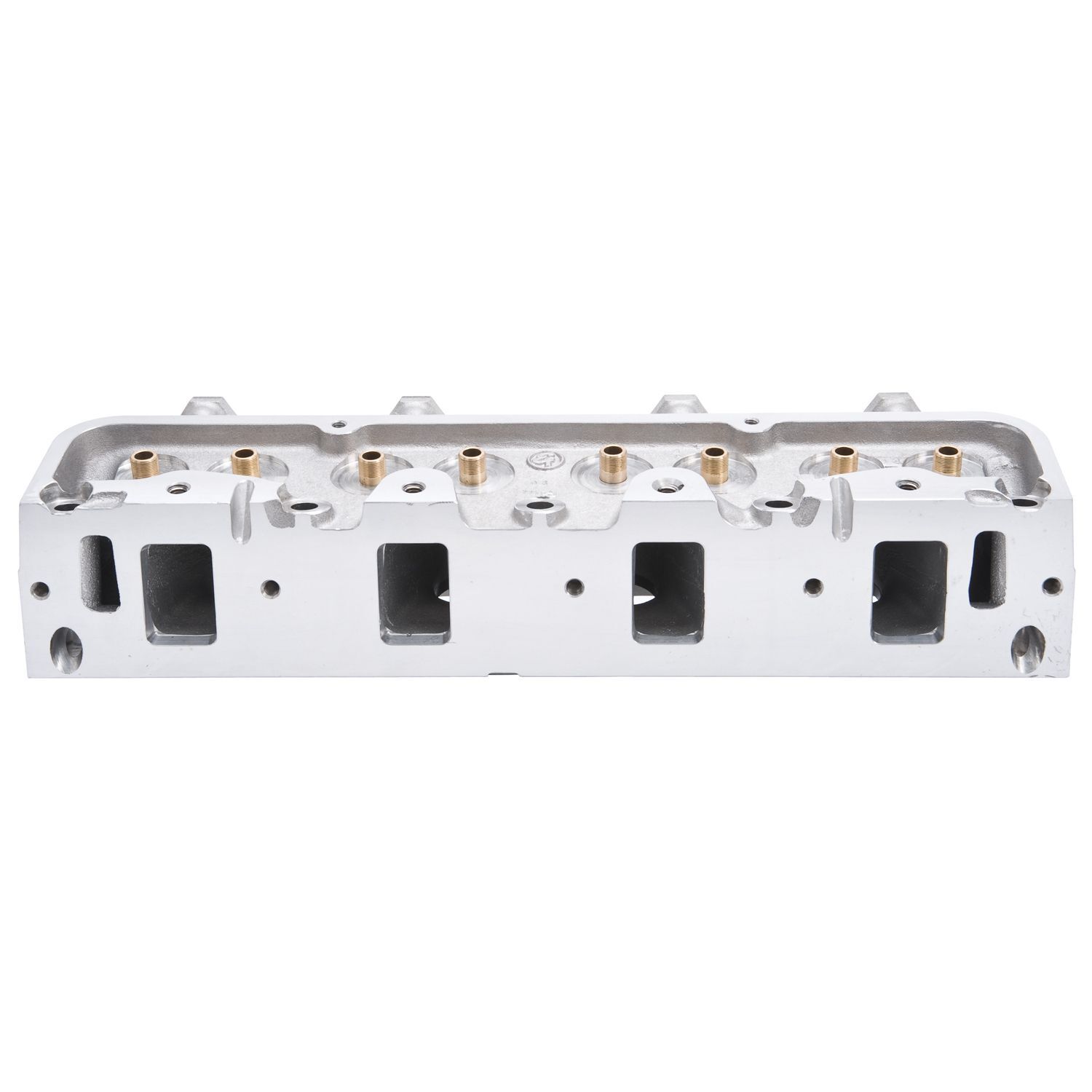

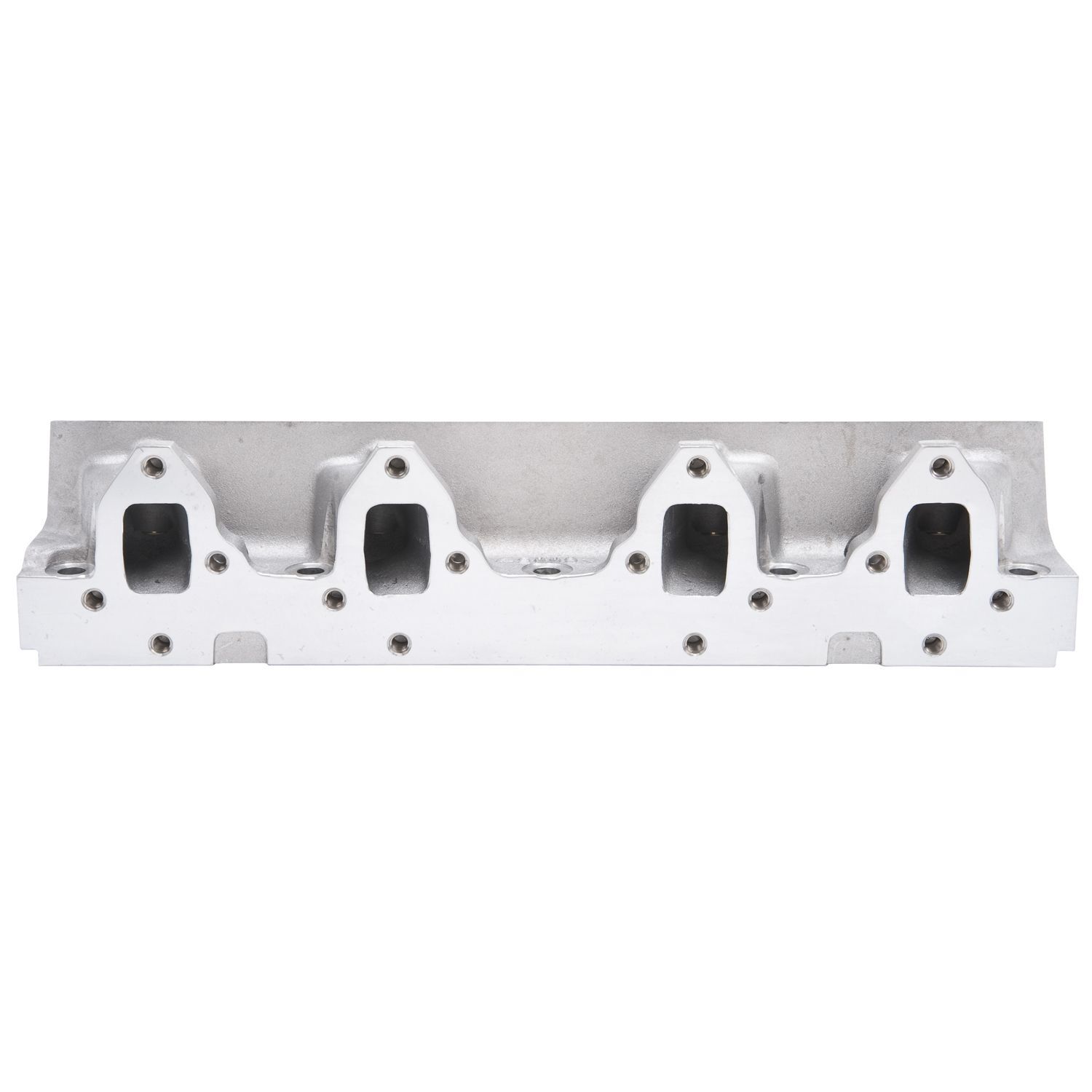

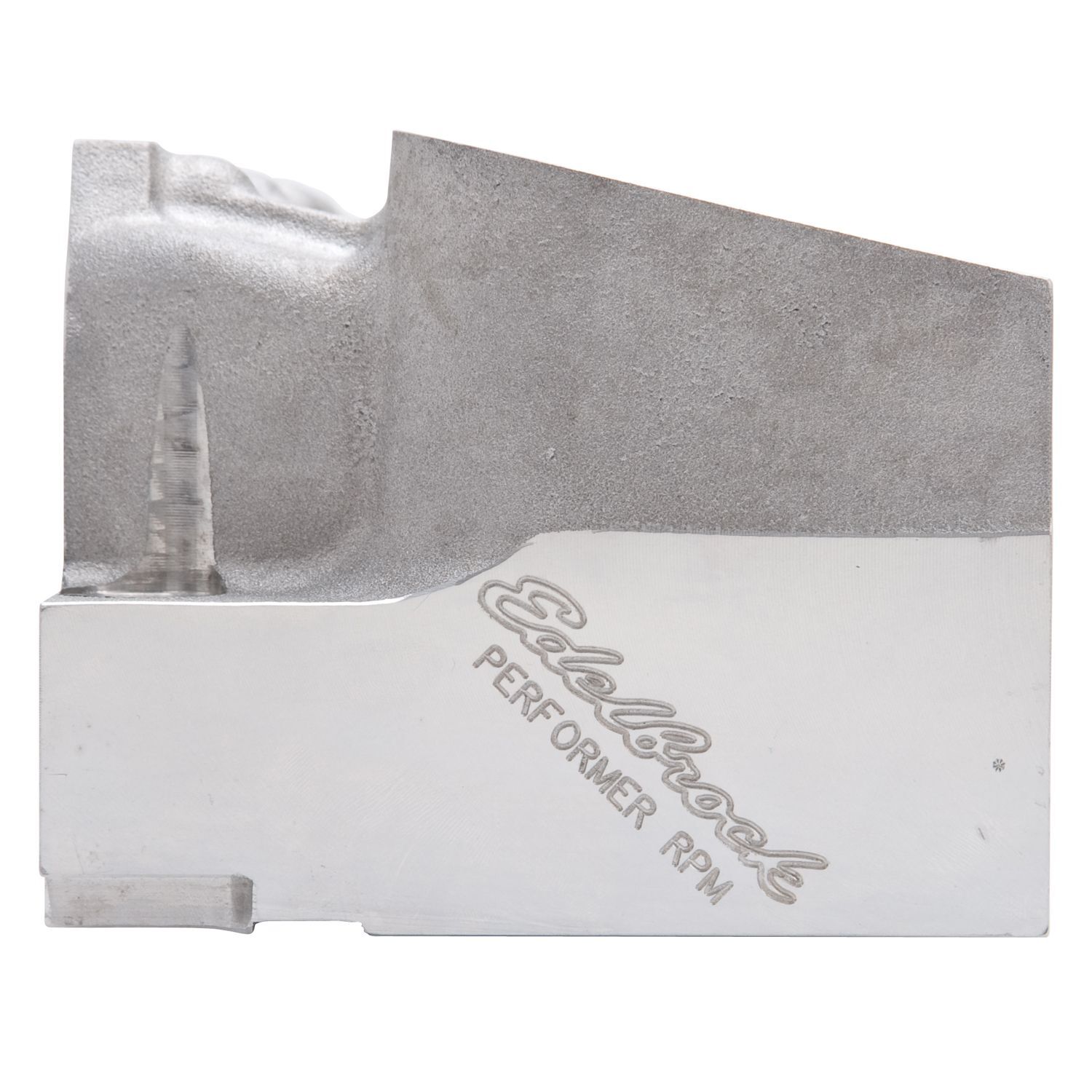

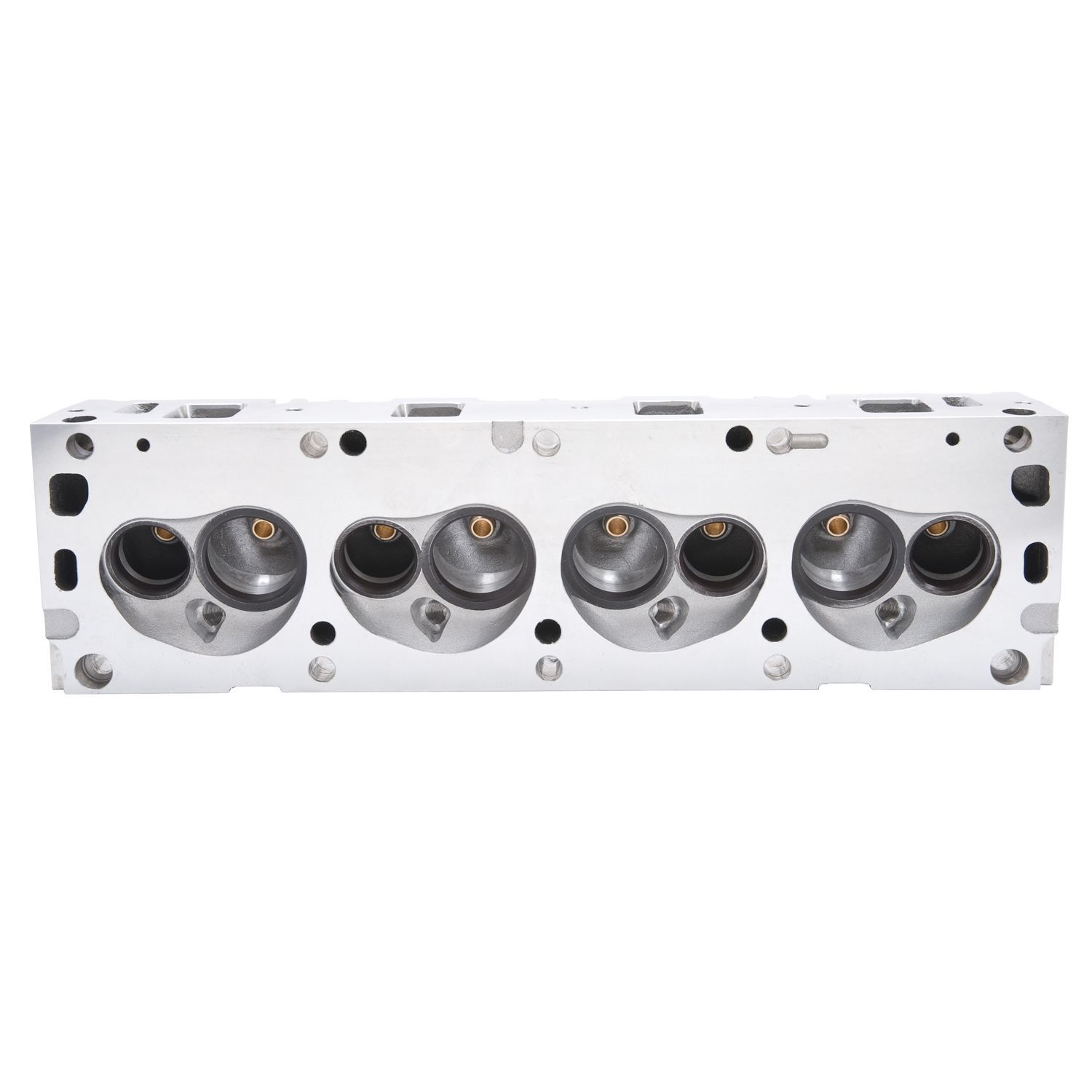

The Aluminium Edelbrock 60059 Performer RPM Bare Cylinder Head.
Sold individually.
These FE 390 428 cylinder heads are designed for use with 1961-76 390-427-428 Ford applications. Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.
The Edelbrock ED60059 Performer RPM Bare cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Recommended Intake Gaskets: Edelbrock 7224
Combustion Chamber Volume (cc): 72
Intake Runner Volume (cc): 170cc
Exhaust Runner Volume (cc): 125cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast Aluminium
Intake Valve Diameter (in.): 2.090 in.
Intake Port Location: Standard
Exhaust Port Location: Standard
Exhaust Valve Diameter (in.): 1.660 in.
Valve Stem Seals Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 13
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: YES
Valve Seat Material: Ductile iron
Cylinder Head Colour: Natural
Oiling Style: Through head
Quantity: Sold individually.
Notes:
Edelbrock stud kit EDL-6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. Heads have the 16-bolt 428 Cobra Jet exhaust flange bolt pattern.
Specifications
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L)
SKU | ED60059 |
Barcode # | 00085347600595 |
Brand | Edelbrock |
