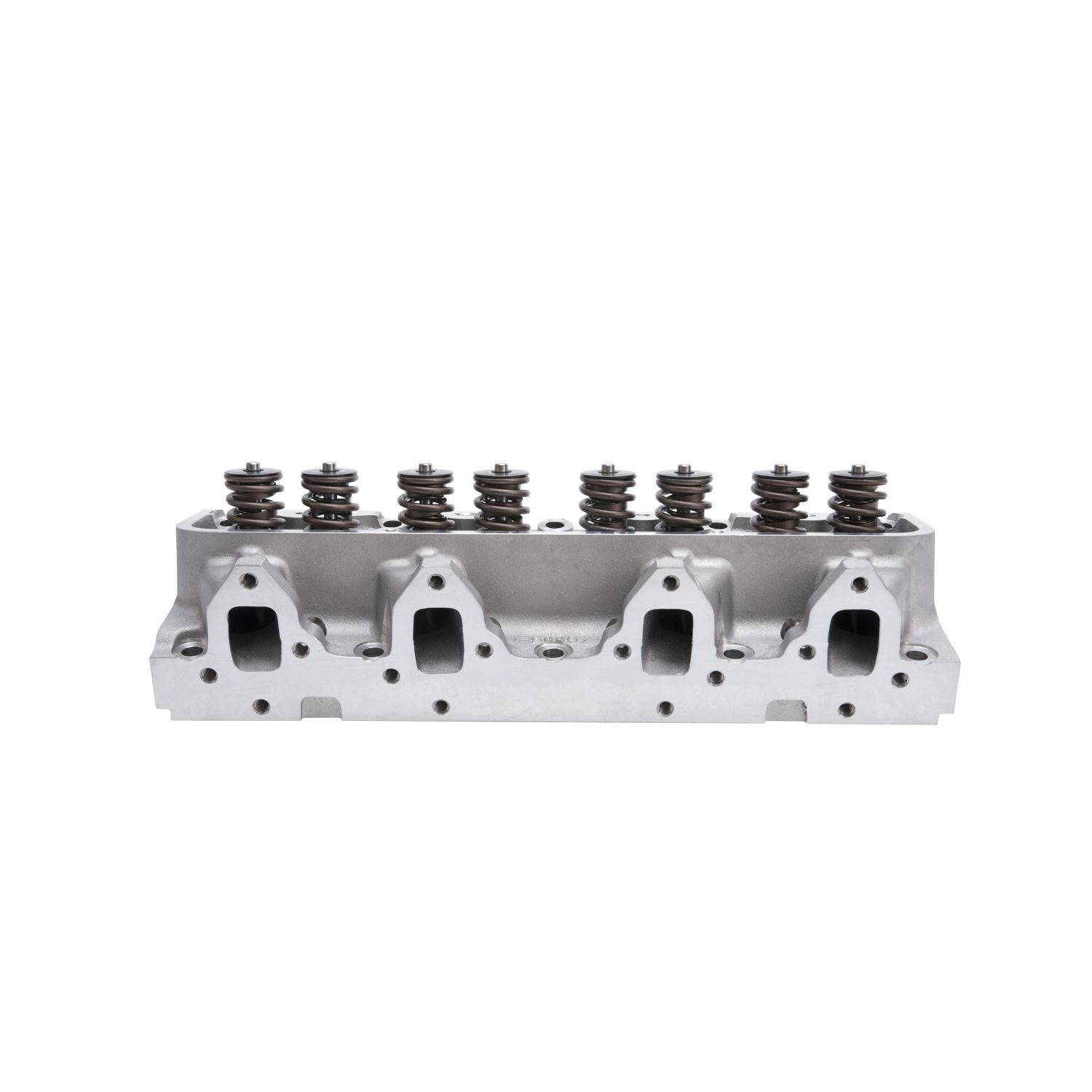

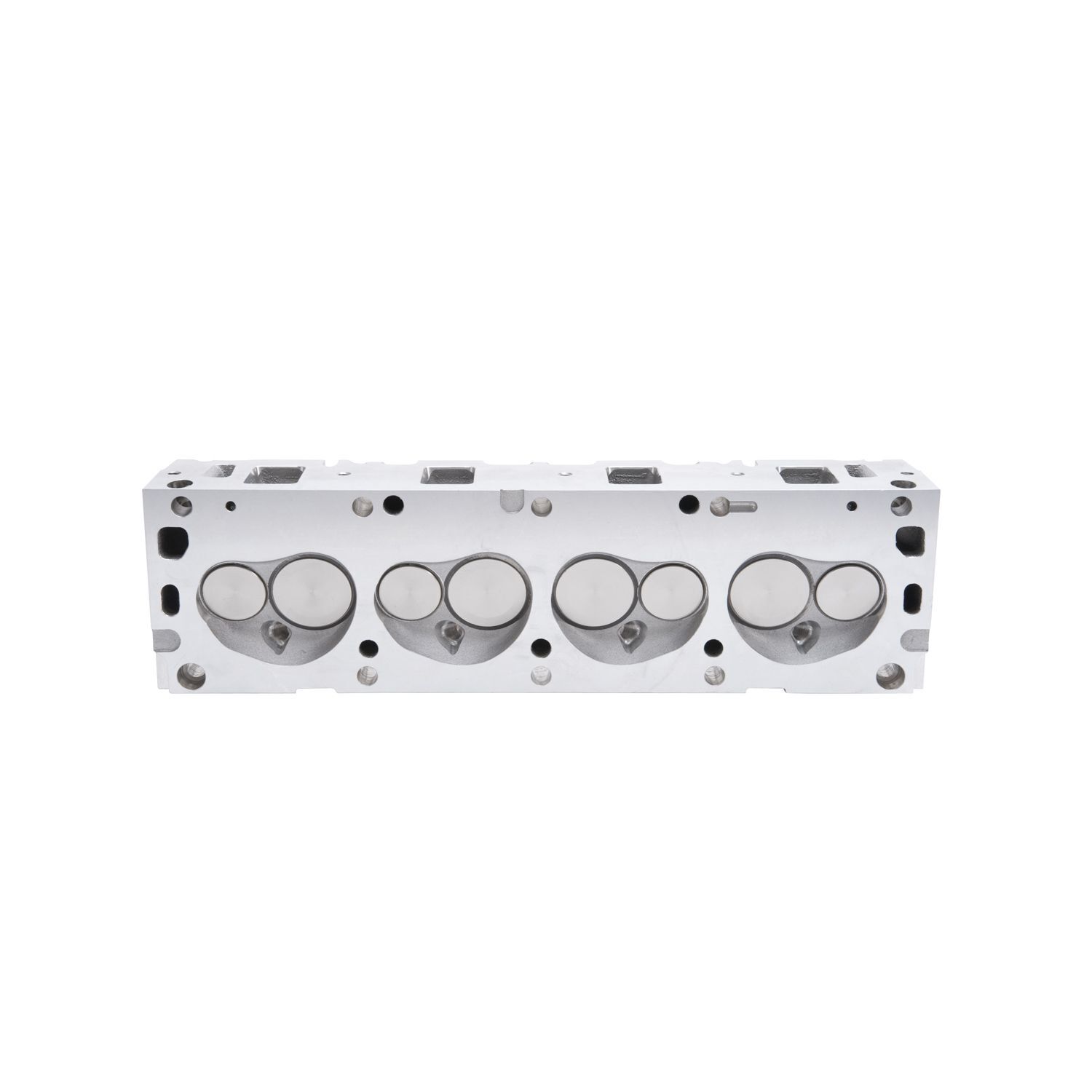

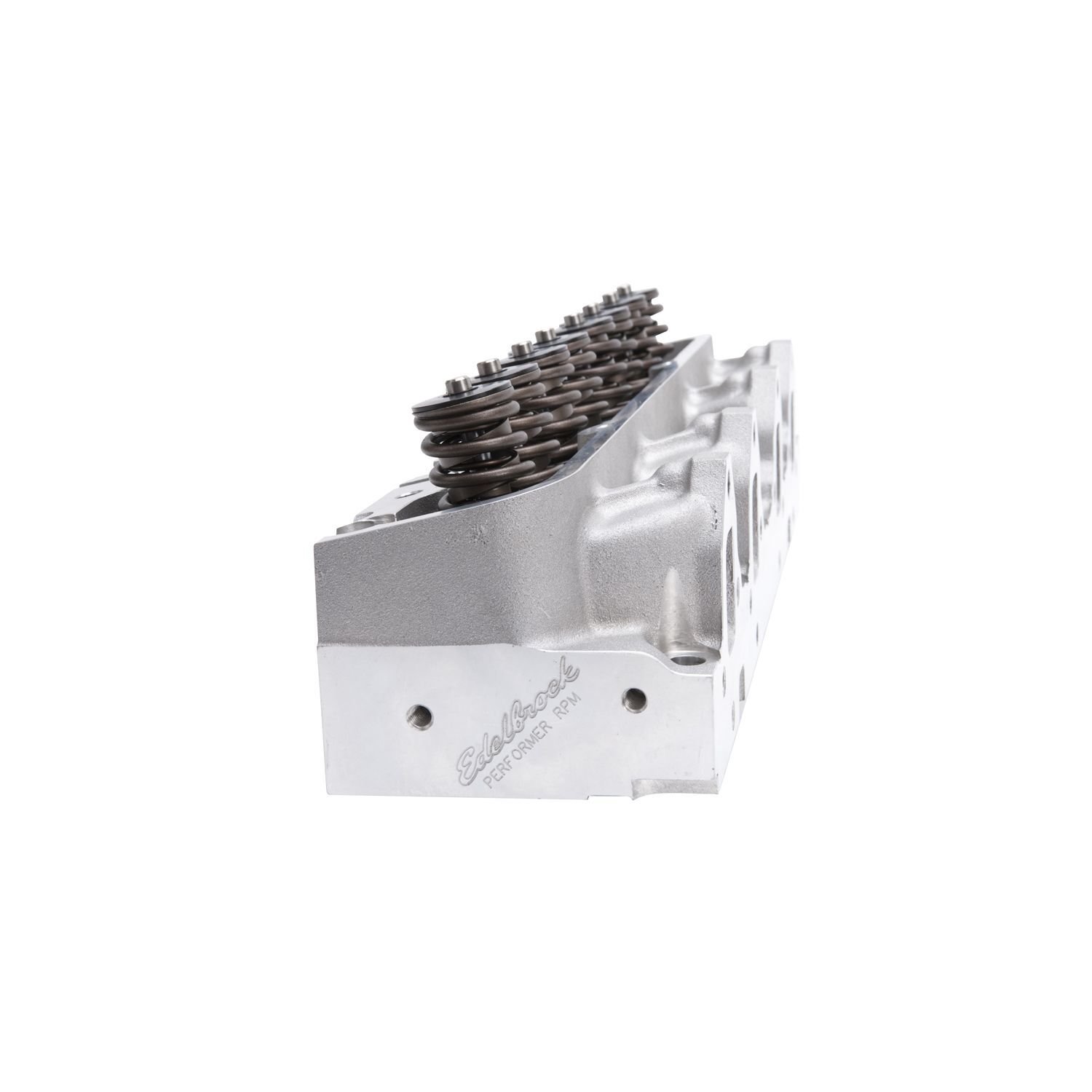

Ford FE 390, 428 CJ V8 170cc Aluminium Cylinder Heads, 72cc, Assembled Hydraulic Roller

The Edelbrock Part# 60065 Performer RPM Cylinder Heads are designed for use with 1961-76 390-427-428 Ford applications. Performer RPM heads are perfect for street performance, daily drivers, and muscle cars where more performance is needed.

The Edelbrock #60065 Performer RPM cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Combustion Chamber Volume (cc):  72

Intake Runner Volume (cc):  170cc

Exhaust Runner Volume (cc):  125cc

Cylinder Head Style:  Fully Assembled

Cylinder Head Material:  Cast Aluminium

Intake Port Shape:  Rectangular

Intake Valve Diameter (in.): 2.090 in.

Intake Port Location:  Standard

Exhaust Port Location:  Standard

Exhaust Valve Diameter (in.):  1.660 in.

Maximum Valve Lift (in.):  0.600 in.

Camshaft Style: Hydraulic roller

Outside Diameter of Outer Spring (in.):  1.550 in.

Valve Springs: Yes Dual

Retainers Included: Yes - Steel

Locks Included:  Yes 7 degree

Valve Stem Seals Included: Yes, Positive stop

Accessory Bolt Holes Drilled:  Yes

Intake Valve Angle:  13

Valve Guide Material:  Manganese bronze

Valve Seats Machined:  Yes

Valve Seat Machine Style:  3-angle

Valve Seat Material:  Ductile iron

Oiling Style:  Through head

Heat Crossover:  No

Quantity:  Sold individually.

Notes:  Valve springs are recommended for hydraulic roller style camshafts. Edelbrock stud kit EDL-6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. Heads have the 16-bolt 428 Cobra Jet exhaust flange bolt pattern.
