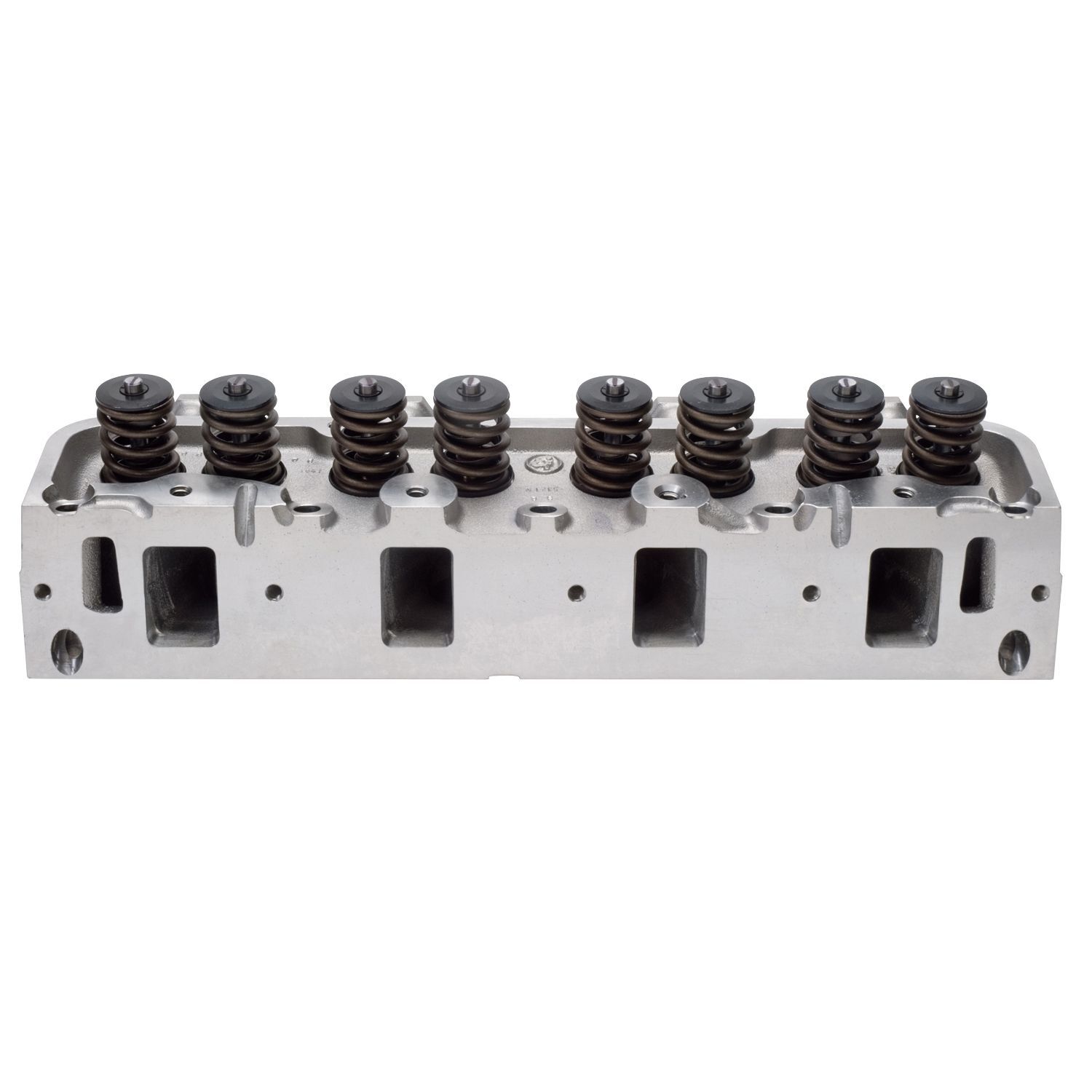

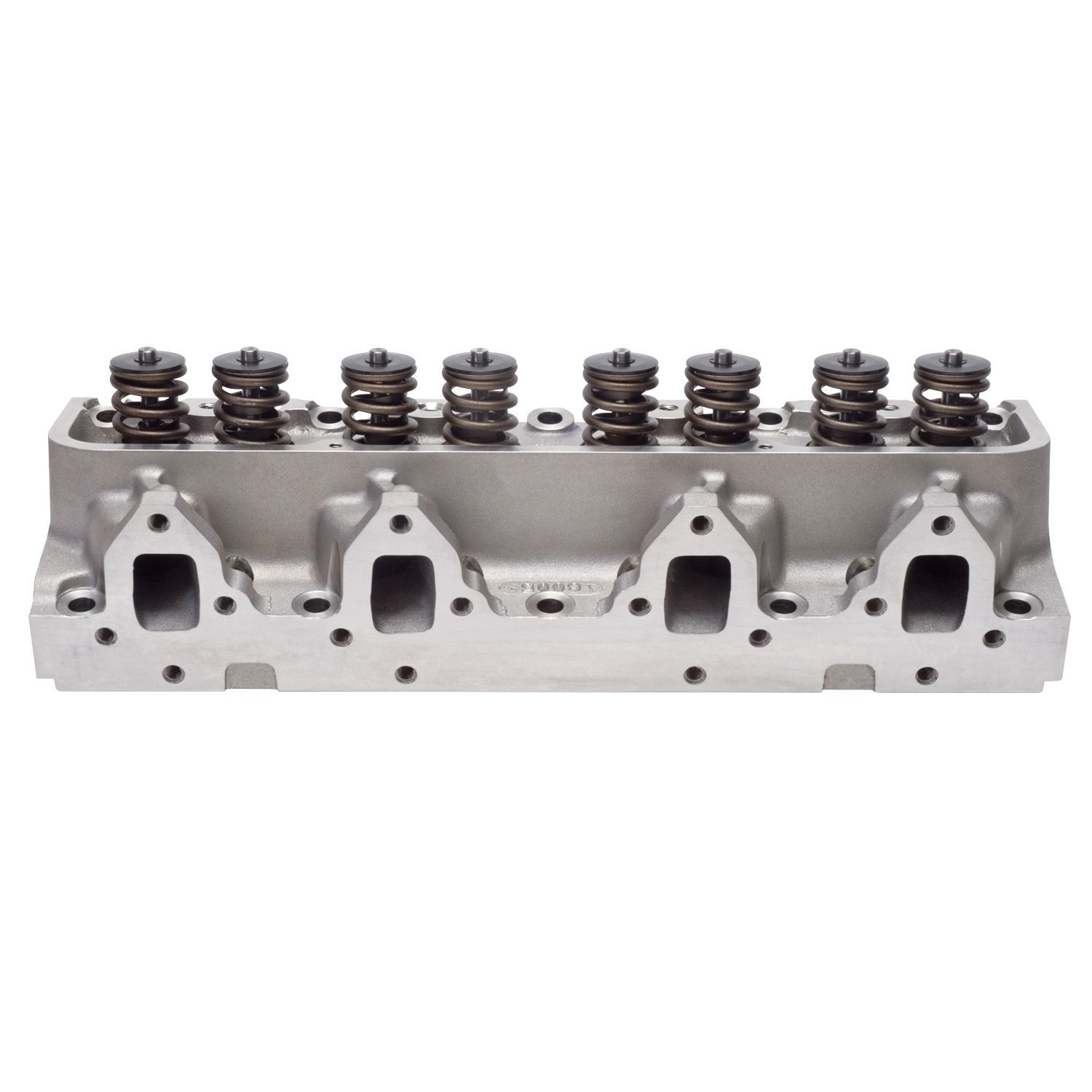

450-550HP Ford FE 390, 428 CJ V8 170cc Aluminium Cylinder Heads 72cc Assembled for Flat tappet Camshaft

The Aluminium Edelbrock 60069 Performer RPM Cylinder Heads are designed for use with 1961-76 390-427-428 FE Ford Engines. Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.

The Edelbrock ED60069 Performer RPM cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Edelbrock ED60069 Specs:

Suits Engine Family:  Ford FE 390, 427, 428 Big Block

Assembled: Yes to suit hydraulic Flat Tappet Camshaft with maximum .600” lift

Series:  Performer RPM

Material:  Aluminum

Quantity: Sold Individually

Horsepower:  450-550 HP  (approx.)

Intake Valve Diameter:   2.09 in

Exhaust Valve Diameter: 1.660”

Intake Runner Volume:  170 cc

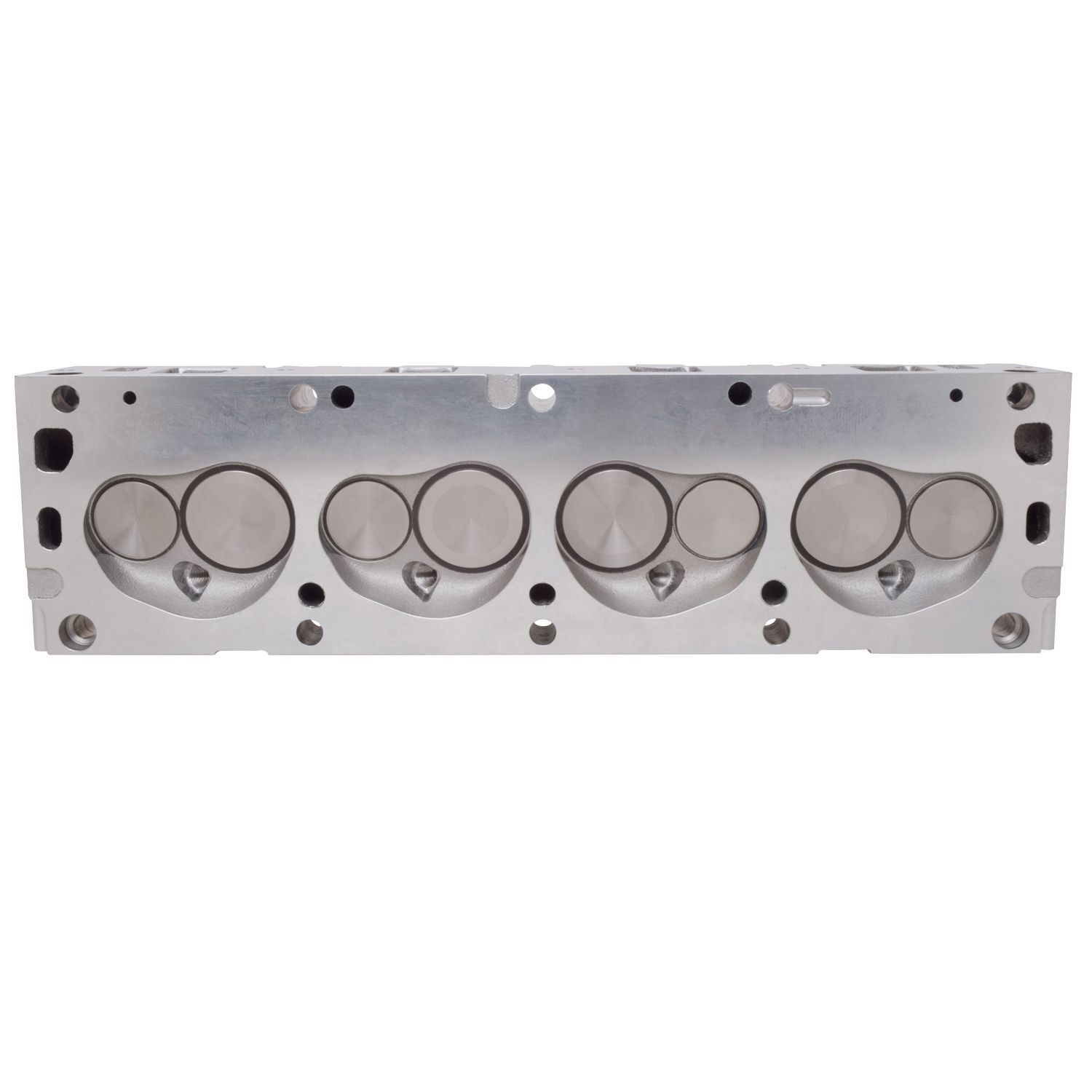

Combustion Chamber Volume: 72cc

Exhaust Port Location: Standard

Push Rod Diameter:  0.375 in

Valve Angle:  13 deg

Valve Spring Diameter:  1.55 in

Valve Spring Maximum Lift:  0.600 in

Valve Stem Diameter:  0.375 in

Installation Notes: EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS; 428 Cobra Jet-sized valves promote excellent flow for streetable power; Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head.; Match with Edelbrock head gasket sets.; 390 GT exhaust will not fit.; Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8".

Recommended Matching Parts (not supplied)

Intake Gaskets: Edelbrock 7224

Recommended Shaft Rocker Studs: Edelbrock ED6009 (Not included)

Head Bolts: must use ARP 155-4001 (not included) or Edelbrock 8557

Head Gaskets: Edelbrock 7337

Intake Gaskets: Edelbrock 7224

Recommended Sparkplug Size:  RC12YC
