Description
Edelbrock ED61645 Performer RPM CJ cylinder heads. Suits Ford Big Block 429 460, 1968-1987, SVO 514 engine applications.
SOLD AS A SINGLE CYLINDER HEAD

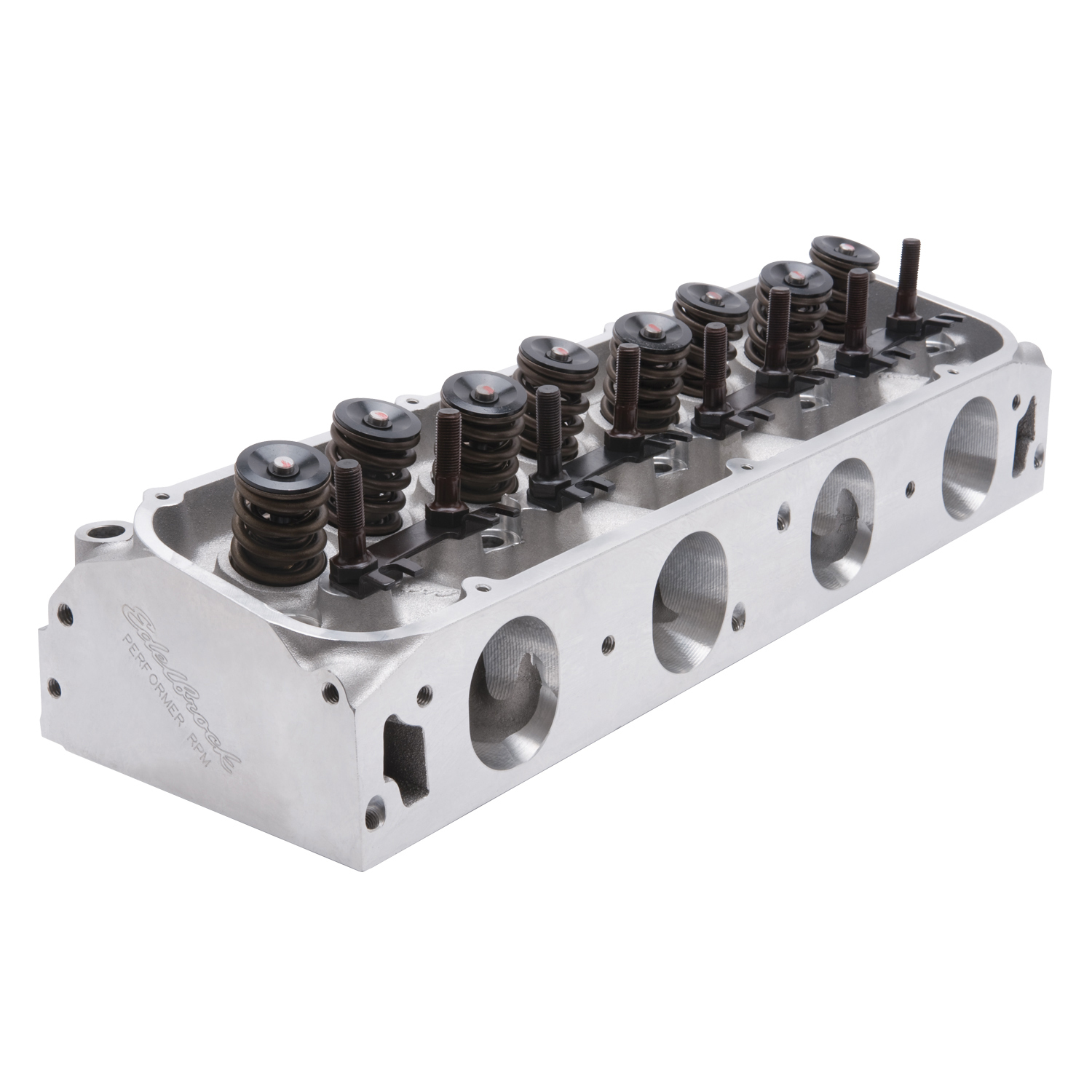

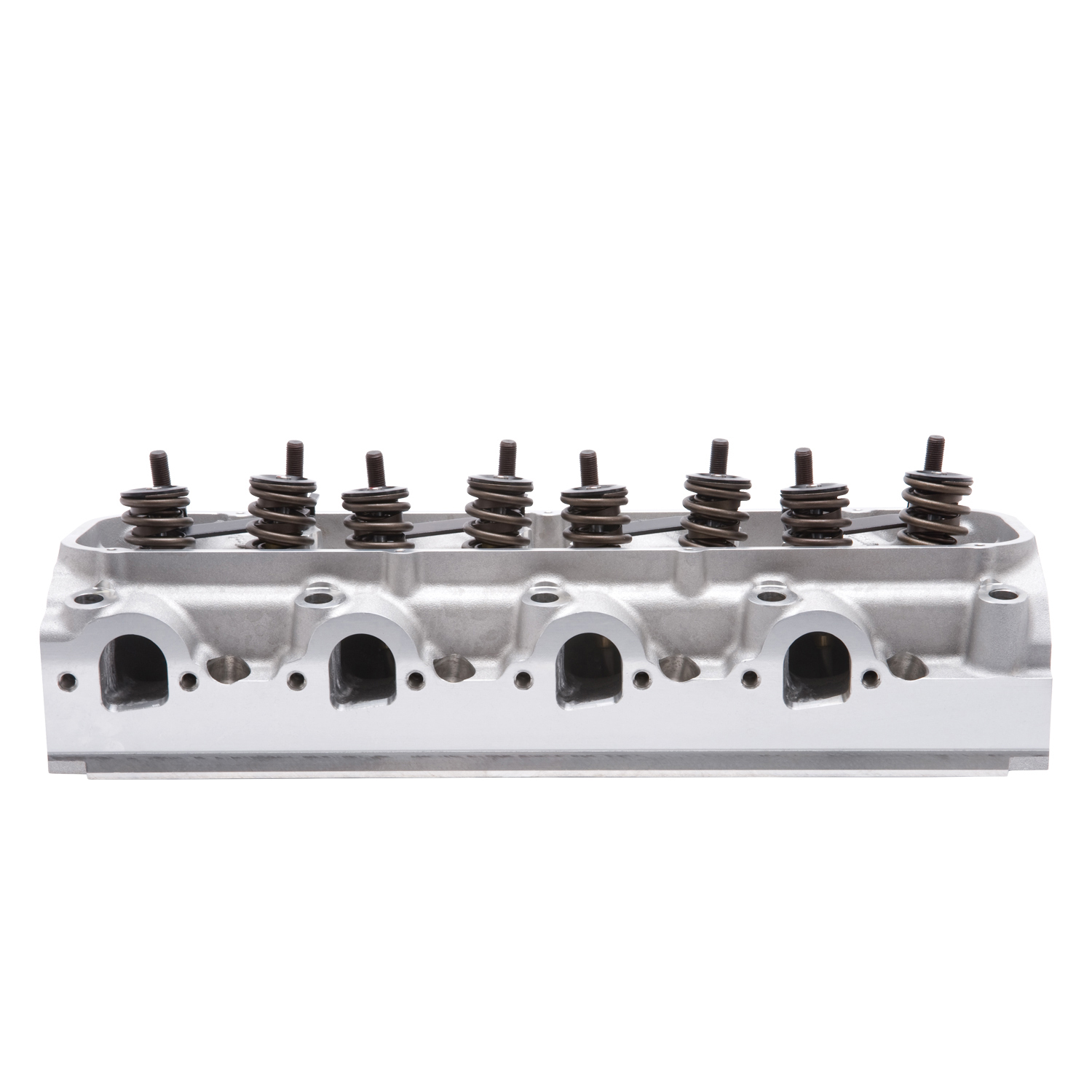

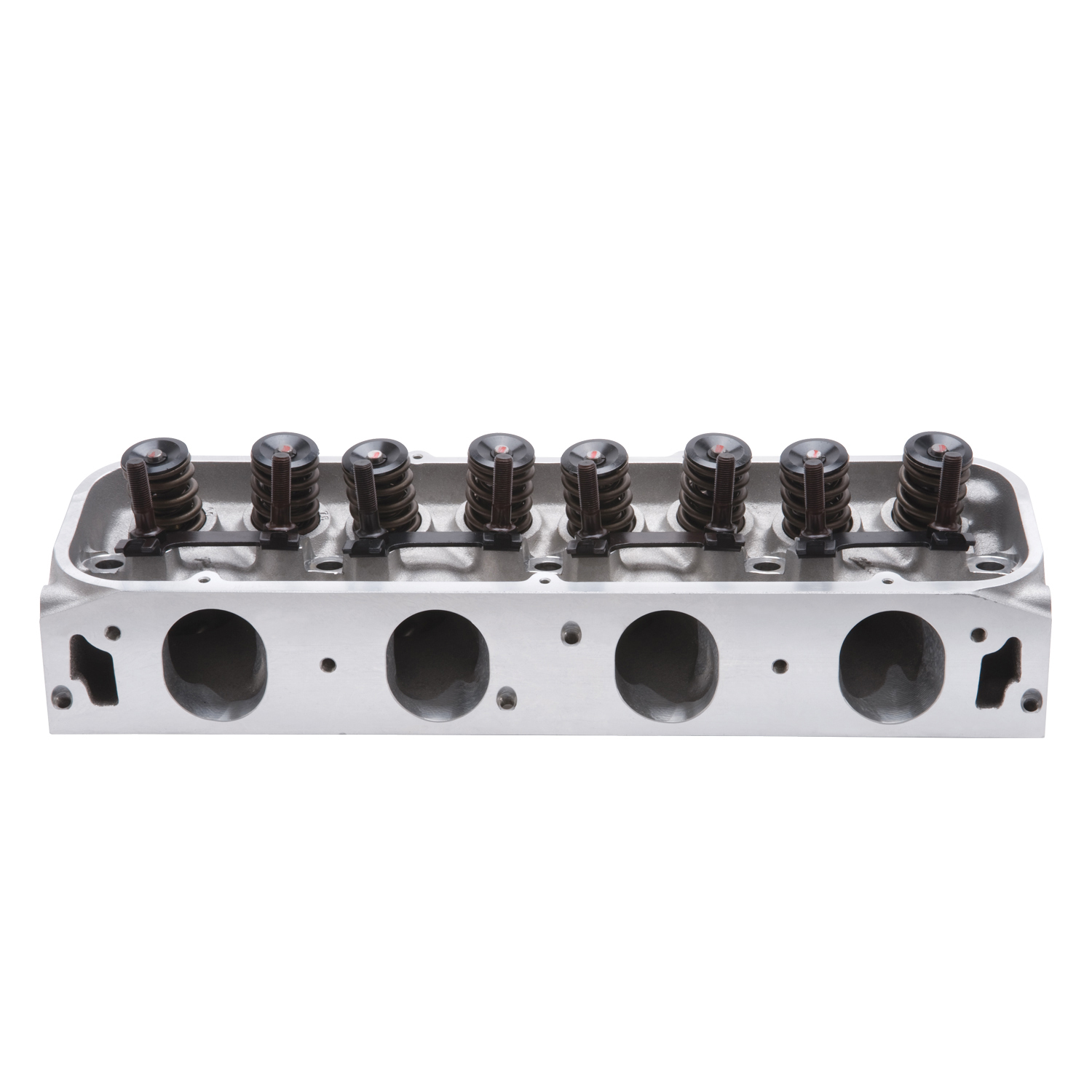

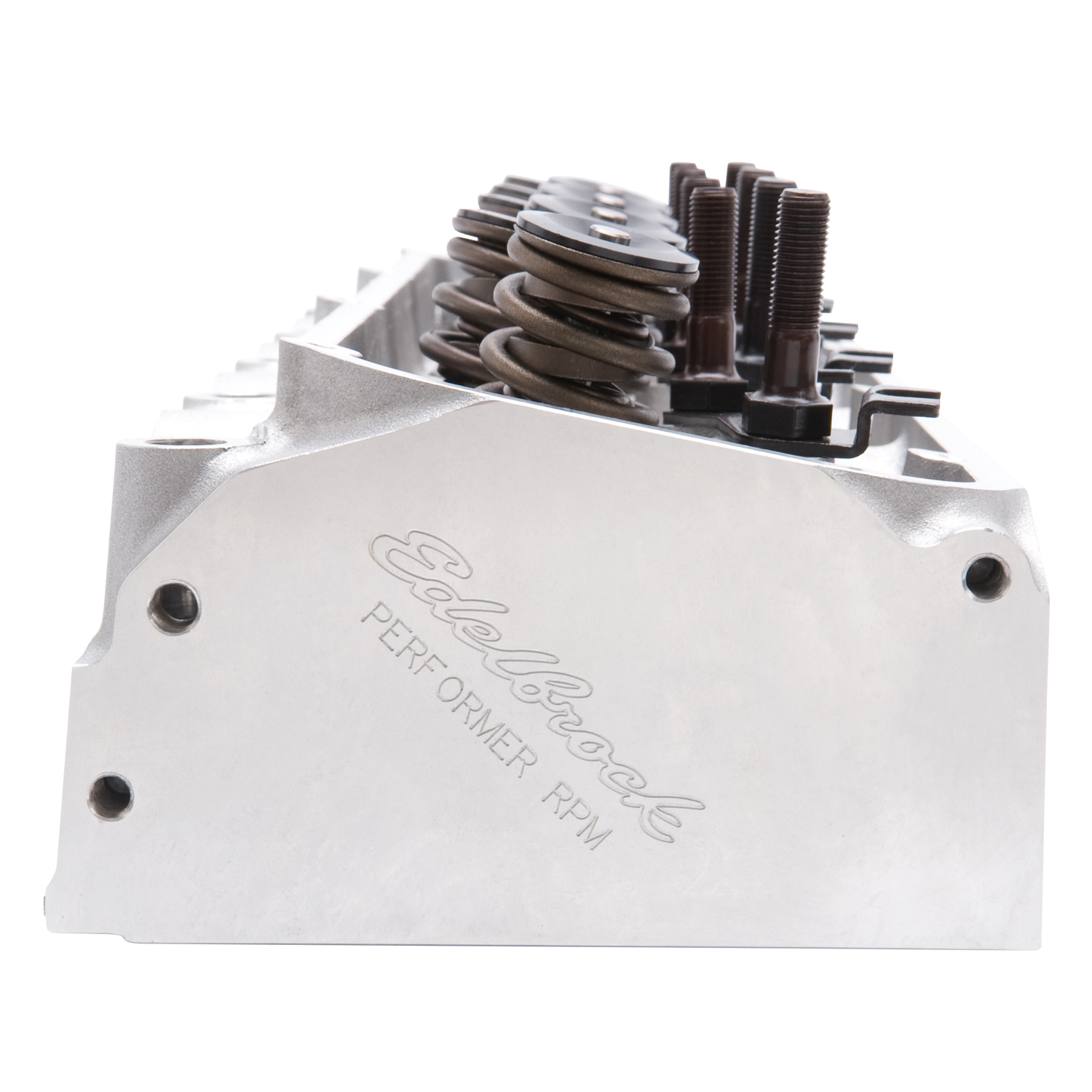

The Edelbrock 61645 Performer RPM CJ cylinder head is designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61645 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

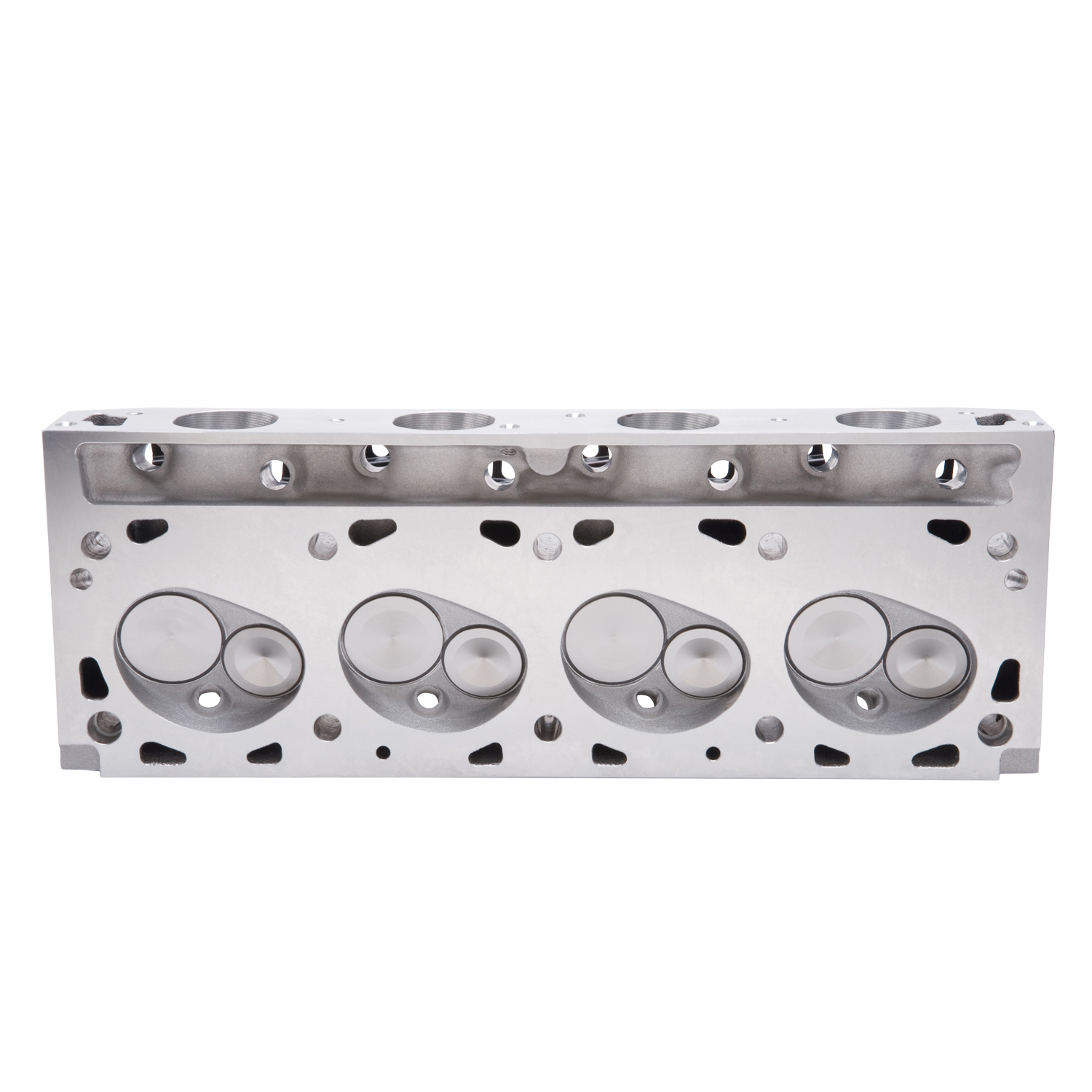

Combustion Chamber Volume (cc): 75
Intake Runner Volume (cc): 310cc
Exhaust Runner Volume (cc): 100cc
Assembled/Complete: Assembled to suit Hydraulic Roller Camshafts (max lift 0.700”
Max Lift: 0.700” lift
Cylinder Head Material: Aluminum
Intake Port Shape: Round
Intake Valve Diameter (in.): 2.190 in.
Intake Port Location: Standard
Exhaust Port Location: Standard
Exhaust Valve Diameter (in.): 1.760 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.700 in.
Outside Diameter of Outer Spring (in.): 1.550 in.
Lock Style: 7 degree
Rocker Arm Studs: 7/16 in.-20 Included
Guideplates: 3/8” Included Yes
Valve Guide Material: Manganese bronze
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Quantity: Sold individually.
Notes:
Designed for engine with hydraulic roller camshafts. Also designed for SVO 514 cu. in. engines. Machined profile Cobra Jet-style intake port entries. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
Specifications
Ford:Big-Block:429 (7.0L )/460 (7.5L)
SKU | ED61645 |
Barcode # | 00085347616459 |
Brand | Edelbrock |
