SKU: ED7525

Dual Quad Carby Intake Manifold RPM AIR-GAP, Dual-Plane, Performer, Small Block Chevy 350 SBC

RPM Range: 1500-5500

$793.10

or 4 payments of $198.28 with Info

SOLD OUT

Description

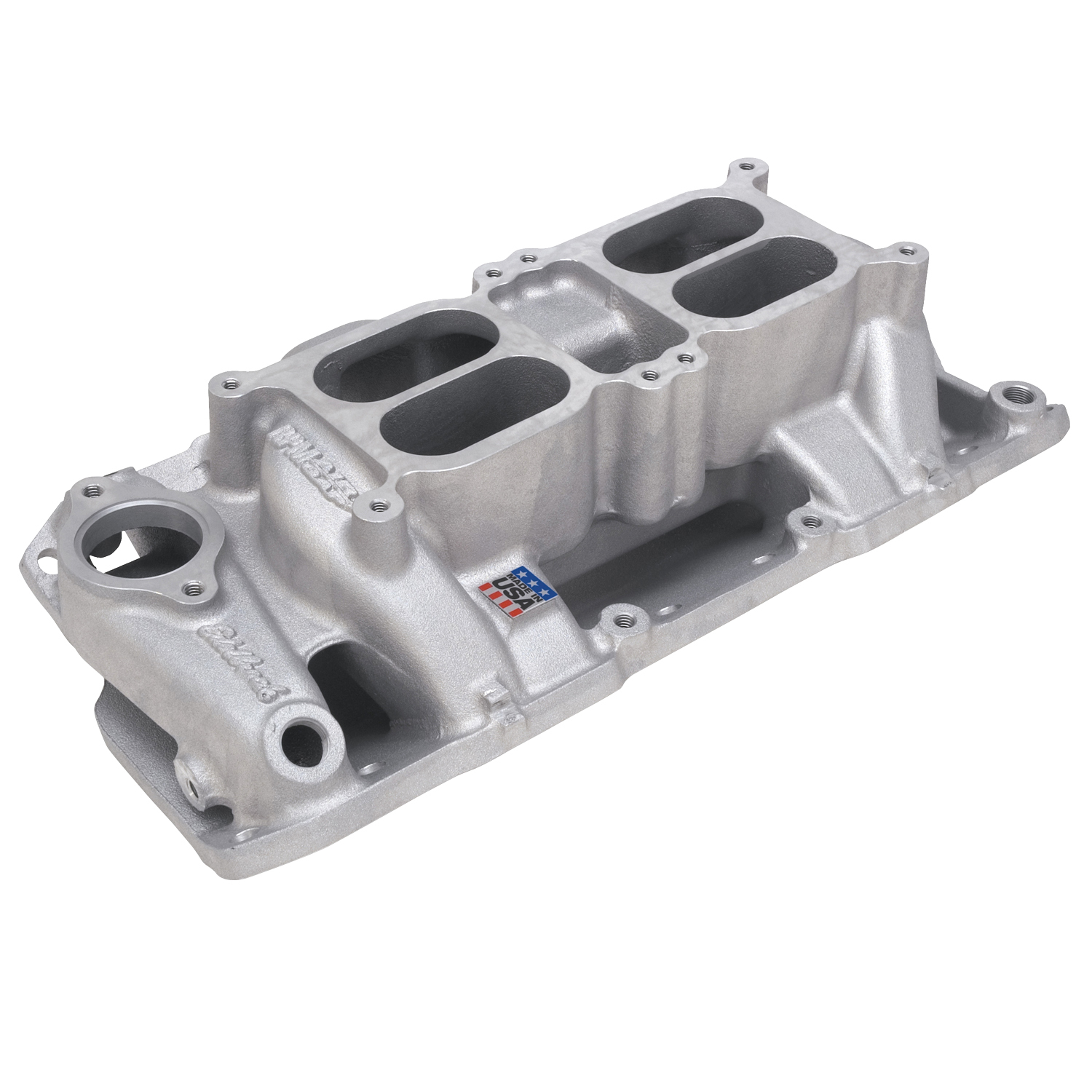

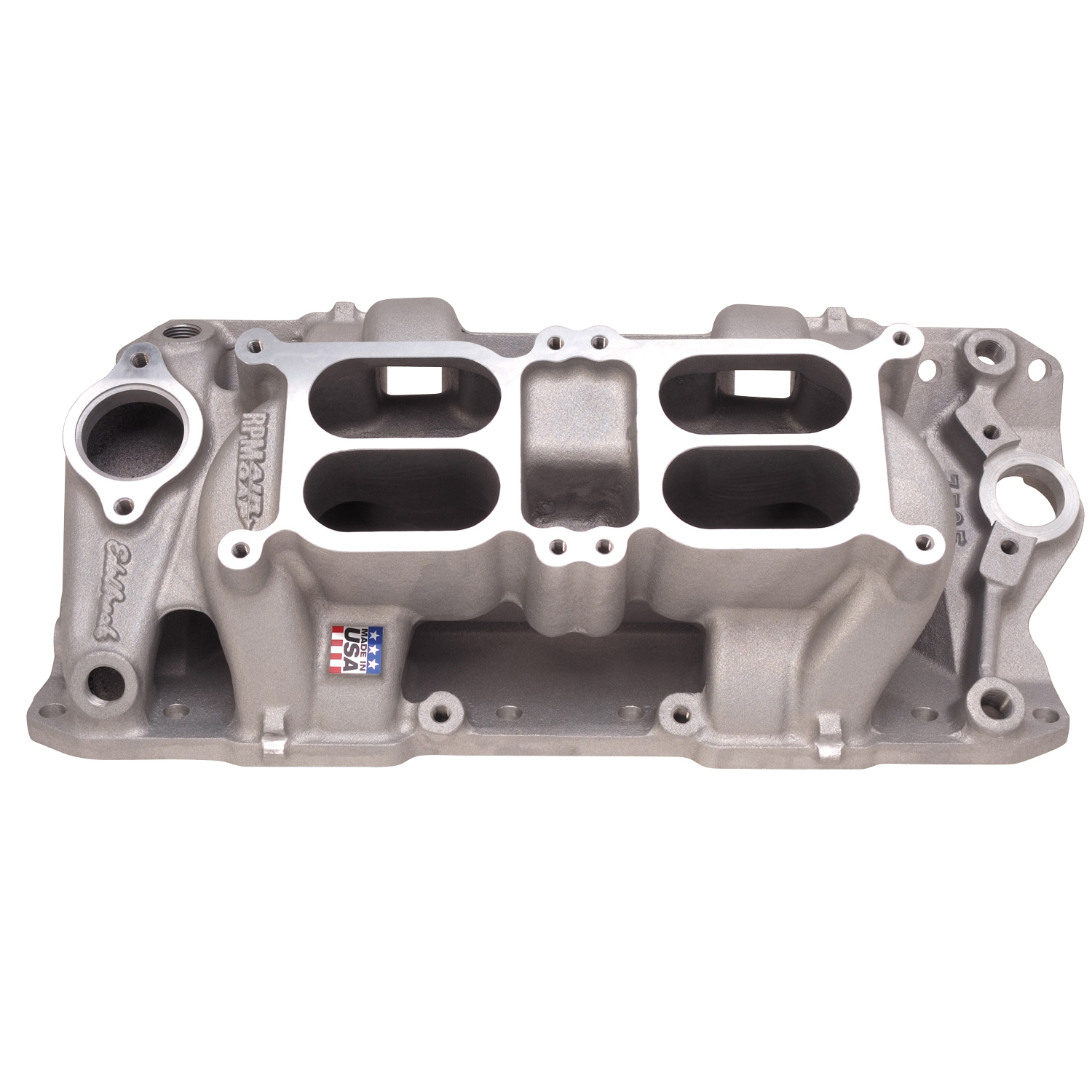

Edelbrock Performer RPM AIR-GAP Dual-Quad Intake Manifold Small Block Chevy 350 400 Small-Block V8.

Edelbrock part ED7525 RPM Air-Gap dual-quad intake manifold is designed for 1955-86 S/B Chevys, this intake stands 1-5/8" taller than the low-profile C-26 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. Will not fit under stock Corvette hood.

Number of Carbs:  2 - Dual Carby

Carb Heights: Manifold ht: A-4.57", B-5.20"; Carb pad height: 4.89"

Port Sizes:  Port exit dimensions: 1.16" x 1.92"

Recommended Intake Gasket: Edelbrock# 7201

Notes:  H.E.I. Distributors will not fit. Carb center-to-center distance: 6-7/16".

Specifications

Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)

SKU ED7525
Barcode # 00085347075256
Brand Edelbrock
