Description

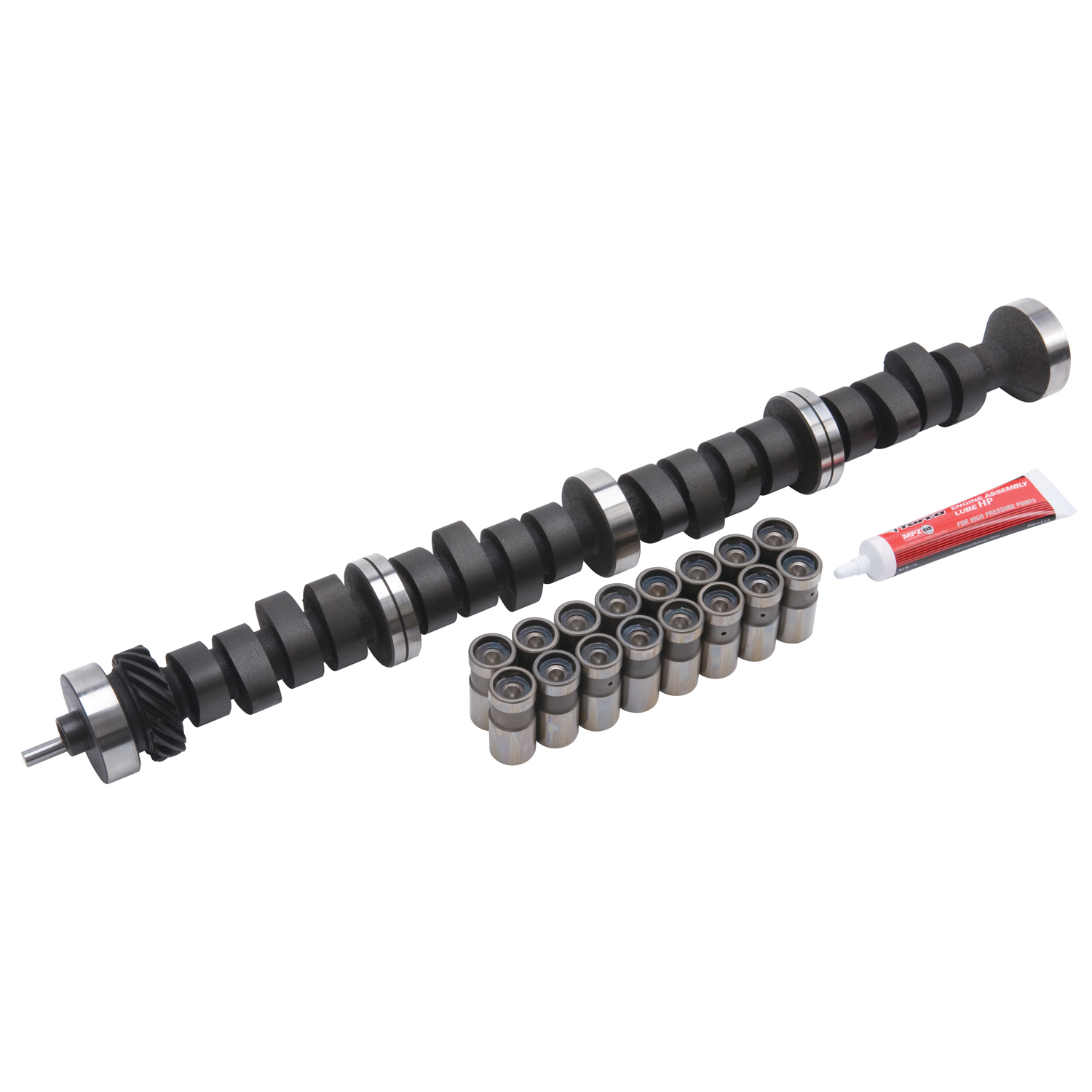

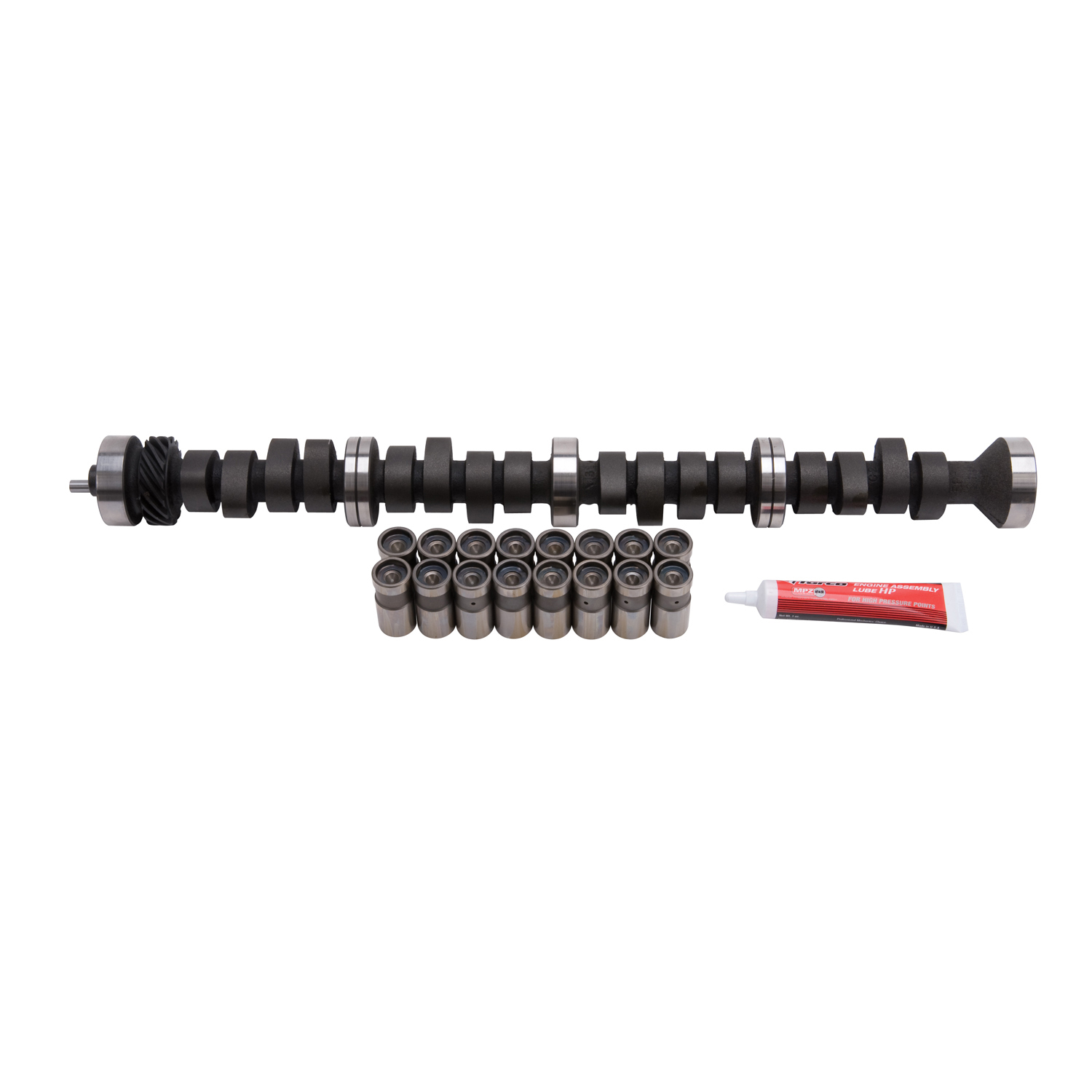

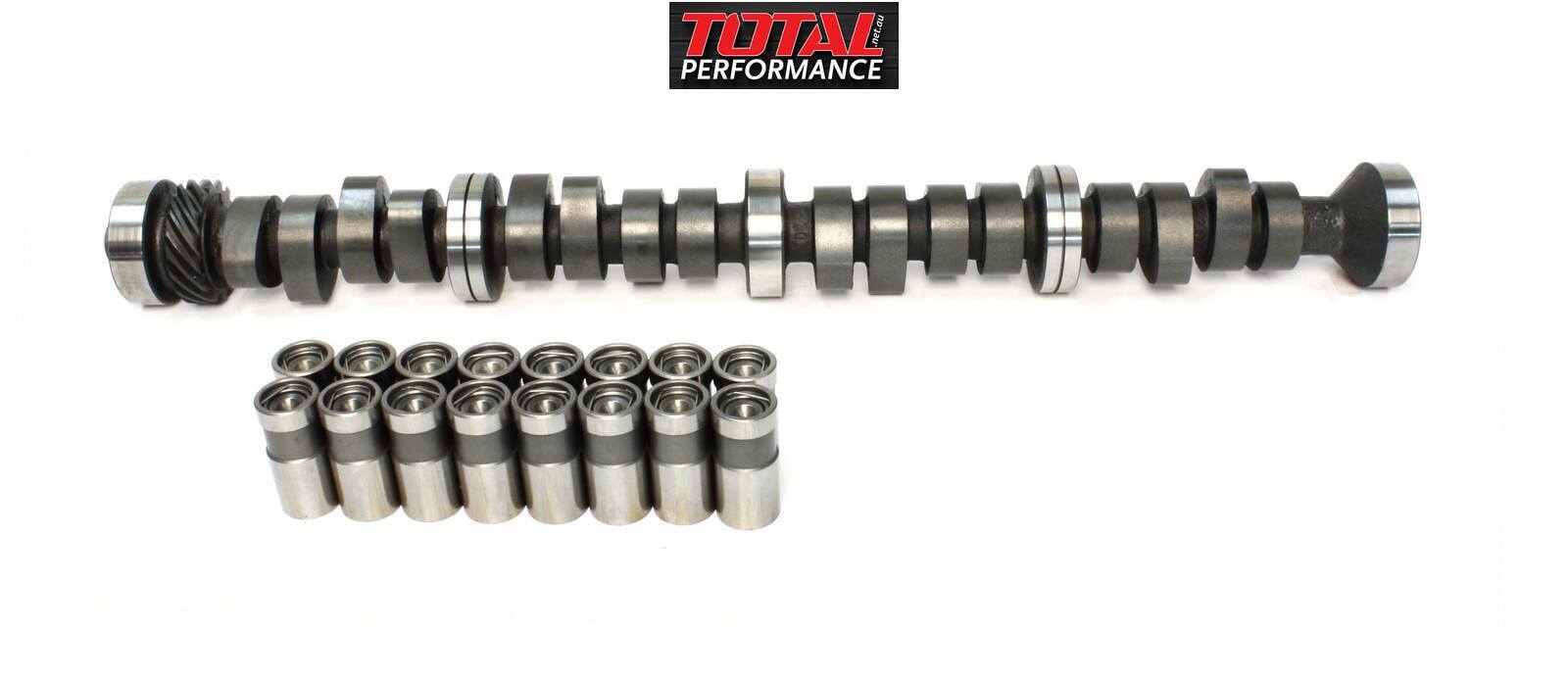

Edelbrock part #7106 Performer RPM Camshaft is designed for Ford FE 390-428 V-8 applications. This Edelbrock cam kit produced 418 HP & 434 ft-lbs. of torque when used with #7105 intake and #60069 cylinder heads on a 390 engine.
Edelbrock Part # 7106 Performer RPM Camshaft is designed for Ford FE 390-428 V-8 applications. This Edelbrock cam kit produced 418 HP & 434 ft-lbs. of torque when used with #7105 intake and #60069 cylinder heads on a 390 engine. The camshaft works well with high-performance street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.
Camshaft can not be used on a 1958-mid 1963 Ford 390 FE engines.
- Camshaft Specifications:
- Duration @ .050 Intake: 236 degrees
- Duration @ .050 Exhaust: 236 degrees
- Lift @ Valve Intake: .572
- Lift @ Valve Exhaust: .572
- Lobe Separation: 108 Degrees
- Intake Centerline: 103 Degrees
- Idle Vacuum @ 1000 RPM's: 11
Specifications
SKU | ED7106 |
Brand | Edelbrock |
Camshaft Series | Xtreme Energy |
Locks Included | No |
Retainers Included | No |
Valve Stem Seals Included | No |
Timing Chain And Gears Included | No |
Camshaft Material | Cast Iron |
Camshaft Gear Attachment | 1-Bolt |
Valve Springs Required | Yes |
Lifters Included | Yes |
Basic Operating Rpm Range | 1,800-6,000 |
Gaskets Included | No |
Lobe Separation | 110 |
Intake Duration At .050 Inch Lift | 230 |
Exhaust Duration At .050 Inch Lift | 236 |
Cam Type | Hydraulic Flat Tappet |
Advertised Intake Duration | 274 |
Advertised Exhaust Duration | 286 |
Lifter Type | Hydraulic Flat Tappet |
Exhaust Valve Lift | 0.565 |
intake valve lift | 0.562 |
