FORD 302 351C 2V Cleveland Cylinder Head Complete suit Hydraulic Flat Tappet Cam Assembled
Assembled to suit HYDRAULIC FLAT TAPPET
SOLD OUT
Description
Edelbrock Performer RPM cylinder heads are designed for use with 351C, 351M & 400M Ford engine applications.
Assembled - suits Hydraulic Flat Tappet Camshafts
Sold individually

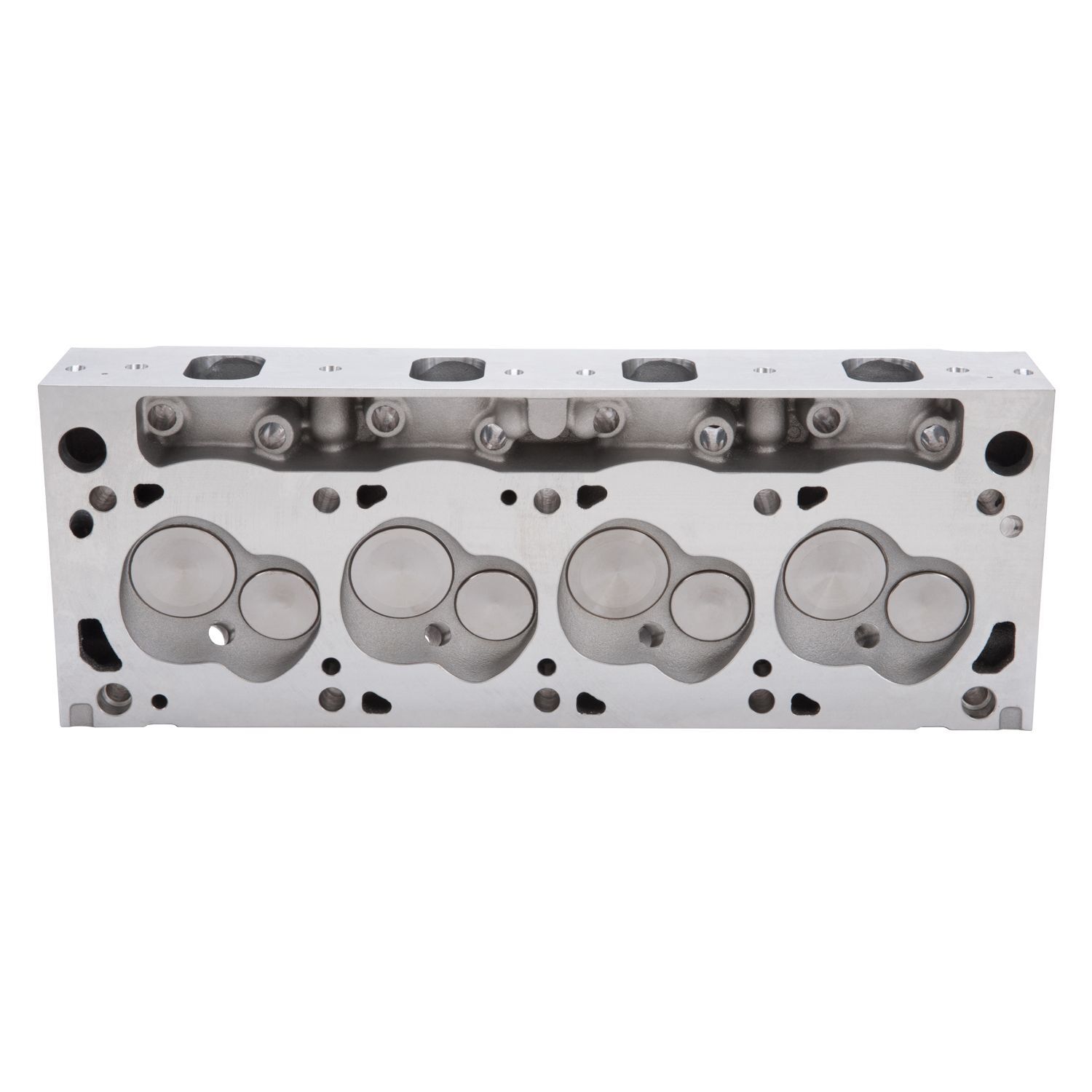

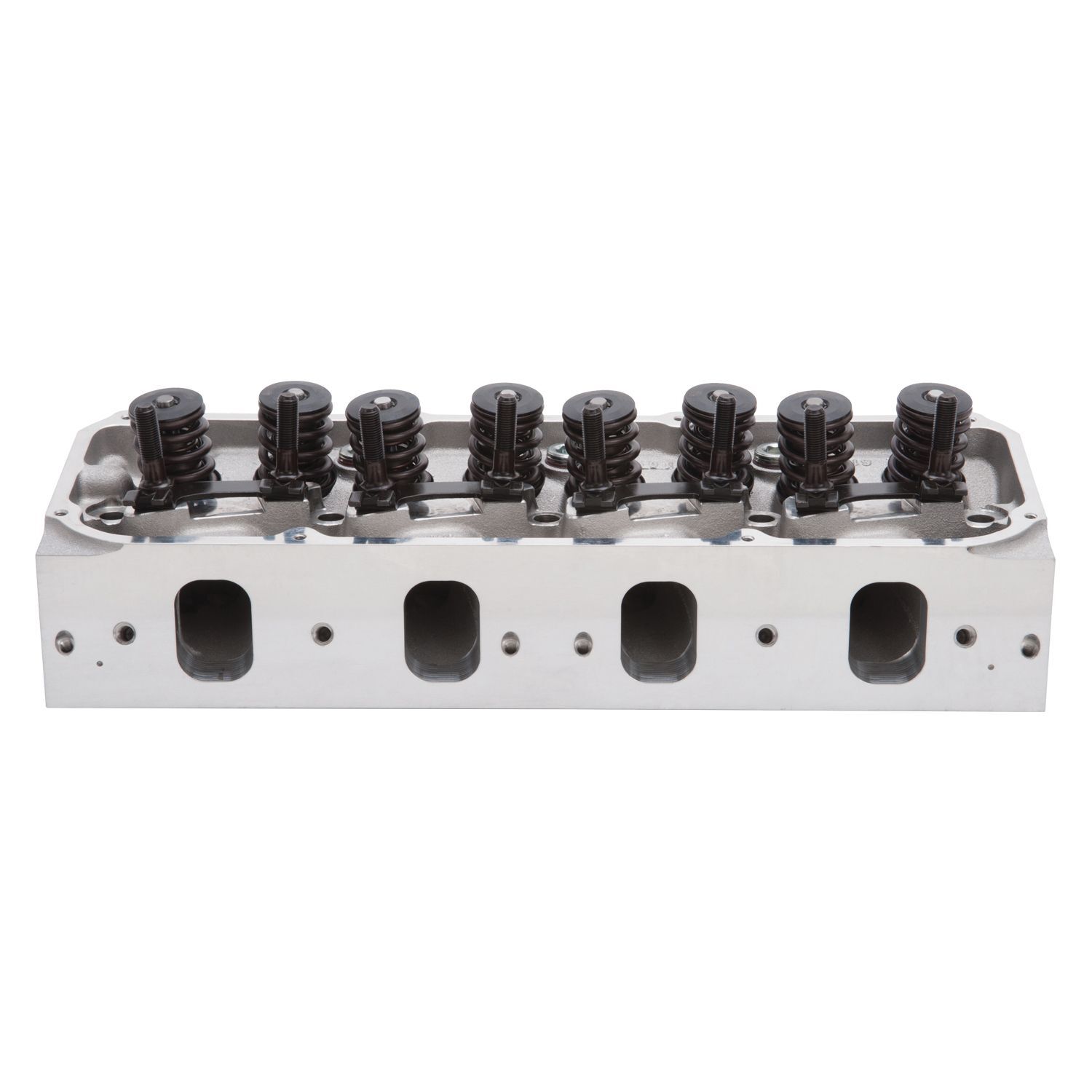

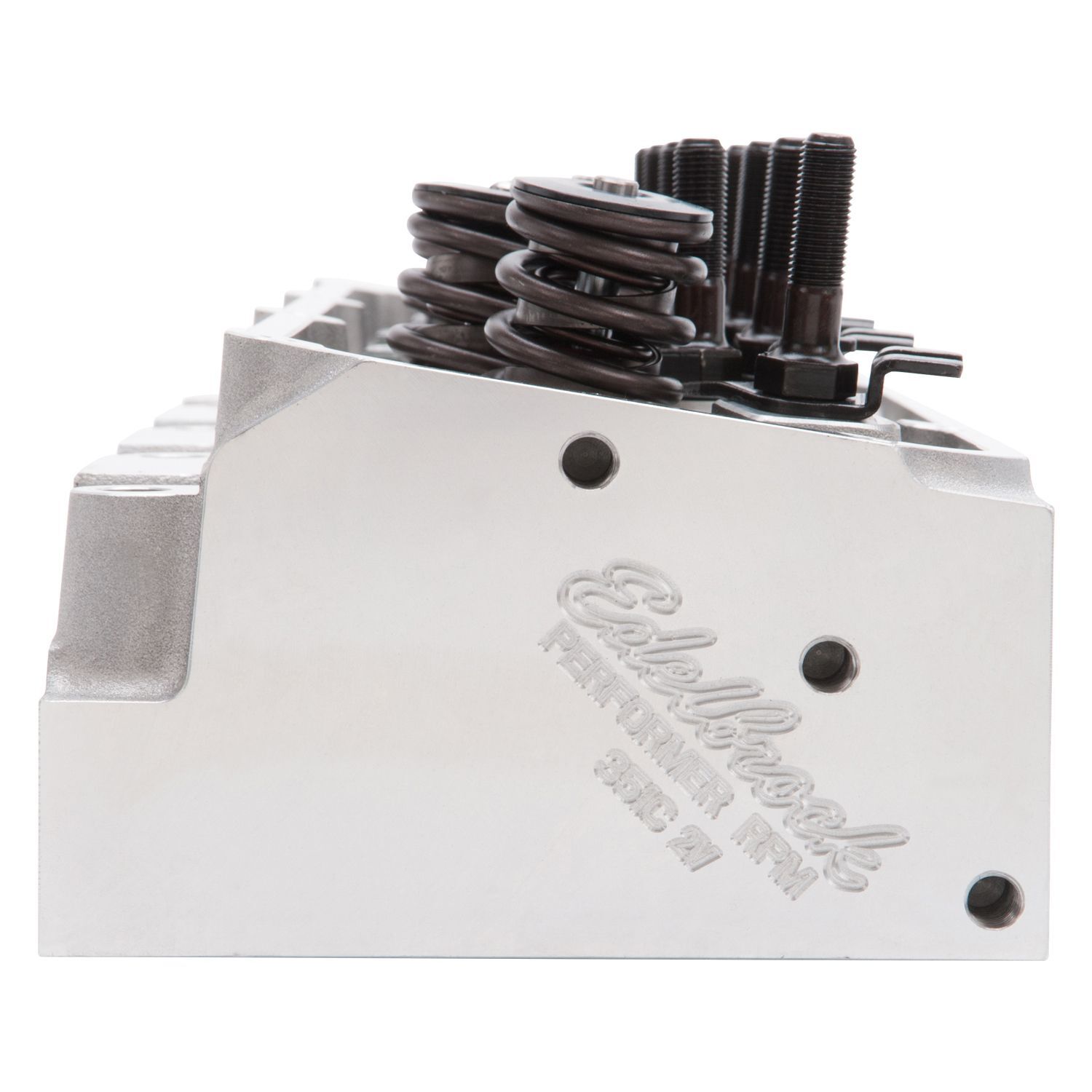

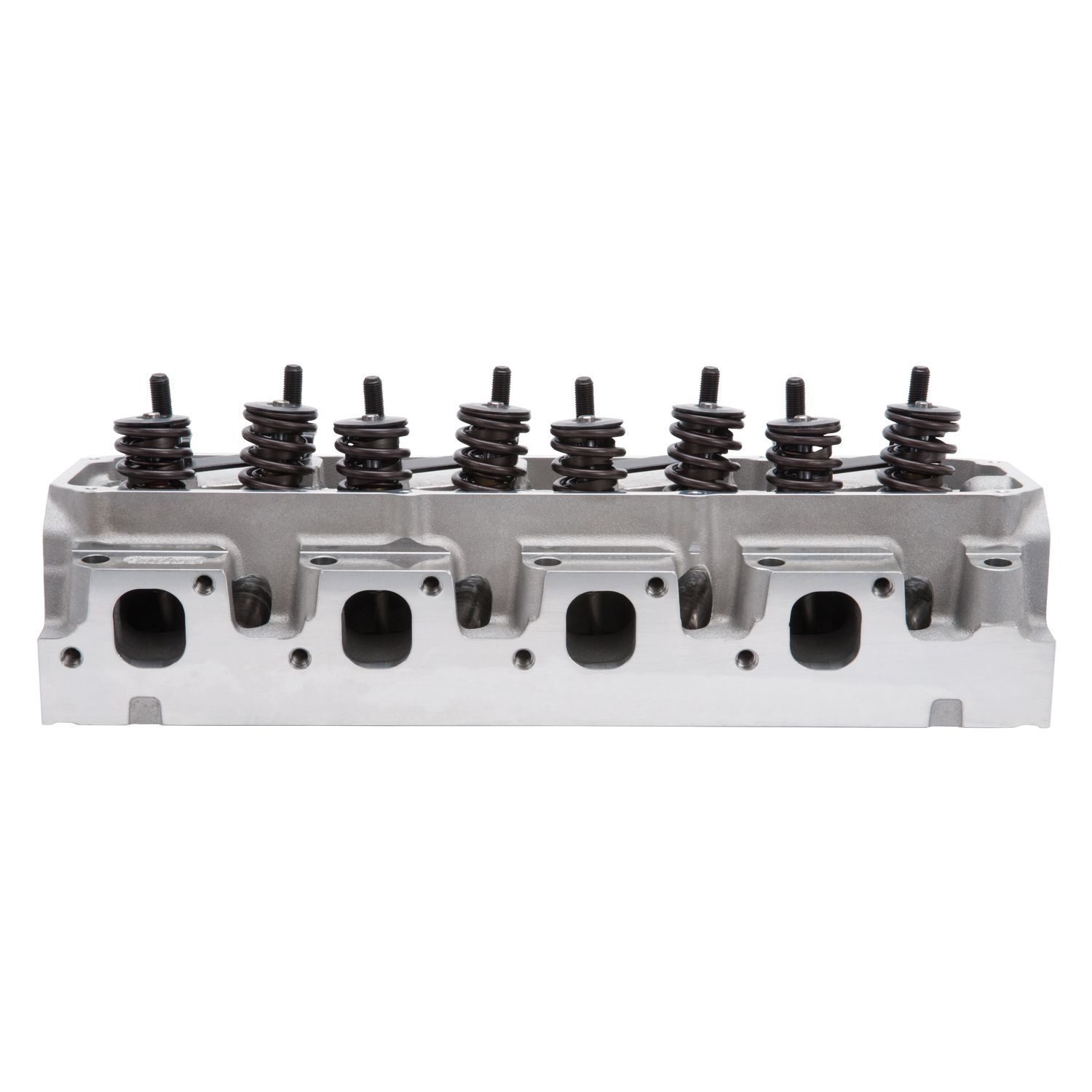

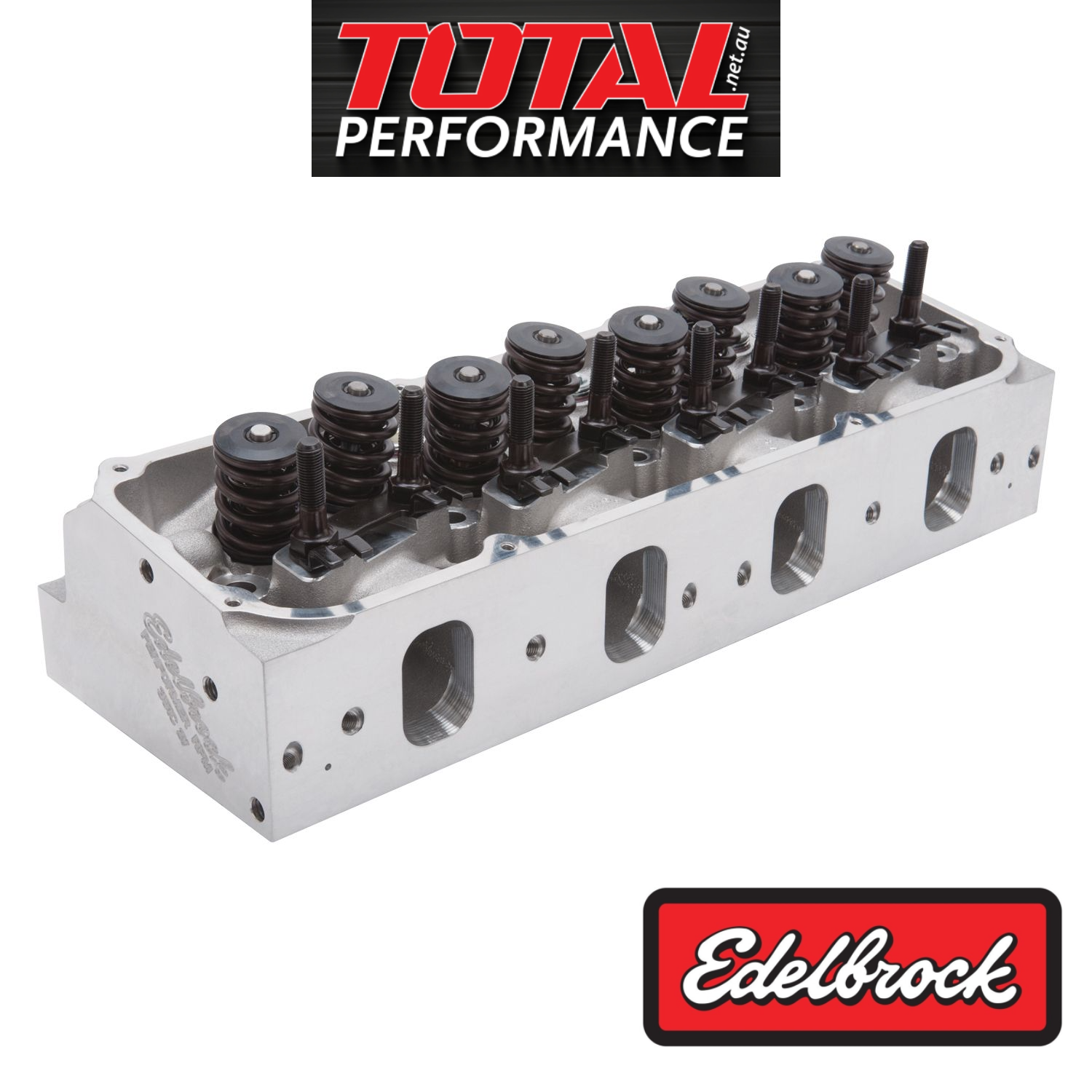

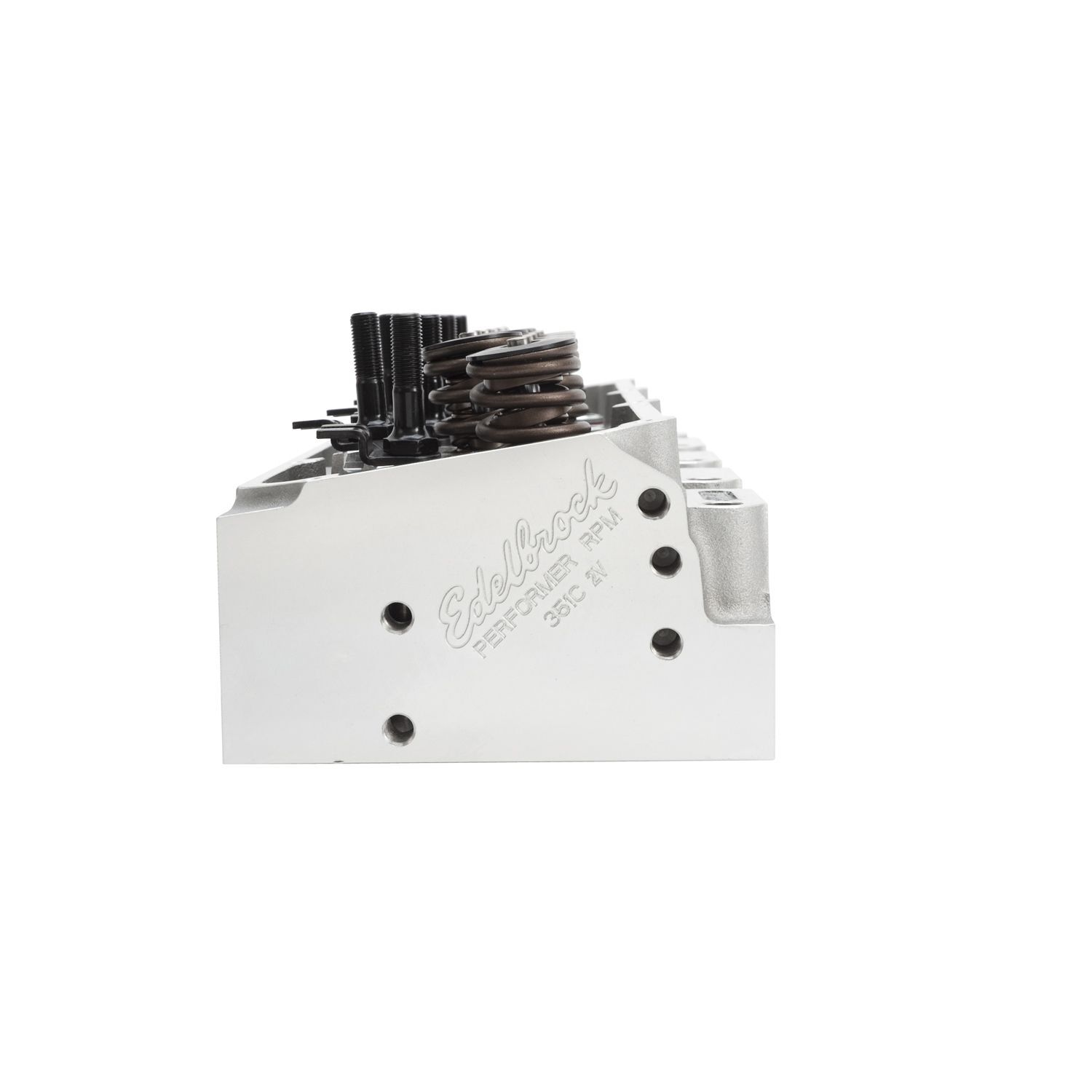

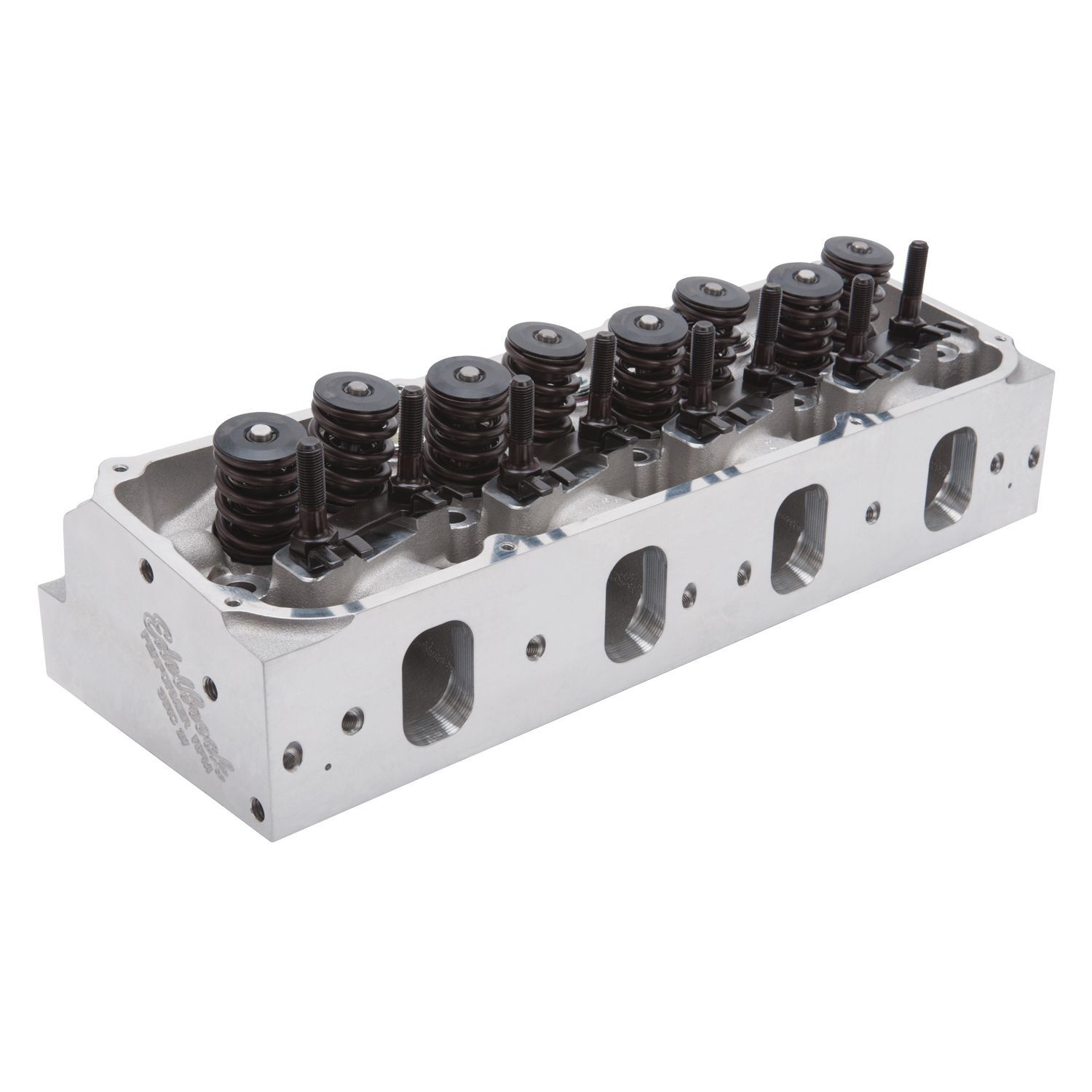

The Edelbrock #61629 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
| CNC Ported | No |
|---|---|
| Combustion Chamber Volume | 60 cc |
| Deck Height | 9.206 in |
| Deck Thickness | 0.625 in |
| Intake Valve Diameter | 2.05 in |
| Exhaust Valve Diameter | 1.60 in |
| Guide Plates Included | Yes |
| Intake Runner Volume | 190 cc |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.3125 in |
| Rocker Stud Diameter | 0.4375 in |
| Valve Angle | 9.5 deg |
| Valve Spring Diameter | 1.55 in |
| Valve Spring Maximum Lift | 0.580 in |
| Valve Stem Diameter | 0.3438 in |
Specifications
Ford:Small-Block Cleveland:351 (5.8L)
| Series | Performer RPM |
|---|---|
| Grade Type | Performance |
| Quantity | Sold Individually |
| Guide Plate Material | Hardened Steel |
| Camshaft Type | Flat Tappet |
| Horsepower | 350-500 HP |
| Availability Note | Available to Order |
| Warranty | 12 Months |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
- Match with Edelbrock head gasket sets.; Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC).; Deck thickness: 5/8"; Rocker stud diameter: 7/16"; Pushrod diameter: 5/16" (width of slot in guide plate).; Valve sizes are recommended, not maximum.; EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS; Very streetable 190cc intake runners; 2.05" intake and 1.60" exhaust valves; "Compact charge" kidney shape combustion chamber design; Intake and exhaust ports based on 2V design; Optimized spark plug location provides improved header clearance; Match with Edelbrock RPM Air-Gap manifold #7564
| SKU | ED61629 |
| Barcode # | 00085347616299 |
| Brand | Edelbrock |
